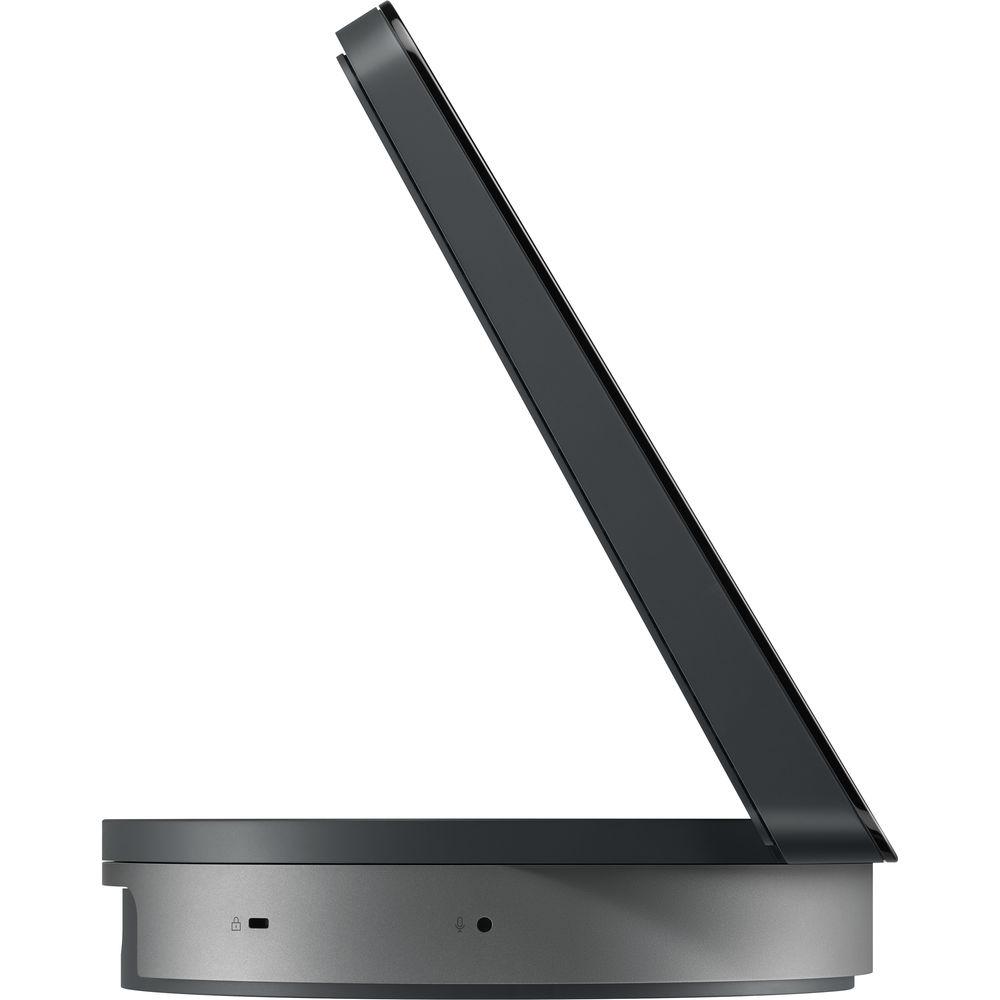

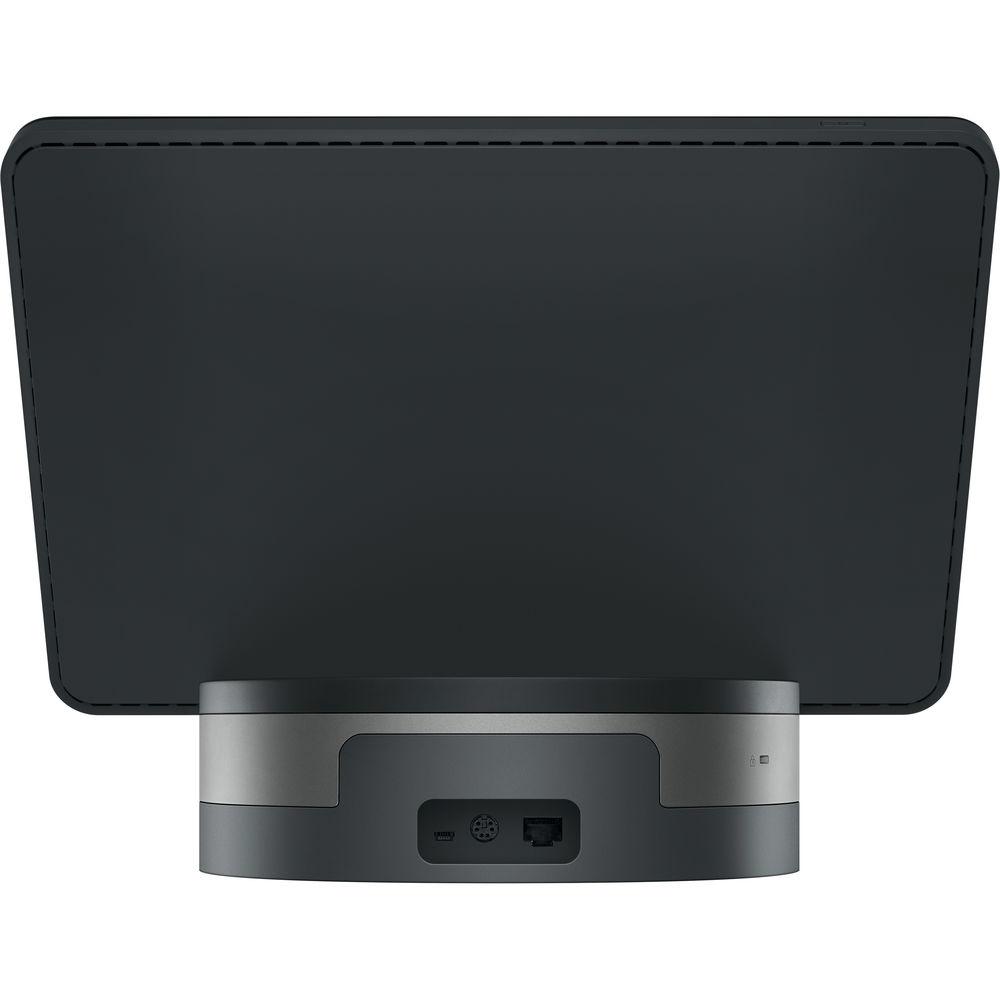

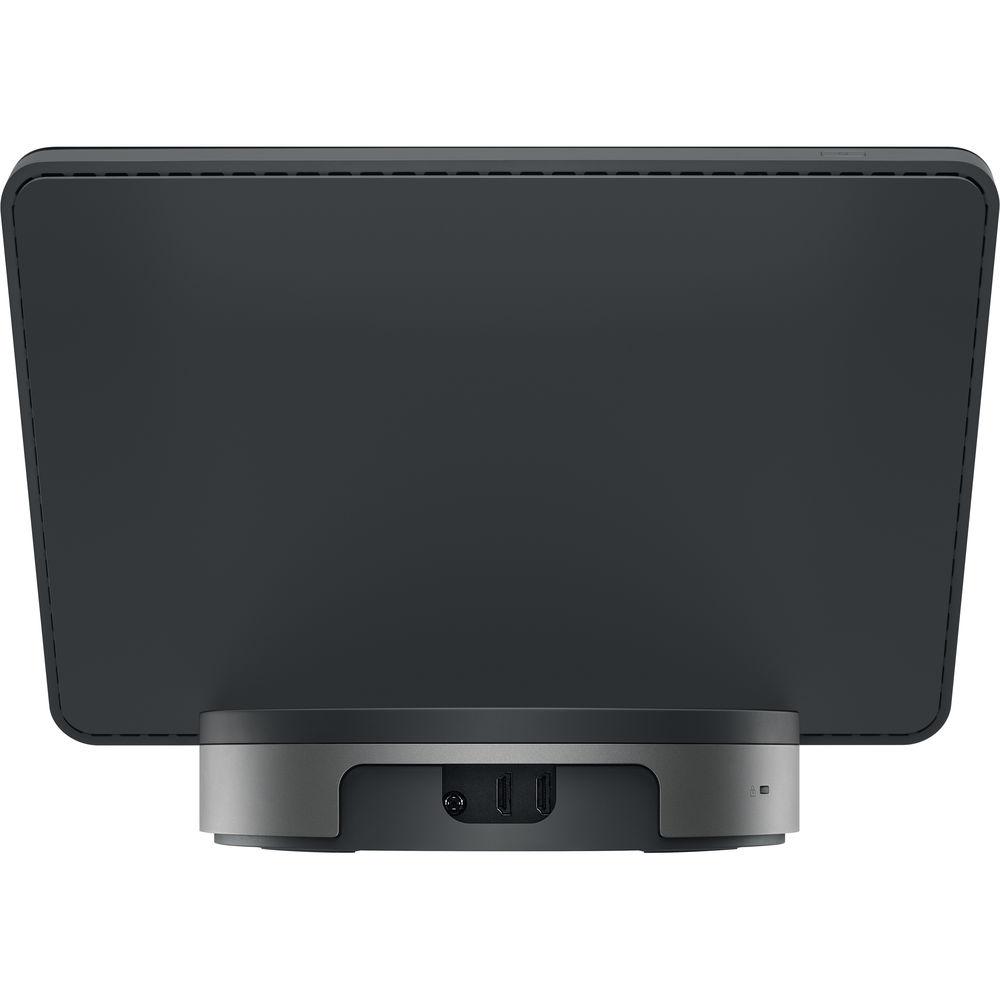

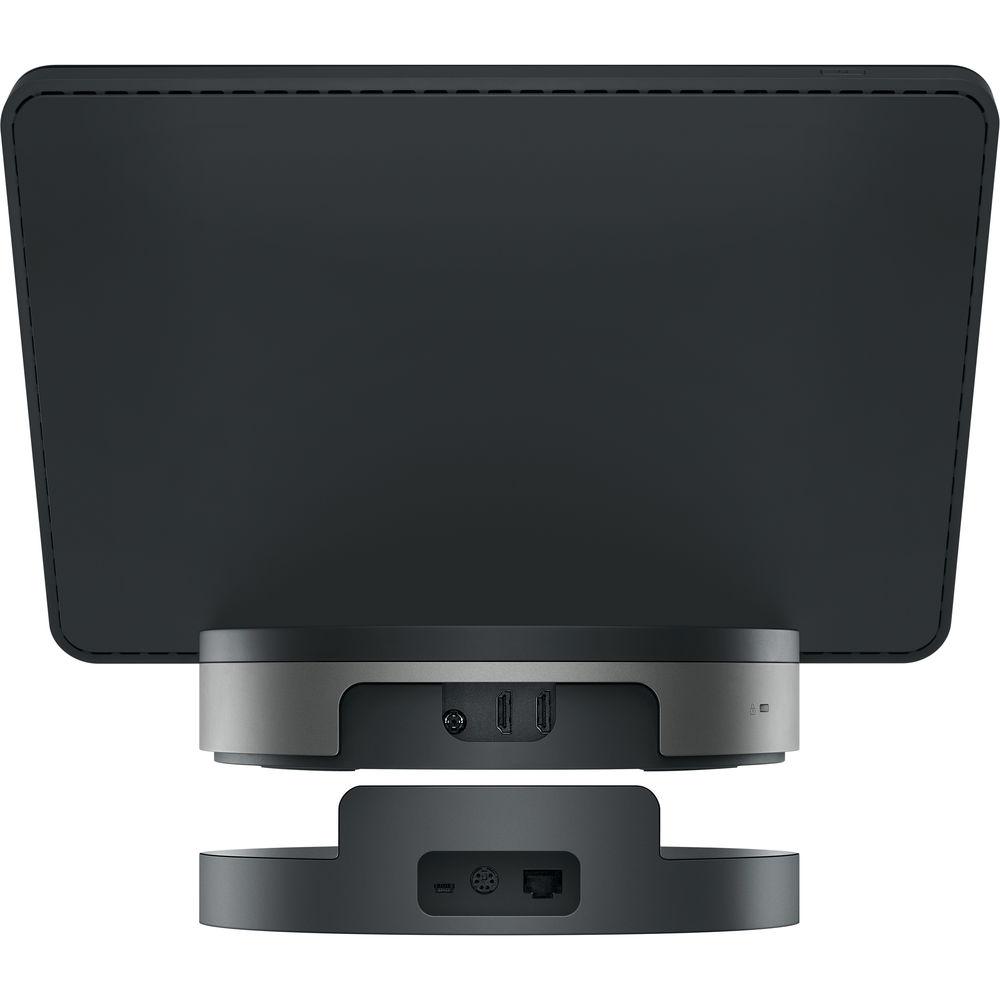

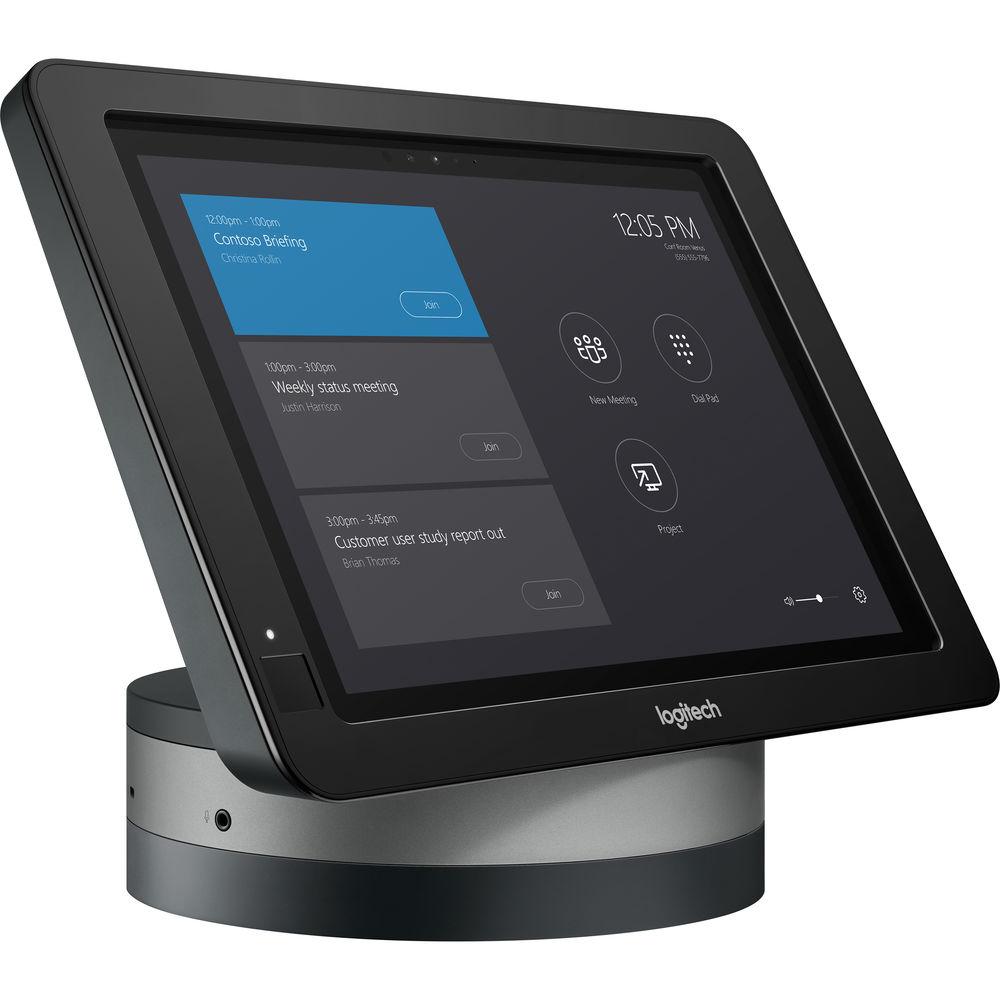

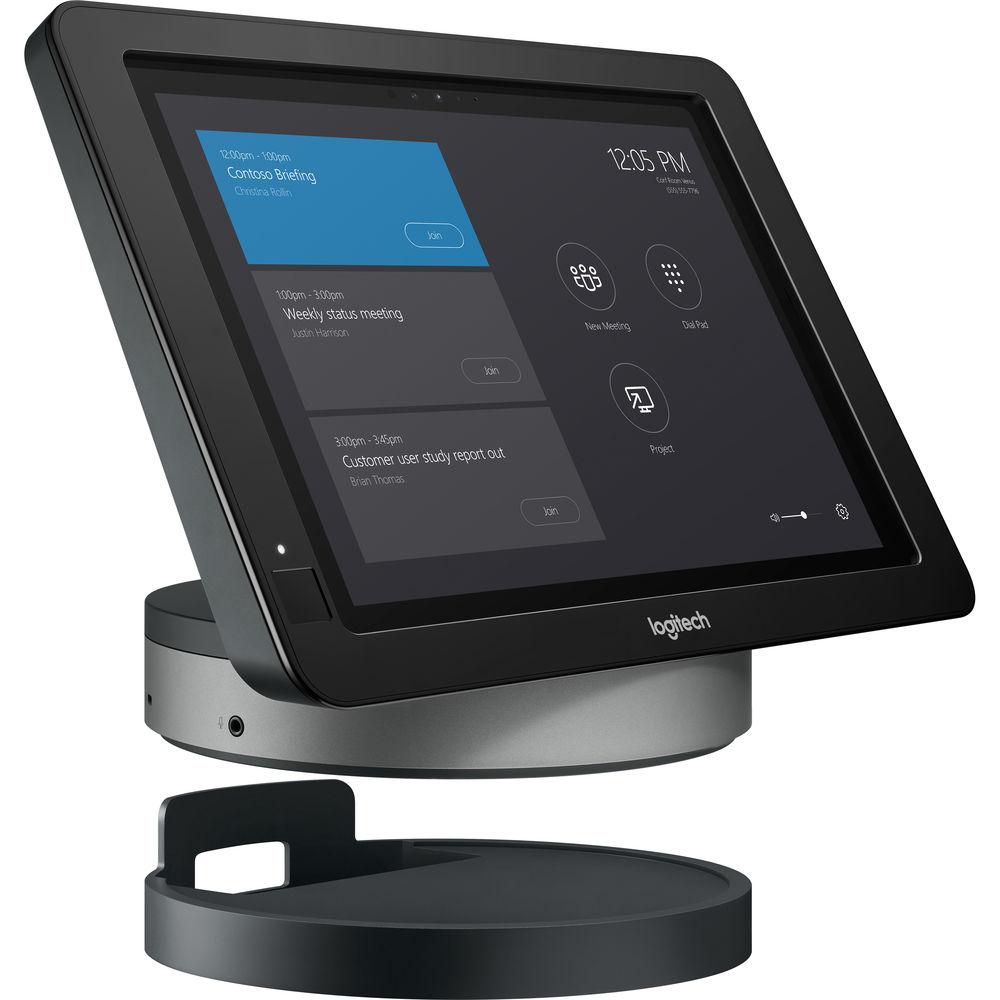

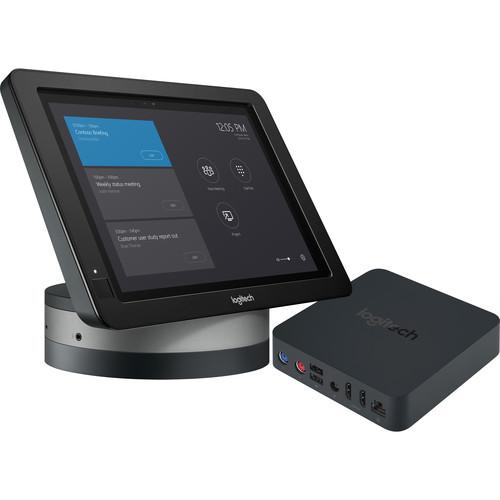

Product description Add connectivity to your Skype for Business conferences with the Logitech SmartDock. The dock provides a Skype for Business interface and works as a conference control device, and it can connect to existing compatible conference equipment such as Logitech ConferenceCams. The dock provides network, audio, power, USB, and HDMI ports for connecting your conference equipment, and the Extender Box provides additional connectivity for a keyboard, mouse, cameras, additional computers, and displays. A security slot on the dock allows you to leave a Surface Pro docked and protected if you leave the room.
When you walk into the conference room, the SmartDock's IR sensor detects motion and wake the system out of hibernation mode. The compact forms of the SmartDock and Extender Box allow for easy device concealment and cable management. The system supports a maximum cable length of 50' allowing cabling flexibility in your conference setup.
The SmartDock and Extender Box set comes with a 5-in-1 A/V Cable, two HDMI cables, an Ethernet cable, a 100 x 100mm VESA mounting plate, hook-and-loop pads, a power supply, and assembly tools. - Designed to work with Skype for Business conference room system
- Connectivity ports include Gigabit Ethernet, audio, power, USB, and HDMI
- Standard Skype for Business A/V interface allows one-touch conference join function
- IR sensor detects motion and wakes the system out of hibernation mode
- An Extender Box with a 5-in-1 cable provide additional connectivity for a keyboard, mouse, cameras, additional computers, and displays
- Compatible with Logitech ConferenceCams, Microsoft Surface Pro
- Two HDMI cables, an Ethernet cable, a 100 x 100mm VESA mounting plate, hook-and-loop pads, a power supply, and assembly tools are also included
UPC: 097855125088 In the Box Logitech SmartDock with Extender Box and 5-in-1 Cable Extender Box 16.4' 5-in-1 Cable VESA Mounting Plate (100 x 100mm) Hook-and-Loop Pads Power Supply Ethernet Cable 2 x HDMI Cables Assembly Tools Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Logitech SmartDock with Extender Box and 5-in-1 Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLogitech SmartDock Specs | Power | 100-240 VAC | | System Requirements | Microsoft Surface Pro 4 with Core i5 or Surface Pro with Core i5 or higher (2017)
Microsoft Windows 10 Enterprise
Skype Room System Software
Room resource account for Skype for Business 2015 or later
Internet access via Ethernet with DHCP enabled
External Display or Projector with HDMI input
Logitech ConferenceCam (recommended) or other Skype Certified AV Devices | | Ports and Connectors | SmartDock
2 x HDMI out supporting up to 1080p60
2 x HDMI in supporting content sharing up to 1080p30
1 x Gigabit Ethernet (RJ45)
3 x USB 3.0
1 x 1/8" / 3.5 mm headset audio jack
1 x IR motion sensor, presence detection with 9.8'/ 3 m range
1 x Kensington security slot
1 x Power

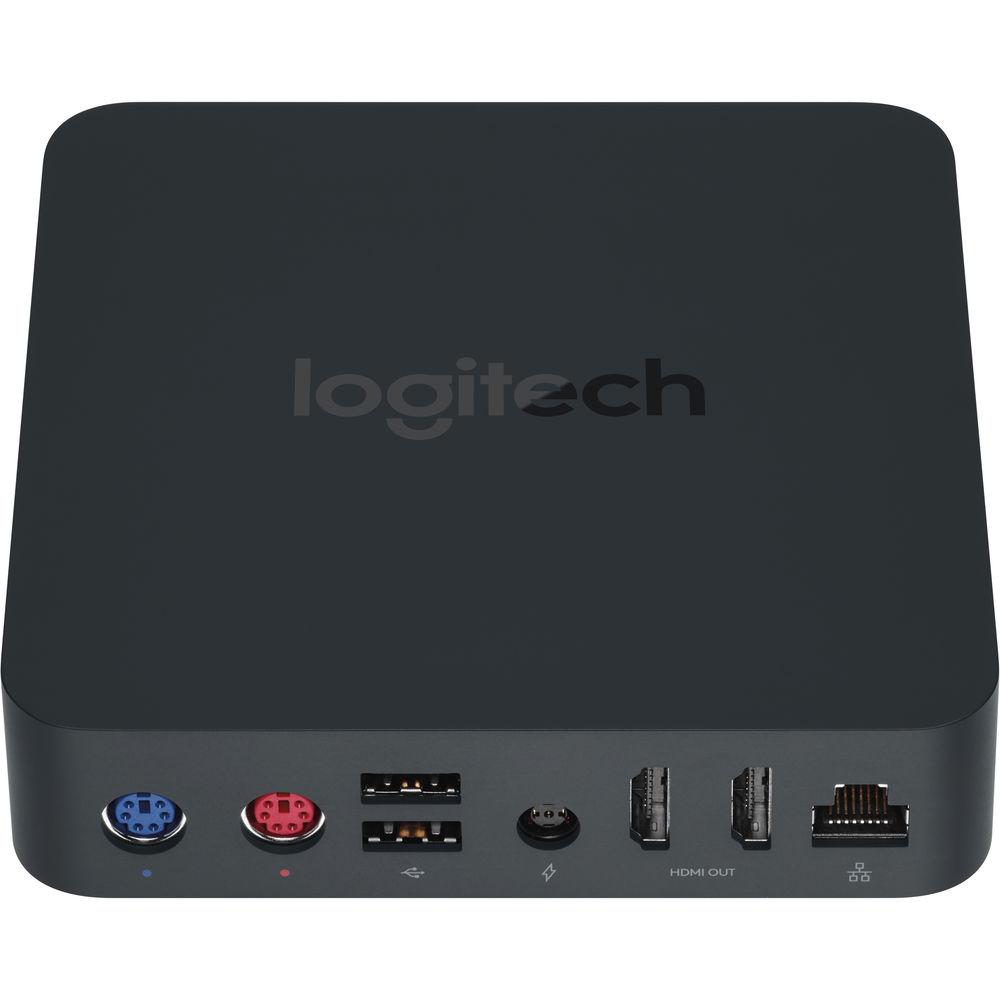

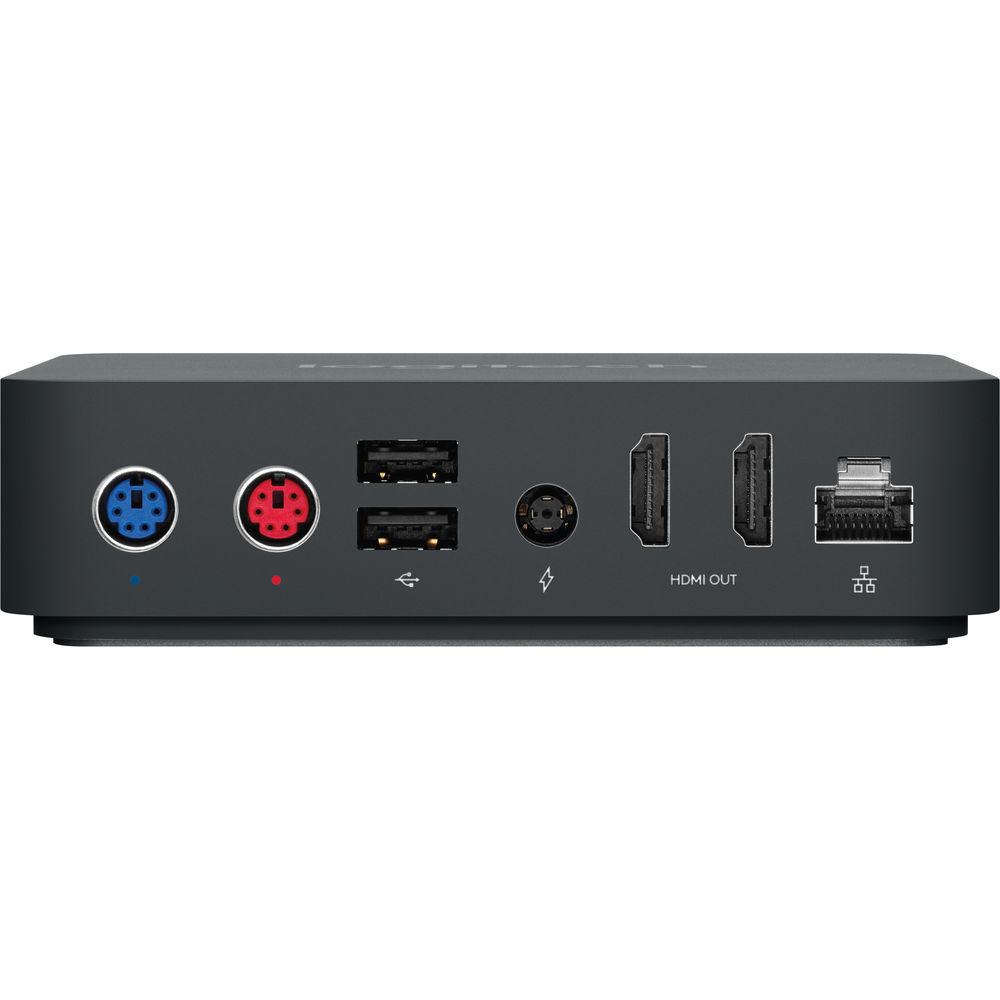

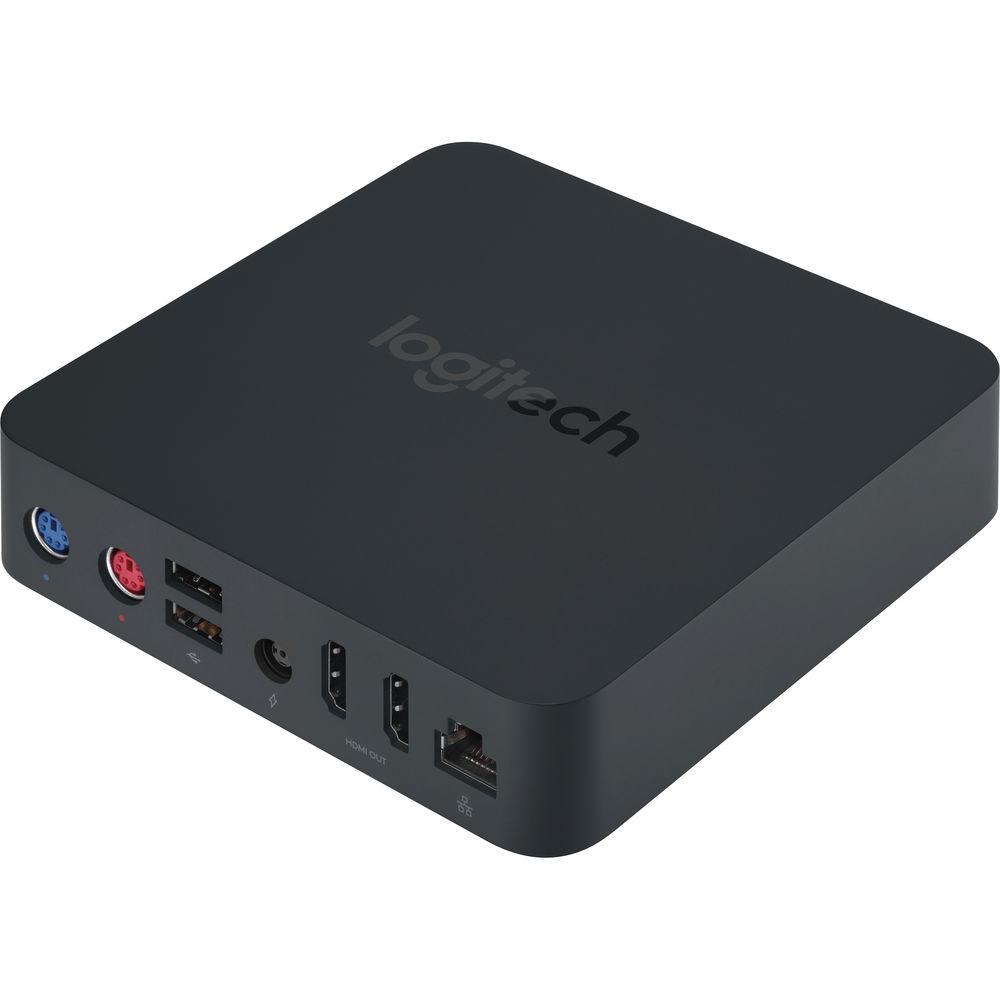

Extender Box
2 x PS/2 keyboard/mouse
2 x HDMI out
2 x HDMI in
2 x USB Type-A
1 x USB 2.0 Type-B
2 x Gigabit Ethernet (RJ45)
1 x Power | | VESA Compatibility | 100 x 100 mm | | Certification | FCC | | Cable Length | 5-in-1: 16.4' / 5 m
HDMI: 9.8' / 3 m
Ethernet: 9.8' / 3 m
Power: 9.8' / 3 m | | Dimensions | SmartDock: 9.4 x 13.2 x 8.2" / 23.9 x 33.4 x 20.9 cm
Extender Box: 1.3 x 5.0 x 5.0" / 3.4 x 12.8 x 12.8 cm | | Weight | SmartDock: 6 lb / 2.7 g
Extender Box: 12.7 oz / 360 g | | | | Package Weight | 15.45 lb | | Box Dimensions (LxWxH) | 15.0 x 11.2 x 10.8" |
