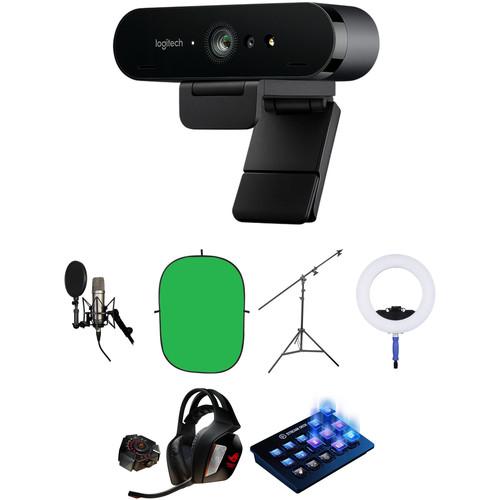

Logitech Ultimate Professional Streaming Kit

User Manual for Logitech Ultimate Professional Streaming Kit

• Product category: Speakers, Headsets, Mics & Webcams Logitech
• Brand: Logitech
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Logitech Speakers, Headsets, Mics & Webcams

Product description

• Logitech BRIO Webcam The Logitech BRIO Webcam captures at up to 4K resolutions, so viewers can enjoy detailed visuals. The BRIO records in 4K, 1080p, or 720p resolutions at up to 90 fps when set to 1280 x 720. For sharing the environment, the camera has 5x digital zoom and up to 90° field-of-view options. To help ensure visual quality in bright or low-light environments, RightLight 3 and HDR technology are on board to highlight important details. There's also a pair of omni-directional microphones with noise cancellation to complete the sharp visuals.

  The BRIO connects to Windows, Mac, and Chrome systems via a USB 3.0 cable, and you can mount the BRIO on top of a monitor using an included clip or attach the camera to your tripod. Aside from video streaming and conferencing, the camera comes with infrared detection and certification for Windows Hello, allowing you to sign into a Windows 10 system by looking at the BRIO's lens. Included along with BRIO are an external privacy shutter and carrying case.
  Capture in 4K
  • Logitech BRIO delivers 4K Ultra HD at 30 fps or 1080p at 30/60 fps. In addition, it comes with 5x digital zoom for capturing details.
  RightLight 3 and HDR Technology
  • Whether in low light or bright sunshine, the Logitech BRIO with RightLight 3 and high dynamic range (HDR) technology adjusts to highlight a subject, so you can look your best.
  Security
  • Infrared detection and certification with Windows Hello facial recognition software provide a reliable safeguard against unauthorized logins and access to secure information. You can simply look into BRIO's lens to automatically sign on in Windows 10.
  Control the Visual Environment
  • You can produce clean, clear video using multiple field-of-vision options and 5x digital zoom to minimize background noise and visual clutter.
  UPC: 097855125620
• Rode NT1-A Large-Diaphragm Condenser Microphone (Single) The NT1-A Large-Diaphragm Condenser Microphone from RODE is a 1" cardioid condenser microphone. It has a self-noise level of 5 dB-A, making it a great choice for a vocal microphone, as well as for recording guitars and percussion instruments.

  A studio-grade pop shield and shockmount is included, along with a 20' microphone cable, dust cover, and an instructional DVD with recording tips.
  Large Diaphragm
  • The 1" diaphragm provides a wide frequency response and excellent signal-to-noise ratio
  Cardioid Polar Pattern
  • The cardioid polar pattern of the NT1-A effectively minimizes off-axis noises such as room ambiance, monitors, and off-axis instruments
  Transformerless Output
  • The transformerless output electronics result in quiet, noise-free output while maintaining maximum signal gain
  48V Phantom Power
  • The microphone uses standard 48V phantom power, which is supplied through the standard XLR connector
  Accessory Package
  • The accessory package includes a studio-grade shock mount with an integrated pop filter, a premium 20' cable, a dust cover, and a bonus DVD with microphone tips and techniques
  UPC: 698813000142
• Impact Collapsible Background - 5 x 7' (Chroma Green) This Impact Collapsible Background is a small, easy to use accessory for shooting small objects or simple headshots. This background sets-up and folds easily and comes in its own see-thru storage bag. Note: Colors depicted may vary slightly, due to differences in computer monitors, printed media, and variances in manufacturer's dyes or paints. In addition, this product may be folded for storage a number of ways. UPC: 847628010697
• Impact Multiboom Light Stand and Reflector Holder - 13' (4m) This is an Impact Convertible Boom Arm/Light Stand. As a light stand, it can support a small or medium light head to a height of 13' (4 m). Raise the second section completely, click, and it is a boom stand.
  As a boom, it can hold a small light head to an extension of almost 3' from the center of the stand.
  It is a reflector holder by means of its two clips, which can support an Impact, Flexfill, or Photoflex light disc as large as 60".
  A hole at the end of the arm allows an optional counterweight to be hung, for greater stability.
  Instructions for Using This Stand as a Boom
  • 1. Loosen the large long handle in the middle of the stand.
    2. Loosen the top-most section of the stand. Pull that section all the way up.
    3. Pull! - swing it horizontally for the boom feature, and lock it for the desired setup.
  UPC: 847628012042
• Ledgo Bi-Color Flood Shoot-Through LED Ring Light Well-suited for beauty lighting, the Bi-Color Flood Shoot-Through LED Ring Light from Ledgo provides a desirable soft, even light quality for close-up work along with the distinct shape to produce ring-shaped catchlight. It has a large 18.3" exterior diameter and its shoot-through design affords a 12"-diameter opening to work within, permitting the use of a range of cameras and lenses. The ring light has a CRI of 96 and a TLCI of 95 to ensure accurate color rendition along with an onboard dimming adjustment and a color temperature control from 3200-5600K to match varying ambient light situations.

  Further extending its versatility, this light can be powered by either AC or DC power sources via the included 100-240 VAC adapter or using two optional Sony NP-F-type batteries or other external power sources via a D-tap cable. It is suitable for use in the studio, using the integrated 1/4"-20 mount or the included bracket with 5/8" receptacle, or can also be used as a run-and-gun light via the built-in dual handles and camera mounting plate that supports mounting to 15mm rail systems. Additionally, benefitting its use for social media shooters and those recording with mobile devices, there is a built-in USB charging port to keep your phone or tablet's battery life topped off.
• ASUS Republic of Gamers Centurion USB Gaming Headset Experience true 7.1 surround sound with the ASUS Republic of Gamers Centurion USB Gaming Headset. Engineered with 10 discrete neodymium magnet drivers, interchangeable protein leather and memory foam ear cushions, and stylish static and breathing lighting effects. The headset also features a Hi-Fi-grade ESS headphone amplifier and a retractable, unidirectional digital microphone. It is accompanied by a driver-free USB audio station that features a variety of audio controls and sound effects. The ROG Centurion provides an immersive gaming experience.
  True 7.1 Surround Sound
  • ROG Centurion features five discrete neodymium magnets in each earcup that deliver true 7.1-channel surround sound. In order to achieve optimal sound quality, ASUS fine-tuned the position of each driver and the precision of the headphone's chamber mechanics. Every gunshot and footstep comes through with accuracy and clarity, allowing for an immersive gaming experience.
  Noise-Canceling Microphone
  • With a unidirectional digital microphone, the ROG Centurion uses an optimized sound-processing algorithm. Boasting a high signal-to-noise ratio, extended wide-band frequency response, and high sensitivity rating, the digital microphone delivers clear voice reproduction, balanced and natural-sounding vocal tones, and minimal background noise pickup.
  USB Audio Station
  • The ROG Centurion comes with a plug-and-play USB audio station, which is a USB sound card that also provides effective environmental noise cancellation (ENC) technology, four game-audio spectrum profiles, and a Hi-Fi grade ESS headphone amplifier. Its dedicated, switch-operated speaker output jack even lets you easily switch audio output from headset to speakers without unplugging your headset.
  Comfort
  • Comfort is a key component of a great gaming headset, but what is considered comfortable varies from person to person. To fit each gamer's unique preferences, ROG Centurion comes with both soft, full-sized memory foam and highly-breathable protein leather ear cushions. Both sets of cushions provide comfort for prolonged gaming sessions.
  Static & Breathing Lighting Effects
  • Express your gaming style with ROG Centurion's glowing logo and additional lighting effects. Choose between static or breathing lighting with a simple click of a button on the audio station.
  Audio Control
  • ROG Centurion comes with ASUS Sonic Studio, a sound utility that provides gamers complete control over a wide range of audio features, such as equalization (EQ) and 7.1 surround speaker level-balancing. Sonic Studio has an intuitive all-in-one view that puts all the necessary audio controls on a single screen to make adjustments fast and easy. Sonic Studio also includes controls for Sonic Radar Pro, a unique feature that precisely maps in-game sounds–such as footsteps and gunshots–and displays them on an on-screen overlay, so gamers can pinpoint their enemies for a competitive advantage in first-person shooters.
  UPC: 889349395097
• Elgato Stream Deck If you're an online streamer who broadcasts using Elgato Game Capture, OBS, Twitch, Twitter, TipeeeStream, XSplit, YouTube, Mixer, and more, streamline your streaming setup using the Stream Deck from Elgato Systems. The Stream Deck integrates your tools and helps to automatically detect scenes, media, and audio sources, enabling them to be controlled with the tap of a key. 15 LCD keys can be programmed to launch an array of actions, while a one-touch, tactile operation allows you to switch scenes, launch media, adjust audio, and more. Streams can also be personalized with GIFs, images, videos, audio clips, and intro and outro graphics. The Stream Deck is compatible with macOS 10.11 and later, as well as Windows 10 (64-bit). Connectivity with your host system is accomplished using an integrated USB 2.0 cable. Finally, an adjustable stand is included to keep the Stream Deck within easy reach.

  General Features

  Break Boundaries
  • You're creating quality content backed by strong tech, but you want to do more. With the Stream Deck, unleash your creativity make waves across Twitch and YouTube, all while focusing on what matters most: your audience.
  Take Control
  • Fifteen LCD keys poised to launch unlimited actions help eliminate the need to map and memorize keyboard shortcuts. One-touch, tactile operation lets you switch scenes, launch media, adjust audio, and more, while visual feedback confirms your commands.
  Streamline Your Setup
  • Stream Deck integrates your tools and automatically detects your scenes, media, and audio sources, enabling you to control them with a quick tap of a key. Compatible platforms include Elgato Game Capture, OBS, Twitch, Twitter, TipeeeStream, XSplit, YouTube, Mixer, and more.
  Be Proactive
  • Automated alerts help make life easier, but between thanking donors and welcoming new subscribers, there's ample opportunity for self-expression. Employ Stream Deck to level up your on-screen antics with GIFs, images, videos, and audio clips. While you're at it, apply lower thirds and bookend your content with signature intro and outro graphics. Your options are vast, so explore and experiment. Do what you must to sharpen your creative edge, and do it with a personal touch.
  Make It Yours
  • Customizing Stream Deck is user-friendly. Simply drag and drop actions onto keys and make them your own with custom icons. Need more actions? Nest folders within folders to amass more actions. Better yet, save unique key configurations as dedicated profiles for different games and apps, switch between them on the fly, and share them with fellow creators.
  Bring It On
  • Gone are the days of navigating a myriad of windows to trigger an action, and relying solely on automated plug-ins to expand your production value. Now, you hold the power to pioneer an era of content creation and lead your audience to frontiers of inspiration. You're in control.
  UPC: 813180020481

• BRIO Webcam avxaucvzrrcrvsbfcucbexxdubaq
• USB 3.0 Cable
• Removable Clip
• Privacy Shade
• Carrying Pouch
• Limited 3-Year Warranty

• Rode - NT1-A Large-Diaphragm Condenser Microphone (Single)

• Impact - Collapsible Background - 5 x 7' (Chroma Green)

• Impact - Multiboom Light Stand and Reflector Holder - 13' (4m)

• Ledgo - Bi-Color Flood Shoot-Through LED Ring Light

• ASUS - Republic of Gamers Centurion USB Gaming Headset avxaucvzrrcrvsbfcucbexxdubaq

• Elgato - Stream Deck

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Logitech BRIO Webcam

  Resolutions	4K Ultra HD (up to 4096 x 2160 pixels @ 30 fps) 1080p Full HD (up to 1920 x 1080 pixels @ 30 or 60 fps) 720p HD (up to 1280 x 720 pixels @ 30, 60, or 90 fps)
  FOV	90, 78, and 65°
  Zoom	5x digital
  Audio	Dual omni-directional mics with noise cancellation
  Cable Length	7.2' / 2.2 m
  System Requirements	2.4 GHz Intel Core 2 Duo processor or faster 2 GB of RAM or more USB 2.0 port (USB 3.0 required for 4K)
  Supported Operating Systems	Windows 7, 8.1, or 10 Mac OS X 10.1 or higher Chrome OS
  Dimensions (H x W x D)	Camera: 1.0 x 4.0 x 1.0" / 2.5 x 10.2 x 2.5 cm Clip: 3.9 x 1.4 x 0.2" / 9.9 x 3.6 x 0.5 cm
  Weight	Camera: 2.2 oz / 62.4 g Clip: 1.5 oz / 42.5 g Cable: 2.2 oz / 62.4 g

  Box Dimensions (LxWxH)	5.512 x 5.354 x 2.992"

• Rode NT1-A Large-Diaphragm Condenser Microphone (Single)

  Operating Principle	Pressure Gradient
  Transducer	Condenser
  Diaphragm	1" / 25.40 mm
  Polar Pattern	Cardioid
  Frequency Range	20 Hz to 20 kHz
  Equivalent Noise Level	5 dB A-Weighted
  Maximum SPL	137 dB SPL
  THD	1%
  Impedance	100 Ohms
  Sensitivity	-31.9 dB

  Output Connectors	1 x 3-Pin XLR
  Operating Voltage	24 V 48 V
  Length	7.48" / 190 mm
  Diameter	1.97" / 50 mm
  Weight	0.72 lb / 326 g

  Box Dimensions (LxWxH)	15.354 x 10.945 x 4.803"

• Impact Collapsible Background - 5 x 7' (Chroma Green)

  Color/Design	Chroma Green
  Reversible	No
  Working Size	5 x 7' / 1.5 x 2.1 m

  Box Dimensions (LxWxH)	28.0 x 28.0 x 1.0"

• Impact Multiboom Light Stand and Reflector Holder - 13' (4m)

  Minimum Height	40" (102 cm)
  Maximum Height	13' (4 m) as light stand 9'(2.7 m) as boom stand, with boom @ 90 degree angle 10.5'(3.2 m) as boom stand, with boom @ 135 degree angle
  Closed Length	40" (102 cm)
  Footprint Diameter	36" (91 cm)
  Leg Tip	20mm
  Attachment Size	5/8" stud with 1/4"-20 threaded top
  Accepts Wheels	Yes
  Air Cushioned	No
  Maximum Load	5 lbs (2.3 kg) as light stand 3 lbs (1.4 kg) as boom stand
  Weight	4.6 lbs (2.1 kg)

  Box Dimensions (LxWxH)	42.0 x 4.8 x 4.8"

• Ledgo Bi-Color Flood Shoot-Through LED Ring Light

  Beam Angle	120°
  Color Temperature	3200 to 5600K
  Color Accuracy Standard	CRI 96 TLCI 95
  Lumens	4373
  Photometrics	65 fc / 696 lux at 3.3' / 1 m 17 fc / 185 lux at 6.6' / 2 m 9 fc / 92 lux at 9.9' / 3 m
  Expected Lamp Life	50000 Hours
  Circular Panel Size	18.31" / 46.5 cm Diameter (Ring)
  Fixture Weight	3.53 lb / 1.6 kg

  Battery Plate	2 x Sony L-Series (NP-F)
  Power Input Connector	Proprietary
  DMX Connector	None
  Power Output Connector	D-Tap

  Fixture Mount	1/4"-20 Female
  Mount via Included Adapter	5/8" Receiver

  AC Input Power	100 to 240 VAC, 50 / 60 Hz
  DC Input Power	15 VDC
  Power Source	AC Adapter, External Battery
  Max Power Consumption	32 W

  Certifications	RoHS, UL, as per Manufacturer
  IP Rating	IP30
  Operating Temperature	-4 to 104°F / -20 to 40°C

  Box Dimensions (LxWxH)	19.0 x 18.9 x 4.3"

• ASUS Republic of Gamers Centurion USB Gaming Headset

  Connector	USB
  Driver	Diameter Front: 1.57" / 40 mm Subwoofer: 1.57" / 40 mm Center: 1.18" / 30 mm Side: 0.78" / 20 mm Rear: 0.78" / 20 mm Material Neodymium magnet

  Pick-up Pattern	Microphone Boom Unidirectional
  Frequency Response	Microphone Boom 50 ~ 16000 Hz
  Sensitivity	Microphone Boom -26 dB

  Platform	Windows Mac
  Cable	Braided Headset Cable: 4.9' / 1.5 m Braided USB Cable: 4.9' / 1.5 m Max: 9.8' / 3 m
  Weight	0.99 lb / 0.45 kg

  Box Dimensions (LxWxH)	13.1 x 11.3 x 7.5"

• Elgato Stream Deck

  Number of Keys	15
  Key Rollover	None

  Connection Type	Wired
  System Connection	USB Type-A
  USB Ports	None
  Audio	None

  Backlight	Yes
  Built-In Control Device	None

  Cable Length	59.1" / 150.11 cm
  Dimensions (L x W x H)	4.6 x 3.3 x 0.8" / 116.8 x 83.8 x 20.3 mm
  Weight	6.7 oz / 190.0 g

  Box Dimensions (LxWxH)	7.6 x 5.8 x 1.7"
