Product description

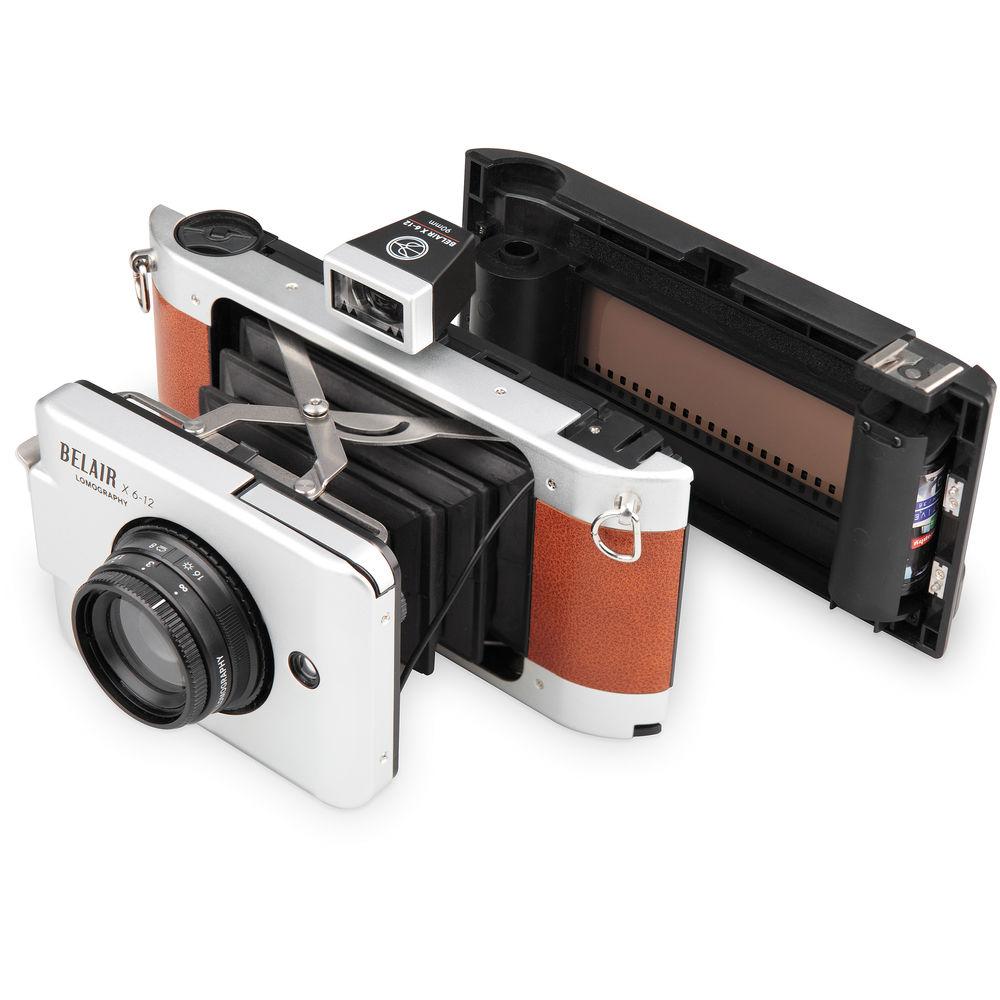

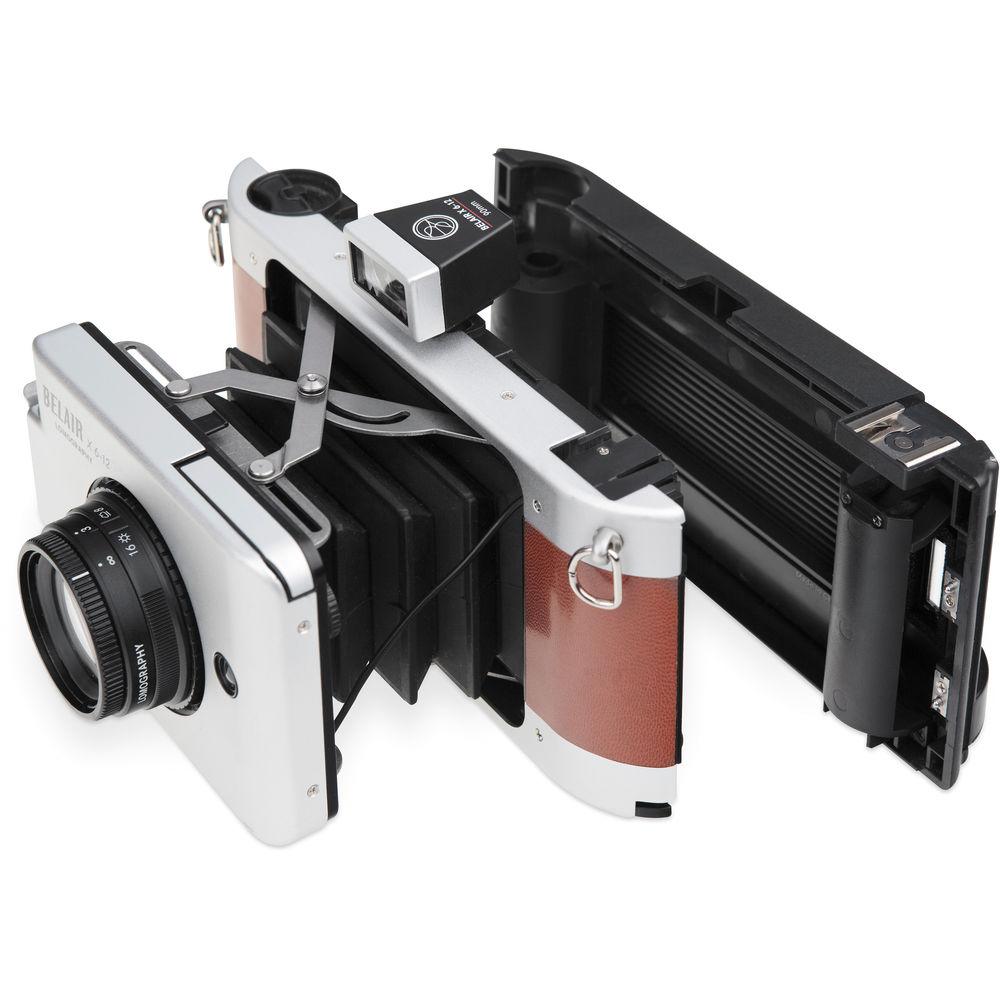

• Belair X 6-12 Jetsetter Medium Format Camera The Lomography Belair X 6-12 Jetsetter Medium Format Camera is a folding medium format film camera that is capable of shooting in 6 x 12, 6 x 9, and 6 x 6 formats. This camera utilizes an electronic automatic exposure shutter to provide accurate, consistent exposure results or, for more creative results, a bulb setting is available for making long exposures. A multiple exposure mode is also available for building up several exposures within a single frame.

  While this camera supports the use of the large 120 film format, it also has a relatively compact form-factor due to its integration of a bellows to afford a collapsible design. The Jetsetter edition of the Belair X 6-12 series is constructed from silver metal with a brown leather wrap for a durable, classic appearance.

  The Belair X 6-12 supports an interchangeable lens design, and comes with two different lenses to provide both normal and wide-angle perspectives. The 90mm lens has a 35mm-equivalent focal length of 32mm in the 6 x 12 format while the 58mm lens has a 35mm-equivalent focal length of 21mm in the 6 x 12 format. Both lenses have a maximum aperture of f/8 and support a four-step zone focus system for straight-forward, simple focusing.
  Three Shooting Formats
  • The Belair X 6-12 is capable of recording in three separate formats: panoramic 6 x 12 (six frames per roll of 120), standard 6 x 9 (eight frames per roll of 120), and square 6 x 6 (12 frames per roll of 120). You can vary your shooting format with the interchangeable film masks, which are inserted prior to loading the camera with film.
  Interchangeable Lens System and Zone Focusing
  • An interchangeable lens system supports the use of multiple lenses to vary your perspective and other image qualities. Two lenses are included with the camera: a 90mm normal and a 58mm wide-angle.

    The 90mm Standard Lens gives a natural perspective, resembling a 32mm lens in 35mm format when shooting in the 6 x 12 format or a 52mm lens when working in the 6 x 6 format. The 58mm Ultra-Wide-Angle Lens has a 35mm-equivalent focal length of 21mm when working in the 6 x 12 format, or 35mm in the 6 x 6 format. Both lenses have an aperture range between f/8 and f/16 and utilize a four-step zone focusing system (1m, 1.5m, 3m, and infinity) for simple use.
  Automatic Exposure Shutter with Multiple and Long Exposure Capabilities
  • An electronic automatic shutter is employed to deliver consistent, accurate results that are dependent on the film speed in use. This automatic shutter mechanism will close once the film has received enough light depending on the lighting conditions and ISO selected (ISO 50-1600 supported). The exposure range covers EV4-15 to support a wide range of conditions. A bulb setting is also available for controllable long exposures.

    Multiple exposures are also possible when working with the MX setting to record as many exposures within a single frame as desired for creative effects.
  Design Features

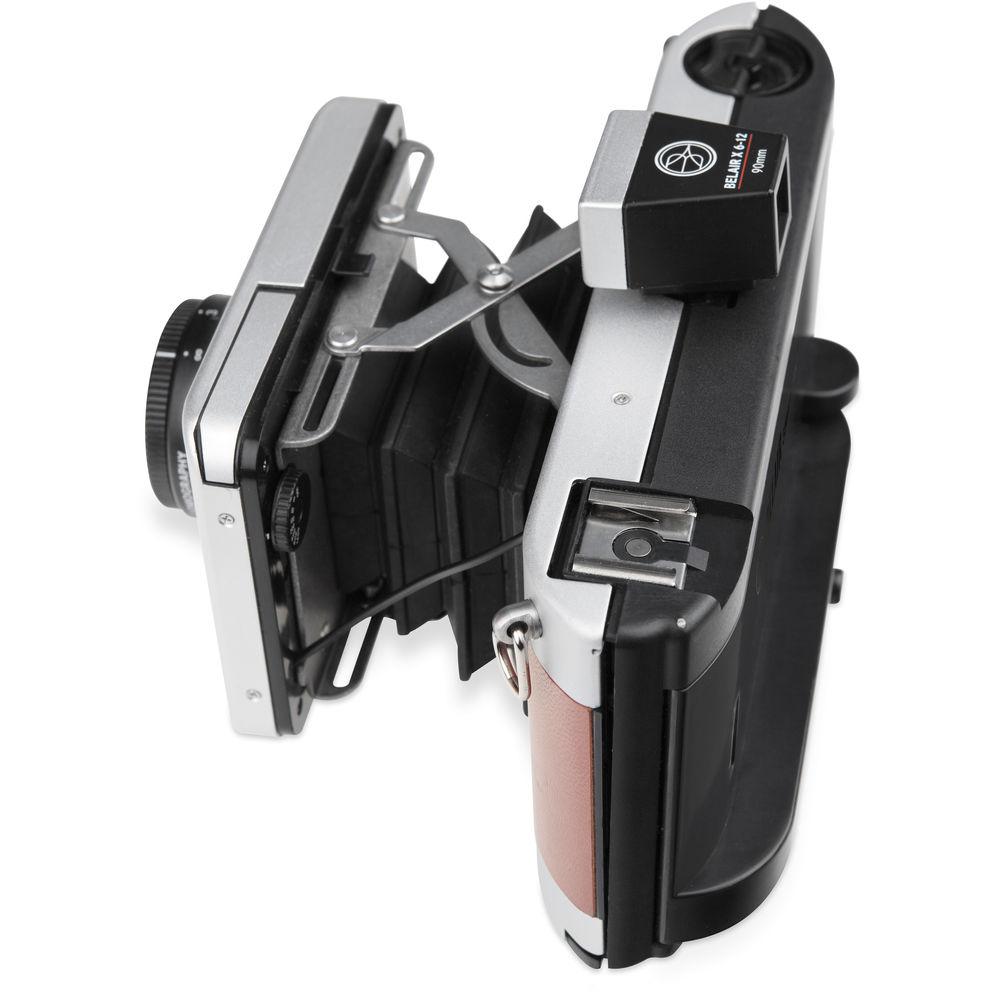

  • The Belair X 6-12 features a collapsible bellows design to promote greater portability and convenience for carrying the camera with you at all times.
  • A built-in standard hot shoe allows you to use any hot shoe-enabled flash with your camera. The auto exposure shutter will still function normally to expose for ambient light levels when a flash is in use.
  • 120 size film is used and allows you to record six to 12 exposures per roll depending on the format you are shooting. 120 film also integrates frame numbers into its paper backing, which are used to determine how far to wind the camera to your next exposure. Two red frame windows are located on the camera back to see these frame numbers; the lower window is used for 6 x 6 and 6 x 12 formats and the upper window is used for the 6 x 9 format. When shooting 6 x 12, you will wind to the even frame numbers (2, 4, 6, 8, 10, and 12) to move the film enough to prevent overlapping frames.
  UPC: 839228002394

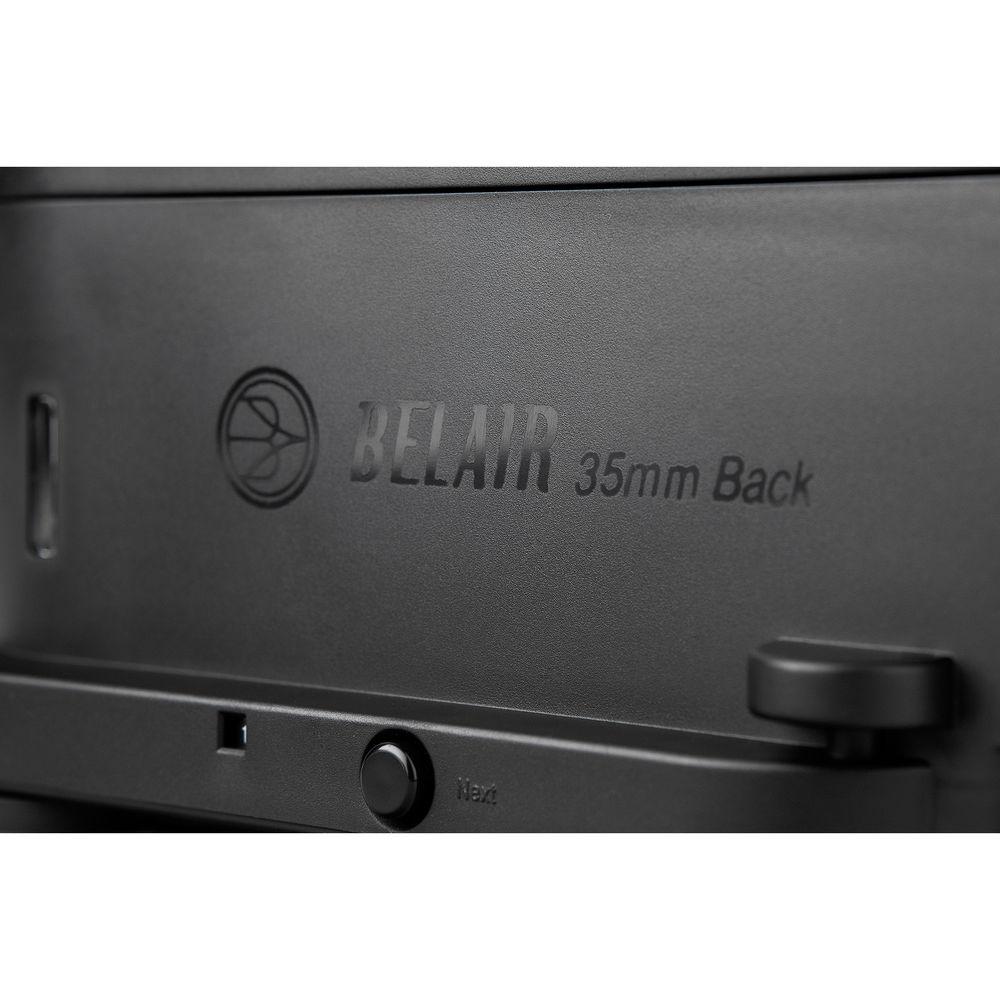

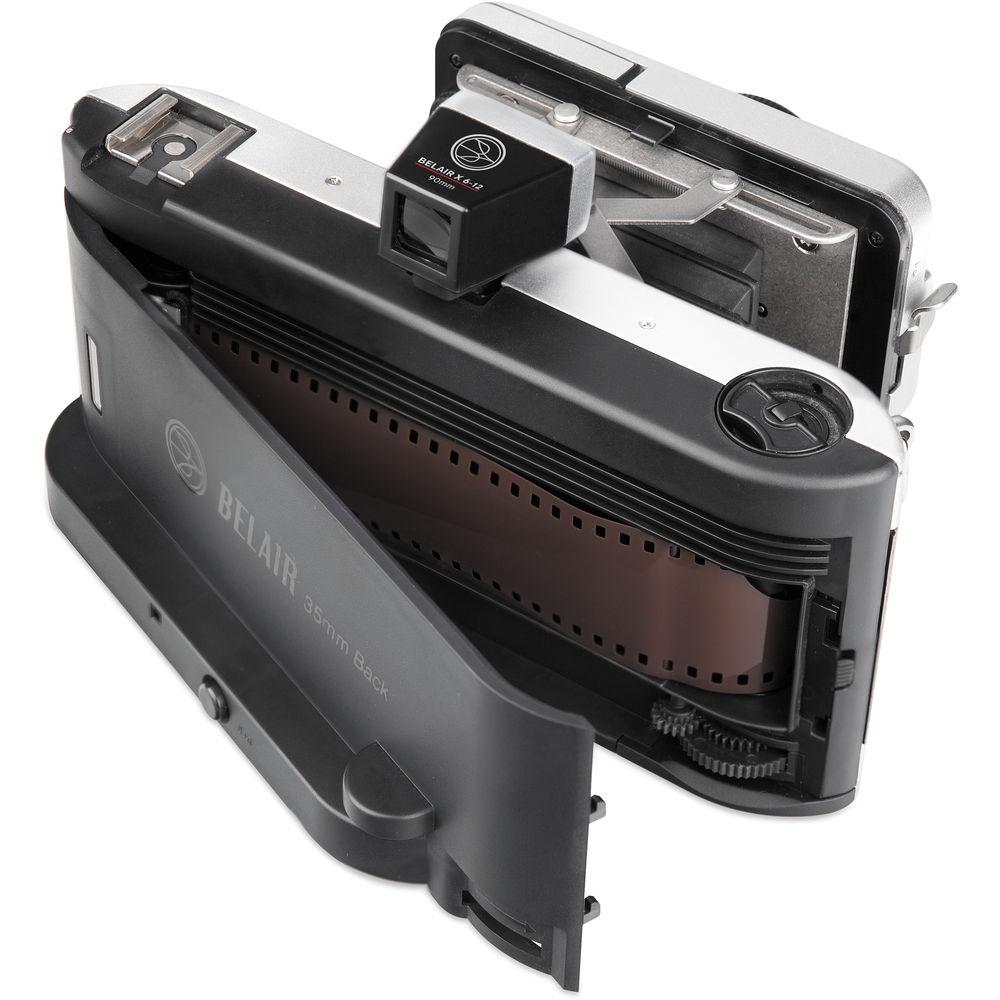

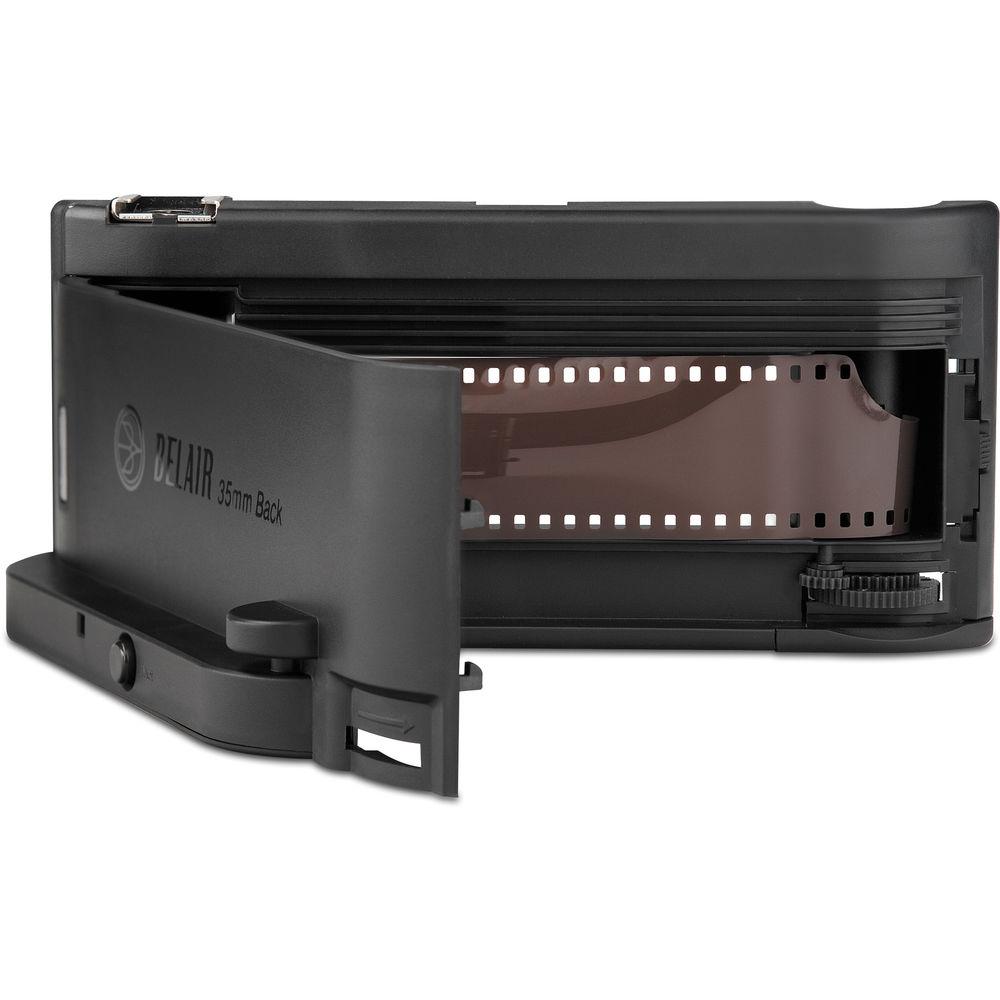

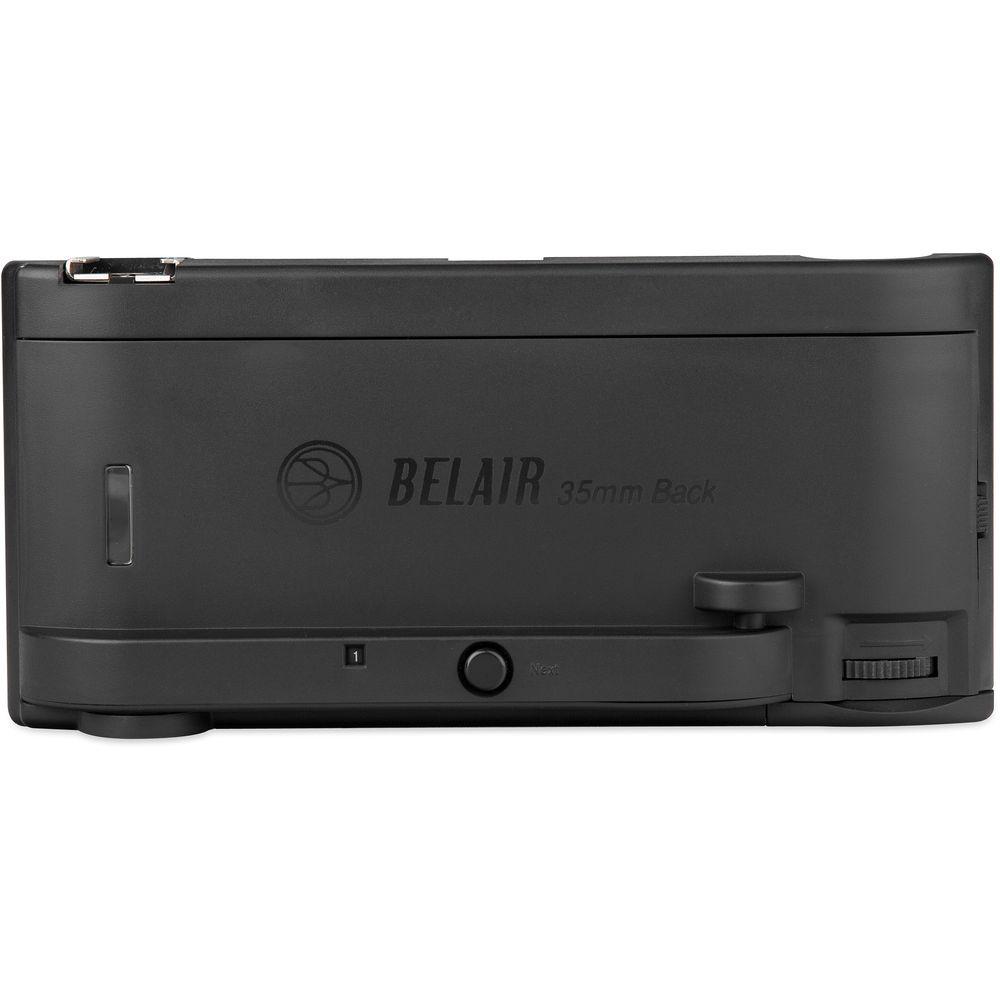

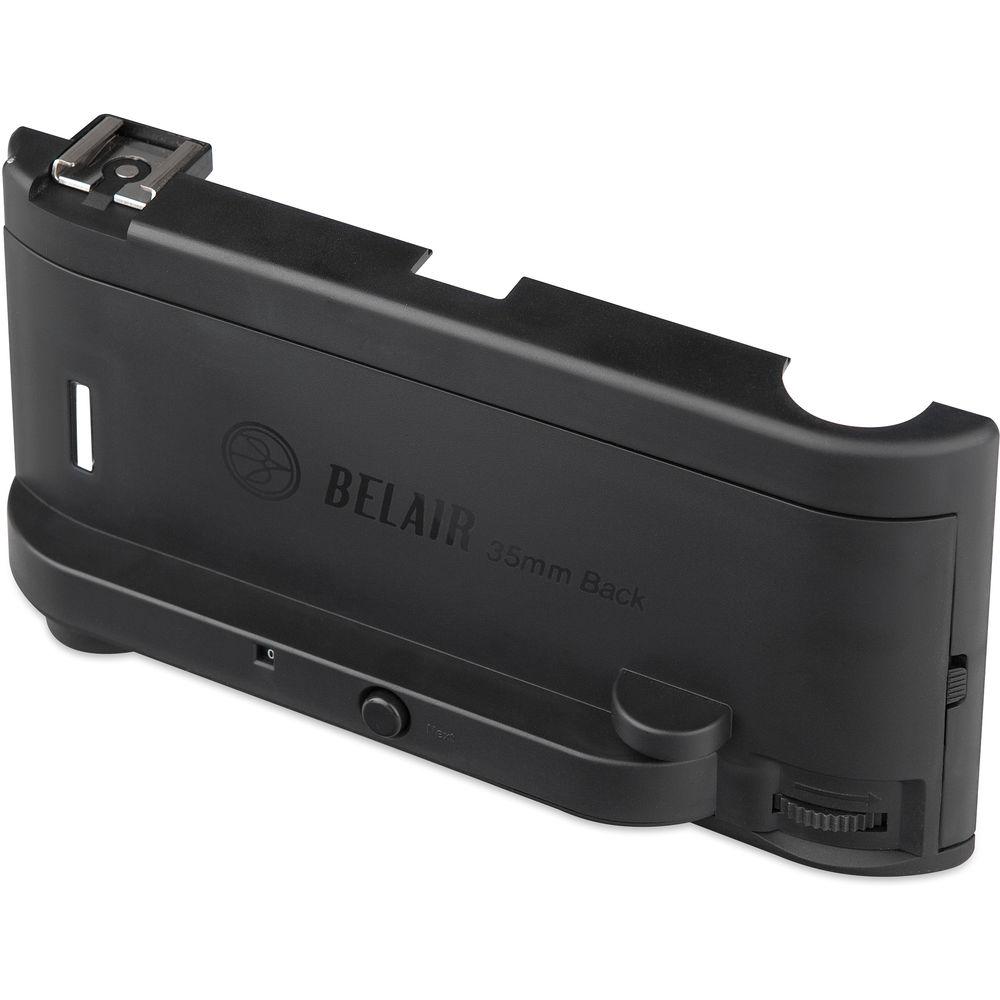

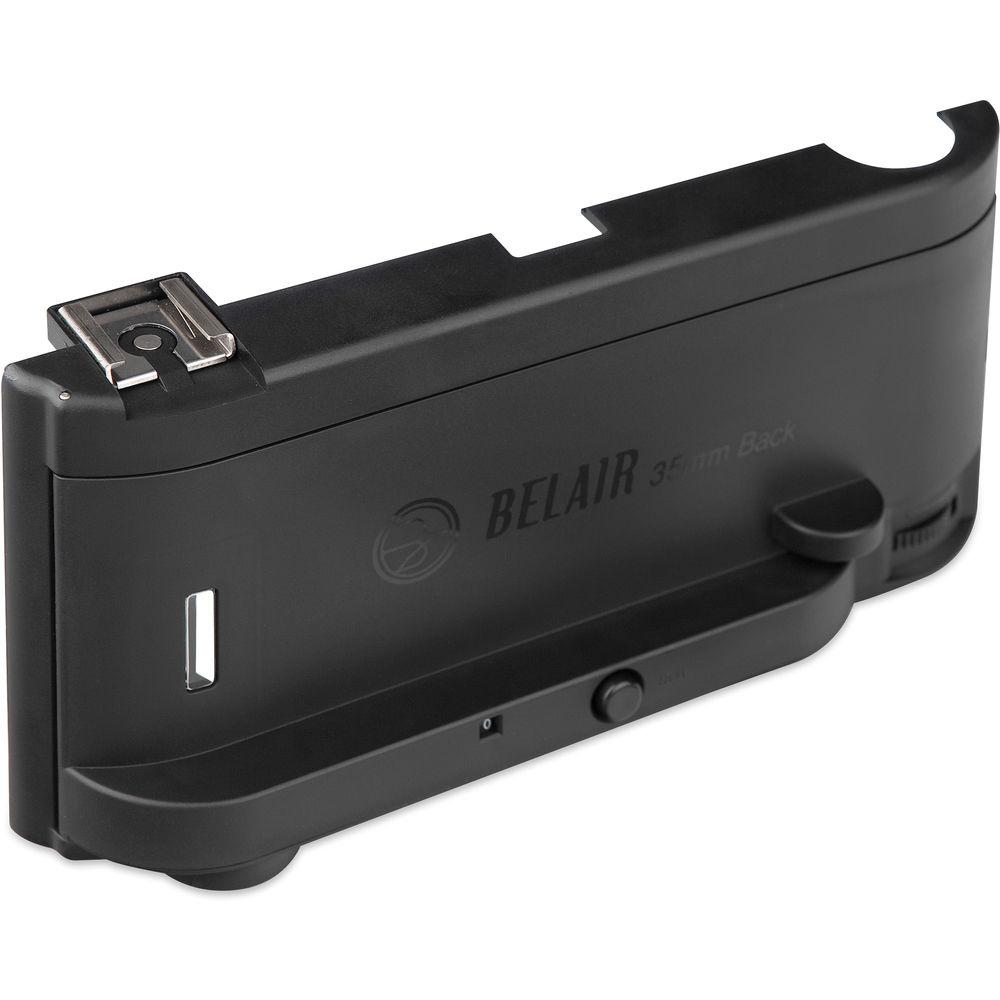

• Belair X 6-12 35mm Back Add to the versatility and fun of your camera with the Belair X 6-12 35mm Back from Lomography. This back allows 35mm film to be used in the medium-format Lomography Belair X 6-12 camera in order to capture 35mm panoramic images. The interchangeable back replaces the medium-format back of the Belair in order to use your favorite 35mm (135 size) film as it is exposed at the 120 film width (12 cm), creating an image with a wider frame ratio. The Belair back allows exposure of images that measure 104 x 33mm, including the sprocket holes, for a creative look. A roll of 36 exposure film will yield 11-12 panoramic photographs. You can also do multiple exposures with this Belair back.

• 90mm Standard Lens

• Viewfinder for 90mm Lens

• 58mm Ultra-Wide-Angle Lens

• Viewfinder for 58mm Lens

• 2 x Front Lens Caps

• 2 x Rear Lens Caps

• 6 x 6, 6 x 9, and 6 x 12 Masks

• Body Cap

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Belair X 6-12 Jetsetter Medium Format Camera

  Camera Type	Folding medium format film camera
  Image Area	6 x 12: 4.1 x 2" / 104 x 52 mm 6 x 9: 3.1 x 2' / 78 x 52 mm 6 x 6: 2 x 2" / 52 x 52 mm
  Film Type	120 roll film
  Lens Mount	3 Bayonet type
  Auto Exposure	Aperture priority mode
  Exposure Range	EV 4-15
  Shutter Speed Range	1/125 sec. and bulb
  Film Sensitivity	Supports ISO 50, 100, 200, 400, 800, 1600
  External Flash Connection	X-type sync hot shoe
  Tripod Socket	1/4" socket
  Power Supply	2x LR44 1.5V batteries
  Dimensions	Not specified by manufacturer
  Weight	1.1 lb / 500 g (without batteries or film)

  Focal Length	90 mm
  35mm Equivalent Focal Length	6 x 12: 32 mm 6 x 9: 40 mm 6 x 6: 52 mm
  Aperture Range	f/8-16
  Angle of View	65° (6 x 12)
  Focusing	Manual zone focusing: 3.3' / 1 m, 4.9' / 1.5 m, 9.8' / 3 m, and infinity
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Focal Length	58 mm
  35mm Equivalent Focal Length	6 x 12: 21 mm 6 x 9: 26 mm 6 x 6: 35 mm
  Aperture Range	f/8-16
  Angle of View	90° (6 x 12)
  Focusing	Manual zone focusing: 3.3' / 1 m, 4.9' / 1.5 m, 9.8' / 3 m, and infinity
  Dimensions	Not specified by manufacturer
  Weight	Not specified by manufacturer

  Box Dimensions (LxWxH)	9.0 x 7.1 x 3.2"

• Belair X 6-12 35mm Back

  Film	Standard 135 roll film
  Exposure	104 x 33 mm
  Exposures Per Roll	11-12 (35 mm film of 36 exposures)
  External Flash Connector	Universal hot shoe

  Box Dimensions (LxWxH)	7.716 x 3.622 x 2.205"
