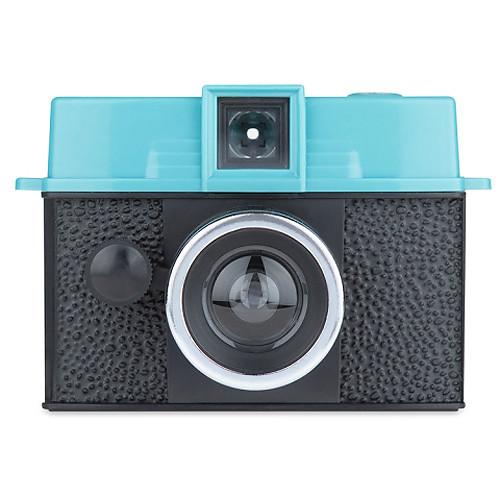

User Manual for Lomography Diana Baby 110 Camera Click to enlarge the picture
Contents of the user manual for the Lomography Diana Baby 110 Camera
- Product category: Holga & Lomography Lomography
- Brand: Lomography
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lomography Holga & Lomography
 |
User manual for the Lomography Diana Baby 110 Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lomography product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lomography user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lomography product will considerably shorten its lifespan!
|

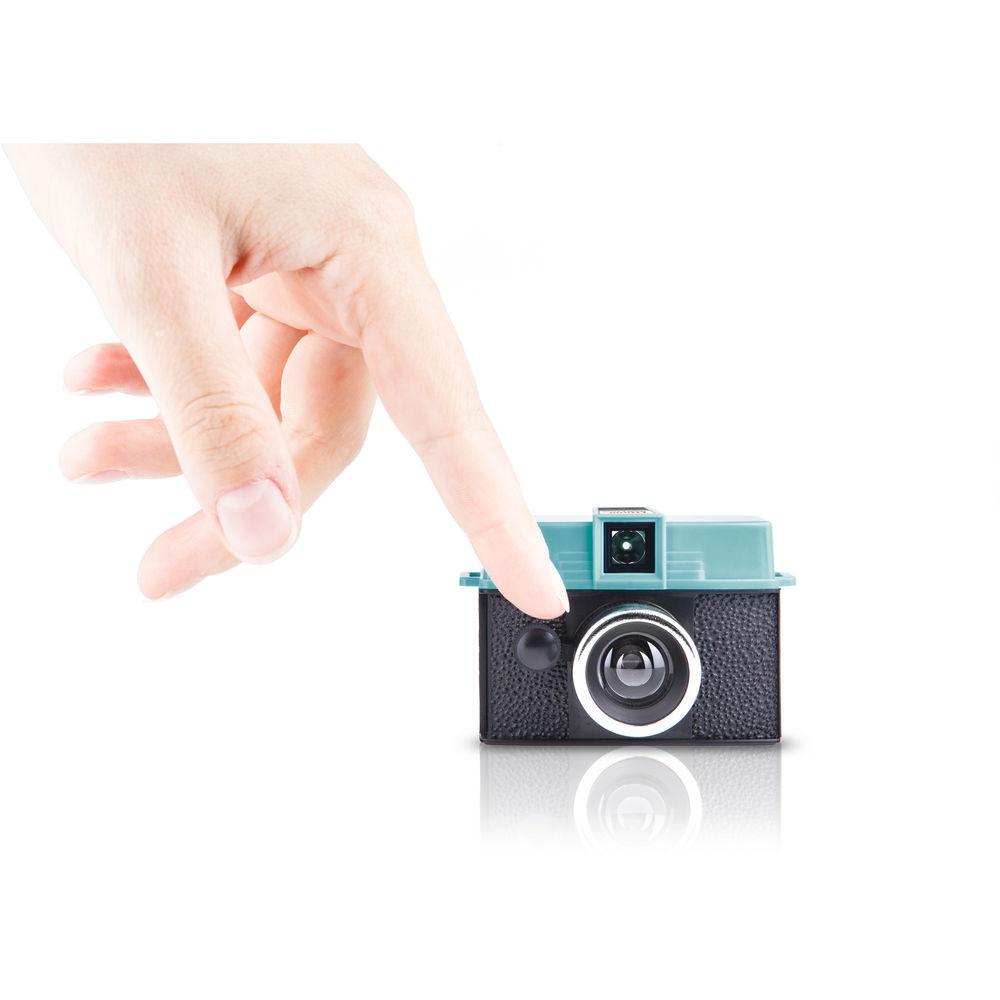

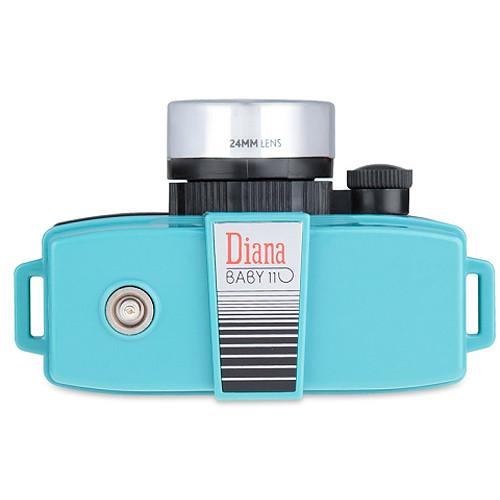

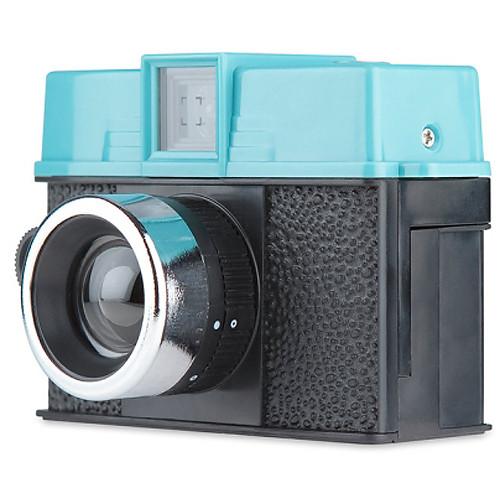

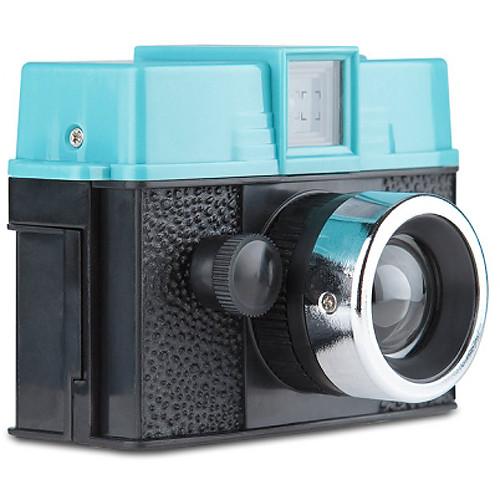

Product description The Lomography Diana Baby 110 Camera is a 110 film camera designed to emulate the original Diana toy camera. This small camera features an interchangeable lens design and comes with the normal-length 24mm plastic lens (equivalent to approximately a 48mm lens in the 35mm format).
This camera is designed to make shooting fun and intuitive due to its limited number of controls, which allow you to focus more on taking images rather than controlling camera settings. A fixed f/8 aperture and fixed focus setting are suitable for most shooting situations and two shutter speed settings (1/100 sec. and bulb) allow for greater creative flexibility in regard to exposure. Additionally, a PC socket is integrated into the design to allow the use of an external flash.
The Diana Baby 110 comes with two backs: the storage back and the film transportation back. The storage back is flush with the contours of the camera body and offers protection to the inside of your camera when no film is loaded. The film transportation back is used during shooting and holds the film in place by way of a swinging pressure plate. - Diana Baby 110 Camera

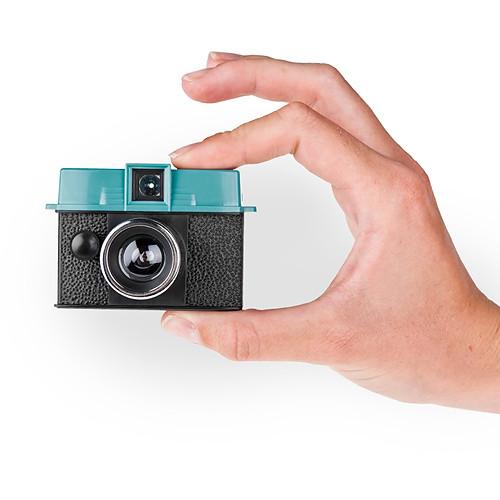

- This camera is a miniature replica of the larger Diana cameras and maintains the same simplicity found in those models. Two shutter speeds are available, 1/100th sec. and bulb, and the aperture and focus setting are fixed.
- Multiple and Long Exposures
- You can record any number of multiple exposures possible simply by not advancing the film after each exposure. When using the bulb setting, creative long exposures are also possible.
- Plastic 24mm Diana Lens
- This camera comes with the normal-length 24mm lens, which is equivalent to approximately a 48mm lens in 35mm format. The plastic construction gives images a soft, dreamy quality that truly defines the "toy camera look." This lens is also interchangeable and can be removed mid-roll as long as the shutter is set to the 'N' setting in order to prevent accidental exposure.
- PC Connection
- A PC socket is built-in to permit the use of an external flash. The flash can be connected directly through the use of a PC cable. For hot shoe-dedicated flashes, an optional PC flash adapter can be used to link the flash with your camera.
- 110 Film
- This small film format offers 24 exposures per roll of film, with each exposure being a 0.5 x 0.5" / 13 x 13mm square.

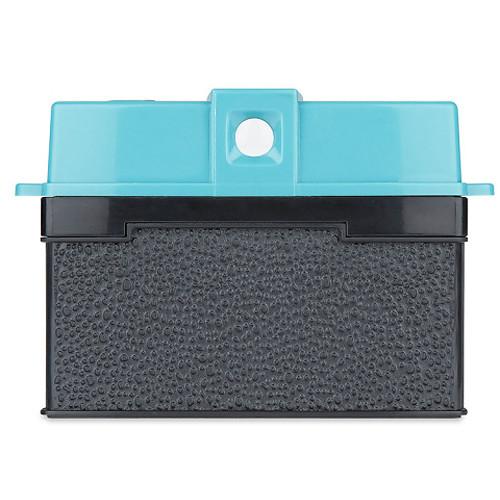

- Film Transportation and Storage Backs
- The film transportation back holds the 110 film cartridge in place with a swinging pressure plate. You can switch films mid-roll by sacrificing a single exposure or by changing cartridges in complete darkness. The storage back provides protection to the inside of the camera when not in use.
UPC: 839228005227 In the Box Lomography Diana Baby 110 Camera 24mm Lens Film Transportation Back Storage Back Lens Cap Diana Baby 110 Manual Lomography Catalog Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lomography Diana Baby 110 Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLomography HP610 Specs | Film Type | 110 film | | Image Area | 0.5 x 0.5" / 13 x 13 mm | | Lens Focal Length | 24 mm (35 mm equivalent: Approximately 48mm) | | Lens Construction | Plastic lens | | Focusing | Free-focusing | | Focus Range | 3.3' / 1 m to infinity (with 24 mm lens) | | Aperture | f/8 fixed | | Shutter Speed | N: 1/100 sec.
B: Bulb | | Viewfinder | Built-in optical | | External Flash Connection | PC socket | | Tripod Mount | None | | Dimensions | 2.9 x 2 x 1.8" / 74 x 50 x 45 mm (with storage back)
3.2 x 2 x 2.2" / 81 x 50 x 56 mm (with film transportation back) | | Weight | Not specified by manufacturer | | | | Package Weight | 0.45 lb | | Box Dimensions (LxWxH) | 5.5 x 5.5 x 2.1" |
