User Manual for Lomography Diana Mini 35mm Camera with Flash Click to enlarge the picture
Contents of the user manual for the Lomography Diana Mini 35mm Camera with
- Product category: Holga & Lomography Lomography
- Brand: Lomography
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lomography Holga & Lomography
 |
User manual for the Lomography Diana Mini 35mm Camera with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lomography product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lomography user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lomography product will considerably shorten its lifespan!
|

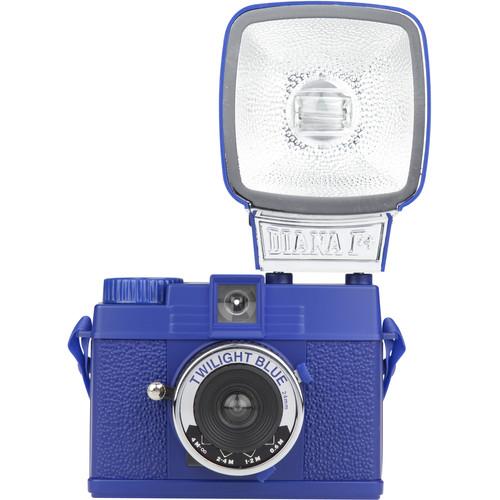

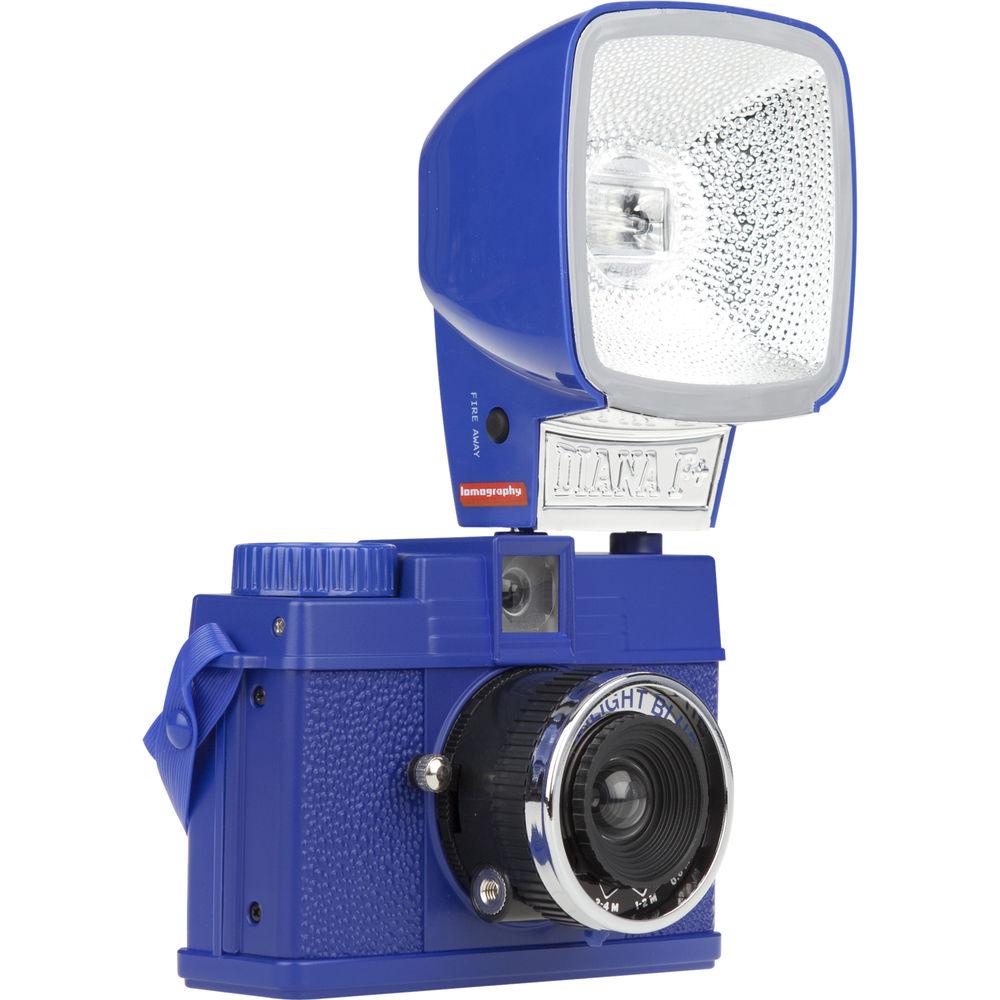

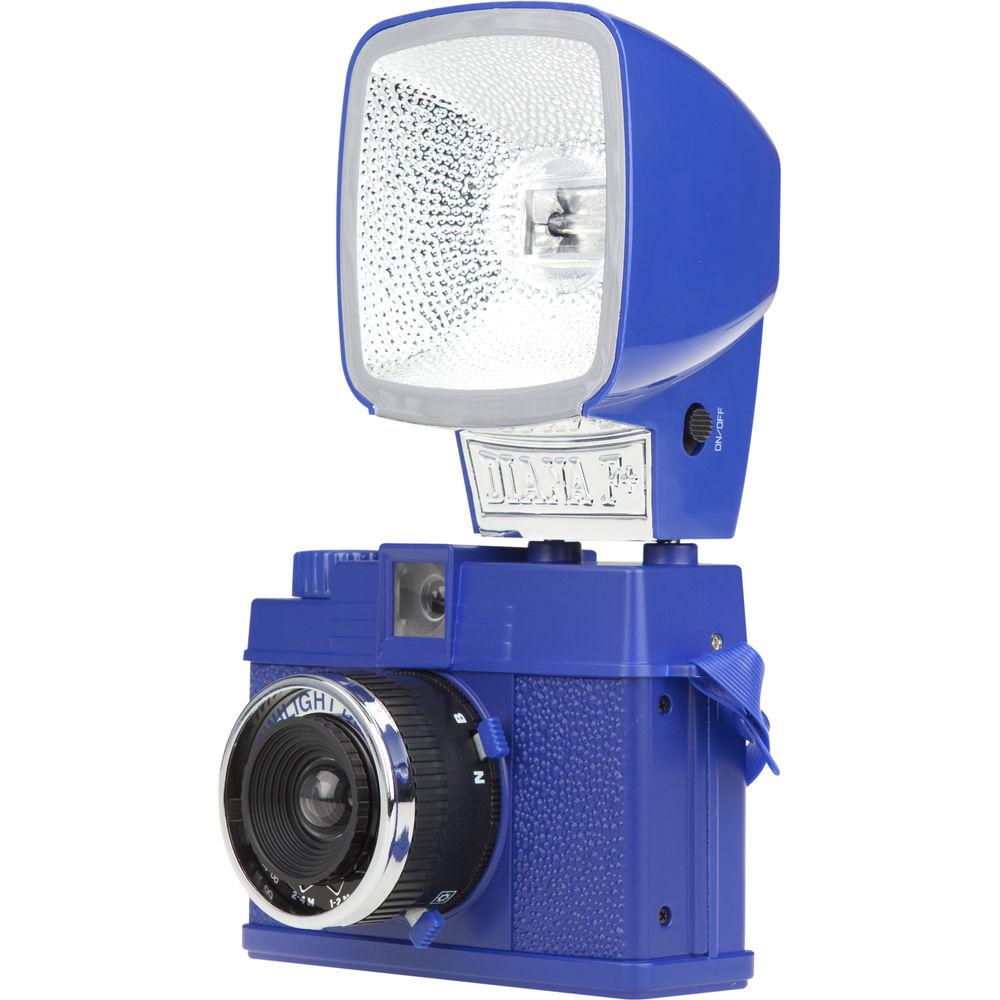

Product description The twilight blue-colored Diana Mini 35mm Camera with Flash is a retro-styled, compact 35mm film camera that features a plastic 24mm f/8 lens for providing a unique look to your images. The camera can shoot in either a square or half-frame mode which will allow for either 36 or 72 shots on a single roll, respectively. The lens itself can be stopped down to f/11 for shooting in bright situations and can focus from 2' to infinity with a zone focusing method. Also, the camera has a 1/60 second shutter speed as well as a Bulb mode for long exposures.
The Diana Mini also features an optical viewfinder along with numerous other features to increase usability and the ability to experiment. One of these is the multiple exposure capability to overlap shots for creating multi-exposure panoramic images. The camera can even accept a threaded cable release and has a 1/4"-20 tripod mount. This model includes the Diana F+ flash for even more imaging options. - Options for square format 0.9 x 0.9" or half frame 0.9 x 0.7" images
- Captures 36 square or 72 half frame format photos on a single 35mm roll
- Bulb mode for long exposures or 1/60 second shutter speed for standard shots
- 24mm lens has 35mm equivalent focal lengths of 30mm in square format and 35mm in half-frame format
- Zone focusing has markings for 0.6m, 1.2m, 2.4m, and 4m (equivalent to 2', 3.9', 7.9', and 13.1') to infinity
- Cloudy aperture setting of f/8 and sunny aperture setting of f/11
- Accepts threaded cable release
- Multiple exposures are possible with the ability to overlap frames for an endless panorama
- Diana F+ flash allows you to more easily shoot in a wide range of lighting conditions
In the Box Lomography Diana Mini 35mm Camera with Flash (Twilight Blue) Diana F+ Flash Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lomography Diana Mini 35mm Camera with Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLomography HP550TB Specs | Format | 35mm roll film | | Lens | 24mm
Square Format: 30mm (35 mm equivalent)
Half Frame Format: 35mm (35 mm equivalent) | | View Angle | Square Format: 70°
Half Frame Format: 62° | | Aperture | Maximum: f/8
Minimum: f/11 | | Focusing Range | 2' (0.6 m) to infinity | | Shutter Speed | 1/60 sec, Bulb | | Photo Format | Square: 0.9 x 0.9" (24 x 24 mm)
Half Frame: 0.9 x 0.7" (24 x 17 mm) | | Photo Storage Capacity | Square Format: 36 shots
Half Frame Format: 72 shots | | Viewfinder | Built-in optical | | Flash | Diana Flash Plug (Diana Flash included) | | Cable Release Socket | Yes | | Tripod Mount | Yes, 1/4"-20 | | Dimensions | 2.8 x 4.0 x 2.4" (70 x 101 x 60 mm) | | | | Package Weight | 2.005 lb | | Box Dimensions (LxWxH) | 7.55 x 6.15 x 3.6" |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 11 owners. Add your rating and experience with the product.
