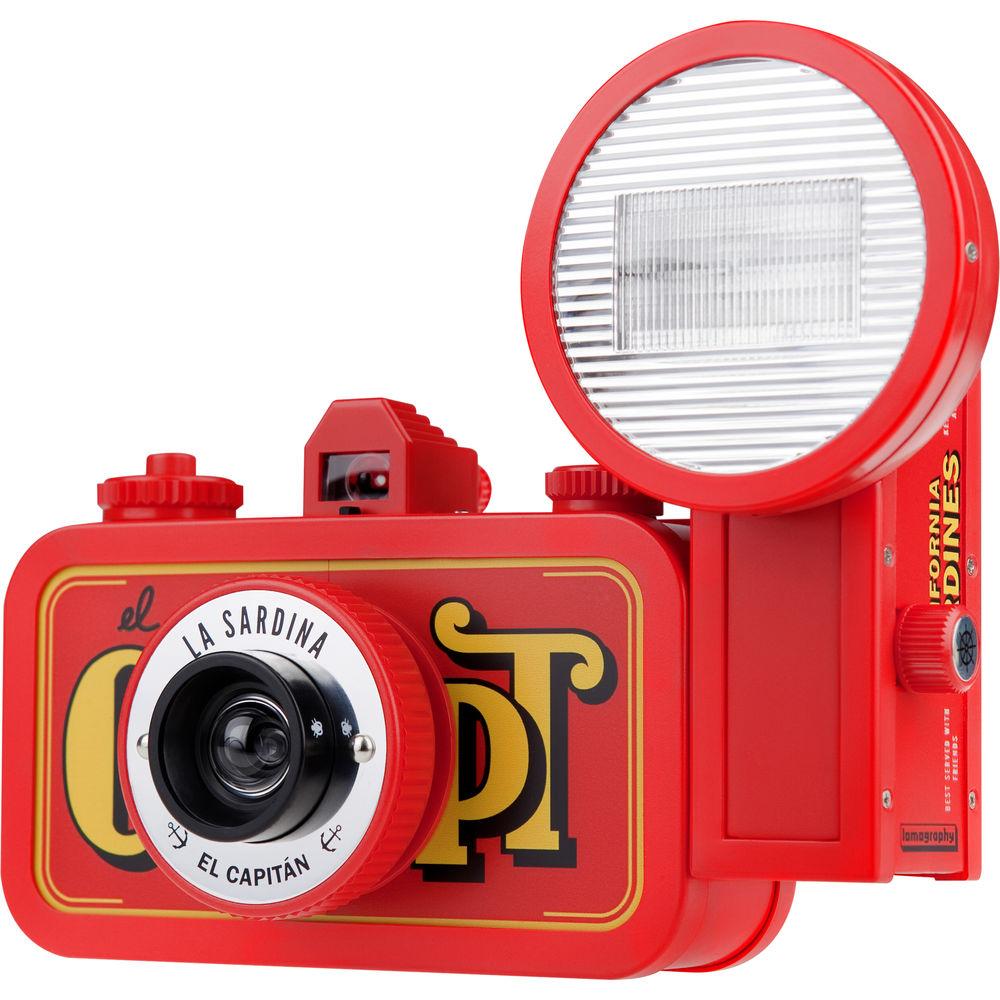

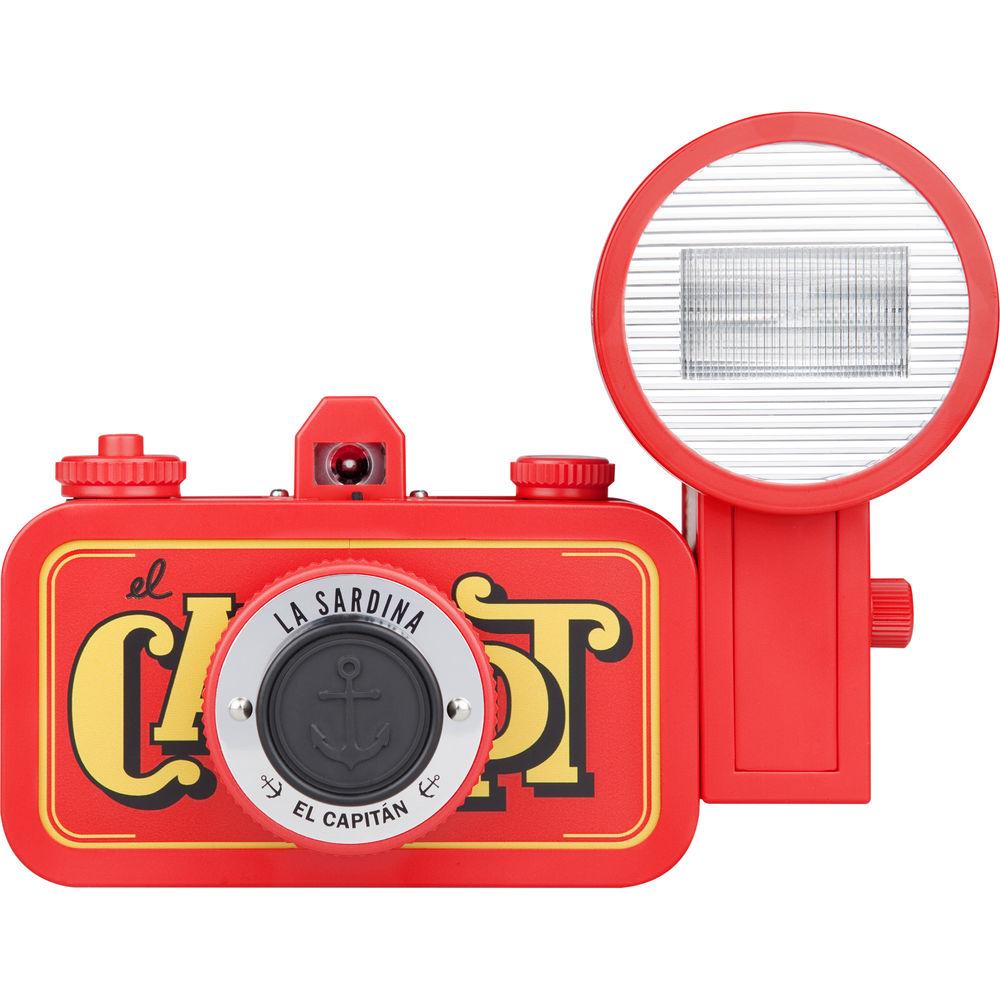

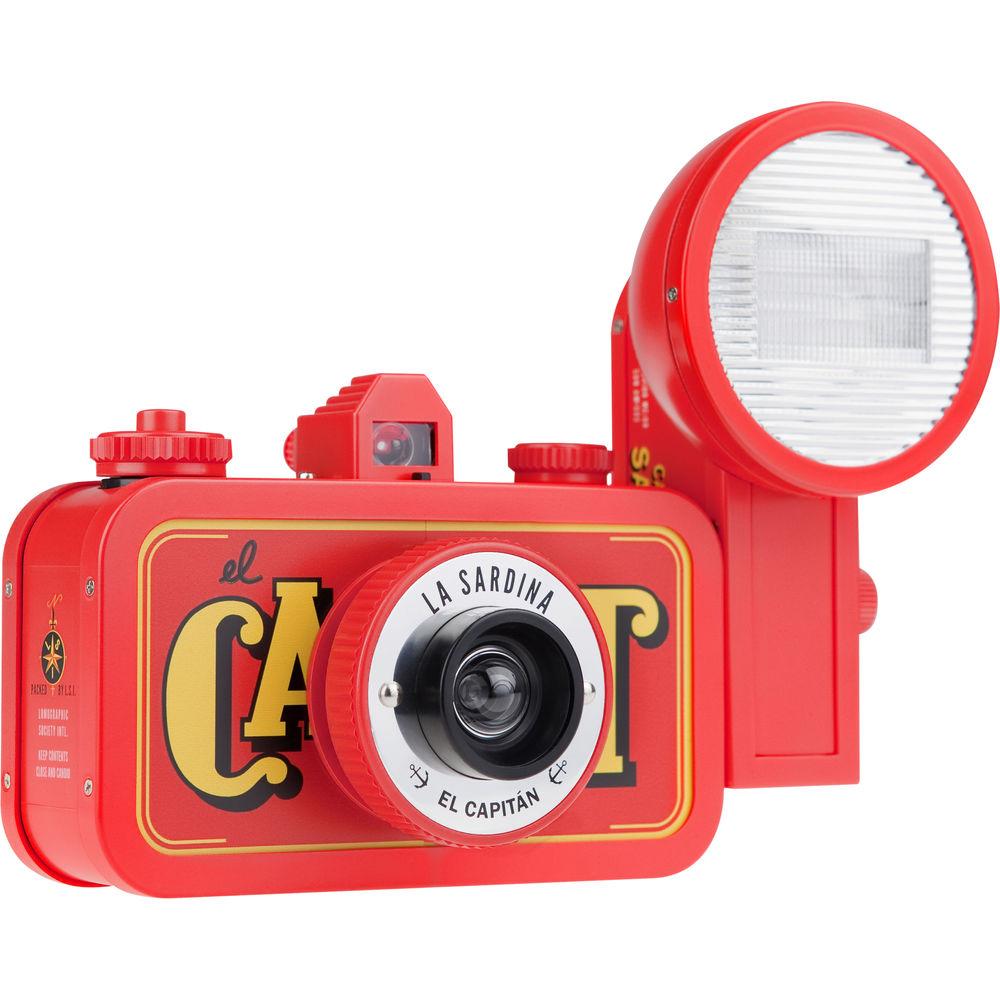

Product description The Lomography La Sardina El Capitan Camera is a 35mm film toy camera specifically designed to bring more fun and chance to your shooting routine. This compact, sardine can-shaped camera features a built-in 22mm wide angle lens with a fixed f/8 aperture and two step focusing system. Two shutter speed settings are available, 1/100th sec. or bulb, and unlimited multiple and long exposures are possible.
A micro flash contact is also incorporated into the camera, allowing the use of the included Fritz the Blitz flash to provide additional light for your exposures. A cable release socket is built into the shutter release and a 1/4" socket is also available for tripod usage.

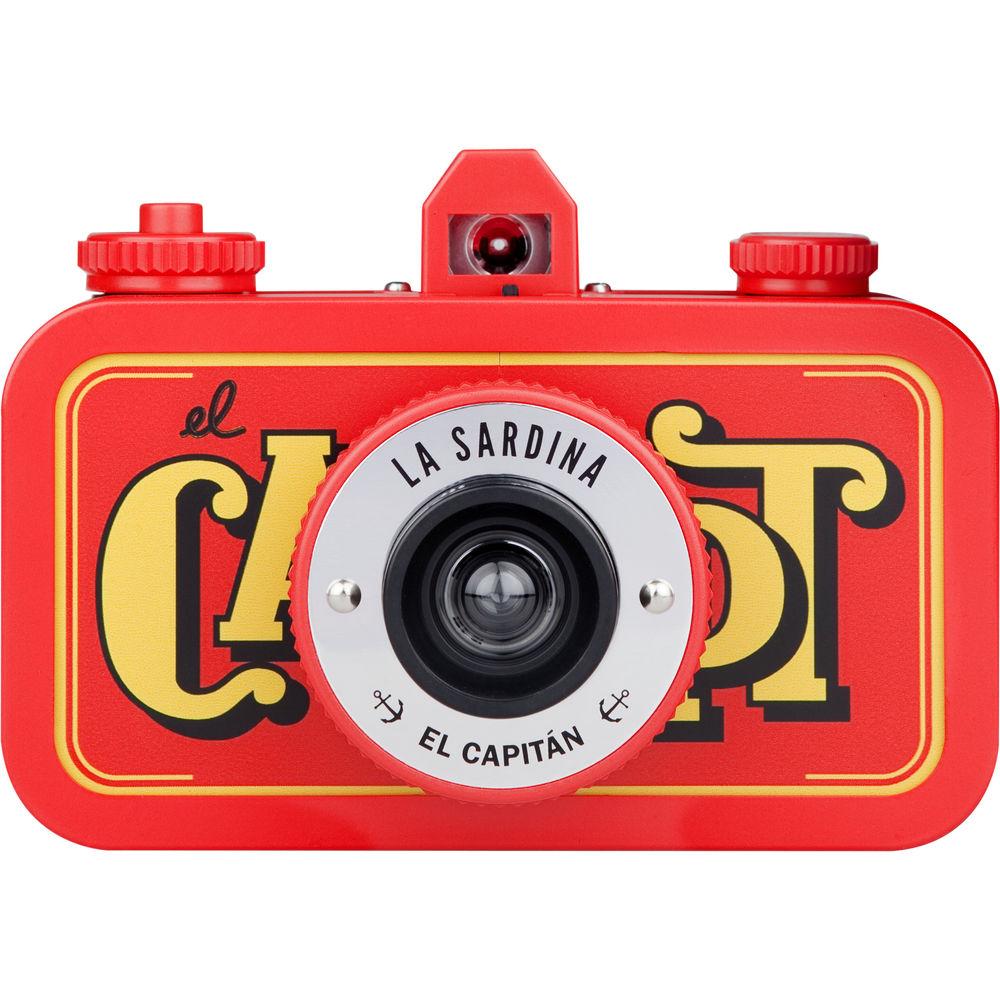

The body has a nautically-themed red and yellow plastic body design and features a built-in inverse Galilean viewfinder to suit the wide-angle perspective of the lens. A film cartridge window allows you to see the type of film you are using and an auto film counter with auto film stopping helps to keep consistent spacing in between frames. - La Sardina
- Lomography's La Sardina line of cameras are 35mm film cameras featuring a sardine-can shaped body, 22mm wide-angle plastic lens, built-in optical viewfinder, and multiple and long-exposure capabilities. This El Capitan edition features bright yellow typography over an equally bright and bold red plastic body.
- Wide-Angle 22mm Lens
- This wide-angle plastic 22mm lens has an angle of view of 89°, giving a broad perspective and great depth of field. A fixed f/8 aperture is suitable for most shooting applications and two-stage focusing gives you the option to focus between 2-3.3' / 0.6-1m and from 3.3' / 1m to infinity. The plastic construction gives images a soft, dreamy quality that truly defines the "toy camera look."
- Exposure Settings

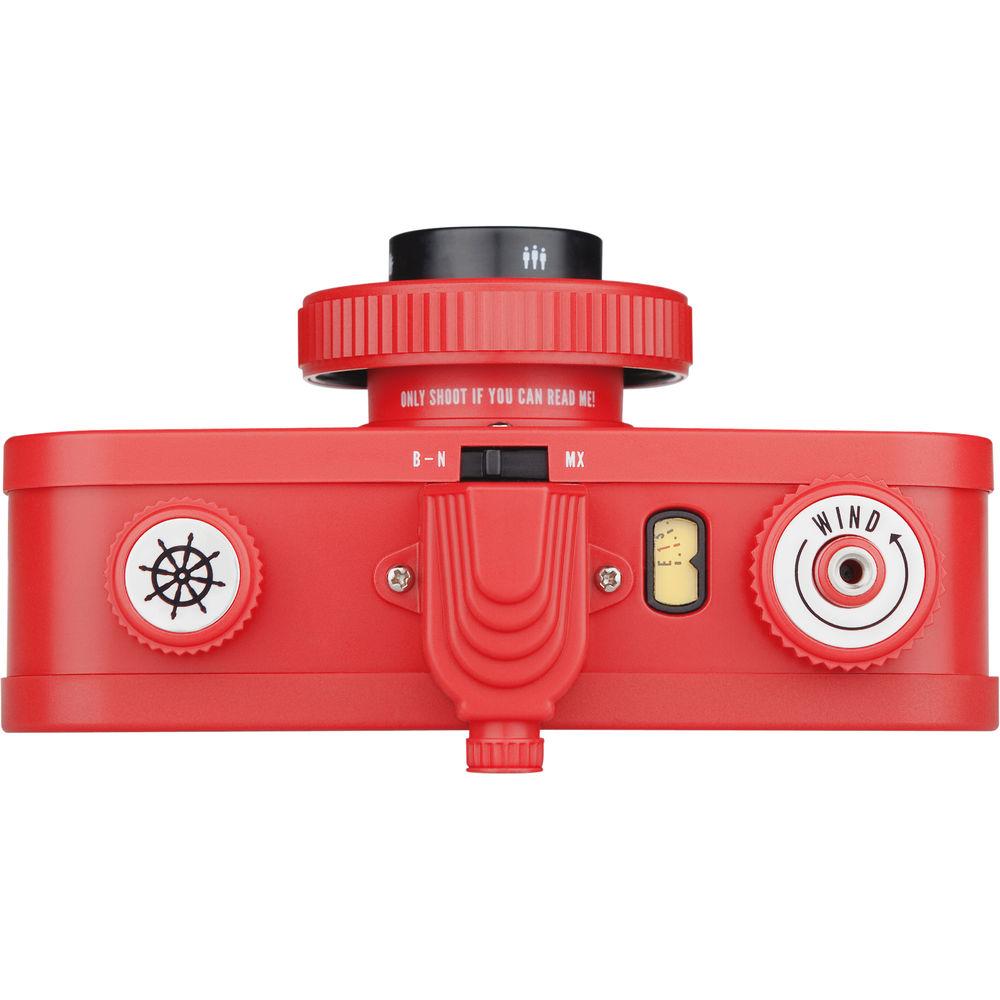

- Two exposures settings are available: N (1/100th sec.) or B (bulb) for controlling exposure lengths to suit different lighting situations. Additionally, an MX mode is available, which allows you to record unlimited multiple exposures on the same frame. The bulb setting allows you to record long exposures, which is further benefited by the inclusion of a 1/4" tripod socket and a cable release socket to help prevent camera shake.

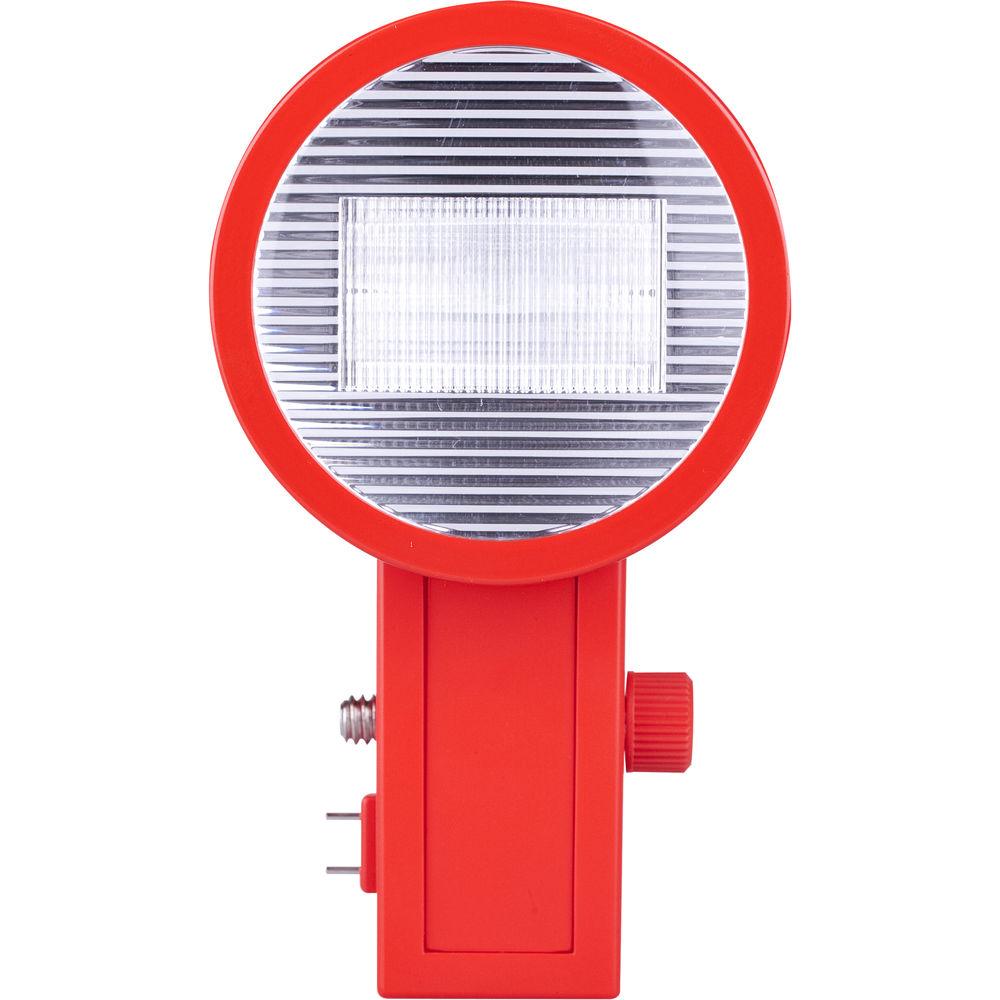

- Fritz the Blitz Flash

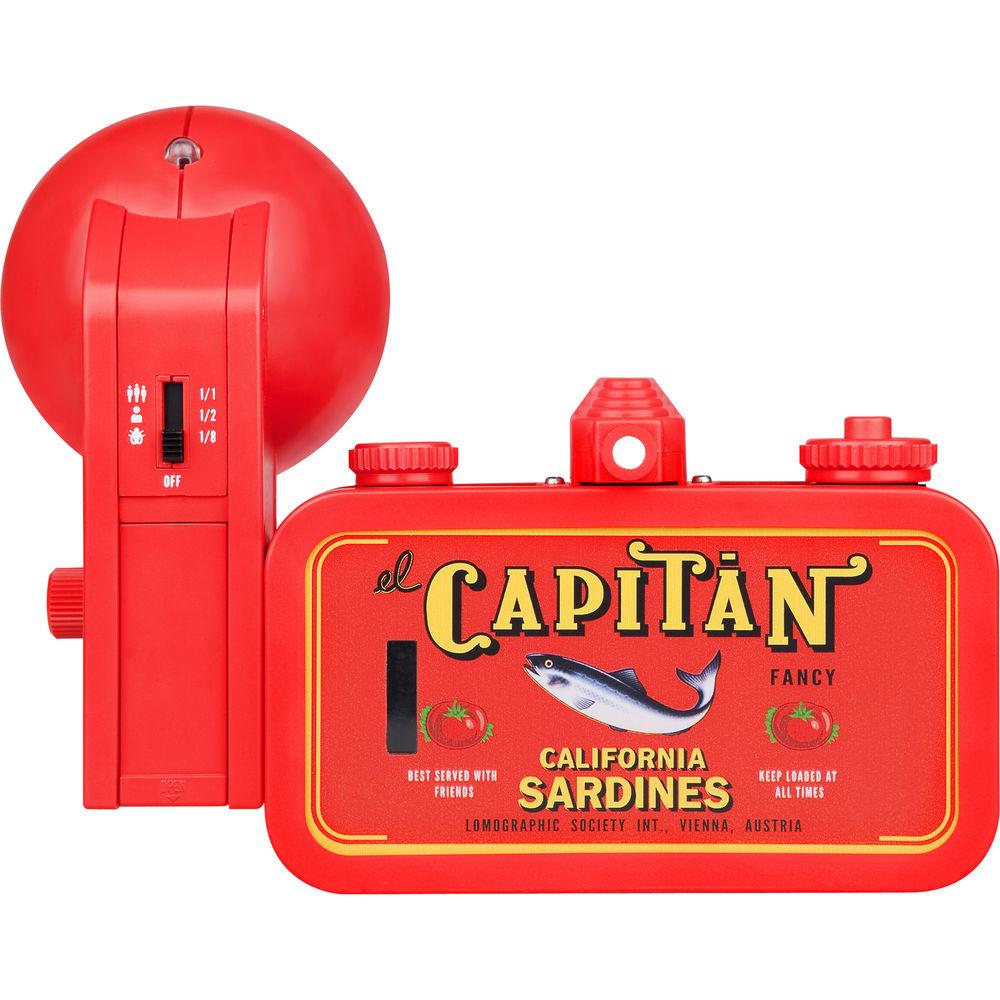

- A dedicated micro contact is available in order to use the included Fritz the Blitz flash for more creative exposure possibilities or for simply adding additional light to the scene. This external flash attaches to the side of the camera and features three distance settings (5.25', 4', and 2') for greater exposure control when shooting. Additionally, four colored filters (blue, yellow, white, and red) are also included to creatively modify the color of the flash output.
In the Box Lomography La Sardina El Capitan Camera with Flash Fritz the Blitz External Flash 4 x Color Filters for Fritz the Blitz Flash Lens Cap La Sardina Book and Poster Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lomography La Sardina El Capitan Camera with Flash in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLomography SP200EC Specs | Film Format | 35 mm (135) | | Image Area | 1.4 x 0.9" / 36 x 24 mm | | Lens Focal Length | 22 mm | | Angle of View | 89° | | Aperture | Fixed f/8 | | Shutter Speed | N: 1/100 sec.
B: Bulb | | Minimum Focus Distance | 2' / 60 cm | | Focus System | Two-step: 2-3.3' / 0.6-1 m, 3.3' / 1 m to infinity | | Viewfinder | Inverse Galileo-type built-in viewfinder | | Film Counter | Auto film counter with auto film stopping | | Cable Release Socket | Yes; standard | | Tripod Mount | 1/4" socket | | External Flash Connection | Unique La Sardina micro contact (for Fritz the Blitz flash only) | | Dimensions | Not specified by manufacturer | | Weight | Not specified by manufacturer | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 11.4 x 6.7 x 3.8" |
