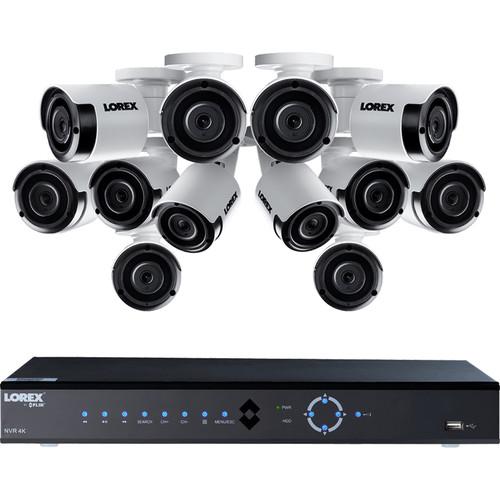

User Manual for Lorex 16-Channel 4K UHD NVR with 3TB HDD & 12 5MP Color Night Vision Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Lorex 16-Channel 4K UHD NVR with
- Product category: Surveillance Systems Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Surveillance Systems
|
User manual for the Lorex 16-Channel 4K UHD NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|
Product description Monitor your property with the 16-Channel 4K UHD NVR with 3TB HDD & 12 5MP Color Night Vision Bullet Cameras from Lorex. This 4K UHD 16-channel NVR manages and can record from up to 16 cameras. It comes preinstalled with a 3TB HDD that is expandable to 12TB. Space-saving H.265 and H.264 video compression offer reduced file sizes and improved performance for remote viewing while maintaining the best quality possible. The Lorex Secure app enables live viewing, playback, video recording, and snapshots via your iOS or Android device. Additionally, you can control your security system over the internet via Windows and Mac PCs.
The included bullet cameras use 1/2.7" progressive scan image sensors to capture 2592 x 1944 resolution video at 15 fps. Their 2.8mm fixed lenses each have a 105° horizontal field of view. Integrated IR LEDs deliver up to 90' of night vision in total darkness & 130' of night vision in ambient light. Audio recording is possible with these cameras thanks to a built-in microphone. Each camera is housed in an IP66-rated enclosure that is suitable for outdoor use. - LNK72163T 16-Channel 4K UHD NVR
-
- HDMI and VGA outputs to connect multiple monitors
- HDMI cable included
- Pentaplex operation enables simultaneous view, record, playback, backup, and remote monitoring
- Continuous, scheduled, and motion recording
- Automatically detects compatible IP cameras
- 24/7 security-grade preinstalled 3TB HDD
- HDD storage expandable to 12TB
- Supports mirror hard drive recording
- Instant backup of live video to a USB flash drive
- Click-and-drag digital zoom in live view and playback
- Time stamps with NTP and daylight savings time
- Push notifications of motion events
- Automatic firmware upgrades over the internet
- Instant email alerts with snapshot attachment
- H.265 video compression and multi-streaming to conserve bandwidth
- Front panel controls

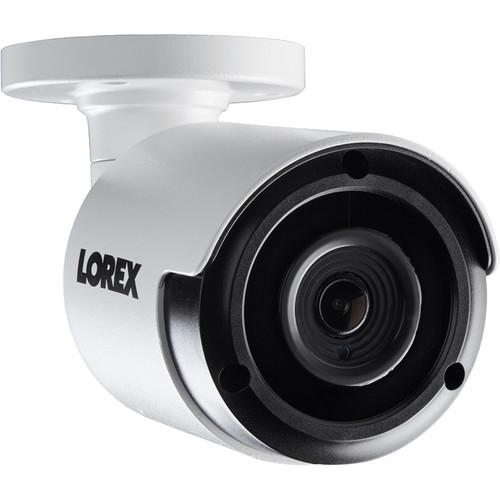

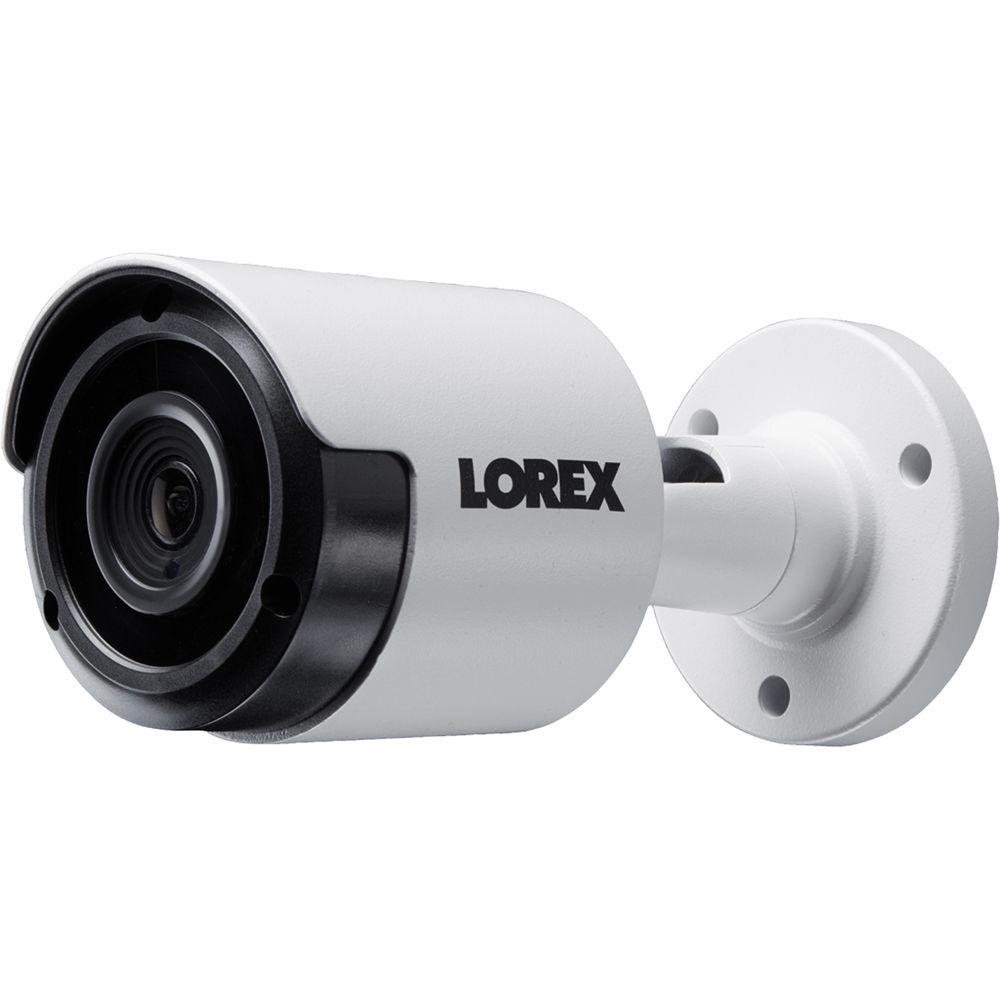

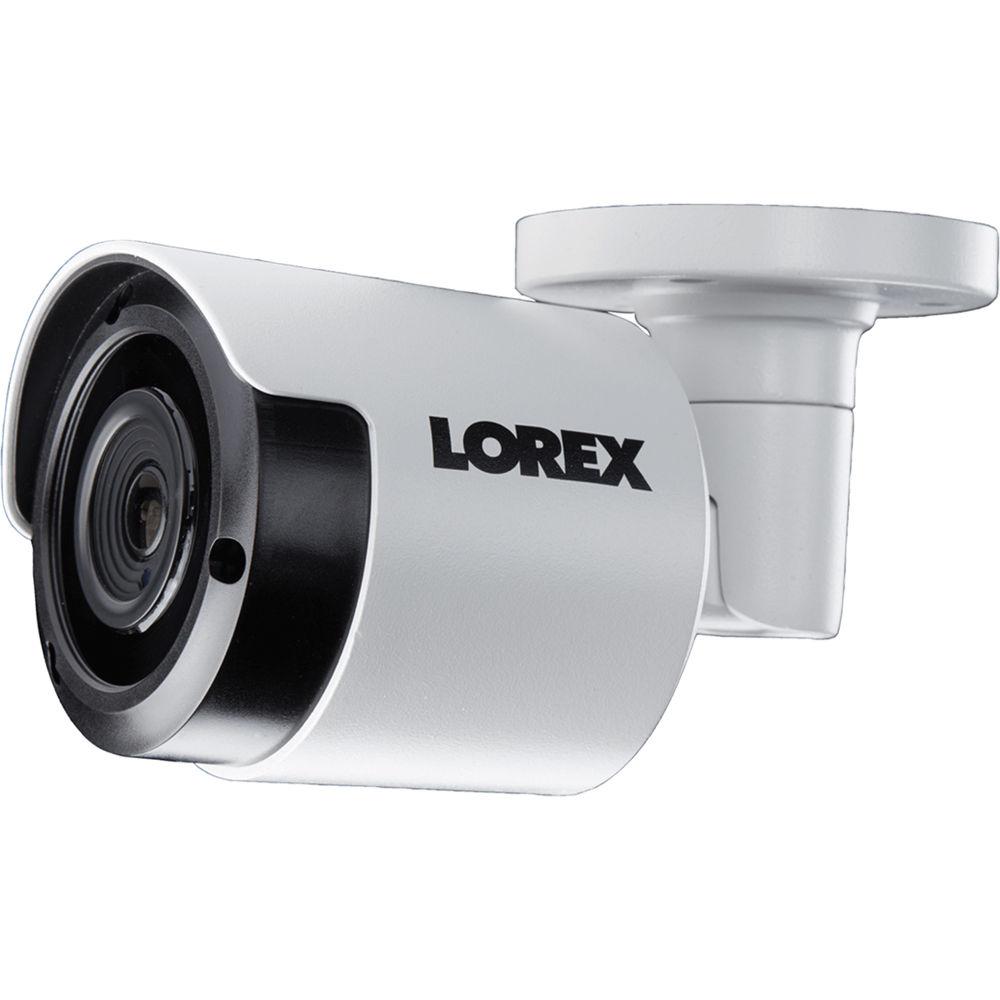

- LKB353A 5MP Bullet Cameras
-
- Compatible with all Lorex LNK series NVRs
- IR LEDs allow video to be captured from up to 90' away in total darkness & up to 130' away in ambient lighting
- Color Night Vision and ClearNight technology help produce clearer images in low-light conditions
- Built-in microphone
- H.265 video compression
- Internal sync system
- PoE or 12 VDC power (DC power barrel available separately)
- PoE technology enables the camera's video and power to be extended to a distance of up to 300' from the NVR with a single Ethernet cable (100' cable included, longer cables available separately)
- Electronic image stabilization (EIS)
- ≥39 dB S/N ratio with automatic gain control turned off
- IP66-rated enclosure that is suitable for outdoor use
- Operates in temperatures as low as -22°F
- Weatherproof Ethernet connector cover for a protective seal against the elements
- Ceiling and wall mountable
UPC: 695529015088 In the Box Lorex 16-Channel 4K UHD NVR with 3TB HDD & 12 5MP Color Night Vision Bullet Cameras LNK72163T 16-Channel 4K UHD NVR Remote Control Ethernet Cable USB Mouse Power Cable HDMI Cable 12 x LKB353A 5MP Outdoor Network Bullet Camera with Color Night Vision 12 x Mounting Kits 12 x 100' Ethernet Extension Cables 12 x Weatherproofing Caps 12 x Allen Keys Limited 1-Year Warranty for NVR and Cameras Limited 90-Day Warranty for Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 16-Channel 4K UHD NVR with 3TB HDD & 12 5MP Color Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

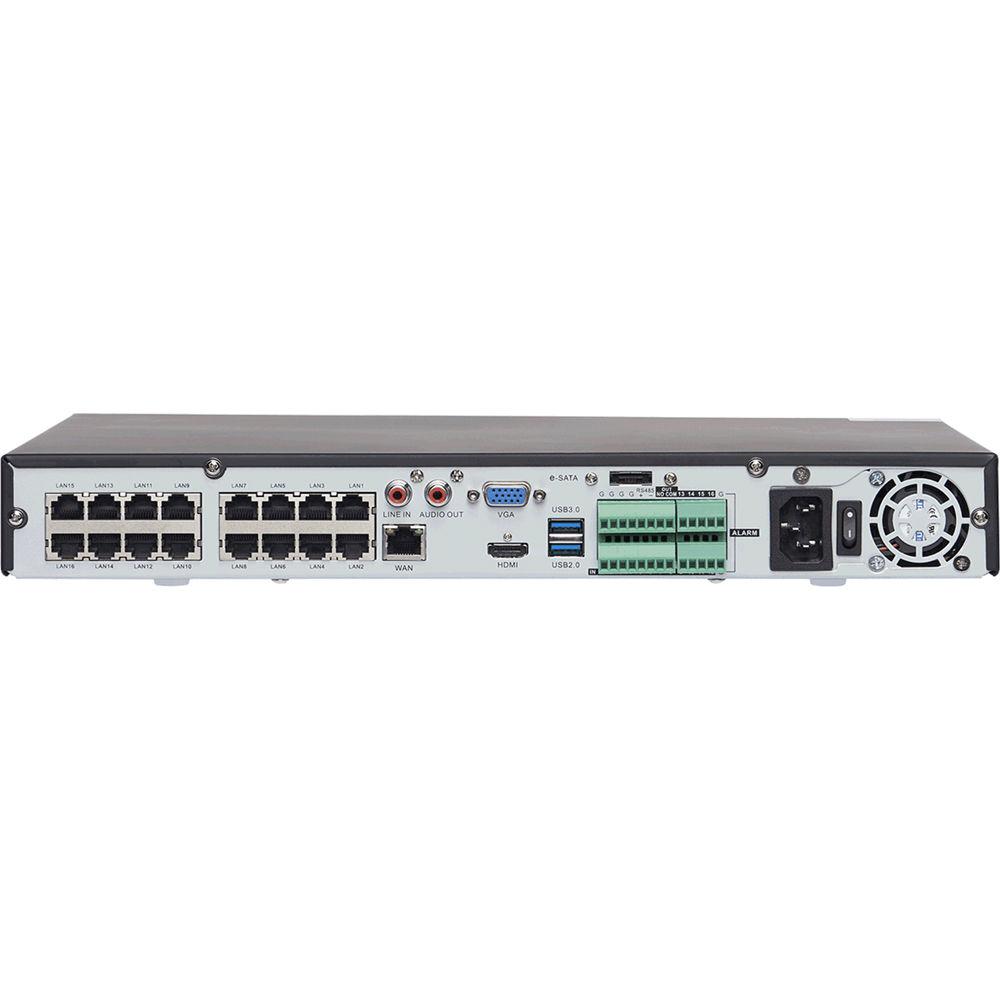

Technical parametersLorex LNK72163T125B Specs | Operating System | Linux Embedded | Pentaplex Operation | Simultaneous View, Record, Playback, Backup, and Remote Monitoring | Number of Channels | 16 | Video In | 16 PoE Video Inputs | VGA | Yes | HDMI | Yes | Audio In | Service Jack Only | Audio Out | 1 x RCA Line Out | USB Ports | 2 x Rear (1 x USB 2.0, 1 x USB 3.0) 1 x Front | Alarm I/O | 1 x 16 Inputs 1 x 1 Output | Video Output Resolution | 3840 x 2160, 2560 x 1440, 1920 x 1200, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 | PTZ Control | Yes | RS-485 Support | Yes | Display Split | 1/4/8/9/16 | Live Display Speed | 30 fps (Camera Dependent) in Real Time | OSD | On/Off | System Navigation | USB Mouse, IR Remote Control | Motion Area Setting | Fixed Grid 1320 (44 x 30) | Sensitivity Levels | 8 | Firmware Upgrade | Automatic Over the Internet & via USB Device | User Authority | By User Group | Time Synchronization | Auto Time Sync by NTP Server | Video Compression | H.265, H.264 | Audio Compression | G.711 | Recording Resolutions | 3840 x 2160, 2688 x 1520, 2048 x 1536, 1920 x 1080, 1280 x 720 | Recording Frame Rate | 30 fps (camera dependent) in Real Time | Recording Resolution Setting | Per Camera for Different Resolutions | Recording Quality Control | 6 Levels | Recording Schedule | By Hour, by Day, by Recording Mode, by Motion, by Alarm, by Channel | Pre Recording | 2 Seconds | Post Recording | 30 Seconds Minimum, 5 Minutes Maximum | Reliability | Watch-Dog, Auto-Recovery After Power Failure | Covert Video | Yes | Playback Channel | 1/4/9/16 | Playback Speed | Variable Max 16x | Playback Players | Backup Player | Search | By Time/Date, Motion Detection, and Exact Search (Accurate to the Second) | Log Search | Up to 4000 Lines for System Configuration Changes, Motion/Alarm Detected, Account, Recording, and Storage | Audio Play | Yes | HDD Included | 1 x 3 TB | HDD Storage Capacity | 2 x 6 TB | Backup Media | USB Flash Drive, HDD, and Network | Backup File Format | H.265, H.264, or MP4 | Cloud Connection | Lorex Secure | Supported Operating Systems | Windows, Mac OS X | Remote Software | Web Client Software for Windows and Mac | Email Notification | Text with Snapshot | Supported Mobile Devices | Android, iPad, iPhone | DDNS | Free Lorex DDNS | System Configuration | Full Setup Configuration over Network | Ports | Programmable by User | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP | Network Interface | 10/100/1000M, RJ45 | Network Bit Rate | Maximum 320 Mb/s Total | Power Consumption | Without HDD: 20.5 W | Supply Voltage | 100-240 VAC | PoE Power Output | 130 W (30 W per Channel Max) Total | Operating Temperature | 14 to 131°F / -10 to 55°C | Humidity | 10 to 90% RH | Rackmount | 1.5 RU | Dimensions (W x H x D) | 15 x 12.2 x 2" / 380 x 310 x 50 mm | Weight | 5.7 lb / 2.6 kg | | Image Sensor | 5 MP 1/2.7" Progressive Scan | Video Format | NTSC, PAL | Effective Pixels (H x V) | 2592 x 1944 | Resolution | 2592 x 1944 (5 MP) at 15 fps | Sync System | Internal | S/N Ratio | ≥39 dB with AGC Turned Off | Iris | Electronic Image Stabilization (EIS) | AES Shutter Speed | 1/20,000 to 1/5 Seconds | Minimum Illumination | Color: 0.05 Lux without IR B&W: 0 lux with IR | Video Output | IP | Audio | Built-In Microphone | Lens | 2.8mm Fixed | Aperture | f/1.8 | Horizontal Field of View (degree) | 105° | Termination | RJ45 Ethernet, 12 VDC Power Barrel (Optional) | IR LED Type | 850 nm | Night Vision Range | Complete Darkness: 90' / 27 m Ambient Lighting (Color Night Vision): 130' / 40 m | Power Requirement | PoE / 12 VDC | Power Consumption | Maximum 425 mA / 5.1 W | Operating Temperature | -22 to 140°F / -30 to 60°C | Operating Humidity | <95% RH | IP Rating | IP66 | Dimensions (W x D x H) | 2.9 x 6 x 2.9" / 73 x 152 x 73 mm | Weight | 0.9 lb / 0.4 kg | | Package Weight | 47.685 lb | Box Dimensions (LxWxH) | 19.6 x 19.3 x 15.5" |
