Product description

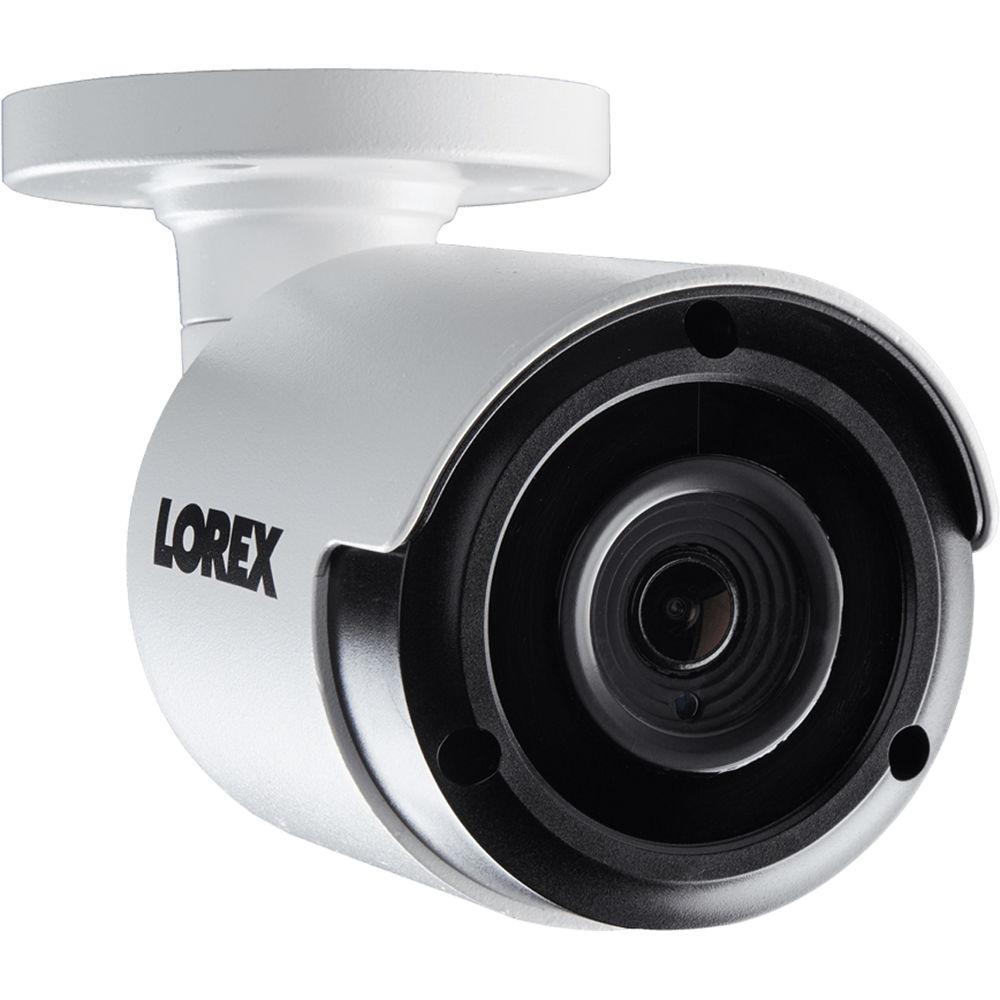

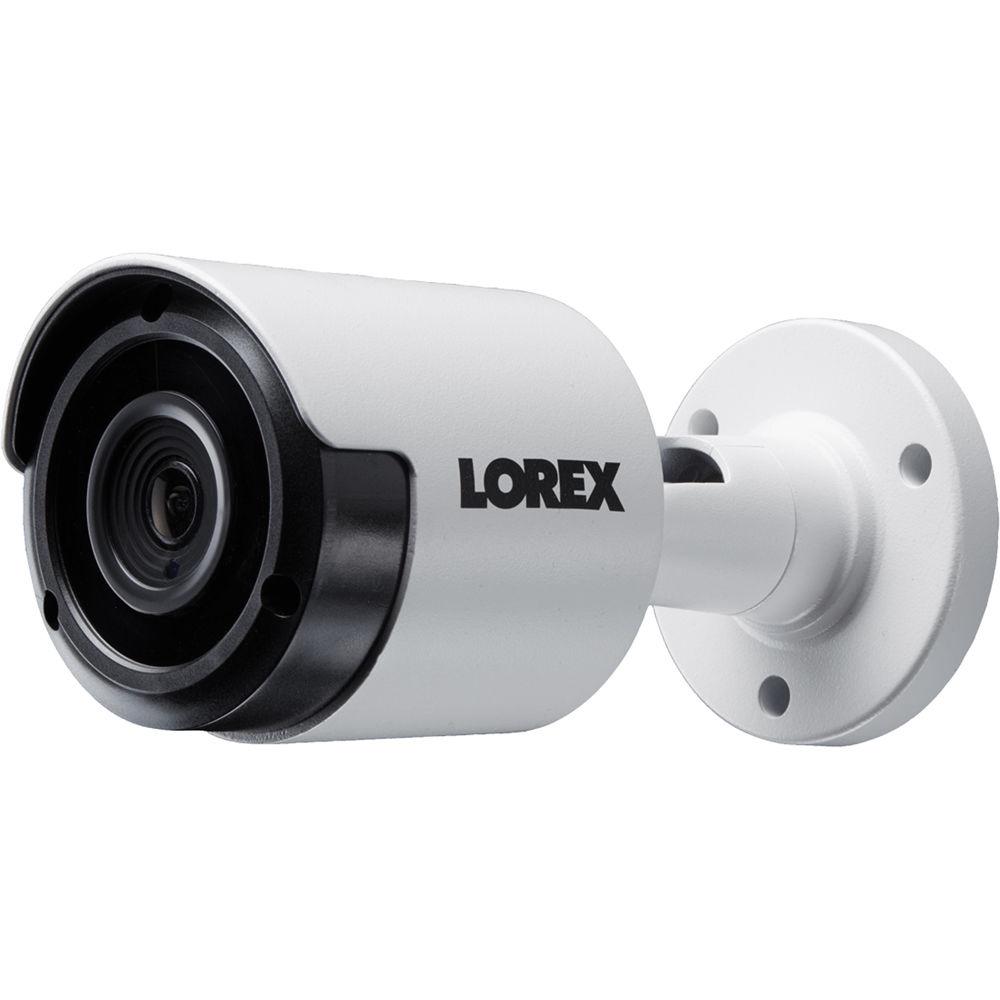

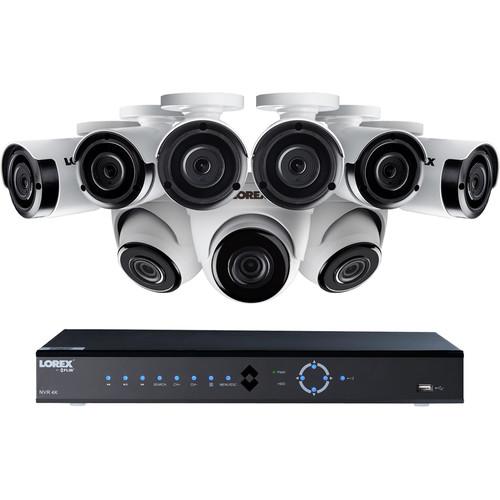

• 4MP Outdoor Bullet Network Camera with Color Night Vision
  • Color Night Vision - Lorex Technology
  Monitor your establishment round-the-clock, indoors or outdoors, with the 4MP Outdoor Bullet Network Camera with Color Night Vision from Lorex.

  The camera is compatible with most Lorex NVRs (except the LNR100, LNR200, and LNR300 Series), such as the LNK7000 Series. Install it on the interior or exterior of your home or office, connect it to the NVR via a single Ethernet cable (included), and capture everything in 2688 x 1520 2K resolution at 20 fps in a wide 101° field of view. The camera can record color video in extreme low light thanks to Lorex Color Night Vision and IR LEDs provide you with 90 ft of night vision in complete darkness, allowing for black-and-white capture of all the action.

  The camera is also Power-over-Ethernet capable for power direct from a PoE compatible NVR. It can be mounted on a ceiling or wall using an included mounting kit.
  Key Features
  • • Compatible with all Lorex HD NVRs except for LNR100, LNR200, and LNR300 Series
    • 2688 x 1520 resolution (4MP) at 20 fps
    • HD quality even when zoomed for clearer identification
    • Space-saving H.265/H.264 video compression
    • 90 ft of night vision in complete darkness
    • High Dynamic Range (HDR) image improvement in high-contrast lighting, revealing details in extremely bright and dark areas of the image
    • 101° wide field of view
    • Ceiling/wall mountable
    • Plug into NVR (sold separately) using a single Cat 5e cable per camera (100 ft included, up to 300 ft cables supported, sold separately)
    • Power-over-Ethernet (PoE) capable
    • Capable of operating in cold weather (-22°F)
    • IP66 weatherproof rated
    • Weatherproof Ethernet connector cover for a protective seal against the elements
  UPC: 695529011332

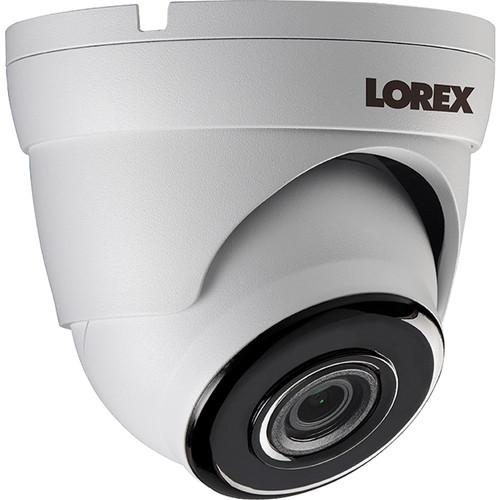

• LKE343B 4MP Outdoor Network Dome Camera with Color Night Vision Keep a watchful eye on your property with the LKE343B 4MP Outdoor Network Dome Camera with Color Night Vision from Lorex. This camera captures 2688 x 1520 resolution video at up to 20 fps. It features a 2.8mm fixed lens equipped with IR LEDs that deliver up to 90' of night vision, and a wide 101° horizontal field of view. H.265 video compression maintains high video quality, while reducing video file sizes by up to 50%. Thanks to PoE technology, data and power can be transferred via a single Cat 5e Ethernet cable. This camera's IP66-rated enclosure makes it suitable for outdoor use.Note: This device is only compatible with the LNK7000 Series NVRs from Lorex.
  • Color night vision offers full color nighttime video that delivers an improved recognition of objects low light conditions
  • True HDR (high dynamic range) designed to deliver better image clarity in varying lighting conditions
  • ClearNight imaging technology delivers improved low light performance and recording efficiency
  • NTSC and PAL compatible
  • PoE (Power over Ethernet) technology enables the camera's video and power to be extended to a distance of up to 300' from the recorder with a single Ethernet cable (100' cable included, 300' cable available for purchase separately)
  • Includes weatherproof Ethernet connector cover for protection against the elements
  • Operates in temperatures as low as -22°F (-30°C)
  • IP66-rated enclosure that is suitable for outdoor use
  UPC: 695529012261

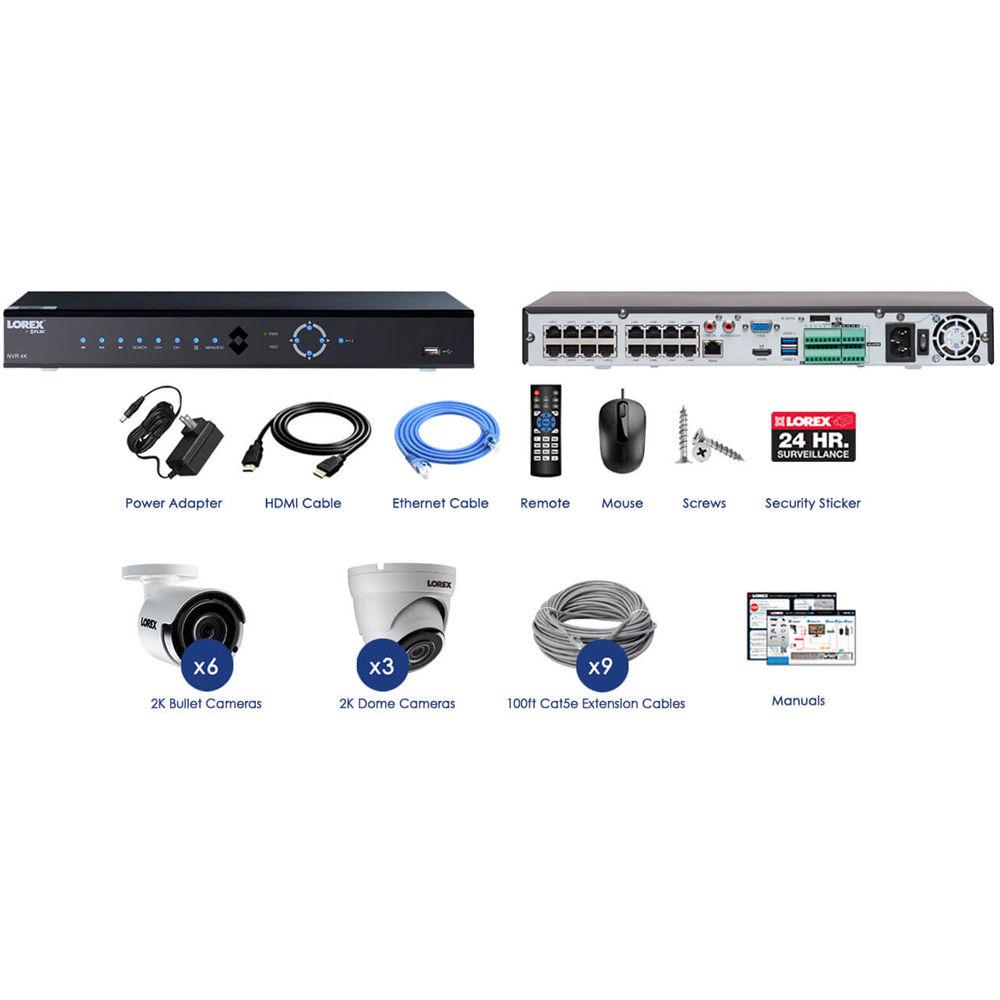

• Cat 5e Ethernet Cable (100 ft)

• Mounting Kit

• Allen Key

• Limited 1-Year Warranty

• Mounting Kit

• Power Adapter

• Mounting Screws

• Drywall Anchors

• Allen Key

• 100' (30.5m) Cat 5e Ethernet Cable

• Weather-Proofing Cap

• Limited 1-Year Warranty

Also Includes

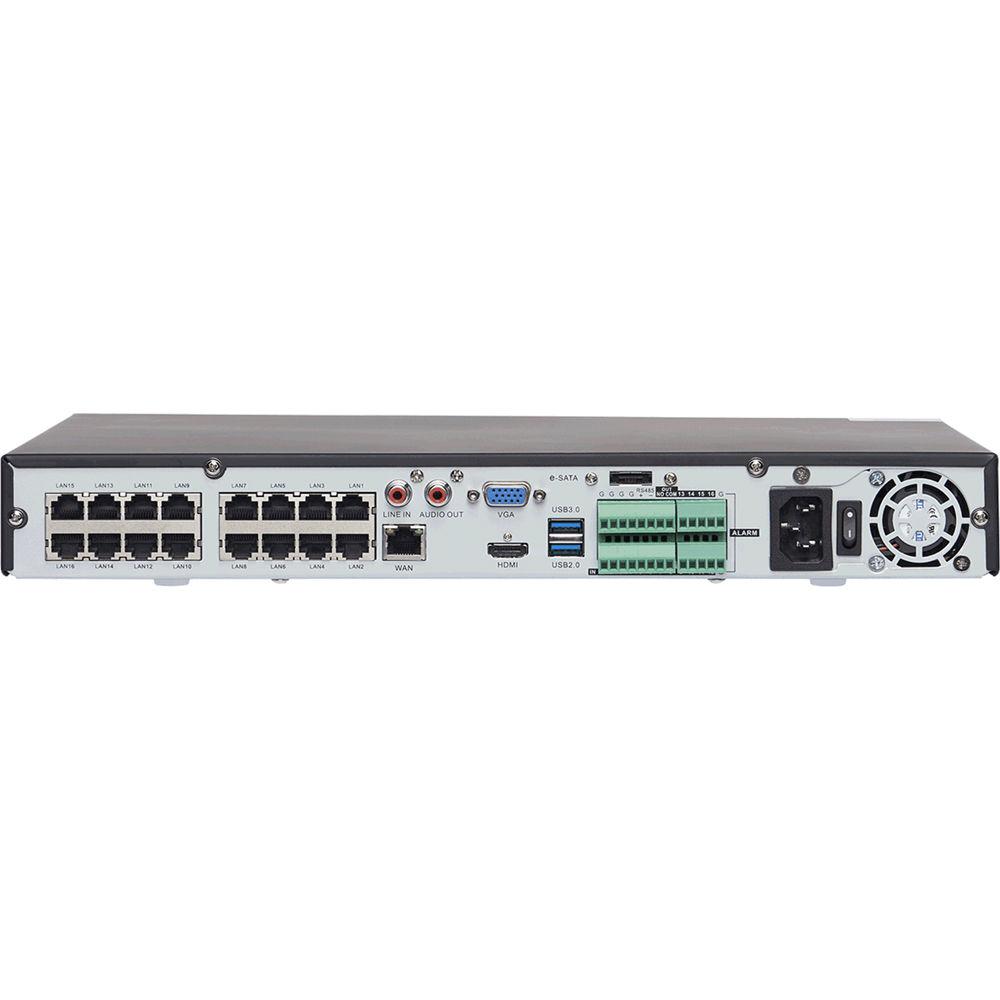

• Power Adapter
• HDMI Cable
• Ethernet Cable
• Remote
• Mouse
• Screws
• Security Sticker
• 9 x 100' (30.5m) Cat 5e Extension Cables

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4MP Outdoor Bullet Network Camera with Color Night Vision

  Image Sensor	1/3" 4 MP (compatible with all Lorex LNK Series NVRs)
  Video Format	NTSC/PAL
  Effective Pixels	2592 x 1520
  Resolution	2688 x 1520 (4 MP) at 20 fps
  Scan System	Progressive
  Sync System	Internal
  S/N Ratio	≥38 dB (AGC off)
  Iris	EIS
  AES Shutter Speed	1/5 - 1/20,000 seconds
  Minimum Illumination	Color: 0.3 lux B&W: 0 lux with IR on
  Night Vision Range	90 ft / 27 m
  Video Output	IP
  Lens	2.8 mm, f/1.8 (fixed)
  Field of View	101°
  Termination	RJ45 Ethernet / optional 12 VDC power barrel
  IR LED Type	850 nm
  Power	PoE (Power-over-Ethernet)
  Power Consumption	Max. 450 mA / 5.4 W
  Operating Temperature	-22 to 140°F / -30 to 60°C
  Operating Humidity	<95% RH
  Environmental Rating	IP66 (indoor/outdoor)
  Dimensions	2.9 x 6 x 2.9" / 7.3 x 15.2 x 7.3 cm
  Weight	0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	14.55 x 5.55 x 3.8"

• LKE343B 4MP Outdoor Network Dome Camera with Color Night Vision

  Image Sensor	1/3" 4 MP
  Video Format	NTSC/PAL
  Effective Pixels (H x V)	2592 x 1520
  Resolution	2688 x 1520 (4 MP) at 20 fps
  Scan System	Progressive
  Sync System	Internal
  S/N Ratio	≥38 dB (AGC off)
  Iris	EIS
  AES Shutter Speed	1/5 to 1/20,000 seconds
  Min. Illumination	Color: 0.5 lux without IR B&W: 0.3 lux with IR
  Video Output	IP
  Lens Type	2.8mm, fixed
  Aperture	f/1.8
  Horizontal Field of View (degree)	101°
  Termination	RJ45 Ethernet / 12 VDC power barrel (optional)
  IR LED Type	850 nm
  Night Vision Range	Ambient Lighting: 130' / 40 m Total Darkness: 90' / 27 m
  HDR	True high dynamic range
  Power Requirement	PoE (Power over Ethernet) class
  Power Consumption	Max. 450 mA / 5.4 W
  Operating Temperature	-22 to 140°F / -30 to 60°C
  Operating Humidity (Relative)	<95%
  IP Rating	IP66
  Dimensions (W x D x H)	3.9 x 3.9 x 3.5" / 100 x 100 x 90 mm
  Weight	0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	8.9 x 5.8 x 5.65"
