Product description - Color night vision cameras

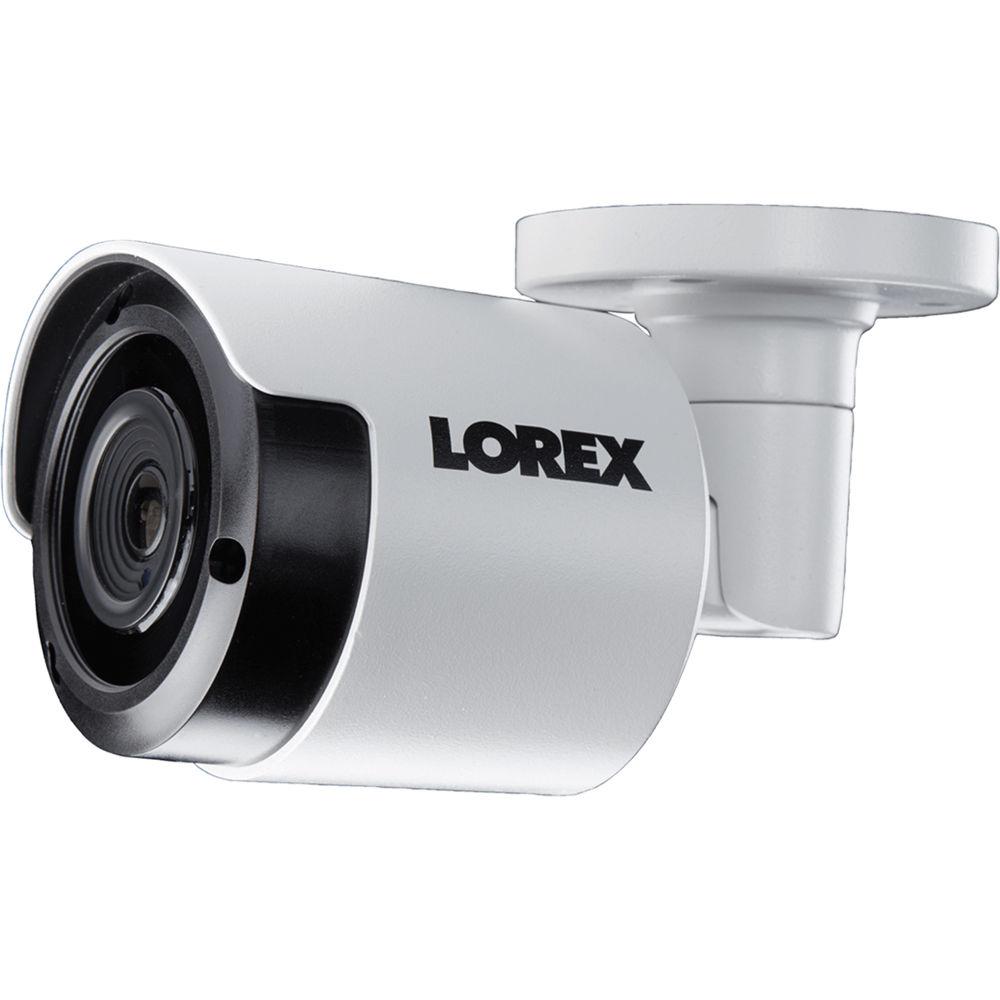

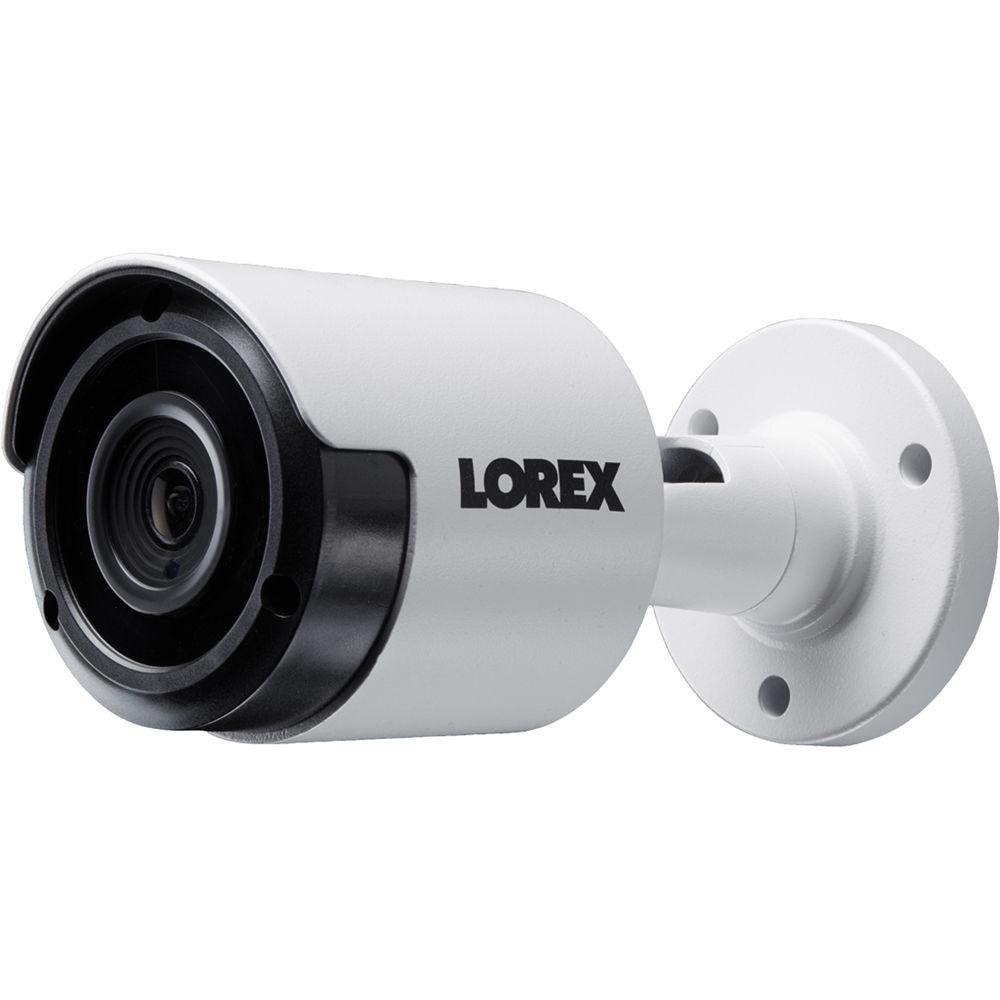

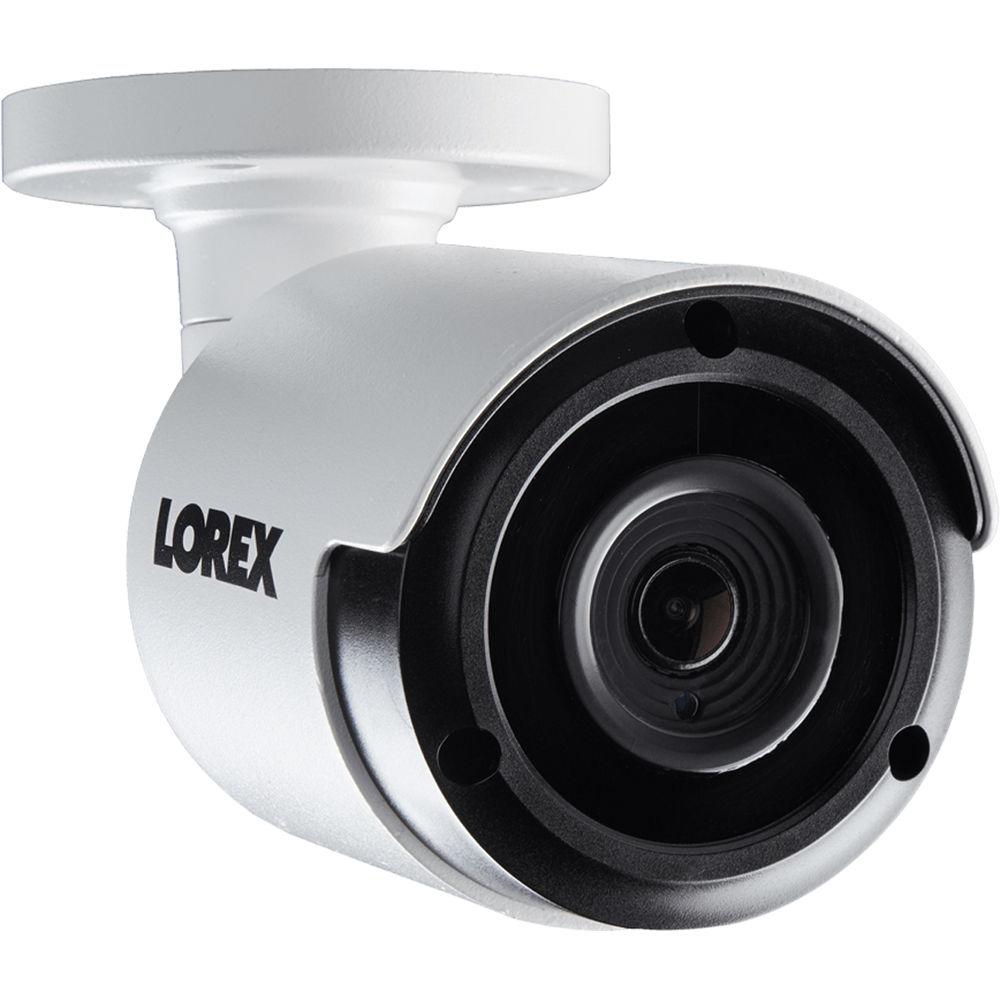

Monitor your property with the 16-Channel 4K UHD NVR with 3TB HDD and 9 4MP Outdoor Bullet Cameras with Color Night Vision from Lorex. The 4K 16-channel DVR manages and can record from up to 16 cameras. It comes preinstalled with a 3TB HDD that is expandable to two 6TB HDDs for a total of 12TB in storage. Space-saving H.265/H.264 video compression offers reduced file size and improved network performance for remote viewing. The FLIR Secure app enables live viewing, playback, video recording, and snapshots via your iOS or Android device. Windows and Mac PC compatible FLIR Cloud video management software enables you to control your security system from anywhere. The included bullet cameras feature 1/3" 4MP progressive scan CMOS sensors for up to 2688 x 1520. Their 2.8mm fixed lenses each have a 101° horizontal field of view. Integrated IR LEDs deliver up to 90' of night vision. Color Night Vision technology allows the camera to produce color images in very low light conditions. Integrated PoE technology simplifies connectivity by transmitting power and data via one cable. The cameras are each housed in an IP66-rated enclosure that is suitable for outdoor use. - 16-Channel 4K (UHD) NVR
-
- 24/7 security-grade pre-installed 3TB HDD (expandable to 12TB)
- Pentaplex operation allows for viewing, recording, playback, backup, and remote monitoring
- Windows and Mac PC compatible video management software enables you to control your security system from anywhere
- H.265/H.264 video compression
- Click-and-drag digital zoom in live view and playback modes
- Automatically detects compatible network cameras
- Front panel controls
- HDMI and VGA video outputs
- HDMI cable included to connect to HD and 4K UHD displays
- Simultaneously view up to 4 HD channels in 4K UHD resolution
- Instant backup of live video to a USB flash drive
- Time stamps with NTP and daylight savings time
- Supports mirror hard drive recording
- Automatic firmware upgrade over the internet ensures that your system is up to date and secure
- Push notifications of motion events
- Multi-streaming to conserve bandwidth
- Continuous, scheduled, and motion recording
- 4MP Outdoor Network Bullet Cameras
-
- Compatible with Lorex LNK Series NVRs
- H.265 video compression
- HD quality even when zoomed for clearer identification
- ClearNight imaging offers improved low light performance and improved recording efficiency
- True HDR (high dynamic range) offers image improvement in high-contrast lighting, revealing details in extremely bright and dark areas of the image
- Ceiling and wall mountable
- Operates in cold climates (-22°F)
- IP66-rated enclosure suitable for outdoor use
- Weatherproof Ethernet connector cover for a protective seal against the elements

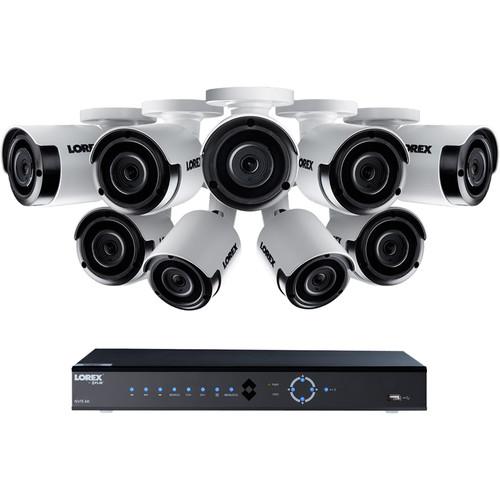

UPC: 695529012162 In the Box Lorex 16-Channel 4K UHD NVR with 3TB HDD and 9 4MP Outdoor Bullet Cameras with Color Night Vision 9 x 4MP Outdoor Bullet Network Camera with Color Night Vision Remote HDMI Cable Network Cable DVR Power Adapter Mouse Screws Warning Signs 9 x 60' (18.3m) Cat 5e Extension Cables 9 x Power Adapters Limited 1-Year Warranty More info from Lorex Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 16-Channel 4K UHD NVR with 3TB HDD and 9 4MP Outdoor Bullet Cameras with Color Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

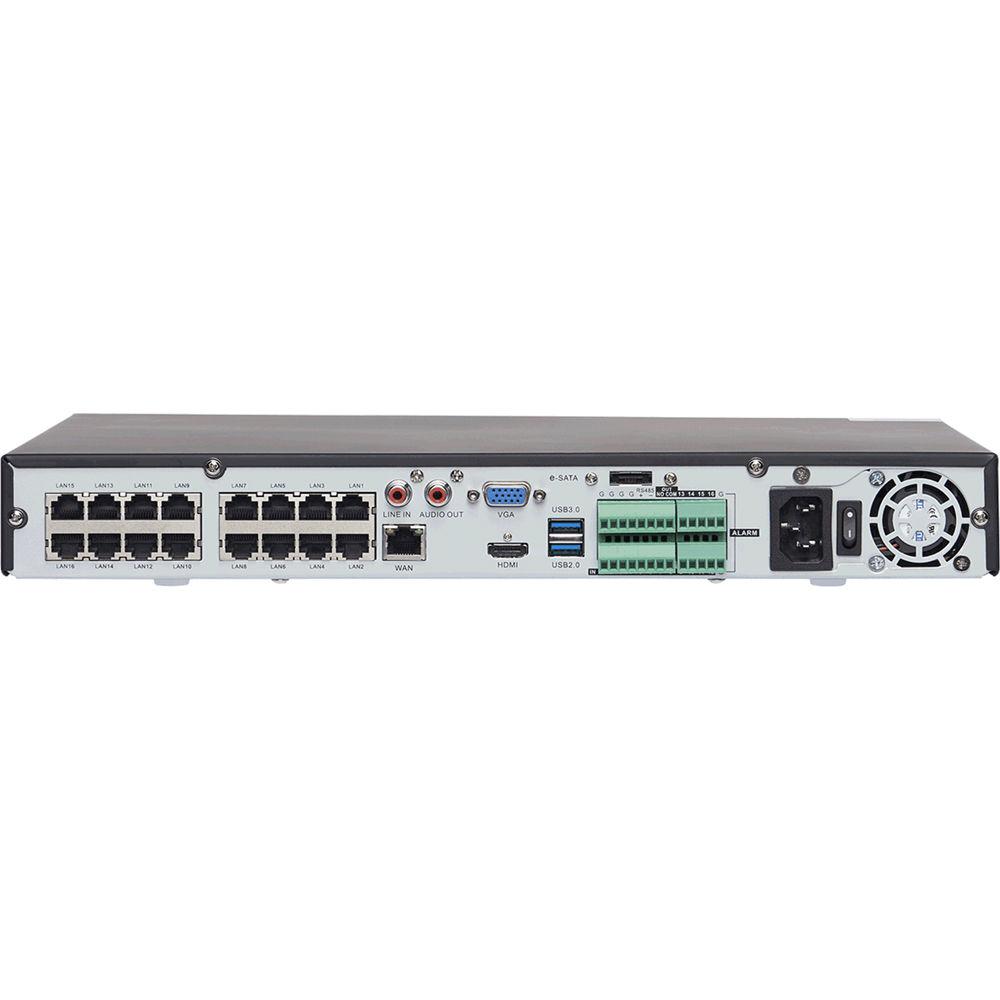

Technical parametersLorex LNK716394B Specs | | | Operating System | Linux (embedded) | | Pentaplex Operation | Simultaneous view, record, playback, backup, remote monitoring | | Number of Channels | 16 | | Video Inputs | 16 x PoE | | VGA | Yes | | HDMI | Yes | | Audio Output | 1 x line out (RCA) | | USB Ports | Rear: 1 x USB 2.0, 1 x USB 3.0
Front: 1 x USB | | Alarm Input / Output | 16 inputs / 1 output | | Video Output Resolution | 3810 x 2160, 2560 x 1440, 1920 x 1200, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | Yes | | Display Split | 1/4/8/9/16 | | Live Display Speed | Real-time (30 fps - camera dependent) | | OSD | On/off | | System Navigation | USB mouse, IR remote control | | Motion Area Setting | Fixed grid 1320 (44 x 30) | | Sensitivity Levels | 8 | | Firmware Upgrade | Automatic over the internet & via USB device | | User Authority | By user group | | Time Synchronization | Automatic time sync by NTP server | | Video Compression | H.265/H.264 | | Audio Compression | G.711 | | Recording Resolution | 8 MP (4K UHD) - 720p | | Record Rate | Real time (30 fps - camera dependent) | | Recording Resolution Setting | Per camera for different resolutions | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, by day, by recording mode, by motion, by alarm, by channel | | Pre Recording | 2 seconds | | Post Recording | Minimum 30 seconds, maximum 5 minutes | | Reliability | Watch-Dog, auto-recovery after power failure | | Covert Video | Yes | | Playback Channel | 1/4/9/16 | | Playback Speed | Variable max 16x | | Playback Players | Backup player | | Search | By time/date, motion detection & exact search (accurate to the second) | | Log Search | Up to 4000 lines for system configuration changes, motion/alarm detected, account, recording & storage | | Audio Play | Yes (audio camera required) | | Storage | Up to 2 HDDs (SATA) | | Maximum Capacity | Up to 2 x 6 TB | | Backup Media | USB flash drive, HDD, and network | | Backup File Format | H.265, H.264, or MP4 file | | Cloud Connection | FLIR Secure | | Supported Operating Systems | Windows
Mac OS X
| | Remote Software | Web client software (Windows & Mac) | | Email Notification | Text with snapshot | | Supported Mobile Devices | Android, iPad, iPhone | | DDNS | Free Lorex DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP | | Network Interface | 1 x 10/100/1000 Mbps, RJ45 | | Network Bit Rate | Maximum 320 Mbps total | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Relative Humidity | 10 to 90% | | Power Consumption | Without HDD: 20.5 W | | Supply Voltage | 100-240 VAC | | PoE Power Output | 130 W (max 30 W per channel) | | Dimensions (W x H x D) | 15 x 12.2 x 2" (380 x 310 x 50 mm) | | Weight | 5.7 lb (2.6 kg) | | | | Image Sensor | 1/3" 4 MP (compatible with all Lorex LNK Series NVRs) | | Lens | 2.8 mm, f/1.8 (fixed) | | Field of View | 101° | | Video Format | NTSC/PAL | | Effective Pixels | 2592 x 1520 | | Resolution | 2688 x 1520 (4 MP) at 20 fps | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | ≥38 dB (AGC off) | | Iris | EIS | | Minimum Illumination | Color: 0.5 lux without IR
B&W: 0.3 lux with IR | | Night Vision Range | Ambient Lighting: 130' (40 m)
Total Darkness: 90' (27 m) | | IR LED Type | 850 nm | | AES Shutter Speed | 1/5 to 1/20,000 seconds | | Video Output | IP | | Termination | RJ45 Ethernet / optional 12 VDC power barrel | | Power | PoE (Power over Ethernet) | | Power Consumption | Max. 450 mA / 5.4 W | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | <95% RH | | IP Rating | IP66 | | Dimensions | 2.9 x 6 x 2.9" (7.3 x 15.2 x 7.3 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 34.04 lb | | Box Dimensions (LxWxH) | 23.0 x 15.0 x 14.0" |
