Lorex 16-Channel 4MP NVR with 3TB

Search your instruction manual in PDF to download

User Manual for Lorex 16-Channel 4MP NVR with 3TB HDD and 9 3MP Outdoor Cameras Kit

Click to enlarge the picture
Lorex 16-Channel 4MP NVR with 3TB HDD and 9 3MP Outdoor Cameras Kit Contents of the user manual for the Lorex 16-Channel 4MP NVR with 3TB
  • Product category: Surveillance Systems Lorex
  • Brand: Lorex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lorex Surveillance Systems

Lorex 16-Channel 4MP NVR with 3TB HDD and 9 3MP Outdoor Cameras Kit Lorex 16-Channel 4MP NVR with 3TB HDD and 9 3MP Outdoor Cameras Kit Lorex 16-Channel 4MP NVR with 3TB HDD and 9 3MP Outdoor Cameras Kit Lorex 16-Channel 4MP NVR with 3TB HDD and 9 3MP Outdoor Cameras Kit
User manual for the Lorex 16-Channel 4MP NVR with 3TB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lorex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!



Product description

Monitor up to nine outdoor areas with the 16-Channel 4MP NVR with 3TB HDD and 9 3MP Outdoor Cameras Kit from Lorex by FLIR. The included network video recorder features 16 channels with PoE and records at a resolution as high as 4MP. The FLIR Cloud app allows you to monitor areas on a Windows or Mac computer, or while on the go using your iOS or Android device.

The nine included cameras (six bullet and three dome) capture high-quality 2048 x 1536 resolution video during the day and at night thanks to IR LEDs around the lens. Video is compressed using H.264 and MJPEG codecs for bandwidth and storage conservation, while the 3TB preinstalled HDD allows you to store all recorded video. Nine Ethernet cables are included to connect the cameras to the NVR.

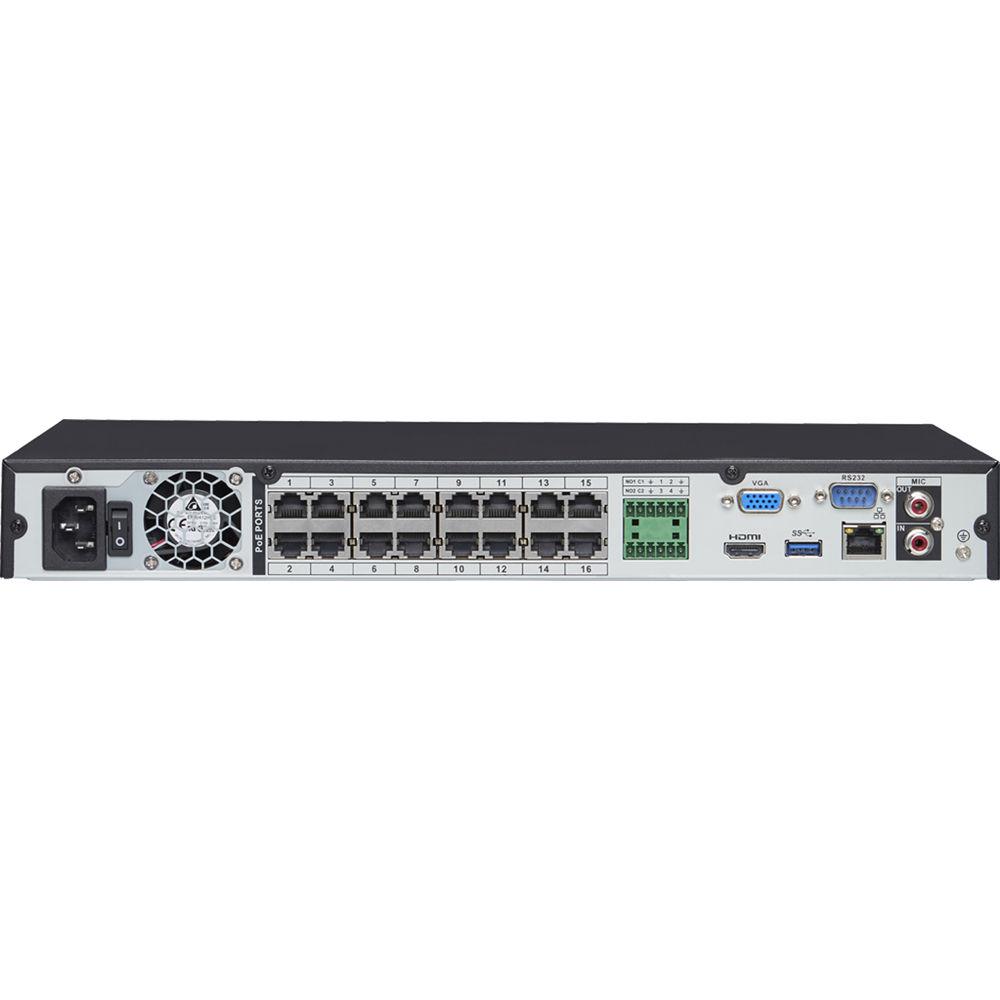

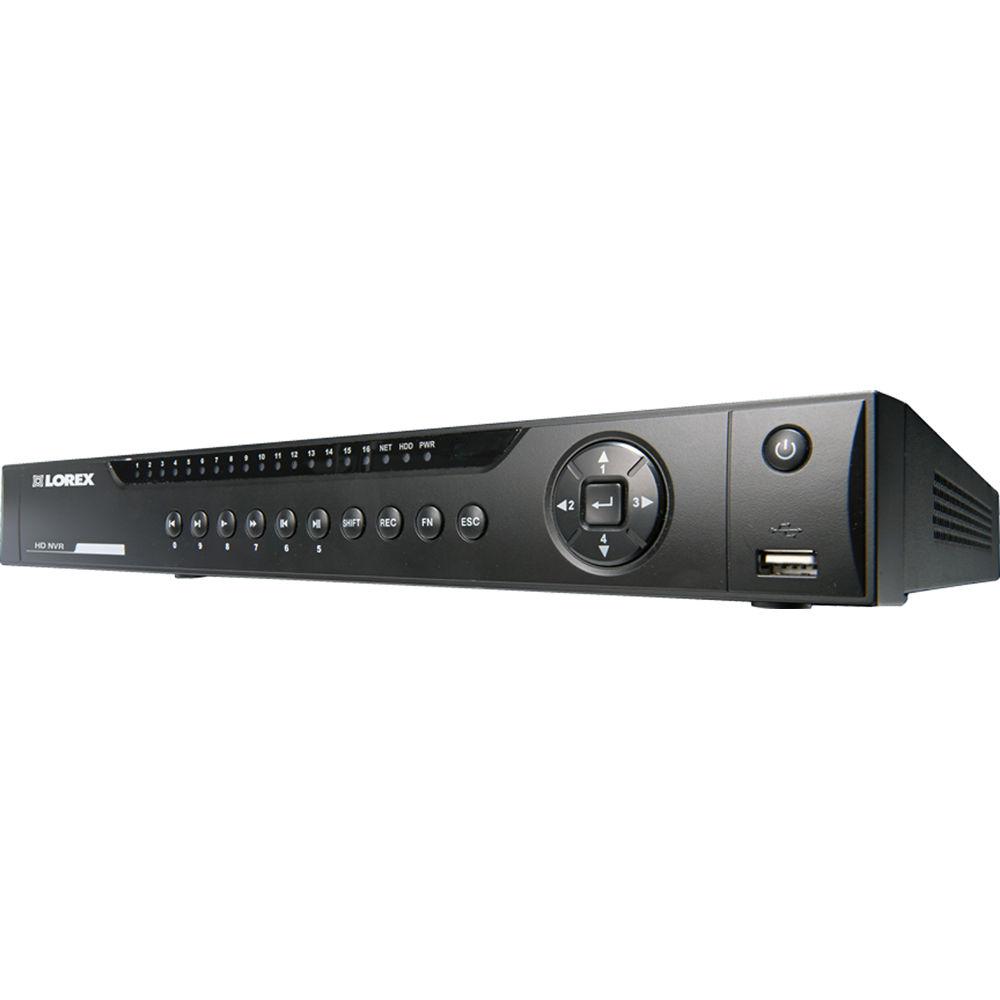

  • LNR400S Series 16-Channel 4MP NVR with 3TB HDD Manage and record from up to 16 network cameras with the LNR400S Series 16-Channel 4MP NVR with 3TB HDD from Lorex. This network video recorder features 16 channels with PoE and up to 4MP recording resolution. It has HDMI and VGA video outputs to connect to a monitor and display a live view in up to 1080p resolution. Additionally, the NVR offers full audio capabilities with RCA input and output interfaces.

    The NVR can record by hour, by day, by recording mode, by motion, or by channel. Furthermore, Pentaplex operation allows for simultaneous viewing, recording, playback, backing up, and remote monitoring. All recordings are compressed using H.264 and MJPEG codecs to maximize your storage and conserve bandwidth and saved onto the preinstalled 3TB HDD. With FLIR Cloud connection you can view live video and access the NVR from a web browser or via the iOS and Android apps.

    Note: This NVR is compatible with Lorex by FLIR wired PoE network cameras only and is not compatible with third-party cameras.
    • Full pentaplex operation to simultaneously view, record, playback, backup, and remotely control the system
    • 4MP recording resolution
    • Real-time recording at 25/30 fps per channel
    • 16 built-in PoE ports for video and power over a single cable
    • Automatically detects compatible IP cameras in the network
    • 24/7 security-grade hard drive
    • H.264 and MJPEG video compression
    • High-capacity storage expandable up to 12TB
    • Simultaneous playback and live view on the same screen
    • Selectable area digital zoom in live view and playback modes
    • Continuous, scheduled, and motion recording modes
    • Two video outputs to connect multiple monitor
    • HDMI connection supports high-definition video output
    • USB backup of live video from a selected camera
    • Email alerts with snapshot attachments
    • Dual streaming to conserve bandwidth
    • Push notifications of motion events
    • iOS and Android mobile apps with live viewing, playback, video recording, and snapshot functionality
    • Compatible with Windows and Mac OS X
    • 3-step remote monitoring with FLIR Cloud
    • Automatic firmware updates
    • Accurate time stamps with NTP and daylight saving time
    • Convenient front panel button controls
    • Flip and mirror camera view settings
    • Dynamic click-and-drag camera channel assignment
    UPC: 695529006352
  • 3MP Outdoor Bullet Camera With an IP66-rated weatherproof housing and cold climate functionality, the 3MP Outdoor Bullet Camera from Lorex can be used in a wide range of indoor or outdoor applications. The camera uses a 1/3" 3MP progressive-scan sensor for up to 2048 x 1536 resolution at 25 fps, and it features a 2.8mm fixed lens for a 75° field of view. The lens is surrounded by IR LEDs, providing the camera with enough light for up to 130' of vision in ambient lighting, and up to 90' of vision in complete darkness. Additionally, an IR cut filter enables accurate color representation, and a Day/Night mode will automatically switch to black and white images for clear detail in low light conditions. The camera uses PoE technology for a simplified setup, and it includes a 60' UL-compliant Cat5e cable. Additionally, you can use a single Ethernet cable to extend the camera's video signal and power up to 300' from the recorder.
    • High-definition 3MP progressive-scan sensor for clear, high-quality images
    • Infrared cut filter provides accurate color representation
    • IR LEDs for night vision up to 130' in ambient lighting and 90' in total darkness
    • Picture automatically switches to B&W, delivering maximum clarity in low light
    • 75° horizontal field of view for a wide coverage area
    • Power over Ethernet technology with Cat5e cables offers an easy installation
    • Includes 60' UL-compliant cable for surface and in-wall installations
    • Extend the camera's video and power up to 300' from the recorder with a single Ethernet cable
    • Cold climate capability in temperatures as low as -22°F
    • IP66-rated weatherproof for indoor or outdoor installations
    • Ceiling or wall mountable for maximum flexibility
  • 3MP Outdoor Dome Camera With an IP66-rated weatherproof housing and cold climate functionality, the 3MP Outdoor Dome Camera from Lorex can be used in a wide range of indoor or outdoor applications. The camera uses a 1/3" 3MP progressive-scan sensor for up to 2048 x 1536 resolution at 25 fps, and it features a 2.8mm fixed lens for a 75° field of view. The lens is surrounded by IR LEDs, providing the camera with enough light for up to 115' of vision in ambient lighting, and up to 75' of vision in complete darkness. Additionally, an IR cut filter enables accurate color representation, and a Day/Night mode will automatically switch to black and white images for clear detail in low light conditions. The camera uses PoE technology for a simplified setup, and it includes a 60' UL-compliant Cat5e cable. Additionally, you can use a single Ethernet cable to extend the camera's video signal and power up to 300' from the recorder.
    • High-definition 3MP progressive-scan sensor for clear, high-quality images
    • Infrared cut filter provides accurate color representation
    • IR LEDs for night vision up to 115' in ambient lighting and 75' in total darkness
    • Picture automatically switches to B&W, delivering maximum clarity in low light
    • 75° horizontal field of view for a wide coverage area
    • Power over Ethernet technology with Cat5e cables offers an easy installation
    • Includes 60' UL-compliant cable for surface and in-wall installations
    • Extend the camera's video and power up to 300' from the recorder with a single Ethernet cable
    • Cold climate capability in temperatures as low as -22°F
    • IP66-rated weatherproof for indoor or outdoor installations
    • Ceiling or wall mountable for maximum flexibility
In the Box Bundle Items LNR400S Series 16-Channel 4MP NVR with 3TB HDD aaazecaqbcuqasdvcedutybcv
  • HDMI Cable
  • Remote Control
  • Power Adapter
  • Mouse
  • Ethernet Cable
  • Limited 1-Year Warranty
6 x 3MP Outdoor Bullet Camera
  • Cat5e Ethernet Cable (60')
  • Mounting Kit
  • Limited 1-Year Warranty
3 x 3MP Outdoor Dome Camera
  • Cat5e Ethernet Cable (60')
  • Mounting Kit
  • Limited 1-Year Warranty

Also Includes

  • Limited 2-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Lorex 16-Channel 4MP NVR with 3TB HDD and 9 3MP Outdoor Cameras Kit in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • LNR400S Series 16-Channel 4MP NVR with 3TB HDD
    Operating System Linux embedded
    Pentaplex Operation Simultaneous view / record / playback / back up / remote monitoring
    Number of Channels 16
    Video Inputs 16 (16 x PoE)
    Video Outputs 1 x VGA
    1 x HDMI
    Audio Input 1 x RCA line in (for service only)
    Audio Output 1 x RCA line out (for service only)
    USB Ports 1 x rear
    1 x front
    Alarm Inputs 4
    Alarm Outputs 2
    Video Output Resolution 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
    PTZ Control Lorex IP PTZ cameras only
    Display Split 1 / 4 / 9 / 16
    Live Display Speed NTSC: 480 fps
    PAL: 400 fps
    OSD Menu Camera Title / Time / Camera Lock / Motion Detection / Recording Status
    System Navigation USB mouse / IR remote control / front panel buttons
    Motion Area Setting Adjustable grid (22 x 18)
    Motion Sensitivity 100 levels
    Firmware Upgrade Automatic over the internet & via USB device and network
    User Authority By user group
    Time Synchronization Auto time sync by NTP server
    Video Compression H.264 and MJPEG
    Recording Resolution 4 MP (2688 x 1520), 3 MP (2048 x 1536), 1080p (1920 x 1080), 720p (1280 x 720)
    Recording Rate NTSC: 480 fps at up to 4 MP
    PAL: 400 fps at up to 4 MP
    Recording Resolution Setting Different resolutions per camera
    Recording Quality Control 6 levels
    Recording Schedule By hour / by day / by recording mode / by motion / by channel
    Pre Recording 4 seconds maximum
    Post Recording 5 minutes maximum
    Reliability Watch-Dog, auto-recovery after power failure
    Covert Video Yes
    Playback Channels 1 / 4 / 9 / 16
    Playback Speed Variable, maximum 16x
    Playback Players Backup Player
    Search By time and event
    Log Search Up to 1000 lines for motion detection, configuration changes, connects/disconnects, video loss
    Audio Play Yes (audio camera required)
    Storage Type Up to 2 x SATA HDDs
    Maximum Capacity Preinstalled: 3 TB
    Capacity: 12 TB (2 x 6 TB)
    Backup Media USB Flash Drive, HDD
    Backup File Format H.264
    Cloud Connectivity FLIR Cloud
    Supported Operating Systems Windows, Mac OS X
    Remote Software Client Software for Windows and Mac OS X
    Email Notification Text with snapshot
    Mobile OS Support iOS and Android devices
    DDNS Lorex DDNS
    System Configuration Full setup configuration over network
    Ports Programmable by user
    Network Protocol and Standards HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter
    Network Interface RJ45 10/100/1000 Mbps Ethernet
    Bit Rate Total: 320 Mbps
    Per Camera: 48 to 8192 kbps
    Power Consumption Approximately 30 W (without HDD)
    Power Supply Voltage 100-240 VAC, 50/60 Hz
    PoE Power Output 130 W
    25 W per camera maximum
    Operating Temperature 14 to 131°F (-10 to 55°C)
    Operating Humidity 10 to 90% RH
    Dimensions 14.7 x 12.9 x 2.1" (375 x 327 x 53 mm)
    Weight 5.5 lb (2.3 kg)
    Box Dimensions (LxWxH) 17.6 x 16.7 x 6.6"
  • 3MP Outdoor Bullet Camera
    Image Sensor 1/3" 3 MP progressive-scan
    Video Format NTSC / PAL
    Effective Pixels H: 2304 x V: 1536
    Resolution 3 MP (2048 x 1536) @ 25 fps
    Signal to Noise Ratio > 56 dB (AGC off)
    Iris EIS
    Shutter Speed 1/3 (1/4) to 1/100,000 seconds
    Minimum Illumination Without IR: 0.7 lux
    With IR: 0.4 lux
    Lens 2.8mm fixed
    Aperture f/2.0
    Field of View Horizontal: 75°
    Termination RJ45 Ethernet
    12 VDC power barrel (optional)
    IR LED 850 nm
    Night Vision Range Ambient Lighting: 130' / 40 m
    Total Darkness: 90' / 27 m
    Power Requirement PoE Class 3 / 12 VDC
    Power Consumption Max: 285 mA / 3.4 W
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity < 95% RH
    Dimensions 6.1 x 2.7 x 2.8" / 15.5 x 6.9 x 7.1 cm
    Weight 0.9 lb / 0.4 kg
    Box Dimensions (LxWxH) 16.0 x 5.8 x 4.8"
  • 3MP Outdoor Dome Camera
    Image Sensor 1/3" 3 MP progressive-scan
    Video Format NTSC / PAL
    Effective Pixels H: 2304 x V: 1536
    Resolution 3 MP (2048 x 1536) @ 25 fps
    Signal to Noise Ratio > 56 dB (AGC off)
    Iris EIS
    Shutter Speed 1/3 (1/4) to 1/100,000 seconds
    Minimum Illumination Without IR: 0.7 lux
    With IR: 0.4 lux
    Lens 2.8mm fixed
    Aperture f/2.0
    Field of View Horizontal: 75°
    Termination RJ45 Ethernet
    12 VDC power barrel (optional)
    IR LED 850 nm
    Night Vision Range Ambient Lighting: 115' / 35 m
    Total Darkness: 75' / 23 m
    Power Requirement PoE Class 3 / 12 VDC
    Power Consumption Max: 230 mA / 2.8 W
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity < 95% RH
    Dimensions 2.8 x 3.7" / 7.0 x 9.3 cm
    Weight 0.8 lb / 0.4 kg
    Box Dimensions (LxWxH) 11.7 x 5.6 x 4.7"

Rating

70% users recommend this product to others. And what about you?
Rating: 3.5 of 5

This product has already been rated by 78 owners. Add your rating and experience with the product.

Discussion

Discussion Ask our technicians if you have a problem with your settings, or if anything is unclear in the user manual you have downloaded. You can make use of our moderated discussion. The discussion is public and helps other users of our website who may be encountering similar problems.

The discussion is empty - enter the first post

Post a new topic / query / comment:

Items marked with * are required.
Your email address will not be displayed. Do not forget to fill it in if you want to receive a reply to your enquiry/contribution.
Processing of personal data in accordance with GDPR


Request for user manual
You can’t find the operation manual you are looking for? Let us know and we will try to add the missing manual:

I’m looking for a manual / Request for manual

Current requests for instruction manuals:

Brand :Gemini,model # XGA 4000,AND IT WAS PURCHASED NEW IN 2022,OR POSSIBLY EARLY 2023.WORKED perfect till one day I hit power switch and blew fuse x2...
ZZSTAR binoculars...
Bose music system IV...
View TV Digital Converter Box At-163...
Elite Centaurian treadmill Ni-trac 7 XR20 cross trainer...

Discussion
Latest contributions to the discussion:

My tunner does not turn on
Name: George Willard Coats
Snark ST-2 Super Tight Clip-On All
My tunner does not turn on. What can I do to get it to work...
My tunner does not turn on
Name: George Willard Coats
Snark ST-2 Super Tight Clip-On All
My tunner does not turn on ...
super 8 reel
Name: Carla from Italy
Wolverine Data F2D Titan 8-in-1 High-Definition
I'd like to buy the Volverine F2D titan to digitalize my old super 8 films so Ifollowed the Video Tutorial referred to in the user manual. I've understood that the film must be put in the adapter but it is not clear if the film on the reel (a big one) must be cut into pieces lik...
User manuel for the YN568EXlll flash cobra
Name: Gerald Boudreau
Yongnuo YN568EX III Speedlite Wireless Flash
Can not download the instruction manuel...
Directional feeder timer
Name: Samuel Ricci
Moultrie Quick-Lock Directional Feeder Kit
Is it possible to get the instruction sheet for programing the timer on my Moultrie directional feeder, I stored the directions in the battery compartment and it got wet , Thank you Sam Ricci...

PDF User Manuals
We regularly supplement and update our library. Latest instruction manuals added for download:

Detail - Lenovo ThinkCentre M625q Tiny Thin Client
https://www.search-manual.com/ upload/ lenovo-thinkcentre-m625q-tiny-thin-client-desktop-computer-294499-user-manual.pdf
Detail - Power2000 XP-UNV AC DC Universal Battery
https://www.search-manual.com/ upload/ power2000-xp-unv-ac-dc-universal-battery-charger-110732-user-manual.pdf
Detail - Core SWX Fleet Q V-Mount Four-Position
https://www.search-manual.com/ upload/ core-swx-fleet-q-v-mount-four-position-charger-224861-user-manual.pdf
Detail - Memento Electronics Flat Power Cable Kit
https://www.search-manual.com/ upload/ memento-electronics-flat-power-cable-kit-for-memento-smart-frame-178564-user-manual.pdf
Detail - Vivitar 50-in-1 Memory Card Reader Writer
https://www.search-manual.com/ upload/ vivitar-50-in-1-memory-card-reader-writer-141655-user-manual.pdf


What our users say about us:

Peter Morgan: "Thanks for this website! With help from your instructions I’ve got my dishwasher working again."

Nick Jackson: "Your site’s been a massive help because the user manual didn’t come with the product. Thanks a lot."

Leslie Scott: "I finally found the user's guide with you that I couldn’t find anywhere else! Totally happy!"

Take a look through our user manuals in our on-line library, with instruction manuals and service handbooks downloadable in PDF format. Our instructions database is constantly updated and supplemented with new products. Looking for instruction manuals? Ask us!
SEARCH-MANUAL.com
Sitemap.xml
