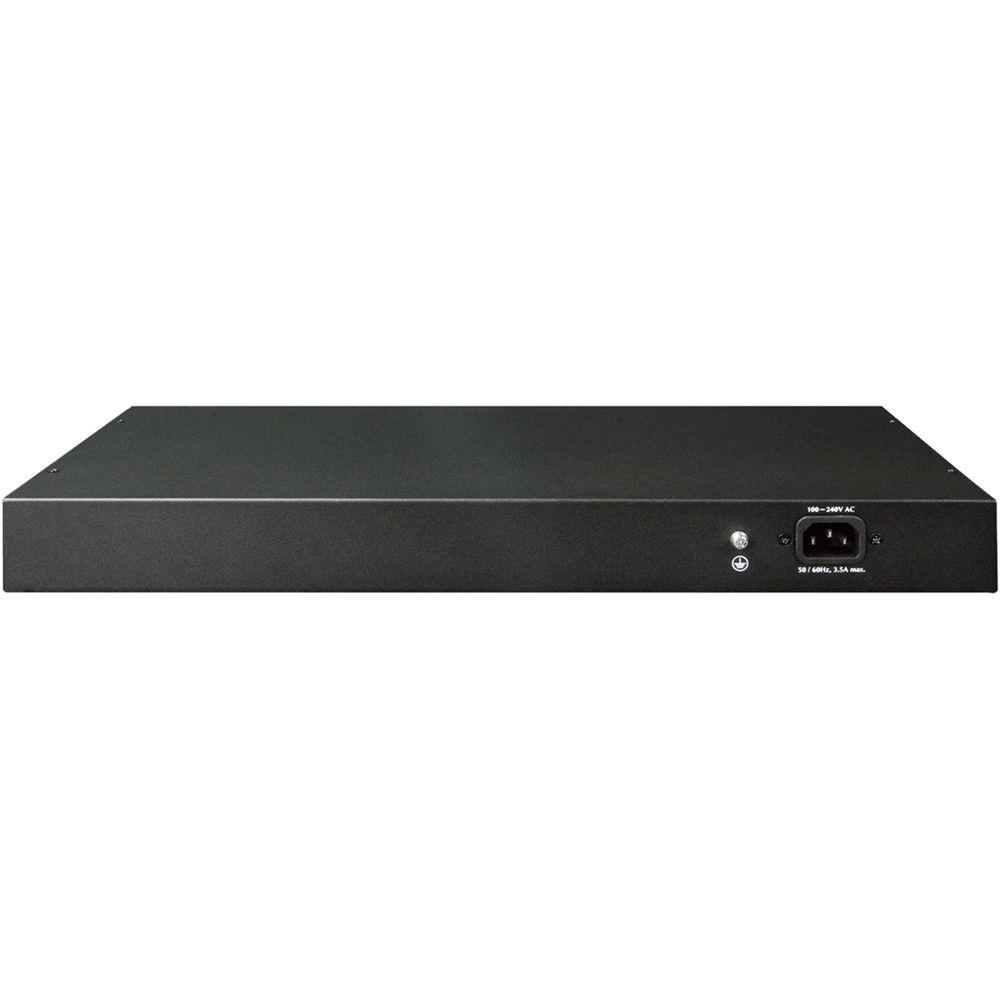

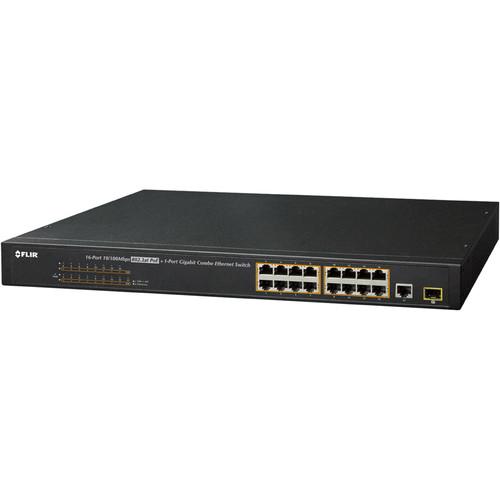

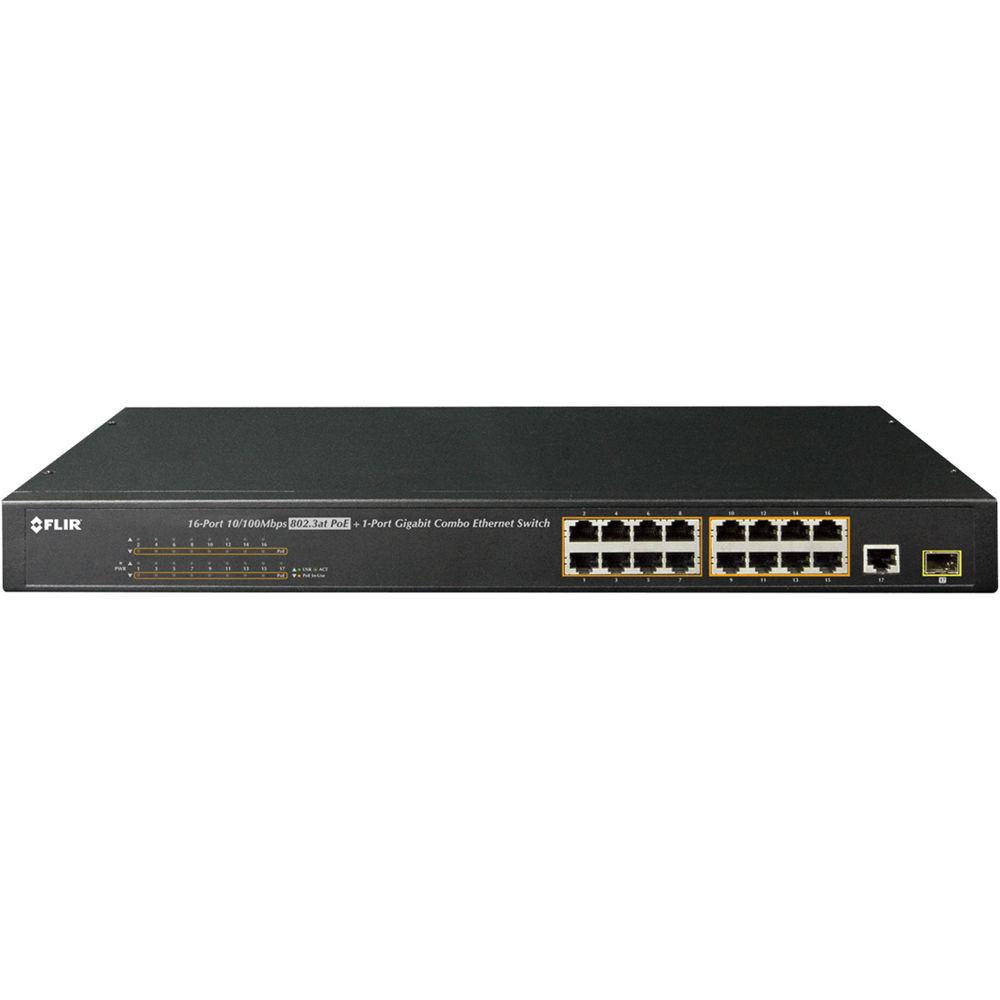

User Manual for Lorex 16-Port High-Speed PoE Switch Click to enlarge the picture
Contents of the user manual for the Lorex 16-Port High-Speed PoE Switch
- Product category: Network Switches, Bridges & Hubs Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Network Switches, Bridges & Hubs
 |
User manual for the Lorex 16-Port High-Speed PoE Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|
Product description The 16-Port High-Speed PoE+ Switch from Lorex is a centralized power distribution device ideal for Power Over Ethernet (PoE) IP cameras. A PoE connection simplifies installation by eliminating the need for a dedicated electrical outlet per IP camera. This unit can support up to 16 IP cameras and has a power capability of 30.8W per port, for up to 220W total. Using the LED indicators, you can monitor your network to ensure everything is working as well as spot issues when they arise. - Features
-
- Centralizes power distribution for up to 16 Power Over Ethernet (PoE) IP cameras
- PoE connection eliminates the need for dedicated electrical outlets per IP Camera
- Supports high speed transmission of IP surveillance data
- 220W total PoE power budget (up to 30.8W per port)
In the Box Lorex 16-Port High-Speed PoE+ Switch Power Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 16-Port High-Speed PoE Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex ACCDPS262B Specs | Ports | 16 x 10/100 Base-TX RJ-45 Auto-MDI/MDI-X ports
1 x 10/100/1000 Base-T RJ-45 Auto-MDI/MDI-X
1 x 1000 Base-X SFP interface, shared with port 17 | | PoE Standard | IEEE 802.3af / 802.3at | | PoE Power Output | Per Port 56V DC, Max. 30 watts | | Total Power Output | 220 watts across ports 1 to 16 | | PoE Class | Class 0/1/2/3/4 | | Standard Compliance | IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow control
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus | | Operating Humidity | 5 to 95% (non-condensing) | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Power Input | 100~240V AC, 50/60Hz, 3.5A max. | | Dimensions (W x D x H) | 17.36 x 8.20 x 1.73" (44 × 20.8 x 4.4 cm) | | Weight | 5.8 lb (2.6 kg) | | | | Package Weight | 8.5 lb | | Box Dimensions (LxWxH) | 22.0 x 11.6 x 3.6" |
