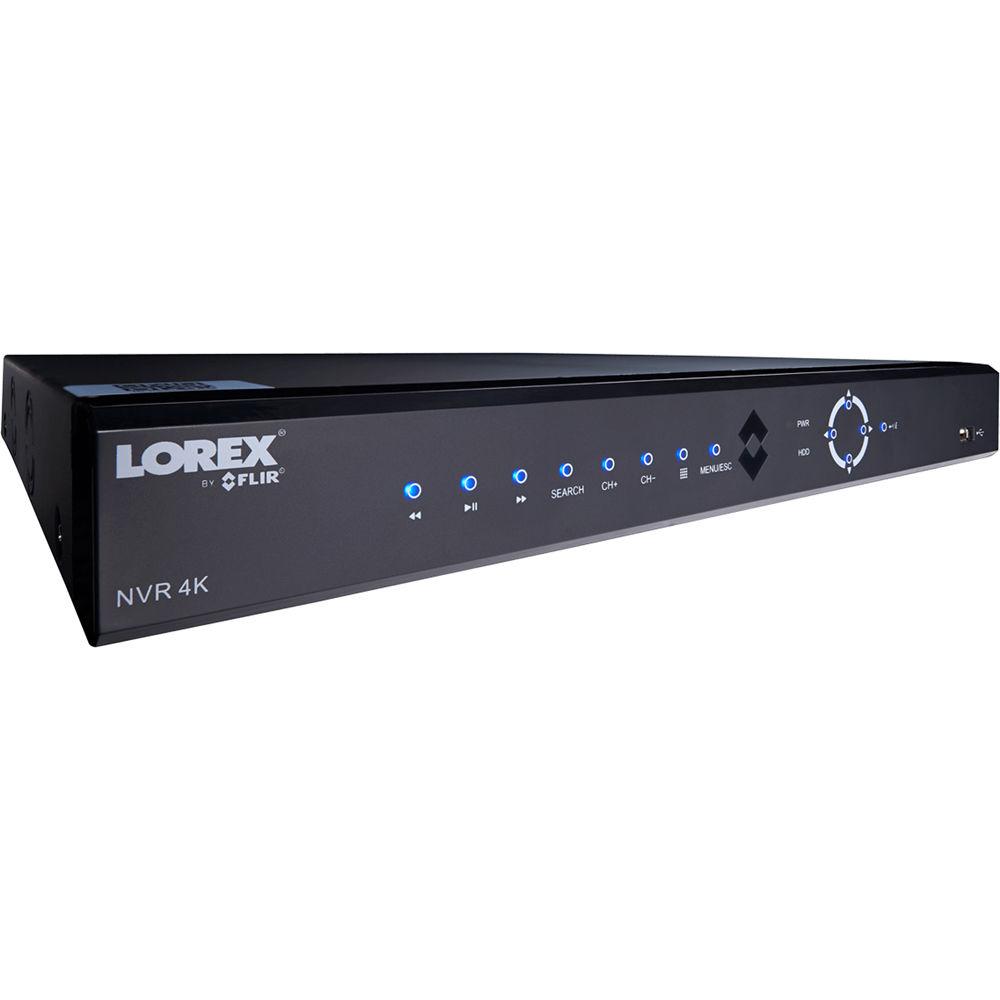

Lorex 32-Channel 4K UHD NVR with

User Manual for Lorex 32-Channel 4K UHD NVR with 8TB HDD and 24 4MP Bullet Cameras with Color Night Vision

• Product category: Surveillance Systems Lorex
• Brand: Lorex
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Lorex Surveillance Systems

Product description

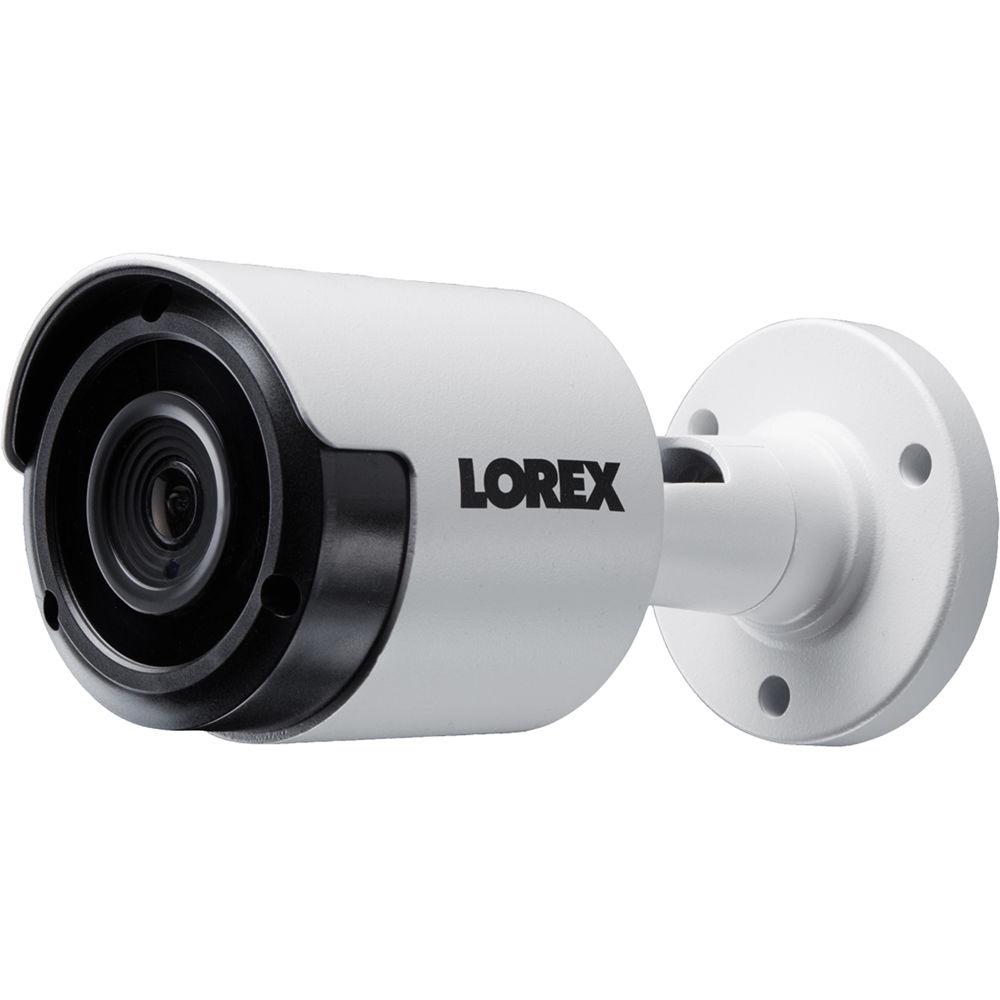

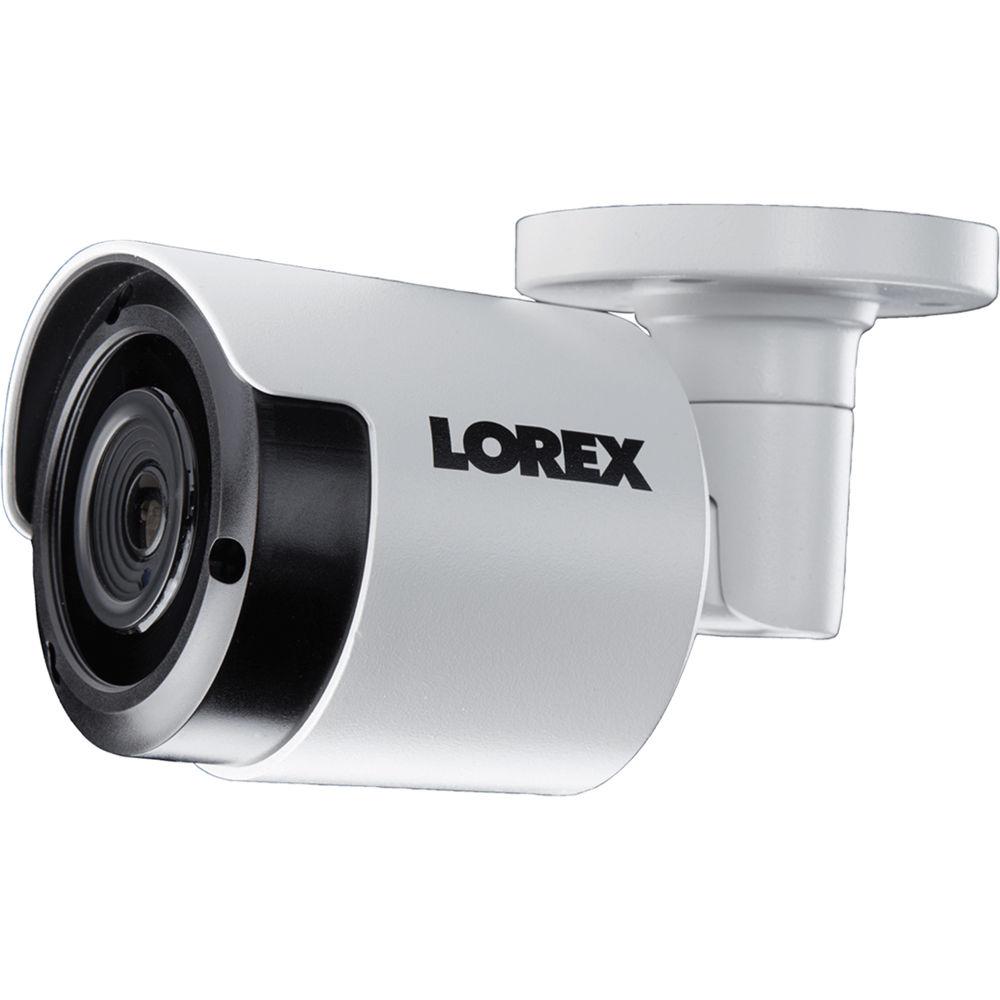

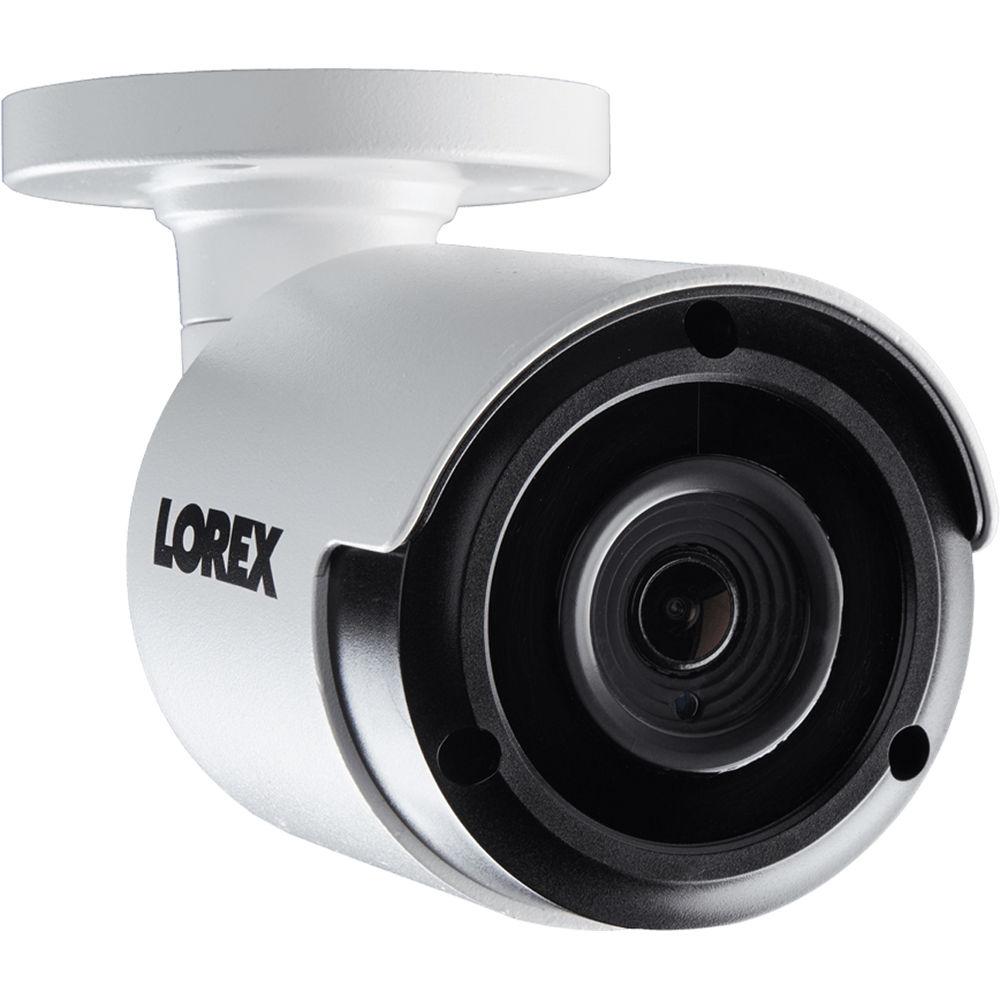

• 4MP Outdoor Bullet Network Camera with Color Night Vision Monitor your establishment round-the-clock, indoors or outdoors, with the 4MP Outdoor Bullet Network Camera with Color Night Vision from Lorex.

  The camera is compatible with most Lorex NVRs (except the LNR100, LNR200, and LNR300 Series), such as the LNK7000 Series. Install it on the interior or exterior of your home or office, connect it to the NVR via a single Ethernet cable (included), and capture everything in 2688 x 1520 2K resolution at 20 fps in a wide 101° field of view. The camera can record color video in extreme low light thanks to Lorex Color Night Vision and IR LEDs provide you with 90 ft of night vision in complete darkness, allowing for black-and-white capture of all the action.

  The camera is also Power-over-Ethernet capable for power direct from a PoE compatible NVR. It can be mounted on a ceiling or wall using an included mounting kit.
  Key Features
  • • Compatible with all Lorex HD NVRs except for LNR100, LNR200, and LNR300 Series
    • 2688 x 1520 resolution (4MP) at 20 fps
    • HD quality even when zoomed for clearer identification
    • Space-saving H.265/H.264 video compression
    • 90 ft of night vision in complete darkness
    • High Dynamic Range (HDR) image improvement in high-contrast lighting, revealing details in extremely bright and dark areas of the image
    • 101° wide field of view
    • Ceiling/wall mountable
    • Plug into NVR (sold separately) using a single Cat 5e cable per camera (100 ft included, up to 300 ft cables supported, sold separately)
    • Power-over-Ethernet (PoE) capable
    • Capable of operating in cold weather (-22°F)
    • IP66 weatherproof rated
    • Weatherproof Ethernet connector cover for a protective seal against the elements
  UPC: 695529011332

• Cat 5e Ethernet Cable (100 ft)

• Mounting Kit

• Allen Key

• Limited 1-Year Warranty

Also Includes

• Remote
• HDMI Cable
• Network Cable
• DVR Power Adapter
• Mouse
• Screws
• Warning Signs
• 24 x 60' (18.3m) Cat 5e Extension Cables
• 24 x Power Adapters
• 16-Channel PoE Switch
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 4MP Outdoor Bullet Network Camera with Color Night Vision

  Image Sensor	1/3" 4 MP (compatible with all Lorex LNK Series NVRs)
  Video Format	NTSC/PAL
  Effective Pixels	2592 x 1520
  Resolution	2688 x 1520 (4 MP) at 20 fps
  Scan System	Progressive
  Sync System	Internal
  S/N Ratio	≥38 dB (AGC off)
  Iris	EIS
  AES Shutter Speed	1/5 - 1/20,000 seconds
  Minimum Illumination	Color: 0.3 lux B&W: 0 lux with IR on
  Night Vision Range	90 ft / 27 m
  Video Output	IP
  Lens	2.8 mm, f/1.8 (fixed)
  Field of View	101°
  Termination	RJ45 Ethernet / optional 12 VDC power barrel
  IR LED Type	850 nm
  Power	PoE (Power-over-Ethernet)
  Power Consumption	Max. 450 mA / 5.4 W
  Operating Temperature	-22 to 140°F / -30 to 60°C
  Operating Humidity	<95% RH
  Environmental Rating	IP66 (indoor/outdoor)
  Dimensions	2.9 x 6 x 2.9" / 7.3 x 15.2 x 7.3 cm
  Weight	0.9 lb / 0.4 kg

  Box Dimensions (LxWxH)	14.55 x 5.55 x 3.8"
