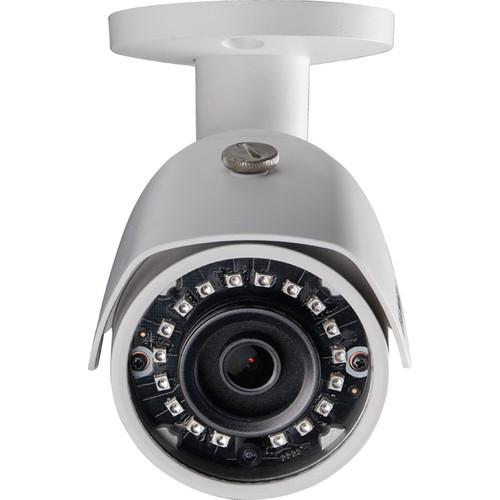

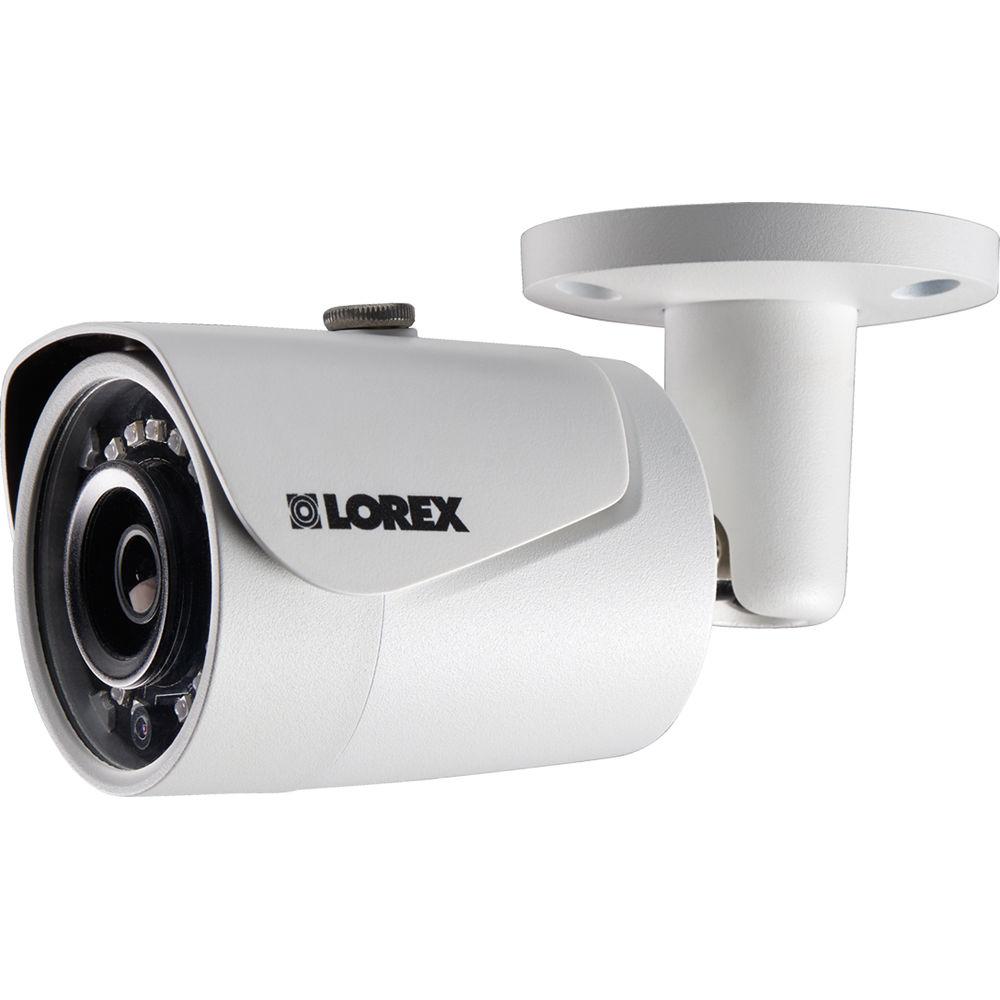

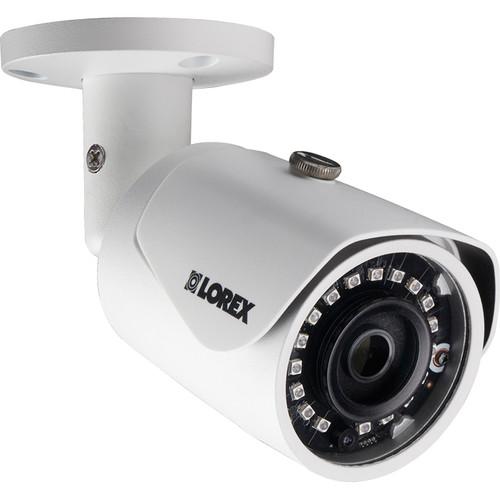

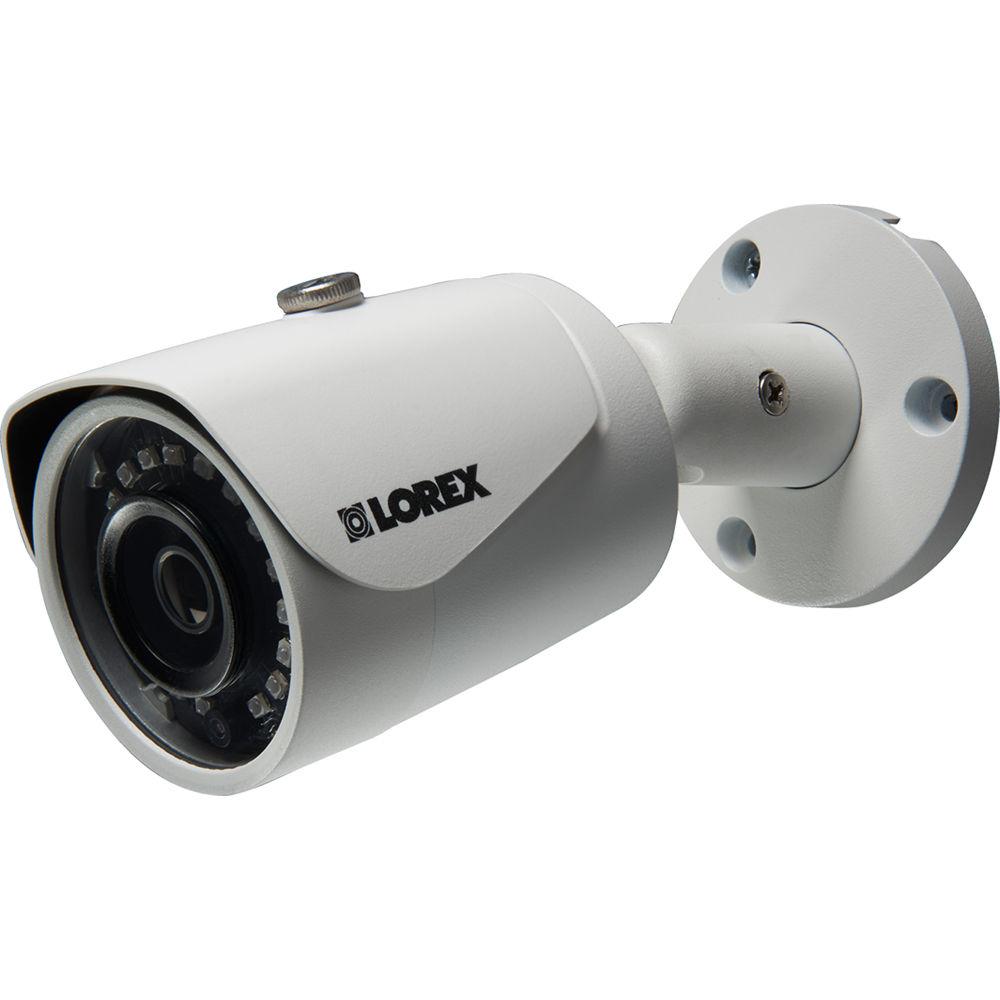

Lorex 3MP Outdoor Bullet Camera

Search your instruction manual in PDF to download

User Manual for Lorex 3MP Outdoor Bullet Camera

Click to enlarge the picture
Lorex 3MP Outdoor Bullet Camera Contents of the user manual for the Lorex 3MP Outdoor Bullet Camera
  • Product category: Wired IP Cameras Lorex
  • Brand: Lorex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lorex Wired IP Cameras

Lorex 3MP Outdoor Bullet Camera Lorex 3MP Outdoor Bullet Camera Lorex 3MP Outdoor Bullet Camera Lorex 3MP Outdoor Bullet Camera
User manual for the Lorex 3MP Outdoor Bullet Camera contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lorex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!



Product description

  • LNB3163B - Day / Night Security Video Footage
With an IP66-rated weatherproof housing and cold climate functionality, the 3MP Outdoor Bullet Camera from Lorex can be used in a wide range of indoor or outdoor applications. The camera uses a 1/3" 3MP progressive-scan sensor for up to 2048 x 1536 resolution at 25 fps, and it features a 2.8mm fixed lens for a 75° field of view. The lens is surrounded by IR LEDs, providing the camera with enough light for up to 130' of vision in ambient lighting, and up to 90' of vision in complete darkness. Additionally, an IR cut filter enables accurate color representation, and a Day/Night mode will automatically switch to black and white images for clear detail in low light conditions. The camera uses PoE technology for a simplified setup, and it includes a 60' UL-compliant Cat5e cable. Additionally, you can use a single Ethernet cable to extend the camera's video signal and power up to 300' from the recorder.
  • High-definition 3MP progressive-scan sensor for clear, high-quality images
  • Infrared cut filter provides accurate color representation
  • IR LEDs for night vision up to 130' in ambient lighting and 90' in total darkness
  • Picture automatically switches to B&W, delivering maximum clarity in low light
  • 75° horizontal field of view for a wide coverage area
  • Power over Ethernet technology with Cat5e cables offers an easy installation
  • Includes 60' UL-compliant cable for surface and in-wall installations
  • Extend the camera's video and power up to 300' from the recorder with a single Ethernet cable
  • Cold climate capability in temperatures as low as -22°F
  • IP66-rated weatherproof for indoor or outdoor installations
  • Ceiling or wall mountable for maximum flexibility
In the Box Lorex 3MP Outdoor Bullet Camera
  • Cat5e Ethernet Cable (60')
  • Mounting Kit
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lorex 3MP Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lorex LNB3163B Specs

    Image Sensor 1/3" 3 MP progressive-scan
    Video Format NTSC / PAL
    Effective Pixels H: 2304 x V: 1536
    Resolution 3 MP (2048 x 1536) @ 25 fps
    Signal to Noise Ratio > 56 dB (AGC off)
    Iris EIS
    Shutter Speed 1/3 (1/4) to 1/100,000 seconds
    Minimum Illumination Without IR: 0.7 lux
    With IR: 0.4 lux
    Lens 2.8mm fixed
    Aperture f/2.0
    Field of View Horizontal: 75°
    Termination RJ45 Ethernet
    12 VDC power barrel (optional)
    IR LED 850 nm
    Night Vision Range Ambient Lighting: 130' / 40 m
    Total Darkness: 90' / 27 m
    Power Requirement PoE Class 3 / 12 VDC
    Power Consumption Max: 285 mA / 3.4 W
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity < 95% RH
    Dimensions 6.1 x 2.7 x 2.8" / 15.5 x 6.9 x 7.1 cm
    Weight 0.9 lb / 0.4 kg
    Package Weight 3.5 lb
    Box Dimensions (LxWxH) 16.0 x 5.8 x 4.8"
