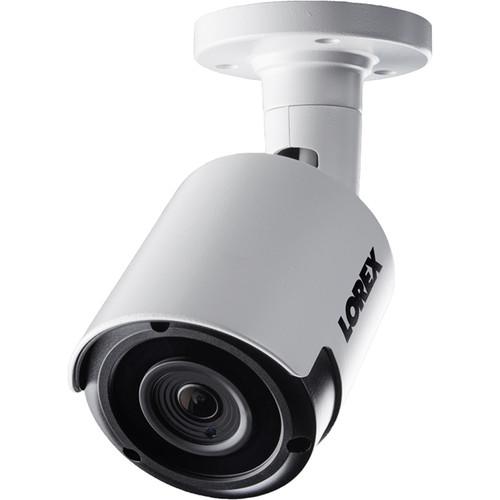

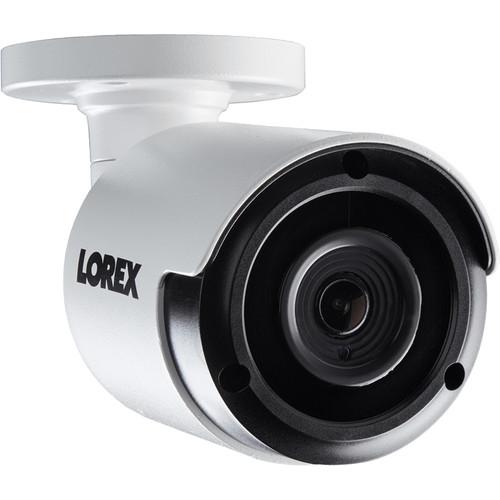

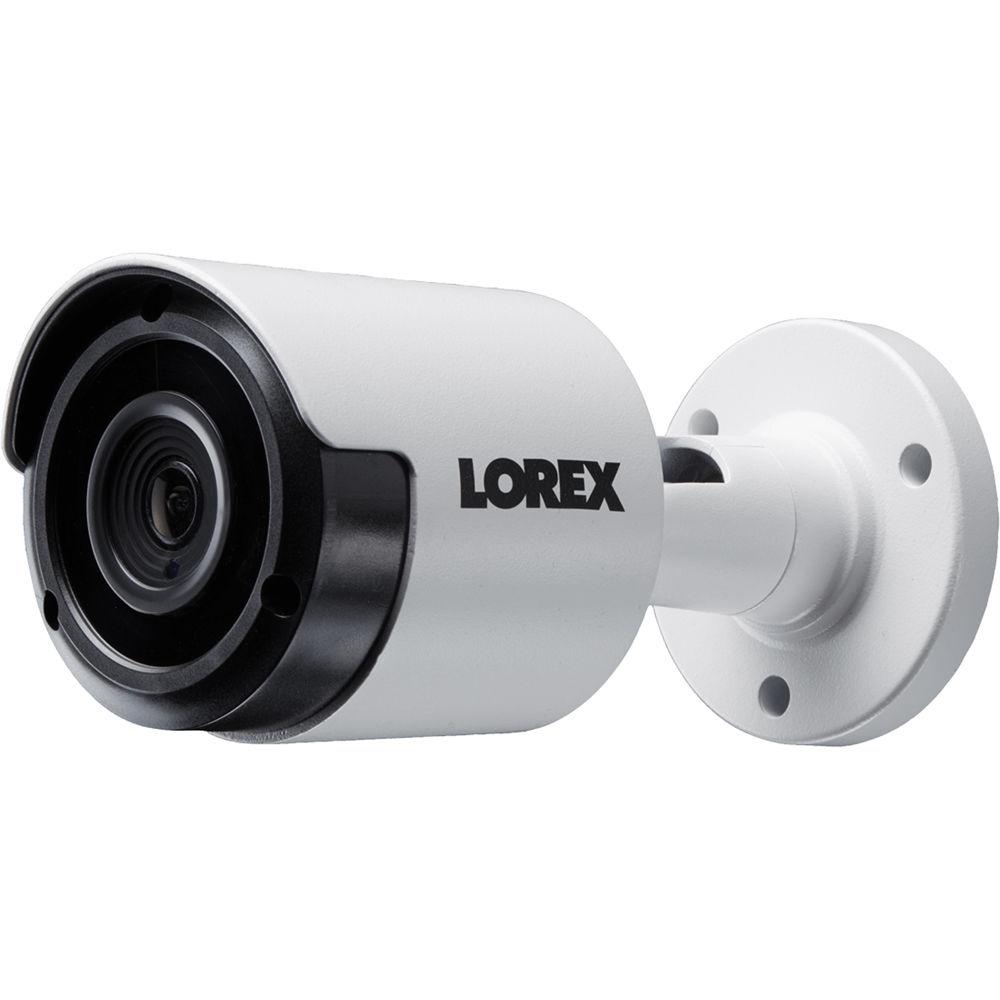

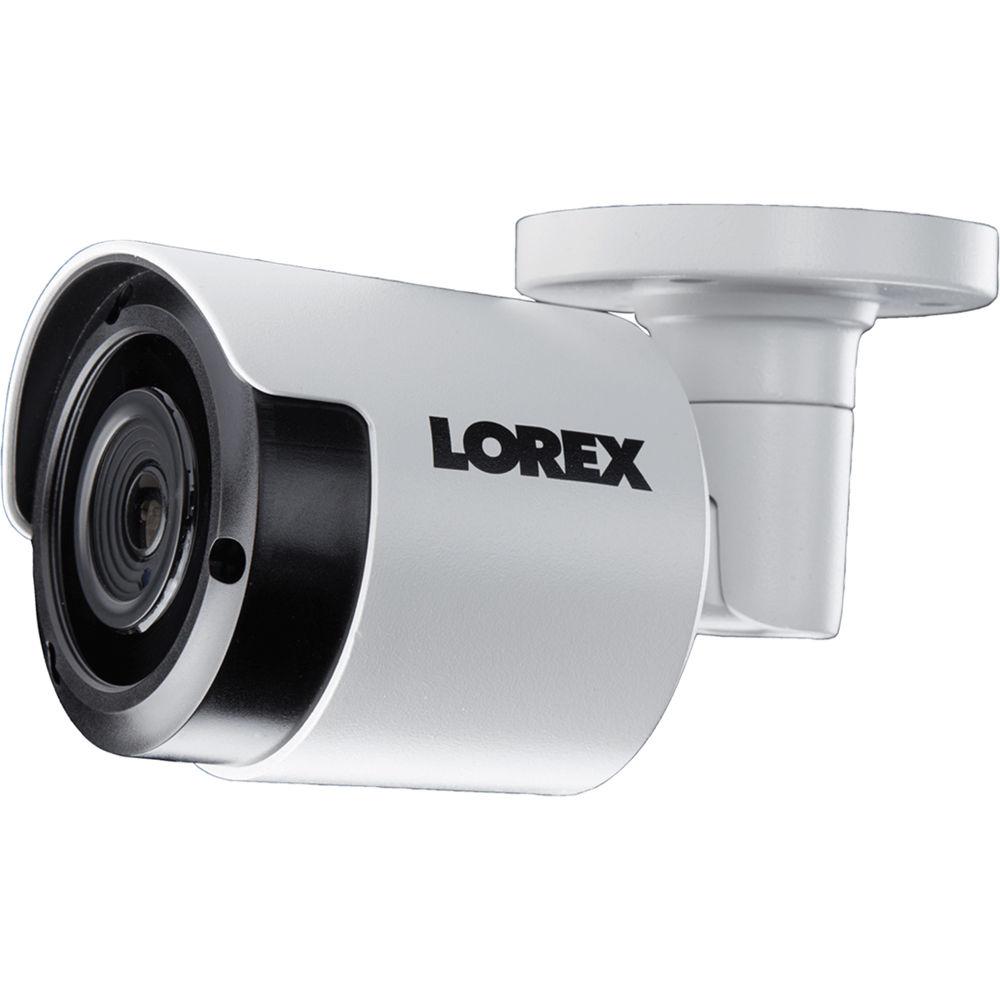

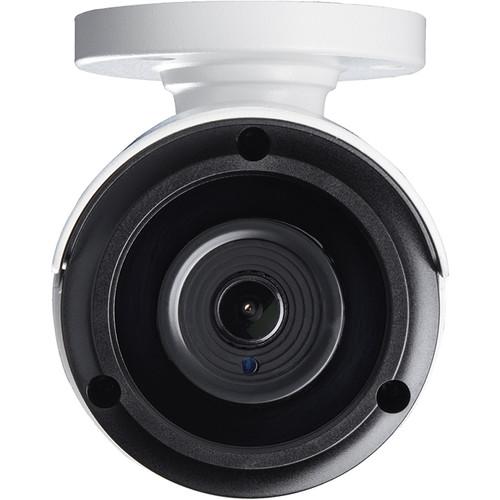

Product description Monitor your establishment round-the-clock, indoors or outdoors, with the 4MP Outdoor Bullet Network Camera with Color Night Vision from Lorex.
The camera is compatible with most Lorex NVRs (except the LNR100, LNR200, and LNR300 Series), such as the LNK7000 Series. Install it on the interior or exterior of your home or office, connect it to the NVR via a single Ethernet cable (included), and capture everything in 2688 x 1520 2K resolution at 20 fps in a wide 101° field of view. The camera can record color video in extreme low light thanks to Lorex Color Night Vision and IR LEDs provide you with 90 ft of night vision in complete darkness, allowing for black-and-white capture of all the action.
The camera is also Power-over-Ethernet capable for power direct from a PoE compatible NVR. It can be mounted on a ceiling or wall using an included mounting kit. - Key Features
-
- Compatible with all Lorex HD NVRs except for LNR100, LNR200, and LNR300 Series
- 2688 x 1520 resolution (4MP) at 20 fps
- HD quality even when zoomed for clearer identification
- Space-saving H.265/H.264 video compression
- 90 ft of night vision in complete darkness
- High Dynamic Range (HDR) image improvement in high-contrast lighting, revealing details in extremely bright and dark areas of the image
- 101° wide field of view
- Ceiling/wall mountable
- Plug into NVR (sold separately) using a single Cat 5e cable per camera (100 ft included, up to 300 ft cables supported, sold separately)
- Power-over-Ethernet (PoE) capable
- Capable of operating in cold weather (-22°F)
- IP66 weatherproof rated
- Weatherproof Ethernet connector cover for a protective seal against the elements

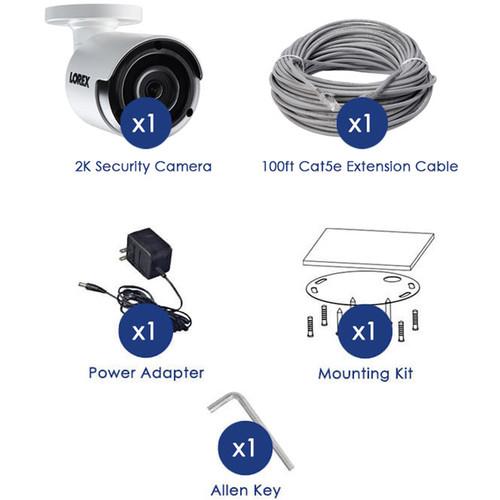

UPC: 695529011332 In the Box Lorex 4MP Outdoor Bullet Network Camera with Color Night Vision Cat 5e Ethernet Cable (100 ft) Mounting Kit Allen Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 4MP Outdoor Bullet Network Camera with Color Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LKB343B Specs | Image Sensor | 1/3" 4 MP (compatible with all Lorex LNK Series NVRs) | | Video Format | NTSC/PAL | | Effective Pixels | 2592 x 1520 | | Resolution | 2688 x 1520 (4 MP) at 20 fps | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | ≥38 dB (AGC off) | | Iris | EIS | | AES Shutter Speed | 1/5 - 1/20,000 seconds | | Minimum Illumination | Color: 0.3 lux
B&W: 0 lux with IR on | | Night Vision Range | 90 ft / 27 m | | Video Output | IP | | Lens | 2.8 mm, f/1.8 (fixed) | | Field of View | 101° | | Termination | RJ45 Ethernet / optional 12 VDC power barrel | | IR LED Type | 850 nm | | Power | PoE (Power-over-Ethernet) | | Power Consumption | Max. 450 mA / 5.4 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% RH | | Environmental Rating | IP66 (indoor/outdoor) | | Dimensions | 2.9 x 6 x 2.9" / 7.3 x 15.2 x 7.3 cm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 2.795 lb | | Box Dimensions (LxWxH) | 14.55 x 5.55 x 3.8" |
