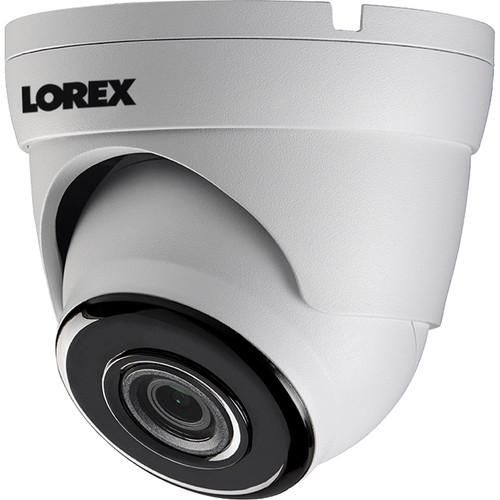

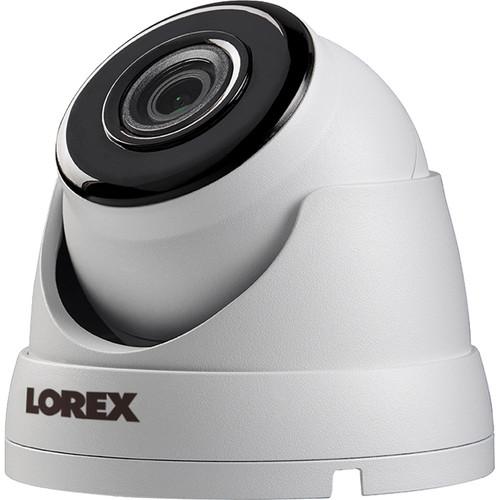

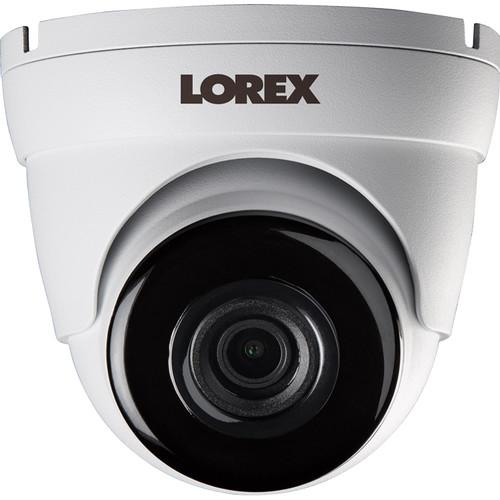

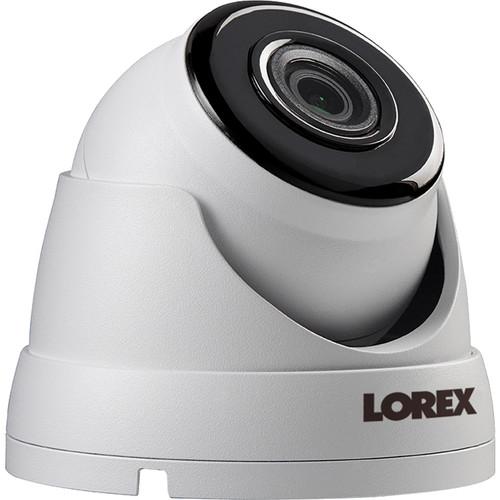

User Manual for Lorex 4MP Outdoor Network Dome Camera with Color Night Vision Click to enlarge the picture
Contents of the user manual for the Lorex 4MP Outdoor Network Dome Camera
- Product category: Wired IP Cameras Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Wired IP Cameras
 |
User manual for the Lorex 4MP Outdoor Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|
Product description Monitor your surroundings with the 4MP Outdoor Network Dome Camera with Color Night Vision 3-pack from Lorex. The cameras capture 2688 x 1520 resolution video at 20 fps. They each have a 2.8mm fixed lens that delivers a 101° field of view and up to 90' of night vision in complete darkness. The cameras are housed in IP66-rated enclosures that are suitable for outdoor use. - LKE343B 4MP Outdoor Network Dome Camera with Color Night Vision Keep a watchful eye on your property with the LKE343B 4MP Outdoor Network Dome Camera with Color Night Vision from Lorex. This camera captures 2688 x 1520 resolution video at up to 20 fps. It features a 2.8mm fixed lens equipped with IR LEDs that deliver up to 90' of night vision, and a wide 101° horizontal field of view. H.265 video compression maintains high video quality, while reducing video file sizes by up to 50%. Thanks to PoE technology, data and power can be transferred via a single Cat 5e Ethernet cable. This camera's IP66-rated enclosure makes it suitable for outdoor use.Note: This device is only compatible with the LNK7000 Series NVRs from Lorex.
- Color night vision offers full color nighttime video that delivers an improved recognition of objects low light conditions
- True HDR (high dynamic range) designed to deliver better image clarity in varying lighting conditions
- ClearNight imaging technology delivers improved low light performance and recording efficiency
- PoE (Power over Ethernet) technology enables the camera's video and power to be extended to a distance of up to 300' from the recorder with a single Ethernet cable (100' cable included, 300' cable available for purchase separately)
- Includes weatherproof Ethernet connector cover for protection against the elements
- Operates in temperatures as low as -22°F (-30°C)
- IP66-rated enclosure that is suitable for outdoor use
UPC: 695529012261 In the Box Bundle Items 3 x LKE343B 4MP Outdoor Network Dome Camera with Color Night Vision xrfucwvadersrffurasywcbssyffuxydbavwq - 100' (30.5m) Cat 5e Ethernet Cable
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 4MP Outdoor Network Dome Camera with Color Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - LKE343B 4MP Outdoor Network Dome Camera with Color Night Vision
| Image Sensor | 1/3" 4 MP | | Video Format | NTSC/PAL | | Effective Pixels (H x V) | 2592 x 1520 | | Resolution | 2688 x 1520 (4 MP) at 20 fps | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | ≥38 dB (AGC off) | | Iris | EIS | | AES Shutter Speed | 1/5 to 1/20,000 seconds | | Min. Illumination | Color: 0.5 lux without IR
B&W: 0.3 lux with IR
| | Video Output | IP | | Lens Type | 2.8mm, fixed | | Aperture | f/1.8 | | Horizontal Field of View (degree) | 101° | | Termination | RJ45 Ethernet / 12 VDC power barrel (optional) | | IR LED Type | 850 nm | | Night Vision Range | Ambient Lighting: 130' / 40 m
Total Darkness: 90' / 27 m
| | HDR | True high dynamic range | | Power Requirement | PoE (Power over Ethernet) class | | Power Consumption | Max. 450 mA / 5.4 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity (Relative) | <95% | | IP Rating | IP66 | | Dimensions (W x D x H) | 3.9 x 3.9 x 3.5" / 100 x 100 x 90 mm | | Weight | 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 8.9 x 5.8 x 5.65" |
