User Manual for Lorex 6-Channel 1080p DVR and 2 1080p Outdoor Wire-Free Bullet Cameras with Night Vision Click to enlarge the picture
Contents of the user manual for the Lorex 6-Channel 1080p DVR and 2
- Product category: Surveillance Systems Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Surveillance Systems
 |
User manual for the Lorex 6-Channel 1080p DVR and 2 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|

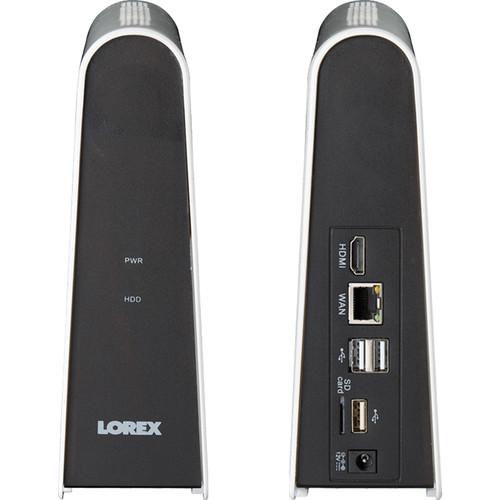

Product description Keep a watchful eye on your property with the 6-Channel 1080p DVR and 2 1080p Outdoor Wire-Free Bullet Cameras with Night Vision from Lorex. The 6-Channel DVR manages and can record from up to 6 wire-free cameras in 1920 x 1080 resolution. This DVR comes with a Class-10 32GB microSD card that is expandable to 128GB should you need more storage space. You'll be able to record up to a month of motion-based videos with no monthly fees. H.264 video compression reduces data bandwidth requirements for efficient data storage while maintaining the best possible video quality. The included wire-free cameras have a 2.1MP CMOS sensor to capture video at a resolution up to 1920 x 1080. A dozen integrated IR LEDs deliver up to 26' of night vision. The 88° field of view enables the cameras to cover a wide area. A built-in PIR motion sensor is capable of detecting heat from moving sources like people, animals, or vehicles from up to 26' away. These cameras communicate using the 2.4 GHz operating frequency, with an unobstructed wireless signal range up to 450' that provides many placement options. The included rechargeable power packs deliver up to four months of battery life. Remote access and viewing is possible thanks to the free Lorex Secure App for iOS and Android devices. In addition, you'll be able to receive low battery notifications and motion sensor alerts on the app. The cameras are housed in an IP65-rated enclosure that is suitable for outdoor use. - 6-Channel 1080p DVR
-
- Supports up to 6 wire-free cameras, viewable remotely on the Lorex Secure app for iOS and Android devices
- USB flash drive (max 128GB), or microSD card (max 128GB) for recording and storage of motion events
- H.264 video compression
- Pentaplex operation allows for viewing, playback, backup, and remote monitoring
- HDMI and VGA video outputs
- Support for Windows and Mac PCs
- Motion recording
- P2P cloud connectivity
- Text with snapshot email notifications
- Time stamps
- Includes HDMI cable, Ethernet cable, remote control, mouse, and Class-10 32GB microSD card

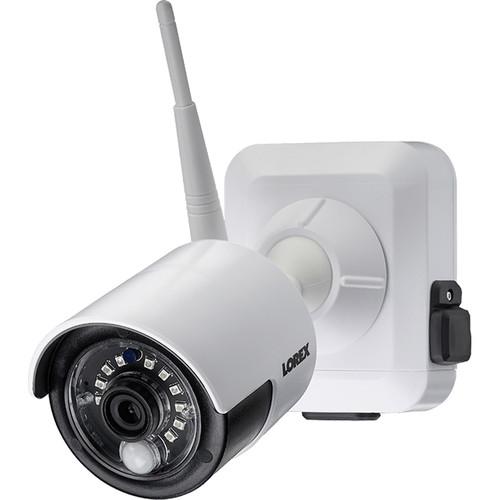

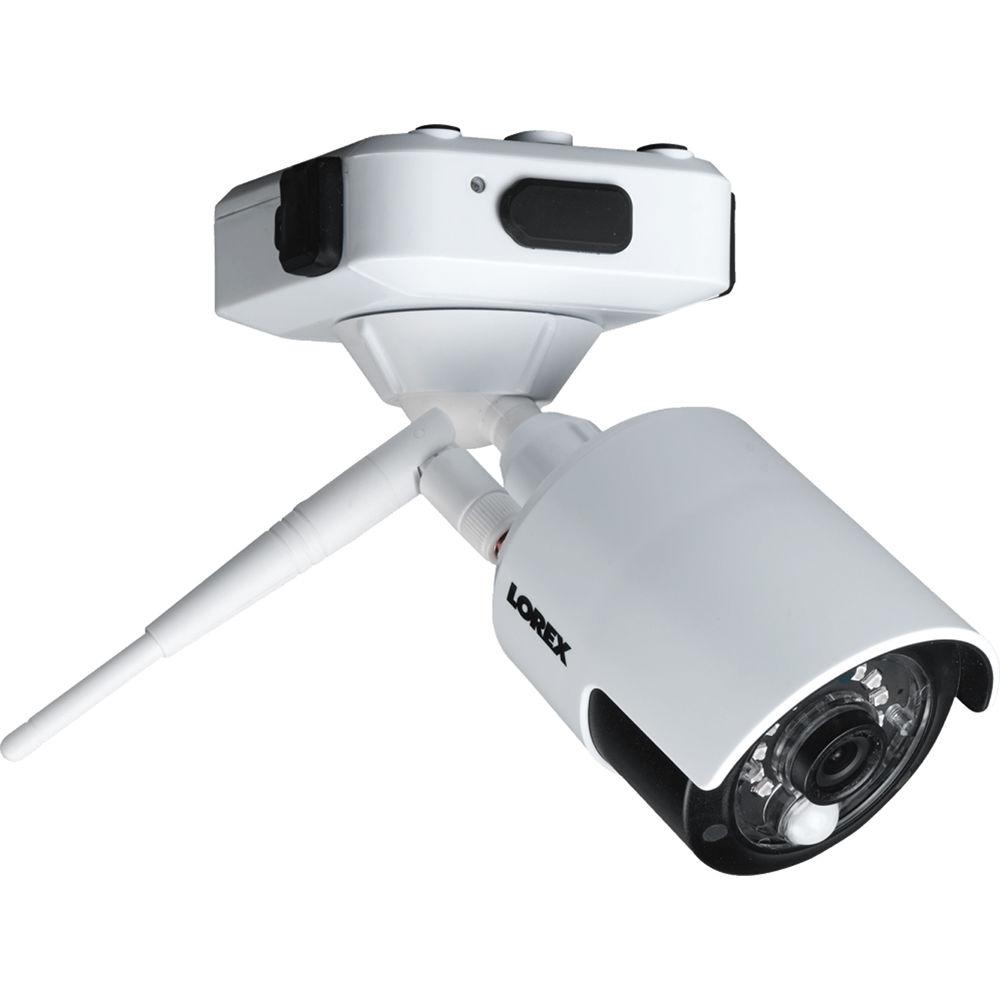

- 1080p Outdoor Wire-Free Bullet Cameras
-
- DIY wire-free installation
- IR cut filter
- Automatic wake up and recording when motion is detected
- Built-in PIR camera motion sensor alerts you on the Lorex Secure app when activity is detected
- Frequency-hopping spread spectrum (FHSS) technology reduces crosstalk with competing signals
- Tamper resistance thanks to quick-mount functionality that locks the camera securely in place
- IP65-rated enclosure that is suitable for outdoor use

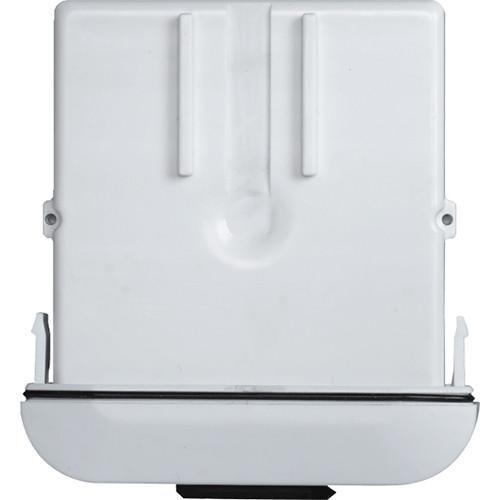

UPC: 695529012711 In the Box Lorex 6-Channel 1080p DVR and 2 1080p Outdoor Wire-Free Bullet Cameras with Night Vision Power Adapter HDMI Cable Class-10 32GB microSD Card Ethernet Cable Remote Control Mouse 2 x Rechargeable Power Packs Power Pack Charger 2 x Mounting Kits Limited 1-Year Warranty Spec sheet PDF 484.9kbdtrbuartaaytuftcyrwzbwzbfez Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 6-Channel 1080p DVR and 2 1080p Outdoor Wire-Free Bullet Cameras with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LHB80632GC2W Specs | | | Pentaplex Operation | View, playback, backup & remote monitoring | | Number of Channels | 6 | | VGA Out | Yes | | HDMI | Yes | | USB Ports | 3 x USB in the rear (mouse, backup, USB storage) | | Video Output Resolution | 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 | | Live Display | 1/6 | | Live Display Speed | 72 fps at 1080p
90 fps at 720p
| | OSD | On | | System Navigation | USB mouse | | Firmware Upgrade | Network, USB device | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | Video Compression | H.264 | | Recording Resolution | NTSC: 1080p, 720p | | Recording Frame Rate | 1080p: 12 fps per channel
720p: 15 fps per channel
| | Recording Resolution Setting | Per camera for different resolutions | | Recording Schedule | By motion, manual | | Reliability | Watch-Dog, auto-recovery after power failure | | Playback Channel | 1/4/6 | | Playback Speed | Variable max 2x | | Playback Players | Backup player | | Search | By time/date and motion event | | Log Search | Up to 4000 lines for system, configuration changes, motion/alarm detected, account, record, and storage | | Storage | 1 x microSD | | Maximum Capacity | 128 GB | | Storage Priority | 1
