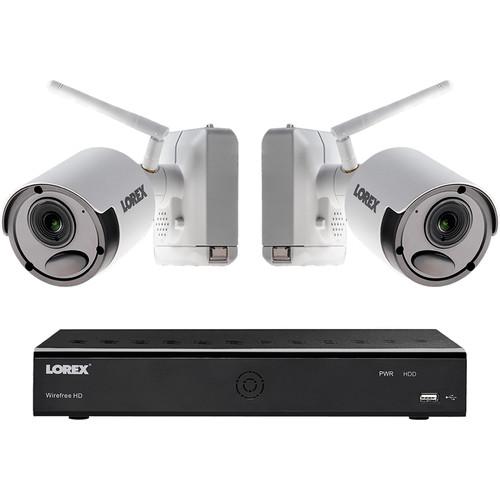

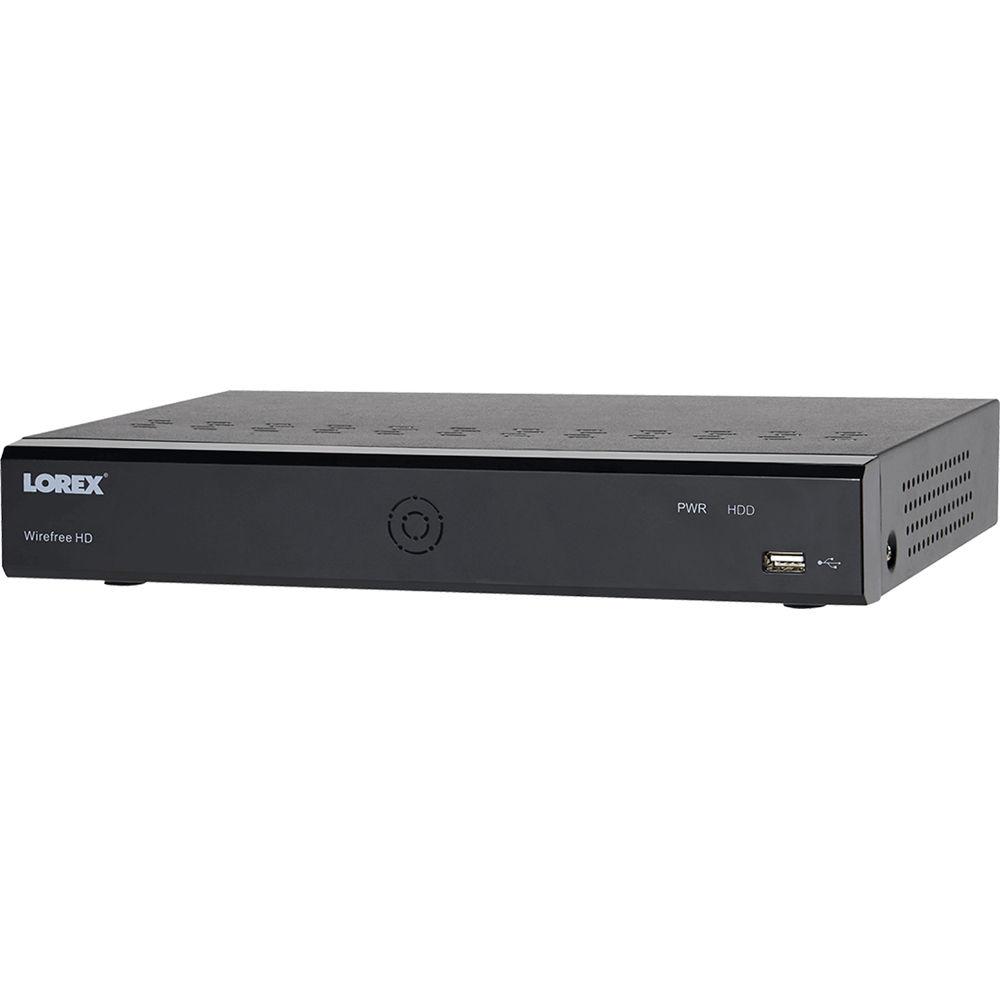

Product description Monitor your property with the 6-Channel 1080p DVR with 1TB HDD & 2 1080p Wire-Free Night Vision Bullet Cameras from Lorex. This 1080p 6-channel DVR manages, and can record from, up to 6 cameras. It comes preinstalled with a 1TB HDD but can support up to 8TB. Space-saving H.264 video compression reduces bandwidth requirements for efficient data storage while maintaining the best quality possible. The Lorex Cirrus app enables remote viewing and push notifications from your iOS or Android device.

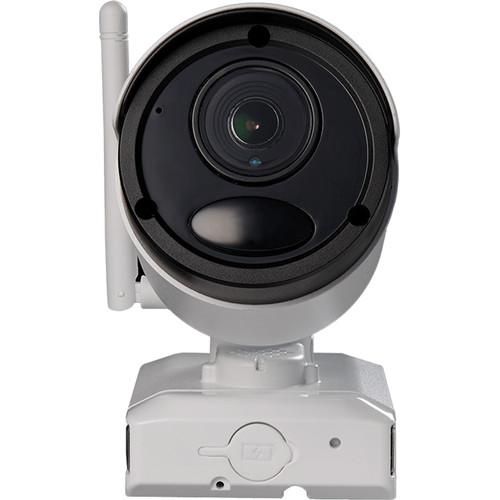

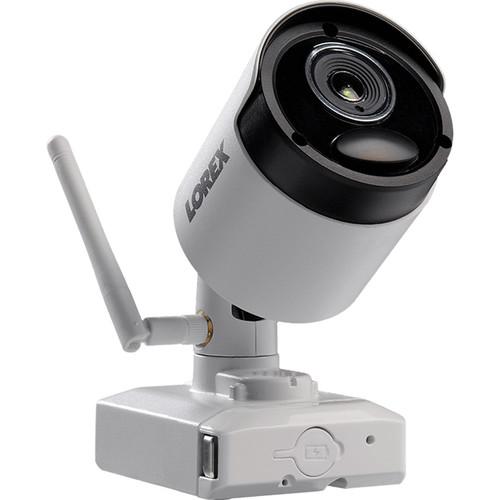

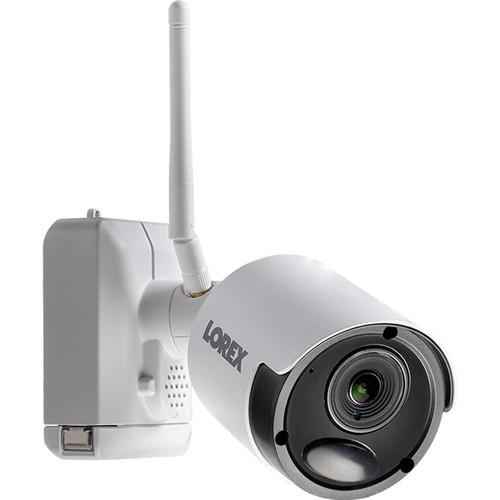

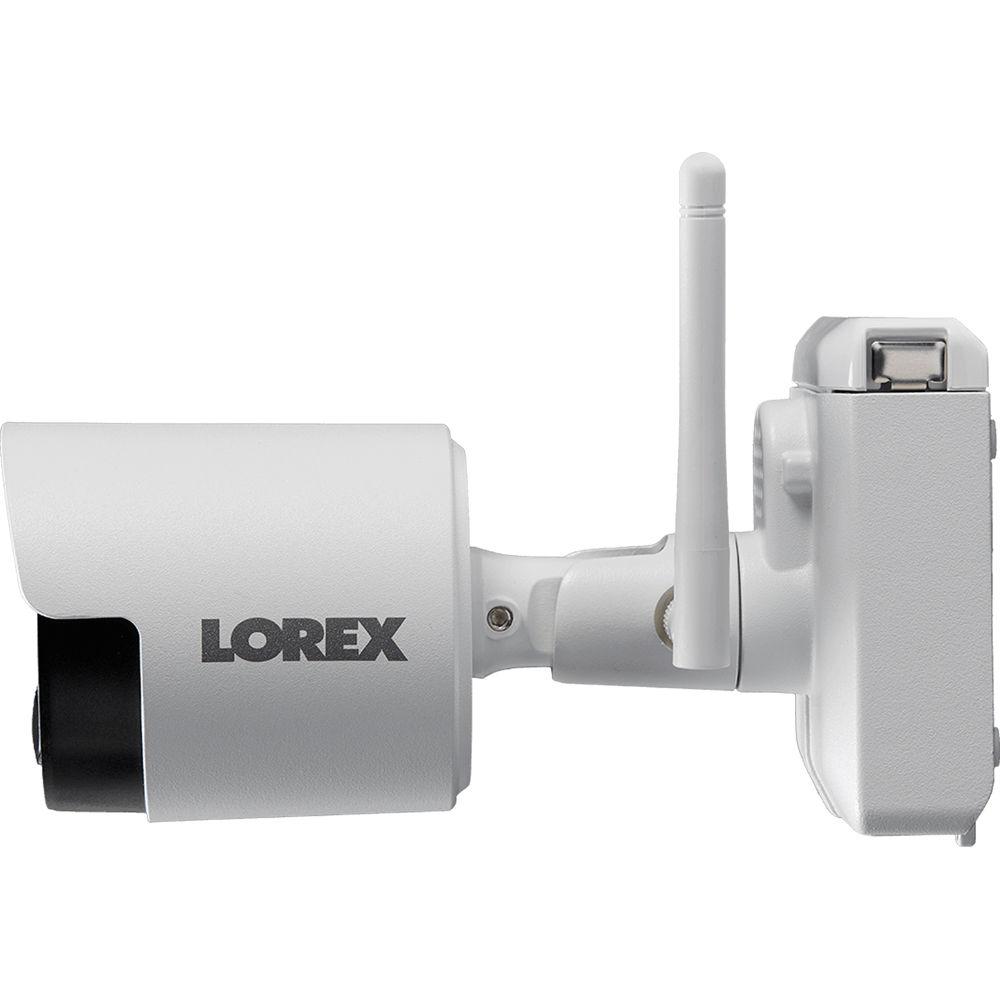

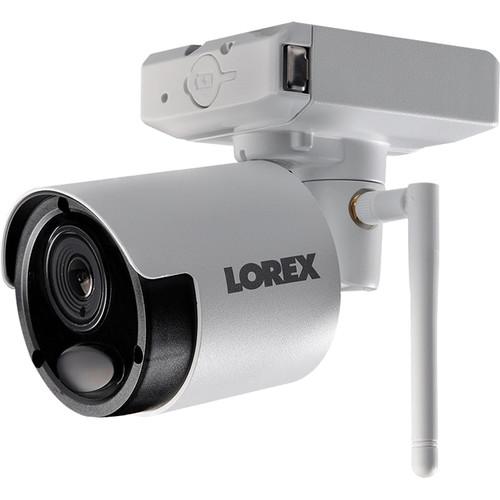

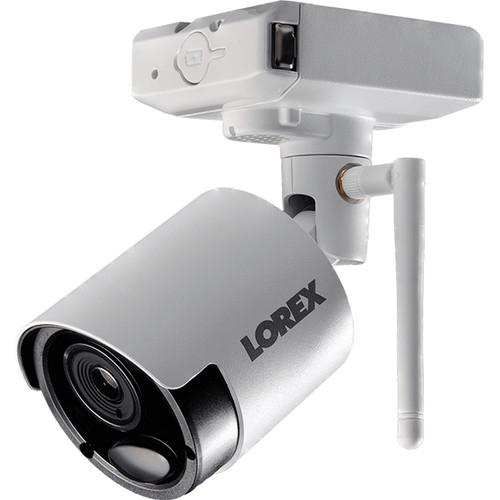

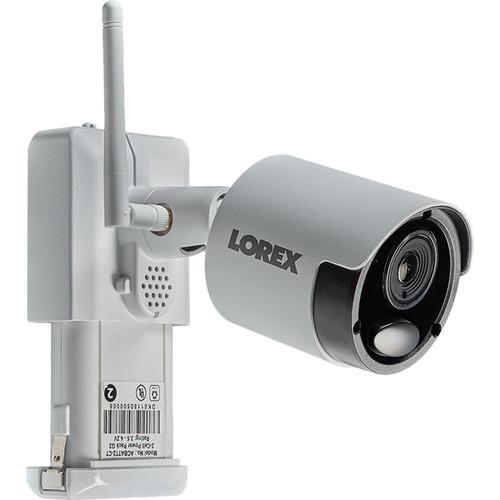

The included wire-free bullet cameras each capture 1920 x 1080 resolution video. Their wide-angle lenses each have a 140° field of view. IR LEDs provide up to 100' of night vision in total darkness & 150' of Color Night Vision in ambient light. The cameras are equipped with a PIR sensor to detect motion. Each camera is housed in an IP66-rated aluminum alloy enclosure that is suitable for outdoor use. - LHB926 1080p DVR
-
- Supports up to 6 wire-free cameras or continuous recording of up to 4 cameras (when cameras are used with optional power adapters)

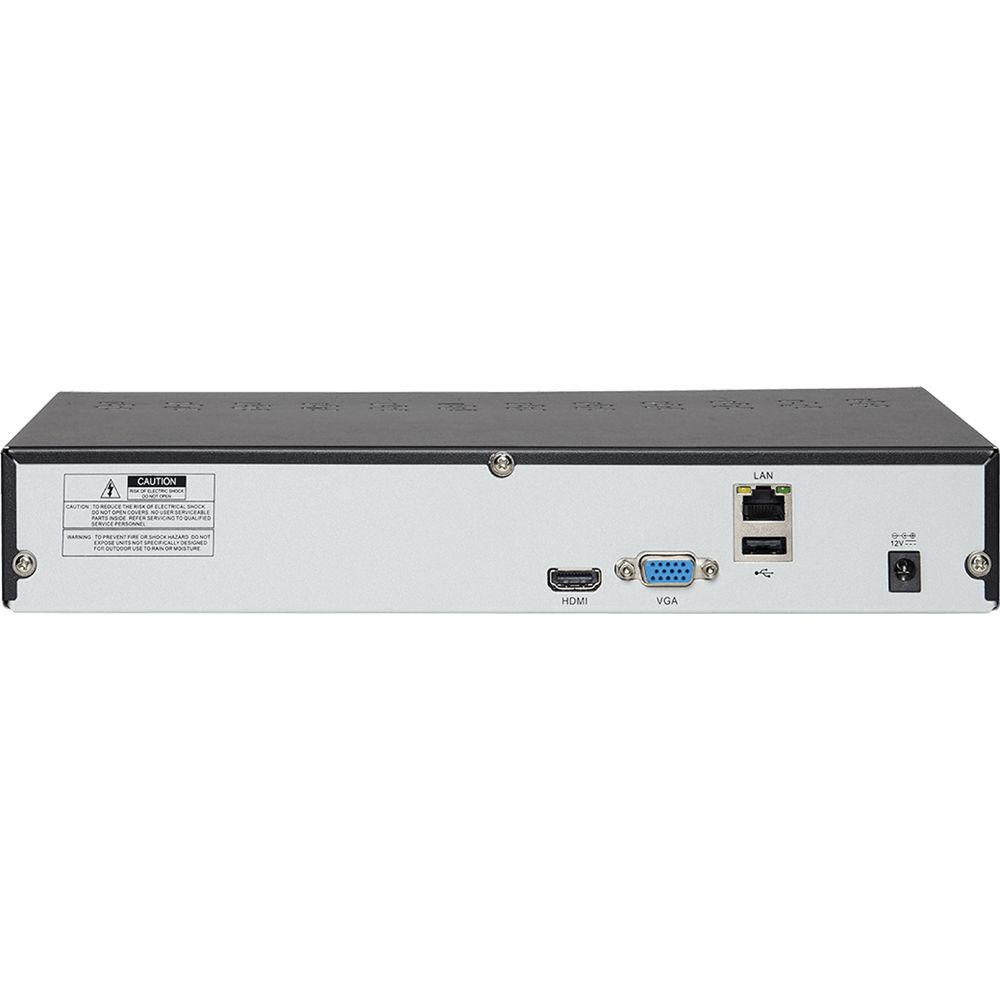

- HDMI and VGA video outputs
- HDMI cable included
- Pentaplex operation enables simultaneous view, record, playback, backup, and remote monitoring
- Up to 2 years of local video storage with no hidden or monthly cloud storage fees
- Security-grade preinstalled 1TB HDD
- HDD storage expandable to 8TB
- Up to 3 simultaneous users on Lorex Cirrus app for iOS and Android
- Motion-activated notifications via Lorex Cirrus app
- Customizable motion detection for accurate instant alerts
- Event timeline for quick reviews of past motion events
- False alerts can be minimized by selecting the most important areas to monitor
- Lorex Client 13 software for Windows and Mac
- Firmware upgrades via network and USB device
- LWB5801 1080p Wire-Free Cameras
-
- Diurnal cameras
- DIY installation
- DSSS (Direct-Sequence Spread Spectrum) technology reduces conflicts with competing signals
- PIR motion sensor
- Built-in speaker and microphone for two-way audio communication
- Captures video from up to 100' away in total darkness & up to 150' away in ambient lighting
- Hybrid wireless/wired capability for power
- Wireless signal range up to 600'
- Low battery notifications via Lorex Cirrus app
- Lithium-ion batteries maintain 85% of their capacity after one year
- Weatherproof receivers
- Aircraft-grade aluminum alloy enclosure that's designed to absorb shocks and resist corrosion
UPC: 695529017365 In the Box Lorex 6-Channel 1080p DVR with 1TB HDD & 2 1080p Wire-Free Night Vision Bullet Cameras Remote Control Power Adapter Mouse HDMI Cable Ethernet Cable 2 x Antennas 2 x Rechargeable Power Packs 2 x Power Pack Chargers 2 x Wire-Free Receivers 2 x Mounting Kits Limited 1-Year Warranty for DVR and Cameras Limited 90-Day Warranty for Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 6-Channel 1080p DVR with 1TB HDD & 2 1080p Wire-Free Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LHWF26T1P2B Specs | | | Pentaplex Operation | Simultaneous view, record, playback, backup, and remote monitoring | | Number of Channels | 6 | | VGA Out | Yes | | HDMI Out | Yes | | USB Ports | 1 x rear
1 x front | | Video Output Resolution | 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720 | | Live Display | 1, 4, 6 channels | | Live Display Frame Rate | Up to 20/15/10 fps for 2/4/6 cameras | | OSD | Yes | | System Navigation | USB mouse | | Firmware Upgrade | Network, USB device | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | Video Compression | H.264 | | Recording Resolutions | 1920 x 1080, 1280 x 720 (NTSC) | | Recording Frame Rate | Matches maximum camera transmission frame rate | | Recording Resolution Setting | Selectable per channel | | Recording Quality Control | 6 levels | | Recording Schedule | By motion, manual | | Reliability | Watch-Dog, auto-recovery after power failure | | Playback Display | 1/4/6 channels | | Playback Speed | Variable, maximum 16x | | Playback Players | Backup player | | Search | By time/date & motion event | | Log Search | Up to 4000 lines for system, configuration changes, motion/alarm detected, account, record & storage | | HDD Capacity | 1 x 8 TB (3.5" SATA) | | HDD Included | 1 x 1 TB | | Backup Media | USB flash drive, HDD & network | | Backup File Format | LF, MP4 | | Cloud Connection | P2P connectivity | | Supported Operating Systems | Windows, Mac OS | | Remote Software | Client software for Windows and Mac | | Email Notification | Text with snapshot | | Supported Mobile Devices | iPad, iPhone, Android | | DDNS | Lorex DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP | | Network Interface | 10/100M, RJ45 | | Network Bit Rate | Maximum 32 Mb/s total | | Power Consumption | 3 W without HDD | | Supply Voltage | 100-240 VAC, 12 VDC, 2 A, 50/60 Hz | | Operating Temperature | 14 to 130°F / -10 to 55°C | | Humidity | 10 to 90% RH | | Dimensions | 11.8 x 8.2 x 1.9" / 300 x 208 x 48 mm | | Weight | 2.6 lb / 1.2 kg | | | | Resolution | 1920 x 1080 | | Field of View | 140° | | Night Vision Range | Total Darkness: 100' / 30.5 m
Ambient Light (Color Night Vision): 150' / 45 m | | PIR Sensor | Built-in | | Two-Way Audio | Built-in microphone and speaker | | Wireless Range | 600' / 183 m | | Battery Type | Lithium-ion | | Housing Material | Aluminum alloy | | IP Rating | IP66 | | Operating Temperature | -4 to 158°F / -20 to 70°C | | Dimensions | 6.37 x 2.87" / 162 x 73 mm | | | | Package Weight | 10.54 lb | | Box Dimensions (LxWxH) | 17.6 x 11.5 x 8.7" |
