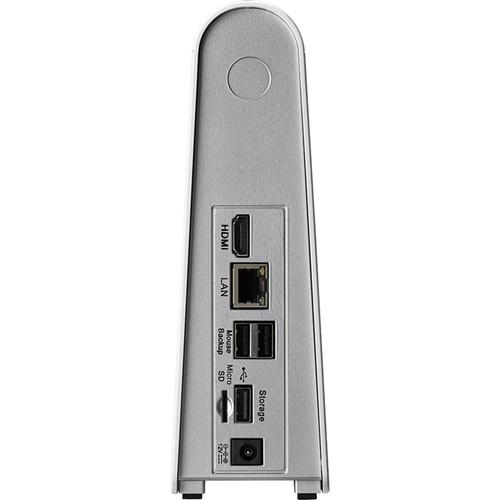

User Manual for Lorex 6-Channel 1080p DVR with 1TB HDD & 4 1080p Wire-Free Night Vision Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Lorex 6-Channel 1080p DVR with 1TB
- Product category: Surveillance Systems Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Surveillance Systems
 |
User manual for the Lorex 6-Channel 1080p DVR with 1TB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|

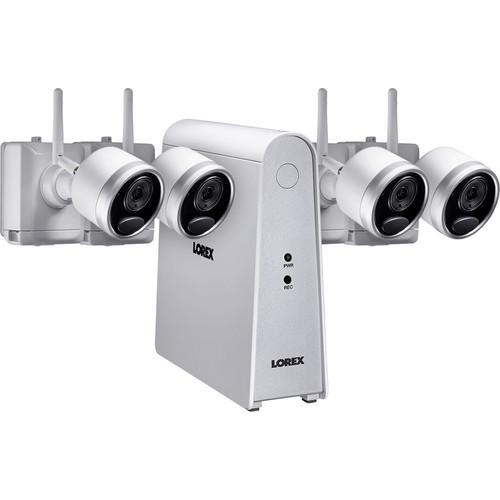

Product description Monitor your property with the 6-Channel 1080p DVR with 1TB HDD & 4 1080p Wire-Free Night Vision Bullet Cameras from Lorex. This 6-channel 1080p DVR manages, and can record from, up to 6 cameras. It comes preinstalled with a 1TB non-upgradeable HDD. Additionally, an onboard memory card slot supports microSD cards up to 128GB (available separately). Space-saving H.264 video compression reduces bandwidth requirements for efficient data storage while maintaining the best quality possible. The Lorex Cirrus app enables remote viewing and push notifications on your iOS or Android device.

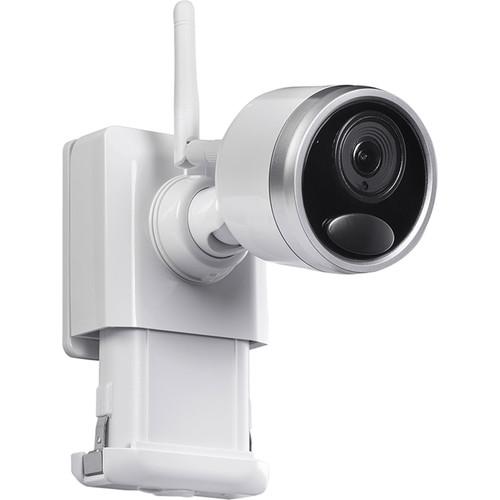

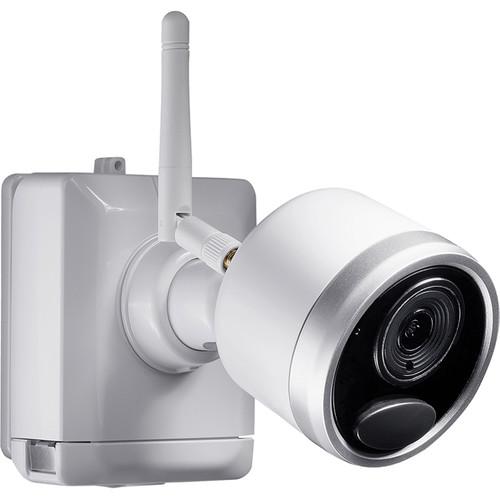

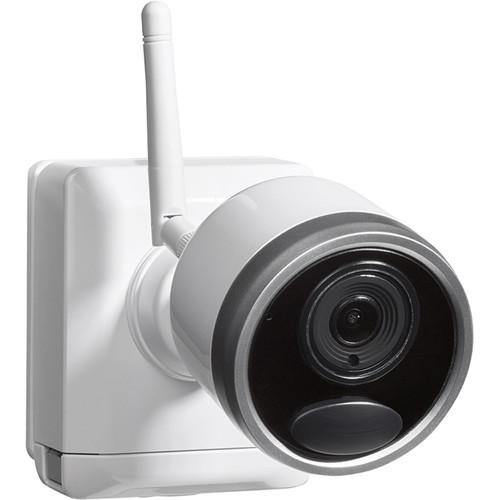

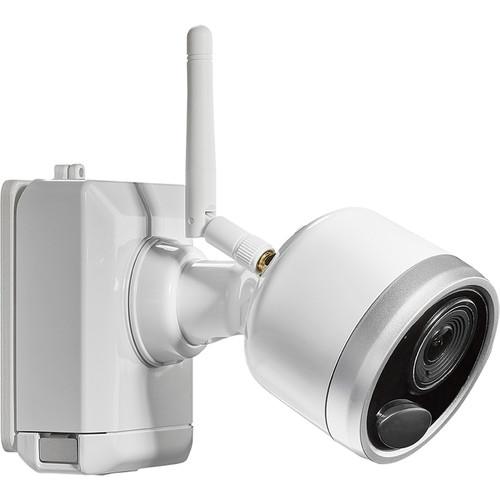

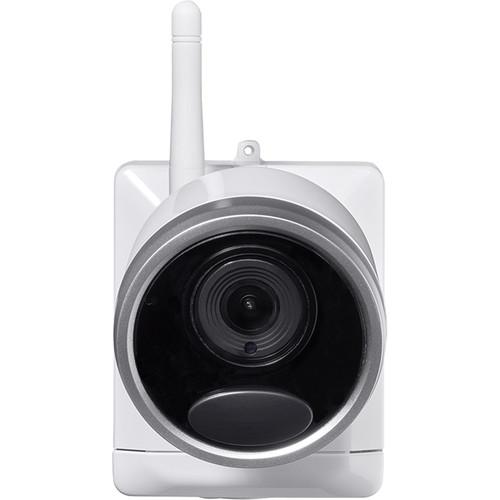

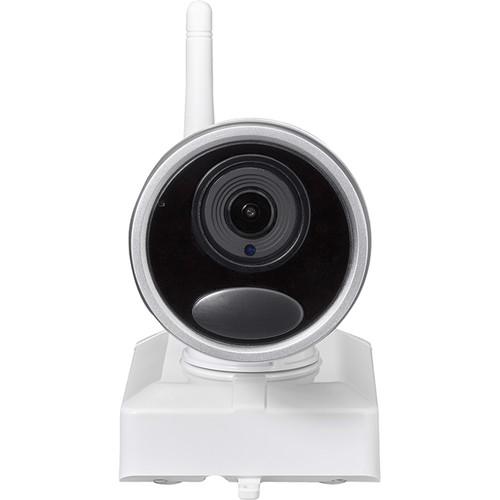

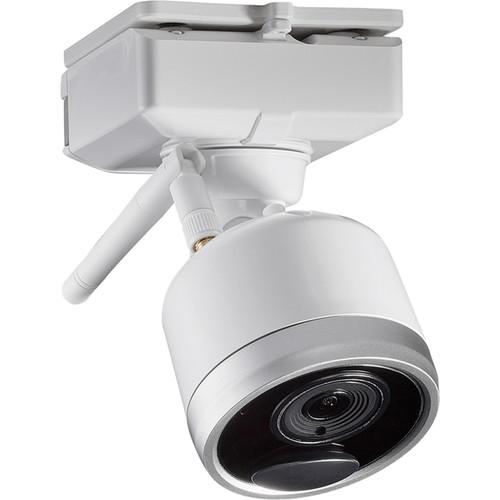

The included wire-free bullet cameras each have a CMOS sensor that captures 1920 x 1080 resolution video. Their lenses each have a 140° field of view. IR LEDs provide up to 65' of night vision. The cameras are equipped with a PIR sensor to detect motion. Each camera is housed in an IP66-rated enclosure that is suitable for outdoor use. - LHWF1006T1 1080p DVR
-
- Supports up to 6 wire-free cameras
- Pentaplex operation enables simultaneous view, record, playback, backup, and remote monitoring
- HDMI video output
- HDMI cable included
- Up to 2 years of local video storage with no hidden or monthly cloud storage fees
- Motion-activated notifications via Lorex Cirrus app
- Customizable motion detection for accurate instant alerts
- False alerts can be minimized by selecting the most important areas to monitor
- Lorex Client 13 software for Windows and Mac
- Firmware upgrades via network and USB device
- LWB4801 1080p Wire-Free Cameras
-
- DIY installation
- Hybrid wireless/wired capability
- Built-in antennas
- Wireless signal range up to 450'
- Adaptive Frequency Hopping Spread Spectrum (FHSS) technology reduces conflicts with competing signals
- Six IR LEDs for up to 65' of night vision
- PIR motion sensor
- Built-in speaker and microphone for two-way audio communication
- Low-battery notifications via mobile app
UPC: 695529017341 In the Box Lorex 6-Channel 1080p DVR with 1TB HDD & 4 1080p Wire-Free Night Vision Bullet Cameras Mouse Power Adapter HDMI Cable Ethernet Cable 4 x Rechargeable Power Packs 4 x Mounting Kits Limited 1-Year Warranty for DVR and Cameras Limited 90-Day Warranty for Included Accessories More info from Lorex fdffasvucvfsbryzxdysfvcerbyqrscw Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 6-Channel 1080p DVR with 1TB HDD & 4 1080p Wire-Free Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LHWF16T1C4 Specs | | | Pentaplex Operation | Simultaneous View, Record, Playback, Backup, and Remote Monitoring | | Number of Channels | 6 | | HDMI Out | Yes | | USB Ports | 3 x Rear
1 x Front | | Video Output Resolution | 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 | | Live Display | 1, 4, 6 | | Live Display Speed | 60 fps Total, 10 fps per Channel | | OSD | Yes | | System Navigation | USB Mouse | | Firmware Upgrade | Network, USB Device | | User Authority | By User Group | | Time Synchronization | Auto Time Sync by NTP Server | | Video Compression | H.264 | | Recording Resolutions | 1920 x 1080, 1280 x 720 (NTSC) | | Recording Frame Rate | 60 fps Total, 10 fps per Channel | | Recording Resolution Setting | Per Camera for Different Resolutions | | Recording Quality Control | 6 Levels | | Recording Schedule | By Motion, Manual | | Reliability | Watch-Dog, Auto-Recovery after Power Failure | | Playback Channel | 1/4/6 | | Playback Speed | Variable, Maximum 2x | | Playback Players | Backup Player | | Search | By Time/Date & Motion Event | | Log Search | Up to 4000 Lines for System, Configuration Changes, Motion/Alarm Detected, Account, Record & Storage | | Audio Play | Yes | | HDD Included | 1 x Security-Grade 2.5" SATA (Non-Upgradeable) | | Memory Card Slot | Supports microSD Class 10 Cards up to 128 GB (available separately) | | Backup Media | USB Flash Drive, HDD & Network | | Backup File Format | LF, MP4 | | Cloud Connection | P2P Connectivity | | Supported Operating Systems | Windows, Mac OS X | | Remote Software | Client Software for Windows and Mac | | Email Notification | Text with Snapshot | | Supported Mobile Devices | iPad, iPhone, Android | | System Configuration | Full Setup Configuration over Network | | Ports | Programmable by User | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP | | Network Interface | 10/100M, RJ45 | | Network Bit Rate | Maximum 32 Mb/s Total | | Power Consumption | 3 W | | Supply Voltage | 100-240 VAC, 12 VDC, 2 A, 50/60 Hz | | Operating Temperature | 14 to 130°F / -10 to 55°C | | Operating Humidity | 10 to 90% RH | | Dimensions | 2.4 x 7.1 x 7.4" / 60 x 180 x 187 mm | | Weight | 1.19 lb / 0.5 kg | | | | Image Sensor | 2.1 MP CMOS | | Resolution | 1920 x 1080 | | Field of View | 140° | | Night Vision Range | 65' / 20 m | | Number of IR LEDs | 6 | | PIR Sensor | Built-In | | Two-Way Audio | Built-In Microphone and Speaker | | Wireless Range | 450' / 137.2 m | | Battery Type | Lithium-Ion | | IP Rating | IP66 | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Dimensions | 5.3 x 2.9 x 5" / 130 x 73 x 126 mm | | | | Package Weight | 9.11 lb | | Box Dimensions (LxWxH) | 13.2 x 12.2 x 10.3" |
