User Manual for Lorex 8-Channel 1080p NVR with 2TB HDD & 6 4MP Night Vision Dome Cameras Click to enlarge the picture
Contents of the user manual for the Lorex 8-Channel 1080p NVR with 2TB
- Product category: Surveillance Systems Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Surveillance Systems
|
User manual for the Lorex 8-Channel 1080p NVR with 2TB contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|

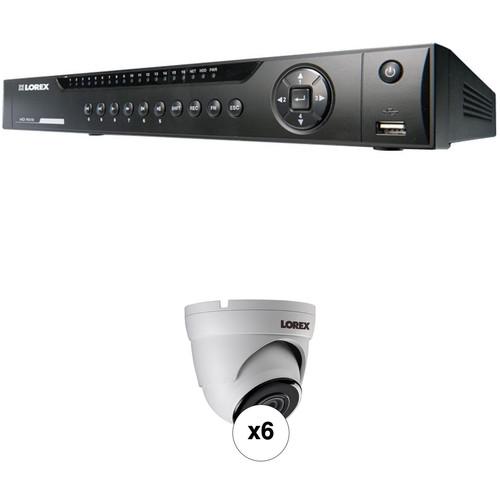

Product description The Kit includes Lorex's 8-Channel 1080p NVR with 2TB HDD, along with six 4MP outdoor night vision dome cameras. This kit enables you to record from and manage up to eight cameras. The recorder comes with a preinstalled 2TB HDD. Storage is expandable to 8TB. The included 4MP dome cameras are each equipped with a 2.8mm fixed lens that delivers a 101° horizontal field of view. The cameras are IP66 rated for outdoor use. - Lorex HD 8-Channel Real-Time Recording NVR with 2TB HDD Record video day and night in 1080p resolution with the HD 8-Channel Real-Time Recording NVR from Lorex. This pentaplex operating NVR with preinstalled 2TB hard disk drive allows you to connect up to 8 Lorex network cameras for comprehensive surveillance coverage of your home or business. The NVR's 8 integrated PoE ports provide power and transfer data over a single cable to the connected cameras, thereby reducing cabling while giving you more placement options.
In addition, the NVR supports full HD video recording at 1080p resolution, real-time recording at a rate of 30 fps per channel, and the FLIR Cloud: a free web-based service that allows you to remotely access your NVR's recordings and camera feeds over the Internet without requiring a network configuration, DDNS registration or port forwarding. Beyond allowing remote access through a Windows or Mac computer, the FLIR Cloud also supports remote play back and viewing from Android and iOS smart devices.
What's more, is that this NVR gives you the option to expand as your security needs evolve by allowing you to upgrade its storage capacity to two 4TB hard disk drives for a maximum of 8TB. This NVR also allows you to configure recording parameters to help conserve space on its preinstalled 2TB HDD by offering Continuous, Scheduled, and Motion recording modes, and it also features H.264 video compression, which allows you to optimize storage space by reducing resolution and other variables that contribute to the creation of larger video files. The NVR's HDMI video output connects this NVR to a HDMI TV, and its VGA output connects it to a CCTV monitor or a compatible display screen. Along with the NVR and preinstalled 2TB HDD, an HDMI cable, remote control, power adapter, mouse, and Ethernet cable are also included to facilitate installation. - NVR Compatibility
- *Please note that is NVR is compatible with Lorex IP PoE cameras only. It is not compatible with third-party IP cameras. For a full list of compatible cameras, visit Lorex's site.
-
- Full pentaplex operation: simultaneous view, record, playback, backup, and remote monitoring
- Full HD 1080p recording resolution
- Supports NTSC/PAL signal systems
- Real-time recording at a frame rate of 30 fps per channel
- 8 built-in PoE ports supply power and data over a single Ethernet cable
- Continuous, Scheduled, Motion recording modes
- Automatically detects compatible Lorex IP camera in the network
- Space-saving H.264 video compression
- Dual streaming supported to help conserve bandwidth
- Preinstalled 2TB HDD; expandable high capacity storage up to 8TB (max. 2 x 4TB HDD)
- Mirror hard drive recording with two installed HDDs
- Simultaneous play back and live view on the same screen
- Selectable digital zoom in live view and playback modes
- 2 x video outputs; 1 x HDMI / 1 x VGA
- Instant USB backup of live video from a selected camera
- Simple 3-step remote viewing with free FLIR Cloud
- Windows and Mac OS X compatible
- Receive push notifications of motion-triggered events
- Instant email alerts with snapshot attachments
- Remote monitoring via app on Android/iOS smart devices
UPC: 695529001463 - 2 x Lorex 4MP Outdoor Network Dome Camera with Color Night Vision (3-Pack) Monitor your surroundings with the 4MP Outdoor Network Dome Camera with Color Night Vision 3-pack from Lorex. The cameras capture 2688 x 1520 resolution video at 20 fps. They each have a 2.8mm fixed lens that delivers a 101° field of view and up to 90' of night vision in complete darkness. The cameras are housed in IP66-rated enclosures that are suitable for outdoor use. UPC: 695529014395
In the Box - HD 8-Channel Real-Time Recording NVR with 2TB HDD bxfcqvvaeawffvrtwbcawefwf
- HDMI Cable
- Remote Control
- Power Adapter
- Mouse
- Ethernet Cable
- Quick Start Guide
- Limited 1-Year Warranty
- 2 x 4MP Outdoor Network Dome Camera with Color Night Vision (3-Pack)
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 8-Channel 1080p NVR with 2TB HDD & 6 4MP Night Vision Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Lorex HD 8-Channel Real-Time Recording NVR with 2TB HDD
| Operating System | Linux embedded | | Pentaplex Operation | Simultaneous view / record / playback / backup / remote monitoring | | Number of Channels | 8 | | Video Inputs | 8 x PoE | | VGA Output | 1 x VGA | | HDMI Output | 1 x HDMI | | Audio Input | 1 x Line-IN (RCA; for service only) | | Audio Output | 1 x Line-OUT (RCA; for service only) | | USB | 1 x USB (at the back)
1 x USB (at the front) | | Alarm Input / Output | 8 x Alarm-IN
3 x Alarm-OUT | | Video Output Resolution | 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768 | | PTZ Control | Lorex IP PTZ cameras only | | Display Split | 1 / 4 / 8 / 9 | | Live Display Speed | NTSC: 240 fps
PAL: 200 fps | | OSD Controls | Camera title / time / camera lock / motion detection / recording status | | System Navigation | USB mouse / IR remote control / front panel buttons | | Motion Area Setting | Adjustable grid; 22 x 18 | | Sensitivity Levels | 100 | | Firmware Upgrade | Automatic over the Internet / via USB device and network | | User Access | By user group | | Time Synchronization | Auto time sync by NTP server | | Video Compression | H.264 | | Recording Resolution | 1080p (1920 × 1080) / 720p (1280 × 720) | | Recording Rate | NTSC: 240 fps at 1080p
PAL: 200 fps at 1080p | | Recording Resolution Setting | Different resolution setting per camera | | Recording Quality Control | 6 levels | | Recording Schedule | By hour / by day / by recording mode / by motion / by channel | | Pre Recording | Max. 30 seconds | | Post Recording | Max. 5 minutes | | Reliability | Watchdog / auto-recovery after power failure | | Playback Channels | 1 / 4 / 9 | | Playback Speed | Variable; max. up to 16x | | Playback Players | Backup Player | | Search | By time and event | | Log Search | Up to 1,000 lines for motion detected / configuration changes / connects / disconnects
video loss | | Audio Play | Yes; audio-enabled camera required | | Storage Type | Up to 2 x SATA HDDs | | Storage Capacity | 2 x 4TB HDD | | Backup Media | USB Flash Drive / HDD | | Backup Media | USB Flash Drive & HDD | | Backup File Format | DAV / ASF file | | Cloud Connectivity | FLIR Cloud | | Supported Operating Systems | Windows / Mac OS X | | Remote Software Configuration | Client Software for Windows / Mac OS X | | Email Notification | Text with snapshot | | Mobile App Support | iPad / iPhone / Android smartphones & tablets | | DDNS | Free Lorex DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Standards | HTTP / IPv4 / IPv6 / TCP / IP / UPNP / RTSP / UDP
SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter | | Network Interface | 1 x RJ-45, 10/100/1000 Mbps | | Network Data Transfer Rate | 256 Mbs total; 48 to 8,192 kbps per camera | | Power Consumption | Approx. 20 W (without HDD) | | Power Supply Voltage | 100 to 240 VAC, 50/60 Hz | | PoE Power Output | 120 W; max 25 W per camera | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Relative Humidity Range | 10 to 90% | | Dimensions (W x D x H) | 14.7 x 11.2 x 2.0" (375 x 285 x 50 mm) | | Weight | 5.1 lb / 2.3 kg | | | | Box Dimensions (LxWxH) | 18.0 x 16.5 x 7.0" | - Lorex LKE343B 4MP Outdoor Network Dome Camera with Color Night Vision
| Image Sensor | 1/3" 4 MP | | Video Format | NTSC/PAL | | Effective Pixels (H x V) | 2592 x 1520 | | Resolution | 2688 x 1520 (4 MP) at 20 fps | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | ≥38 dB (AGC off) | | Iris | EIS | | AES Shutter Speed | 1/5 to 1/20,000 seconds | | Min. Illumination | Color: 0.5 lux without IR
B&W: 0.3 lux with IR
| | Video Output | IP | | Lens Type | 2.8mm, fixed | | Aperture | f/1.8 | | Horizontal Field of View (degree) | 101° | | Termination | RJ45 Ethernet / 12 VDC power barrel (optional) | | IR LED Type | 850 nm | | Night Vision Range | Ambient Lighting: 130' / 40 m
Total Darkness: 90' / 27 m
| | HDR | True high dynamic range | | Power Requirement | PoE (Power over Ethernet) class | | Power Consumption | Max. 450 mA / 5.4 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity (Relative) | <95% | | IP Rating | IP66 | | Dimensions (W x D x H) | 3.9 x 3.9 x 3.5" / 100 x 100 x 90 mm | | Weight | 0.9 lb / 0.4 kg | | | | Box Dimensions (LxWxH) | 8.9 x 5.8 x 5.65" |
