Product description - Color night vision cameras
Monitor your entire establishment round-the-clock, indoors and outdoors, with the 8-Channel 4K NVR with 2TB HDD & Eight 4MP Outdoor Cameras with Color Night Vision from Lorex.
Install your cameras on the interior and exterior of your home or office, connect each to the NVR for Power-over-Ethernet via a single Ethernet cable (included), and capture everything in 2688 x 1520 2K resolution at 20 fps in a wide 101° field of view. Record everything to a pre-installed 2TB HDD designed to work 24/7. The camera can record color video in extreme low light thanks to Lorex Color Night Vision and IR LEDs provide you with 90 ft of black and white night vision video in complete darkness.
The system also includes a free FLIR Cloud Basic plan, which provides you with limited cloud storage, cloud history, and RapidRecap videos for one camera. And you can upgrade this plan to a FLIR Cloud Premium plan for 30 days of cloud history, unlimited cloud storage, and unlimited RapidRecap videos. - 2K 4MP Outdoor IP Cameras
-
- 2688 x 1520 resolution (4MP) at 20 fps
- HD quality even when zoomed for clearer identification
- Space-saving H.265/H.264 video compression
- 90 ft of night vision in complete darkness
- High Dynamic Range (HDR) image improvement in high-contrast lighting, revealing details in extremely bright and dark areas of the image
- 101° wide field of view
- Ceiling/wall mountable
- Plug into NVR using a single Cat 5e cable per camera (included) for Power-over-Ethernet (PoE) (up to 300 ft cables supported, sold separately)
- Capable of operating in cold weather (-22°F)
- IP66 weatherproof rated
- Weatherproof Ethernet connector cover for a protective seal against the elements
- 8-Channel Ultra HD 4K NVR with 2TB HDD
-
- Supports up to Ultra HD 4K (8MP) recording on all channels (with optional 4K cameras)
- Includes PC and Mac compatible video management software (free download)
- Includes iOS/Android apps (free download) for live viewing, playback, video recording, and snapshots
- 24/7 security-grade pre-installed 2TB hard drive (up to 6TB supported)
- Automatically detects compatible IP cameras
- 4K video output — view up to four HD channels simultaneously in full resolution on a 4K TV
- Space saving H.265 video compression
- Multi-streaming to conserve bandwidth
- Pentaplex Operation — view, record, playback, back up, and remotely control the system simultaneously
- Click-and-drag digital zoom in live view and playback
- Front panel controls
- Time stamps with NTP and daylight savings time
- Supports instant backup of live video to a USB flash drive
- Dual video outputs (HDMI and VGA) for connecting to viewing monitors
- HDMI cable included for simple connection to TVs
- Push notifications of motion events
- Instant email alerts with snapshot attachment
- Continuous, scheduled, and motion recording
UPC: 695529012100 In the Box Lorex 8-Channel 4K NVR with 2TB HDD & Eight 4MP Outdoor Cameras with Color Night Vision HDMI Cable Ethernet Cable Power Cable USB Mouse Remote Control Limited 1-Year Warranty 8 x 4MP Outdoor Bullet Network Camera with Color Night Vision Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 8-Channel 4K NVR with 2TB HDD & Eight 4MP Outdoor Cameras with Color Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

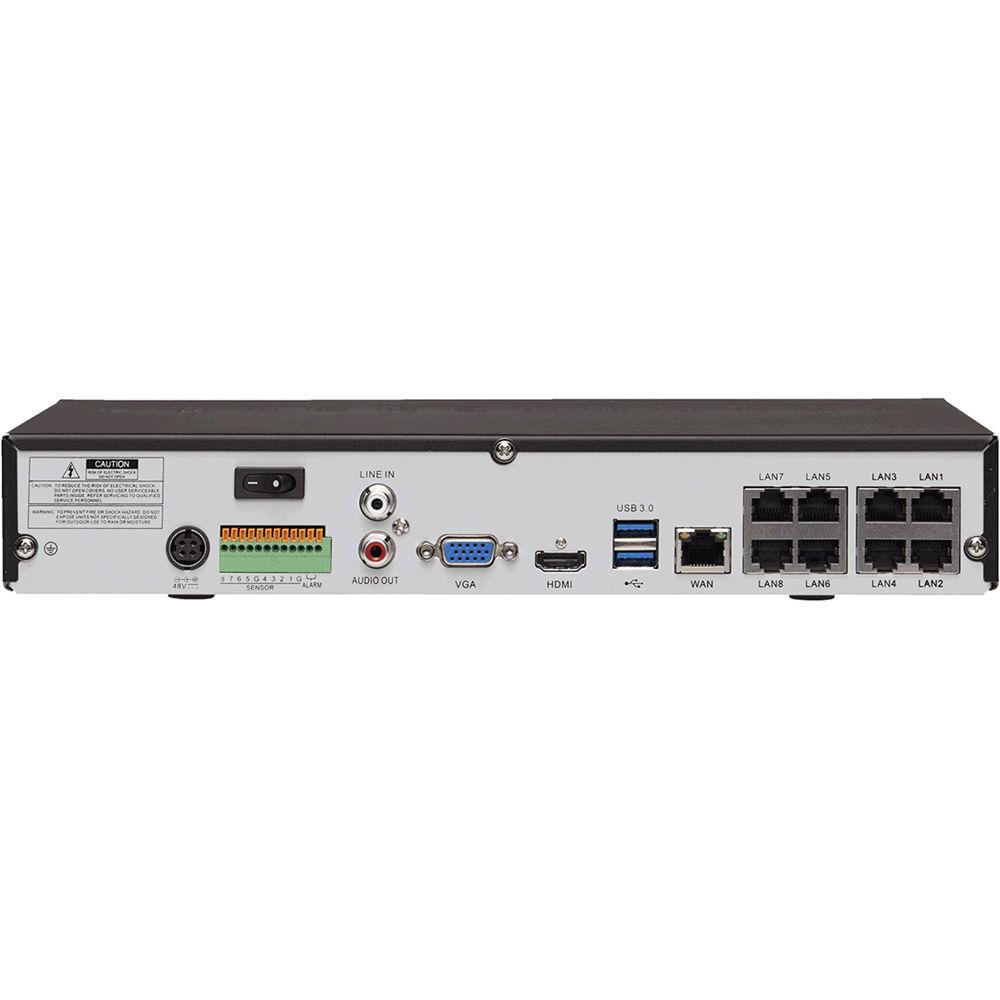

Technical parametersLorex LNK71082TC8B Specs | | | Operating System | Linux (embedded) | | Pentaplex Operation | Simultaneous view, record, playback, backup, remote monitoring | | Number of Channels | 8 | | Inputs/Outputs | 8 x RJ45 PoE video inputs
1 x VGA input
1 x HDMI Type A input
1 x RCA audio output
1 x RCA service jack (not an audio input)
2 x USB 3.0 (on the rear)
1 x USB 2.0 (on the front) | | Alarm In/Out | 4 x inputs, 1 x output | | Video Output Resolution | 3810 x 2160, 2560 x 1440, 1920 x 1200, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
*Up to 30 fps output, including live output, supported (camera dependent) | | PTZ Control | Supported | | Display Split | 1, 4, 9 | | OSD | On/Off | | System Navigation | USB mouse, IR remote control (both included) | | Motion Area Setting | Fixed grid 1320 (44 x 30) | | Sensitivity Levels | 8 | | Firmware Upgrade | Automatic over Internet or USB device | | User Authority | By user group | | Time Synchronization | Automatic time sync by NTP server | | Video Compression | H.265/H.264 | | Audio Compression | G.711 | | Recording Resolution | 3840 x 2160, 2688 x 1520, 2048 x 1536, 1920 x 1080, 1280 x 720
*Up to 30 fps recording at all resolutions (camera dependent) | | Recording Resolution Setting | Per camera for different resolutions | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, day, recording mode, motion, alarm, channel | | Pre-Recording | 2 seconds | | Post-Recording | 30 seconds minimum; 5 minutes maximum | | Reliability | Watch-dog, auto-recovery after power failure | | Covert Video | Yes | | Playback Channels | 1, 4, 8 | | Playback Speed | Variable max 16x | | Playback Players | Backup Player | | Search | By time/date, motion detection, exact search (accurate to the second) | | Log Search | Up to 4000 lines for system configuration changes, motion/alarm detected, account, recording, and storage | | Audio Play | Supported (audio camera required) | | Storage | 1 HDD, up to 6 TB, supported (SATA) (2 TB HDD pre-installed) | | Backup Media | USB flash drive, HDD, and network | | Backup File Format | H.265, H.264, or MP4 | | Cloud Connection | FLIR Secure (FLIR Cloud Basic plan included) | | Supported Operating System | Windows / Mac OS X | | Remote Software | Web client software provided (PC and Mac) | | Email Notification | Text with snapshot | | Supported Mobile Devices | iOS and Android | | DDNS | Free Lorex DDNS | | System Configuration | Full setup configuration over network | | Network Protocol | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP | | Network Interface | 10/100/1000M, RJ45 | | Network Bit Rate | 100 Mbps total (maximum) | | Power Consumption | Approx. 4.5 W (without HDD installed) | | Supply Voltage | 48 V, 2 A | | PoE Power Output | 80 W total (max 30 W per channel) | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Humidity | 10 to 90% RH | | Rack Height | 1 RU | | Dimensions | 11.8 x 8.9 x 2.1" (30 x 23 x 5 cm) | | Weight | 2.4 lb (1.1 kg) | | | | Image Sensor | 1/3" 4 MP (compatible with all Lorex LNK Series NVRs) | | Video Format | NTSC/PAL | | Effective Pixels | 2592 x 1520 | | Resolution | 2688 x 1520 (4 MP) at 20 fps | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | ≥38 dB (AGC OFF) | | Iris | EIS | | AES Shutter Speed | 1/5 - 1/20,000 seconds | | Minimum Illumination | Color: 0.3 lux
B&W: 0 lux with IR on | | Night Vision Range | 90 ft (27 m) | | Video Output | IP | | Lens | 2.8 mm, f/1.8 (fixed) | | Field of View | 101° | | Termination | RJ45 Ethernet / optional 12 VDC power barrel | | IR LED Type | 850 nm | | Power | PoE (Power-over-Ethernet) | | Power Consumption | Max. 450 mA / 5.4 W | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | <95% RH | | Environmental Rating | IP66 | | Dimensions | 2.9 x 6 x 2.9" (7.3 x 15.2 x 7.3 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 30.0 lb | | Box Dimensions (LxWxH) | 17.5 x 16.0 x 12.0" |
