User Manual for Lorex 8-Channel 4K UHD DVR with 1TB HDD and 4 4K Color Night Vision Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Lorex 8-Channel 4K UHD DVR with
- Product category: Surveillance Systems Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Surveillance Systems
 |
User manual for the Lorex 8-Channel 4K UHD DVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|

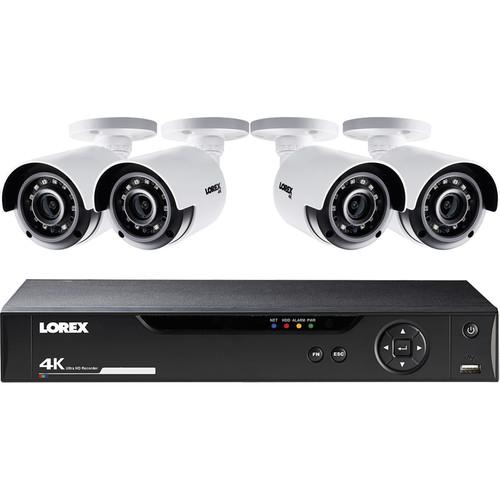

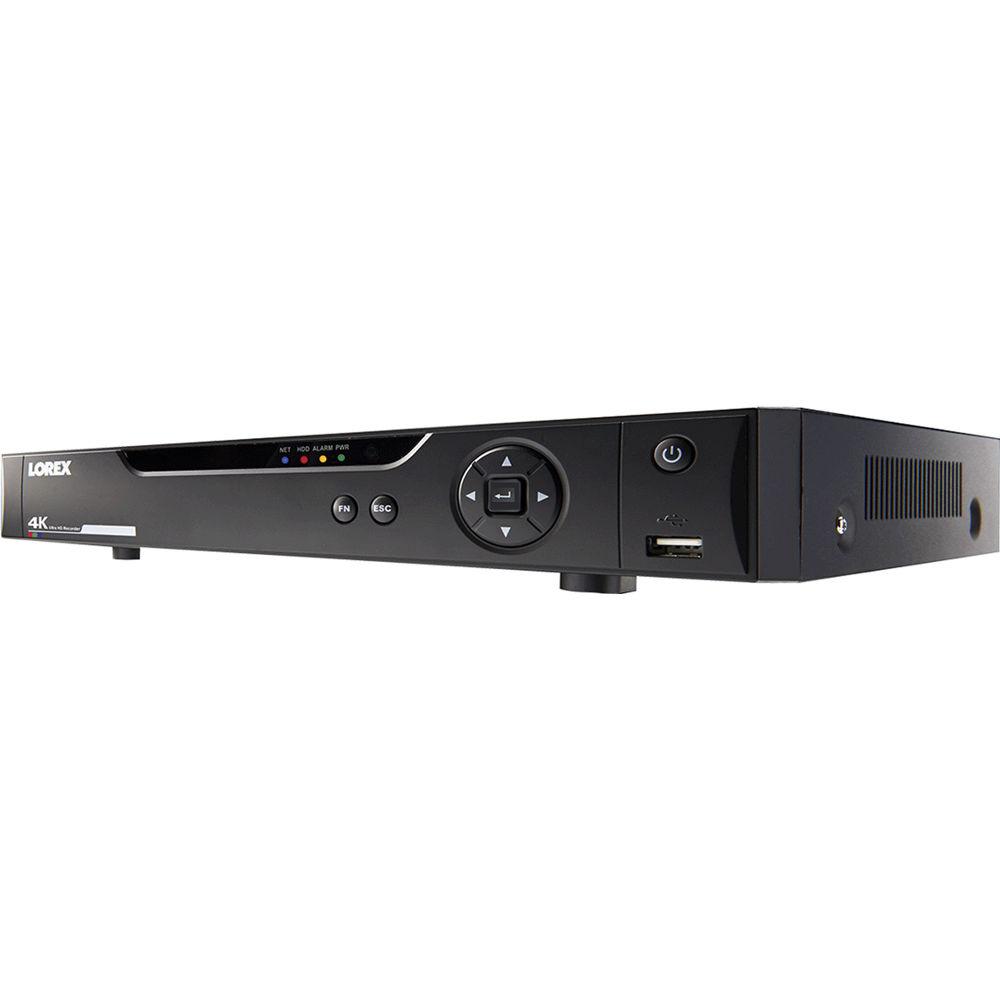

Product description Monitor your property with the 8-Channel 4K UHD DVR with 1TB HDD and 4 4K Color Night Vision Bullet Cameras from Lorex. This 4K UHD 8-channel DVR manages and can record from up to 8 cameras. It comes preinstalled with a 1TB HDD that is expandable to 8TB. Space-saving H.264+ video compression offers reduced file sizes and improved performance for remote viewing while maintaining the best quality possible. The Lorex Cloud app enables live viewing, playback, video recording, and snapshots via your iOS, Android, or Windows tablet device. Additionally, you can control your security system over the internet via Windows and Mac PCs.

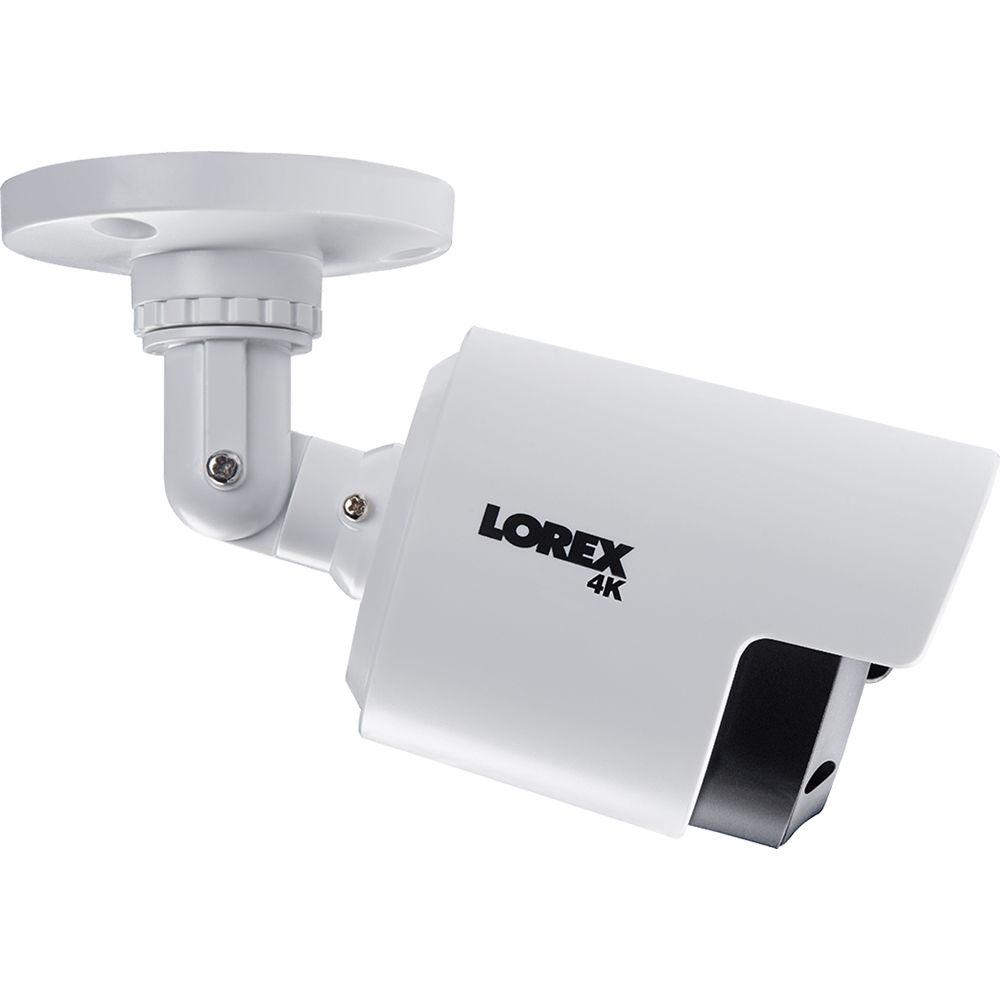

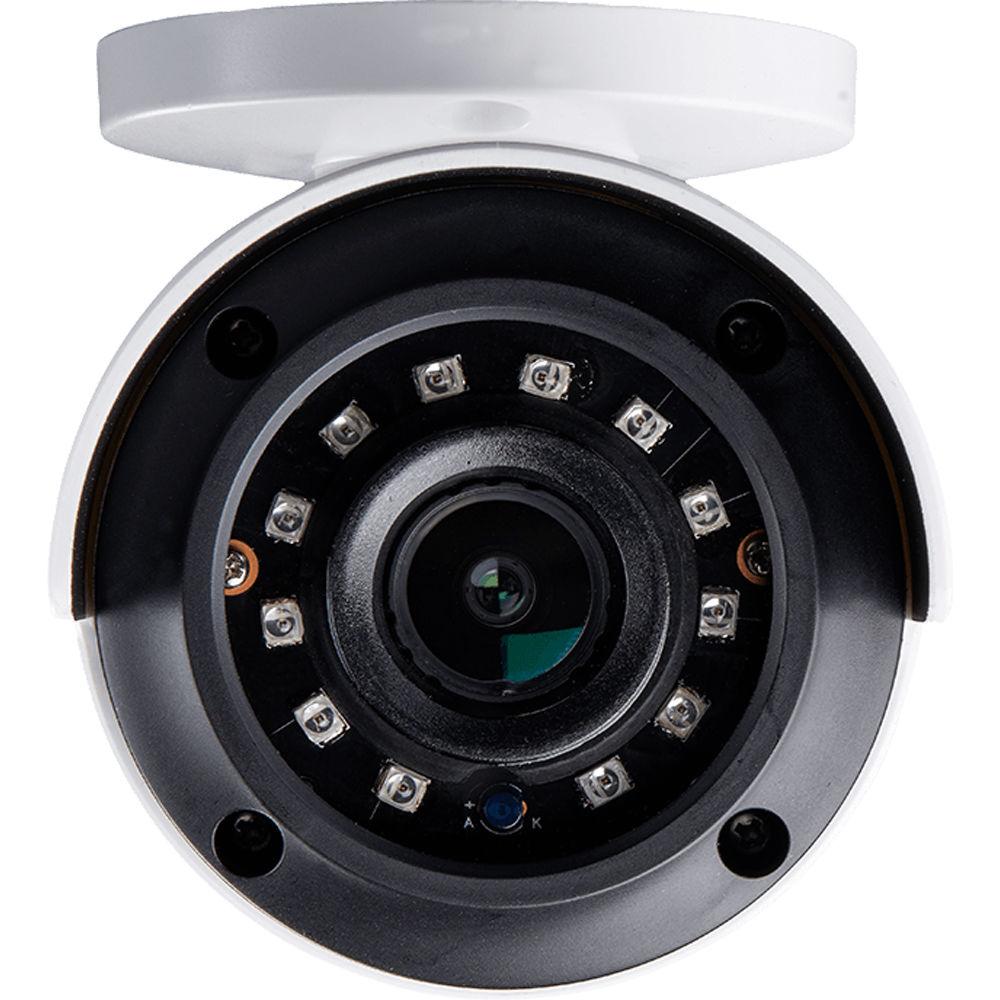

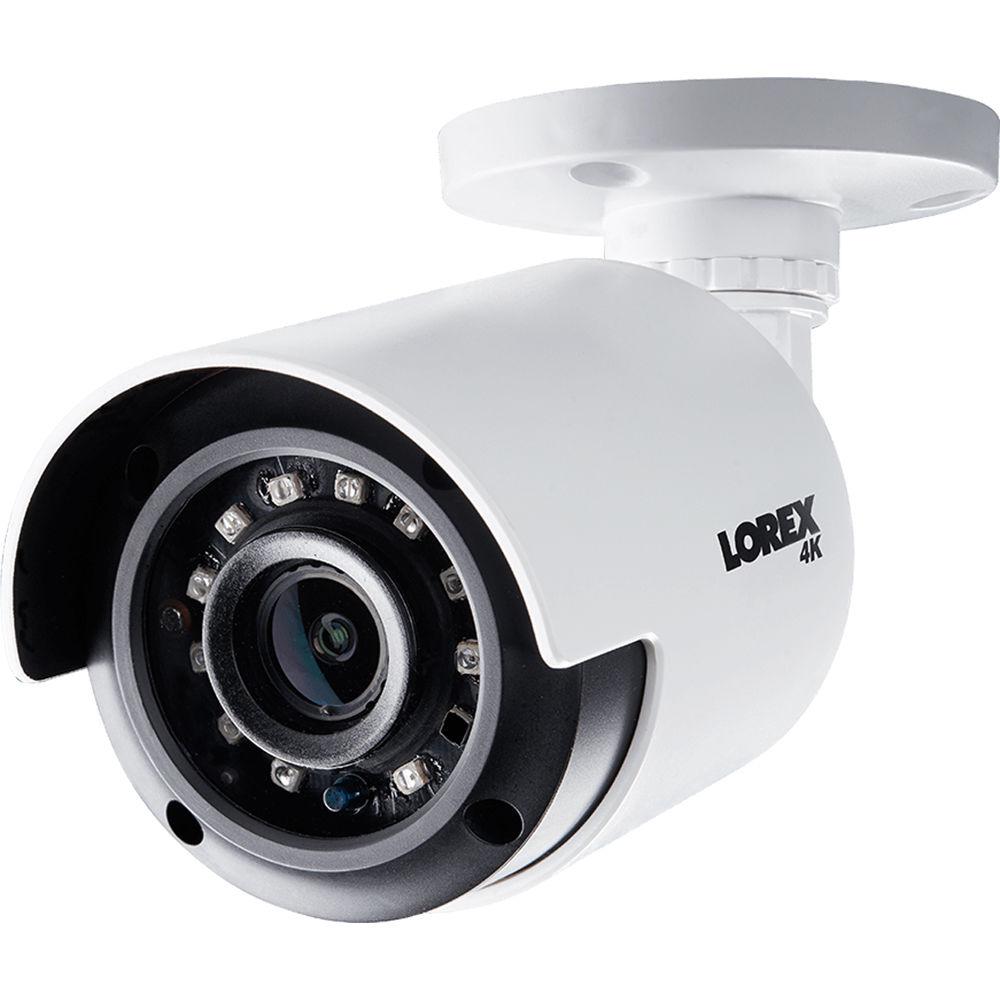

The included bullet cameras feature 1/2" 8MP progressive scan image sensors for up to 3840 x 2160 resolution video at 15 fps. Their 3.6mm fixed lenses each have an 87° horizontal field of view. 12 integrated IR LEDs deliver up to 90' of night vision in total darkness, and 135' of night vision in ambient light. The cameras are equipped with a BNC-type termination. Each camera is housed in an IP67-rated enclosure that is suitable for outdoor use. - 4K UHD DVR
-
- HDMI and VGA outputs to connect multiple monitors
- HDMI cable included
- Continuous, scheduled, and motion recording
- Pentaplex operation enables simultaneous view, record, playback, backup & remote monitoring
- 24/7 security-grade preinstalled 1TB HDD
- HDD storage expandable to 8TB
- Click-and-drag digital zoom in live view and playback
- Time stamps with NTP and daylight savings time
- Motion push notifications and email alerts
- Automatic firmware upgrades over the internet
- Space-saving H.264+ video compression
- Dual streaming to conserve bandwidth
- Backward compatible with standard analog cameras
- 4K UHD Bullet Cameras
-
- 4K UHD image sensor
- IR cut filter ensures accurate color representation
- 87° horizontal field of view
- Up to 90' of night vision in total darkness
- Up to 135' of night vision in ambient light
- ClearNight imaging for improved low-light performance and improved recording efficiency
- Close-up recognition in the dark with Smart IR
- Split glass design minimizes IR reflection
- Ceiling and wall mountable
- IP67-rated enclosure that is suitable for outdoor use
- Cold climate capability in temperatures as low as -22°F
UPC: 695529016504 In the Box Lorex 8-Channel 4K UHD DVR with 1TB HDD and 4 4K Color Night Vision Bullet Cameras Mouse HDMI Cable Ethernet Cable Remote Control DVR Power Adapter 4 x Mounting Kits 4 x 60' / 18.3m Extension Cables 4-in-1 US Power Adapter Limited 1-Year Warranty More info from Lorex asvuyefvqsduavsssyqdf Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 8-Channel 4K UHD DVR with 1TB HDD and 4 4K Color Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LHV51081T4KB Specs | | | Operating System | Linux embedded | | Pentaplex Operation | Simultaneous view, record, playback, backup, and remote monitoring | | Number of Channels | 8 | | Video In | 8 x 1 V p-p, CVBS, 75 Ohms, BNC | | VGA Out | Yes | | HDMI | Yes | | Audio In | 1 x RCA line in | | Audio Out | 1 x RCA line out | | USB Port | 1 x rear, 1 x front | | Video Output Resolution | HDMI: 3840 x 2160, 2560 x 1440, 1920 x 1200, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | RS-485 Pelco D & P Protocol | | Live Display | 1, 4, 8 | | Live Display Speed | NTSC: 240 fps
PAL: 200 fps | | OSD | On/off | | System Navigation | USB mouse, IR remote controller, front panel | | Motion Area Setting | Fixed grid 396 pixels (22 x 18) NTSC/PAL | | Sensitivity | 100 | | Firmware Upgrade | Automatic over the internet & via USB device and network | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | Video Compression | H.264+ | | Audio Compression | G.711 | | Recording Resolution | 3840 x 2160, 2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480, 352 x 480, 704 x 240, 352 x 240, 176 x 120 | | Recording Frame Rate | 4K at 7 fps per channel, 4 MP at 15 fps per channel, 3 MP/1080p/720p/960H at 30 fps (NTSC) | | Recording Resolution Setting | Per camera for different resolutions | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, by day, by recording mode, by motion, by channel | | Pre Recording | Max: 30 seconds | | Post Recording | Max: 5 minutes | | Reliability | Watch-Dog, auto-recovery after power failure | | Covert Video | Yes | | Playback Channel | 1/4/8 | | Playback Speed | Variable max 4x | | Playback Players | Backup Player | | Search | By time/date & motion event | | Log Search | Up to 1000 lines for system, configuration changes, motion/alarm detected, account, record & storage | | Audio Play | Yes | | Storage | 1 HDD SATA, 1 TB preinstalled | | Maximum Capacity | 1 x 8 TB | | Backup Media | USB flash drive & HDD | | Backup File Format | DAV/ASF file | | Cloud Connection | Lorex Cloud connectivity | | Supported Operating Systems | Windows, Mac OS X | | Remote Software | Client software for Windows / Safari for Mac | | Email Notification | Text with snapshot | | Supported Mobile Devices | iPad, iPhone, Android, Windows tablet | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP | | Network Interface | 1 x 10/100Base-TX, RJ45 | | Network Bit Rate | Max: 64 Mb/s | | Power Consumption | Without HDD: 10 W | | Supply Voltage | 100-240 VAC, 12 VDC, 2 A, 50/60 Hz | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 10 to 90% RH | | Dimensions | 12.8 x 10 x 2.2" / 325 x 255 x 55 mm | | Weight | Without HDD: 3.3 lb / 1.5 kg | | | | Image Sensor | 4K UHD/8 MP, 1/2" CMOS | | Video Format | NTSC/PAL | | Effective Pixels (H x V) | 3840 x 2160 | | Resolution | 4K/8 MP at 15 fps | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | >65 dB with AGC off | | Iris | AES | | AES Shutter Speed | 1/100,000 to 1/3 (1/4) seconds | | Minimum Illumination | 0.01 lux without IR LED
0 lux with IR LED | | Video Output | MPX | | Lens Type | 3.6mm fixed lens, f/1.6 | | Horizontal Field of View (degree) | 87° | | Termination | BNC type | | Night Vision Range | Ambient Lighting: 135' / 41 m
Total Darkness: 90' / 28 m | | Number of IR LEDs | 12 | | IR LED Type | 850 nm | | Power Requirement | 12 VDC ±10% | | Power Consumption | Max: 415 mA with IR, 5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <90% RH | | Dimensions | 2.8 x 6.2 x 2.8" / 70 x 158 x 70 mm | | Weight | Including Stand: 0.50 lb / 0.23 kg | | | | Package Weight | 15.8 lb | | Box Dimensions (LxWxH) | 15.5 x 13.0 x 13.0" |
