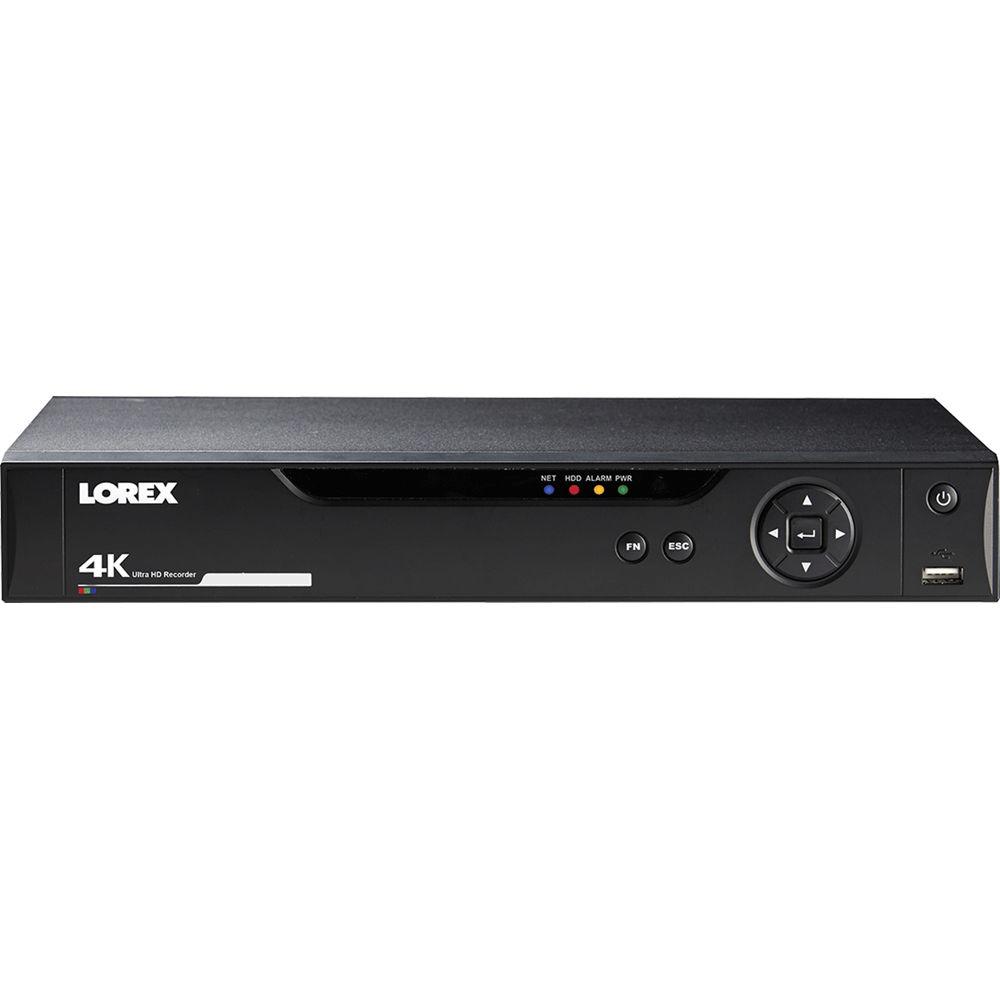

Product description Monitor your property with the 8-Channel 4K UHD DVR with 2TB HDD & 8 4K Night Vision Bullet Cameras from Lorex. This 4K UHD 8-channel DVR manages, and can record from, up to 8 cameras. It comes preinstalled with a 2TB HDD, but can support up to 8TB. Space-saving H.264+ video compression reduces bandwidth requirements for efficient data storage while maintaining the best quality possible. The Lorex Cloud app enables remote viewing from your iOS or Android device.

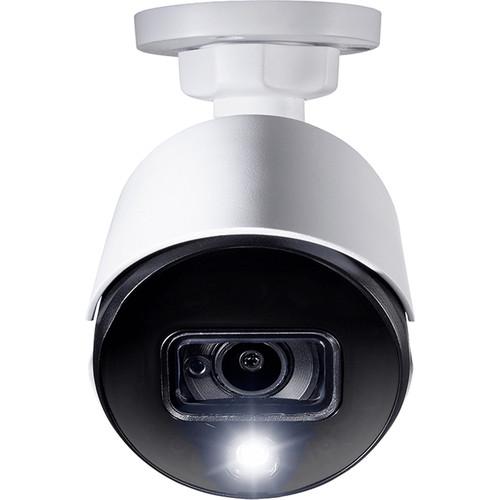

The included bullet cameras use 1/2" progressive scan CMOS sensors to capture 3840 x 2160 resolution video at 15 fps. Their 3.6mm fixed lenses each have an 87° horizontal field of view. A single IR LED provides up to 90' of night vision in total darkness & 135' of Color Night Vision in ambient light. The cameras are equipped with a motion-activated LED warning light & a remote-triggered siren to deter intruders. Each camera is housed in an IP67-rated enclosure that is suitable for outdoor use. - LHV51082T 4K UHD DVR
-
- Supports select Lorex 4K UHD Active Deterrence cameras
- Backward compatibility with standard analog cameras
- HDMI and VGA outputs to connect multiple monitors
- HDMI cable included
- Pentaplex operation enables simultaneous view, record, playback, backup, and remote monitoring
- Continuous, scheduled, and motion recording
- H.264+ video compression and dual streaming to conserve bandwidth
- 24/7 security-grade preinstalled 2TB HDD
- RCA audio input and output
- HDD storage expandable to 8TB
- Instant USB backup of live video from selected camera
- Click-and-drag digital zoom in live view and playback
- Time stamps with NTP and daylight savings time
- Motion push notifications and email alerts
- Automatic firmware upgrades over the internet

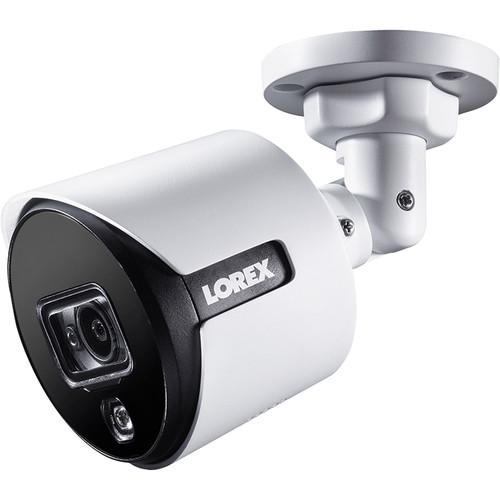

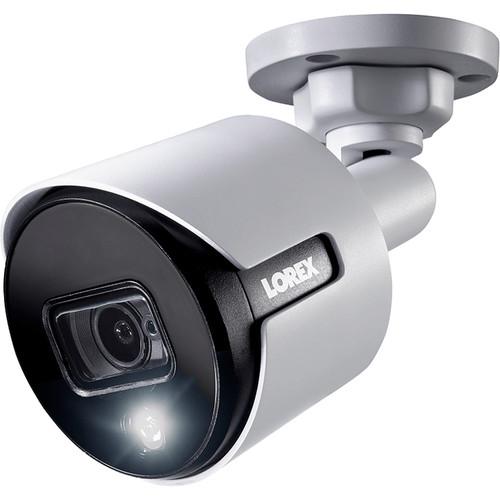

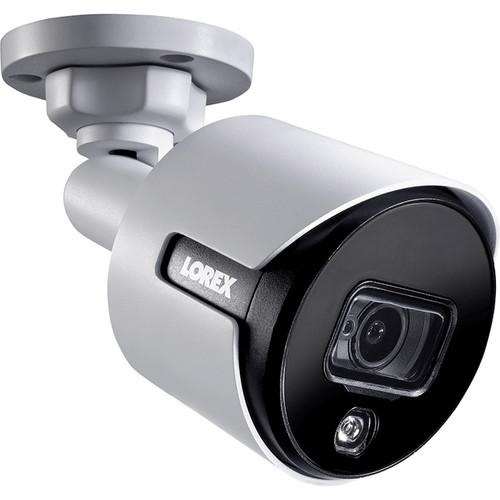

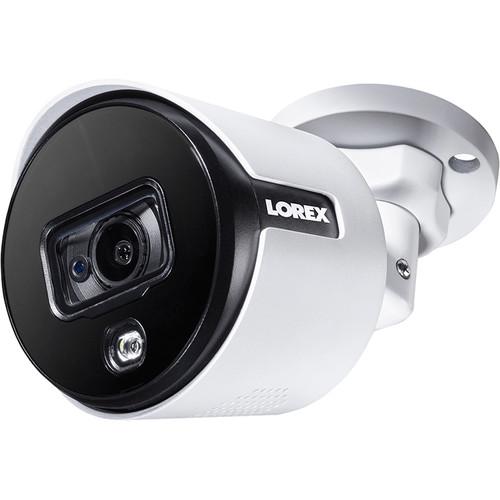

- LBV8541XB 4K UHD MPX Active Deterrence Bullet Cameras
-
- MPX video output
- BNC type termination

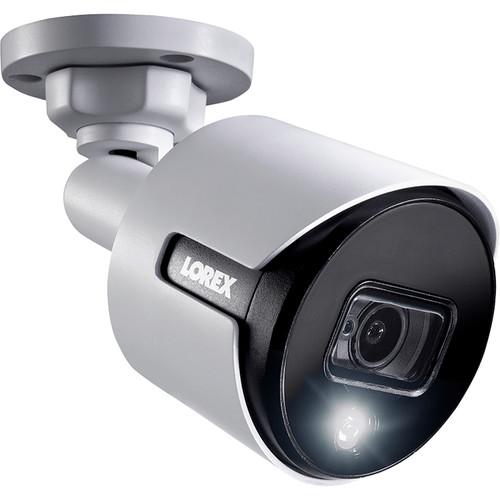

- Motion-activated, customizable LED warning light to deter intruders

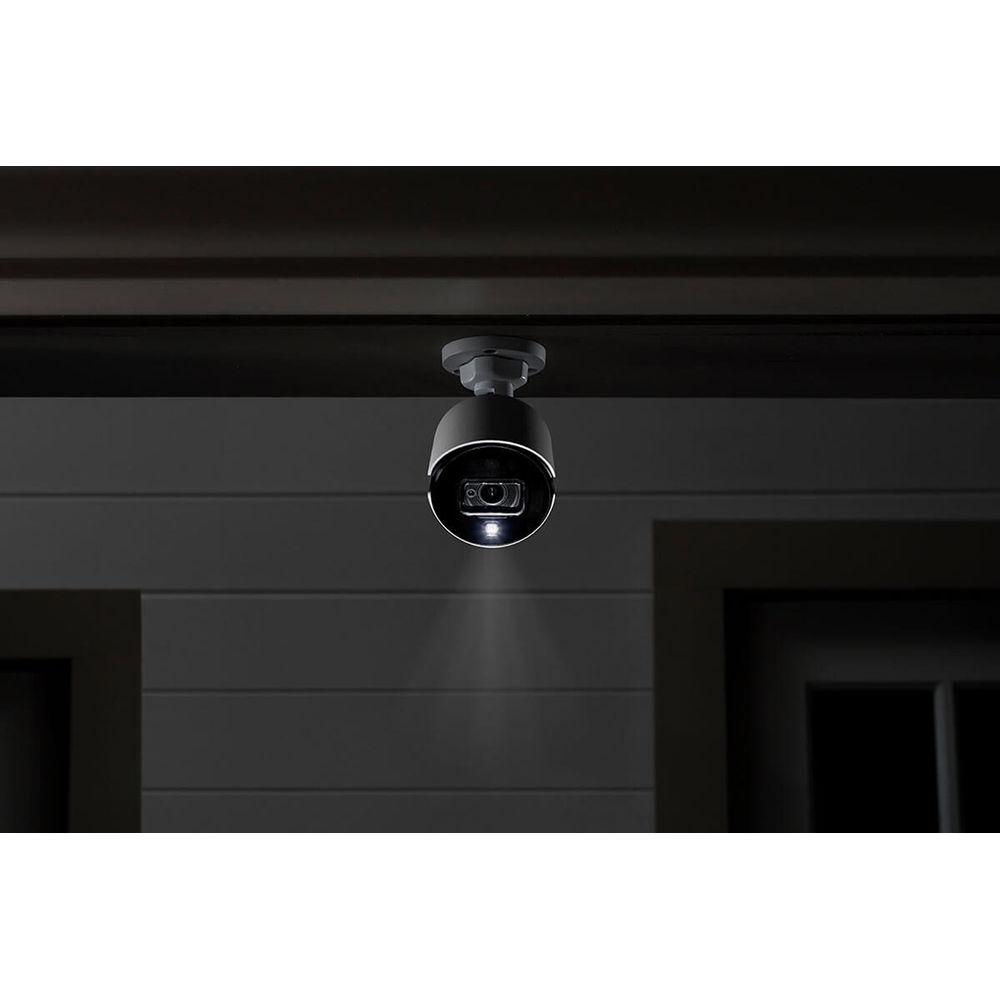

- A single IR LED enables video to be captured from up to 90' away in total darkness & up to 135' away in ambient lighting
- Remote-triggered siren
- Smart IR, Color Night Vision, and ClearNight technology help produce clearer images in low-light conditions
- >65 dB S/N ratio with automatic gain control turned off
- Operates in temperatures as low as -22°F
- Can be mounted on a wall or ceiling
- Vandal-resistant design with cable pass-through bracket
UPC: 695529017068 In the Box Lorex 8-Channel 4K UHD DVR with 2TB HDD & 8 4K Night Vision Bullet Cameras Mouse HDMI Cable Ethernet Cable Remote Control Power Adapter 8 x Mounting Kits 8 x Power Adapters 8 x 60' BNC/DC Extension Cables Limited 1-Year Warranty for DVR and Cameras Limited 90-Day Warranty for Included Accessories More info from Lorex Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 8-Channel 4K UHD DVR with 2TB HDD & 8 4K Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LHV51082T8KX Specs | | | Operating System | Linux embedded | | Pentaplex Operation | Simultaneous view, record, playback, backup, and remote monitoring | | Number of Channels | 8 | | Video In | 8 x 1 V p-p, CVBS, 75 Ohms, BNC | | VGA Out | Yes | | HDMI Out | Yes | | Audio | 1 x RCA line in
1 x RCA line out | | USB Ports | 1 x rear
1 x front | | Video Output Resolution | HDMI: 3840 x 2160, 2560 x 1440, 1920 x 1200, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
VGA: Maximum 1920 x 1080 | | PTZ Control | RS-485 Pelco D & P protocols | | Live Display | 1, 4, 8 | | Live Display Speed | 240 NTSC, 200 PAL | | OSD | On/off | | System Navigation | USB mouse, IR remote controller, front panel | | Motion Area Setting | Fixed grid 396 pixels (22 x 18) NTSC/PAL | | Sensitivity | 100 | | Firmware Upgrades | Automatic over the internet and via USB device & network | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | Video Compression | H.264+ | | Audio Compression | G.711 | | Recording Resolutions | 3840 x 2160, 2688 x 1520, 2304 x 1296, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480, 352 x 480, 704 x 240, 352 x 240, 176 x 120 | | Recording Frame Rates | 4K UHD at 7 fps per channel, 4 MP at 15 fps per channel, 3 MP/1080p/720p/960H at 30 fps (NTSC) | | Recording Resolution Setting | Per camera for different resolutions | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, by day, by recording mode, by motion, by channel | | Pre Recording | Maximum 30 seconds | | Post Recording | Maximum 5 minutes | | Reliability | Watch-Dog, auto-recovery after power failure | | Covert Video | Yes | | Playback Channel | 1/4/8 | | Playback Speed | Variable, maximum 4x | | Playback Players | Backup player | | Search | By time/date & motion event | | Log Search | Up to 1000 lines for system, configuration changes, motion/alarm detected, account, record & storage | | Audio Play | Yes | | HDD Capacity | 1 x 8 TB (SATA) | | HDD Included | 1 x 2 TB | | Backup Media | USB flash drive and HDD | | Backup File Format | DAV, ASF | | Cloud Connection | Lorex Cloud connectivity | | Supported Operating Systems | Windows, Mac OS X | | Remote Software | Client software for Windows and Mac | | Email Notification | Text with snapshot | | Supported Mobile Devices | Android, iPad, iPhone | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP | | Network Interface | 10/100M, RJ45 | | Network Bit Rate | Maximum 64 Mb/s | | Power Consumption | Approximately 10 W without HDD | | Supply Voltage | 100 to 240 VAC, 12 VDC, 2 A, 50/60 Hz | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 10 to 90% RH | | Dimensions | 12.8 x 10 x 2.2" / 325 x 255 x 55 mm | | Weight | 3.3 lb / 1.5 kg | | | | Image Sensor | 8 MP, 1/2" progressive CMOS | | Video Format | NTSC, PAL | | Resolution | 3840 x 2160 at 15 fps | | Sync System | Internal | | S/N Ratio | >65 dB with AGC turned off | | Iris | AES | | AES Shutter Speed | 1/100,000 to 1/3 (1/4) seconds | | Minimum Illumination | Color: 0.01 lux without IR
B&W: 0 lux with IR | | Video Output | MPX | | Lens | 3.6mm fixed | | Aperture | f/1.6 | | Horizontal Field of View (degree) | 87° | | Termination | BNC type | | Number of IR LEDs | 1 | | IR Wavelength | 850 nm | | Night Vision Range | Total Darkness: 90' / 28 m
Ambient Lighting (Color Night Vision): 135' / 41 m | | Siren | Yes | | Power Requirement | 12 VDC ±10% | | Power Consumption | Maximum 360 mA / 4.3 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <90% RH | | IP Rating | IP67 | | Dimensions | 3.2 x 5.9 x 2.8" / 80 x 150 x 71 mm | | Weight | 0.65 lb / 0.30 kg (including stand) | | | | Package Weight | 24.515 lb | | Box Dimensions (LxWxH) | 16.7 x 15.8 x 11.1" |
