Product description Monitor your property with the 8-Channel 4K UHD NVR with 2TB HDD & 4 4K Active Deterrence Night Vision Bullet Cameras from Lorex. This 4K UHD 8-channel NVR manages and can record from up to 8 cameras. It comes preinstalled with a 2TB HDD that is expandable to 8TB. Space-saving H.265 and H.264 video compression offer reduced file sizes and improved performance for remote viewing while maintaining the best quality possible. The Lorex Cirrus app for iOS and Android enables remote viewing and lets you receive notifications. Additionally, you'll be able to control your security system over the internet via Windows and Mac PCs.
The included bullet cameras use 1/2.3" progressive scan image sensors to capture 3840 x 2160 resolution video at 15 fps. Their 4mm fixed lenses each have a 93° horizontal field of view. Integrated IR LEDs provide up to 90' of night vision in total darkness & 130' of night vision in ambient light. Two-way audio is possible with these cameras thanks to a built-in speaker and microphone. Each camera is housed in an IP66-rated enclosure that is suitable for outdoor use. - LNK71082T 8-Channel 4K UHD NVR
-
- Support for select Lorex 4K UHD Active Deterrence security cameras
- Lorex Cirrus app with 3-step setup for iOS and Android
- HDMI and VGA outputs to connect multiple monitors
- HDMI cable included
- Pentaplex operation enables simultaneous view, record, playback, backup, and remote monitoring
- Continuous, scheduled, and motion recording
- 24/7 security-grade preinstalled 2TB HDD
- HDD storage expandable to 8TB
- Instant backup of live video to a USB flash drive
- Click-and-drag digital zoom in live view and playback
- Time stamps with NTP and daylight savings time
- Push notifications of motion events
- Automatic firmware upgrades over the internet
- Instant email alerts with snapshot attachment
- H.265 video compression and multi-streaming to conserve bandwidth
- Front panel controls
- LKB384X 4K UHD Active Deterrence Bullet Cameras
-
- 4mm fixed lens
- Programmable dual motion-activated LED warning lights and remote-triggered siren to deter intruders
- Dual motion detection technology
- Built-in microphone and speaker
- IR LEDs allow video to be captured from up to 90' away in total darkness & up to 130' away in ambient lighting
- Color Night Vision and ClearNight technology help produce clearer images in low-light conditions
- H.265 video compression
- Internal sync system
- PoE or 12 VDC power (DC power barrel available separately)
- Electronic image stabilization (EIS)
- 39 dB S/N ratio with automatic gain control turned off
- Operates in temperatures as low as -22°F
- Weatherproof Ethernet connector cover for a protective seal against the elements

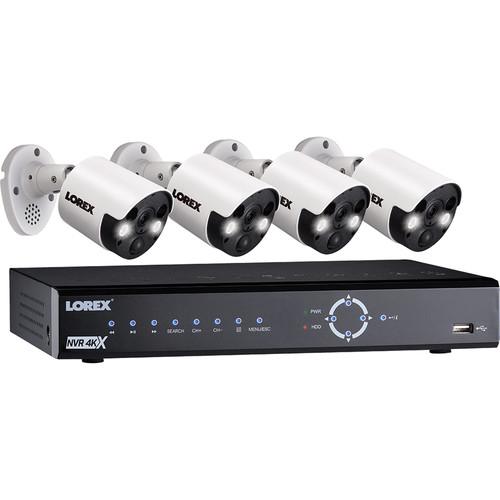

UPC: 695529017037 In the Box Lorex 8-Channel 4K UHD NVR with 2TB HDD & 4 4K Active Deterrence Night Vision Bullet Cameras LNK71082T 8-Channel 4K UHD NVR Ethernet Cable Power Cable HDMI Cable Remote Control USB Mouse 4 x LKB384X 4K UHD Active Deterrence Bullet Cameras 4 x Allen Keys 4 x Mounting Kits 4 x 60' Ethernet Extension Cables 4 x Weatherproofing Caps Limited 1-Year Warranty for NVR and Cameras Limited 90-Day Warranty for Included Accessories More info from Lorex Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 8-Channel 4K UHD NVR with 2TB HDD & 4 4K Active Deterrence Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LNK71082T4KXB Specs | | | Operating System | Linux embedded | | Pentaplex Operation | Simultaneous view, record, playback, backup, and remote monitoring | | Number of Channels | 8 | | Video In | 8 PoE video inputs | | VGA | Yes | | HDMI | Yes | | Audio In | Service jack only | | Audio Out | 1 x RCA line out | | USB Ports | 1 x rear
1 x front | | Alarm I/O | 4 x inputs
1 x output | | Video Output Resolution | 3840 x 2160, 2560 x 1440, 1920 x 1200, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | Yes | | Display Split | 1/4/9 | | Live Display Speed | 30 fps (camera dependent) in real time | | OSD | On/off | | System Navigation | USB mouse, IR remote control | | Motion Area Setting | Fixed grid 1320 (44 x 30) | | Sensitivity | 8 | | Firmware Upgrade | Automatic over the internet & via USB device | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | Video Compression | H.265, H.264 | | Audio Compression | G.711 | | Recording Resolutions | 3840 x 2160, 2688 x 1520, 2048 x 1536, 1920 x 1080, 1280 x 720 | | Recording Frame Rate | Up to 30 fps (camera dependent) in real time | | Recording Resolution Setting | Per camera for different resolutions | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, by day, by recording mode, by motion, by alarm, by channel | | Pre Recording | 2 seconds | | Post Recording | 30 seconds minimum, 5 minutes maximum | | Reliability | Watch-Dog, auto-recovery after power failure | | Covert Video | Yes | | Playback Channel | 1/4/8 | | Playback Speed | Variable
Max 16x | | Playback Players | Backup player | | Search | By time/date, motion detection & exact search (accurate to the second) | | Log Search | Up to 4000 lines for system configuration changes, motion/alarm detected, account, recording, and storage | | Audio Play | Yes (audio camera required) | | HDD Included | 1 x 2 TB | | HDD Capacity | 1 x 8 TB | | Backup Media | USB flash drive, HDD, and network | | Backup File Format | H.265, H.264, or MP4 | | Cloud Connection | Lorex Cloud connectivity | | Supported Operating Systems | Windows, Mac OS X | | Remote Software | Web client software for Windows and Mac | | Email Notification | Text with snapshot | | Mobile OS Support | Android, iOS | | DDNS | Free Lorex DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP | | Network Interface | 10/100/1000M, RJ45 | | Network Bit Rate | Maximum 100 Mb/s total | | Power Consumption | 4.5 W without HDD | | Supply Voltage | 48 V, 2 A | | PoE Power Output | 80 W (30 W per channel max) total | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 10 to 90% RH | | Rack Units | 1 RU | | Dimensions | 11.8 x 8.9 x 2.1" / 300 x 227 x 53 mm | | Weight | 2.4 lb / 1.1 kg | | | | Image Sensor | 8 MP 1/2.3" progressive scan | | Video Format | NTSC, PAL | | Effective Pixels (H x V) | 3840 x 2160 | | Resolution | 3840 x 2160 at 15 fps | | Sync System | Internal | | S/N Ratio | 39 dB with AGC turned off | | Iris | Electronic image stabilization (EIS) | | AES Shutter Speed | 1/20,000 to 1/5 seconds | | Minimum Illumination | Color: 0.7 lux without IR
B&W: 0 lux with IR | | Video Output | IP | | Audio | Built-in microphone and speaker | | Lens | 4mm fixed | | Aperture | f/2.0 | | Horizontal Field of View (degree) | 93° | | Termination | RJ45 Ethernet, 12 VDC power barrel (optional) | | IR LED Type | 850 nm | | Night Vision Range | Total Darkness: 90' / 27 m
Ambient Lighting (Color Night Vision): 130' / 40 m | | Power Requirement | PoE / 12 VDC | | Power Consumption | Maximum 600 mA / 7.2 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% RH | | IP Rating | IP66 | | Dimensions (W x D x H) | 2.8 x 6.1 x 3.5" / 70 x 155 x 89 mm | | Weight | 0.97 lb / 0.44 kg | | | | Package Weight | 23.095 lb | | Box Dimensions (LxWxH) | 17.6 x 14.7 x 7.9" |
