Product description

Monitor your property with the 8-Channel 4K UHD NVR with 2TB HDD & 4 5MP Night Vision Bullet Cameras from Lorex. This 4K UHD 8-channel NVR manages and can record from up to 8 cameras. It comes preinstalled with a 2TB HDD that is expandable to 6TB. Space-saving H.265 and H.264 video compression offer reduced file sizes and improved performance for remote viewing while maintaining the best quality possible. The Lorex Secure app enables live viewing, playback, video recording, and snapshots via your iOS or Android device. Additionally, you can control your security system over the internet via Windows and Mac PCs.

The included bullet cameras use 1/2.7" progressive scan image sensors to capture 2592 x 1944 resolution video at 15 fps. Their 2.8mm fixed lenses each have a 105° horizontal field of view. Integrated IR LEDs provide up to 90' of night vision in total darkness, and 130' of night vision in ambient light. Audio recording is possible with these cameras thanks to a built-in microphone. Each camera is housed in an IP66-rated enclosure that is suitable for outdoor use.

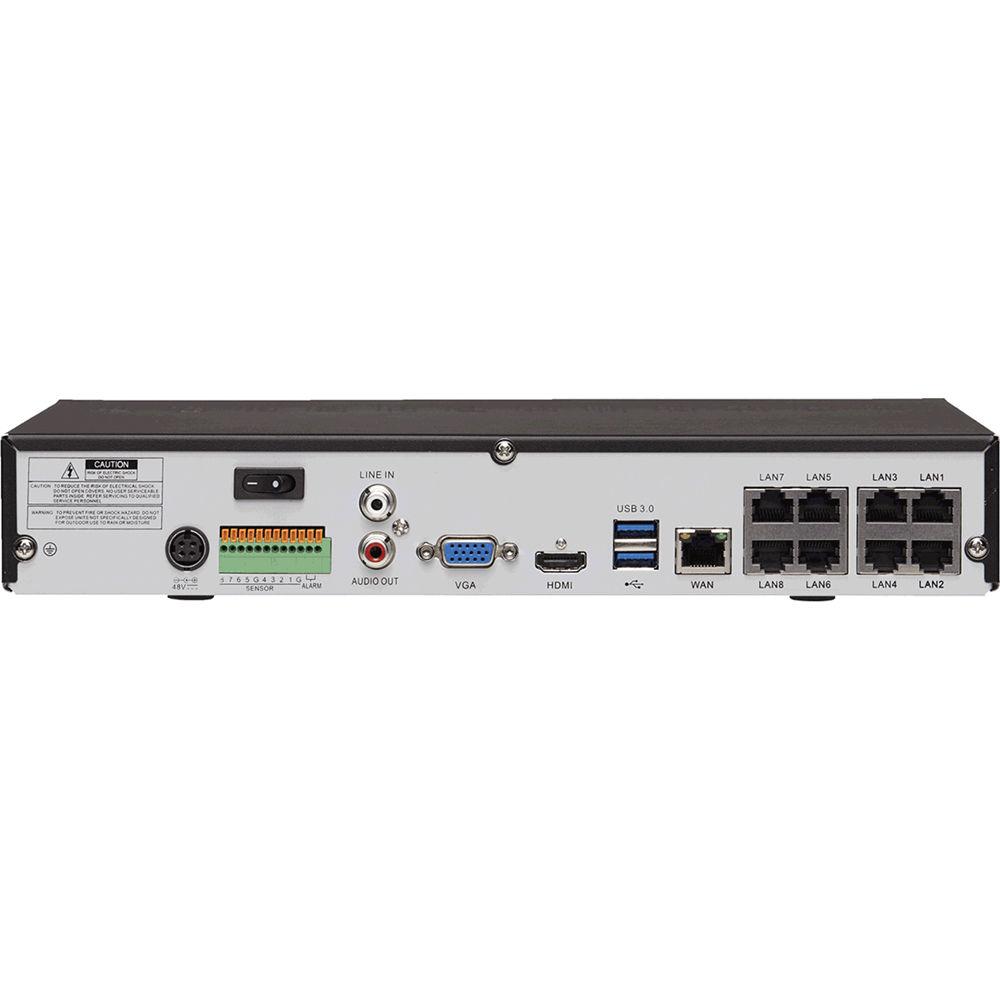

    LNK71082T 8-Channel 4K UHD NVR
    • HDMI and VGA outputs to connect multiple monitors
    • HDMI cable included
    • Pentaplex operation enables simultaneous view, record, playback, backup, and remote monitoring
    • Continuous, scheduled, and motion recording
    • Automatically detects compatible IP cameras
    • 24/7 security-grade preinstalled 2TB HDD
    • HDD storage expandable to 6TB
    • Supports mirror hard drive recording
    • Instant backup of live video to a USB flash drive
    • Click-and-drag digital zoom in live view and playback
    • Time stamps with NTP and daylight savings time
    • Push notifications of motion events
    • Automatic firmware upgrades over the internet
    • Instant email alerts with snapshot attachment
    • H.265 video compression and multi-streaming to conserve bandwidth
    • Front panel controls

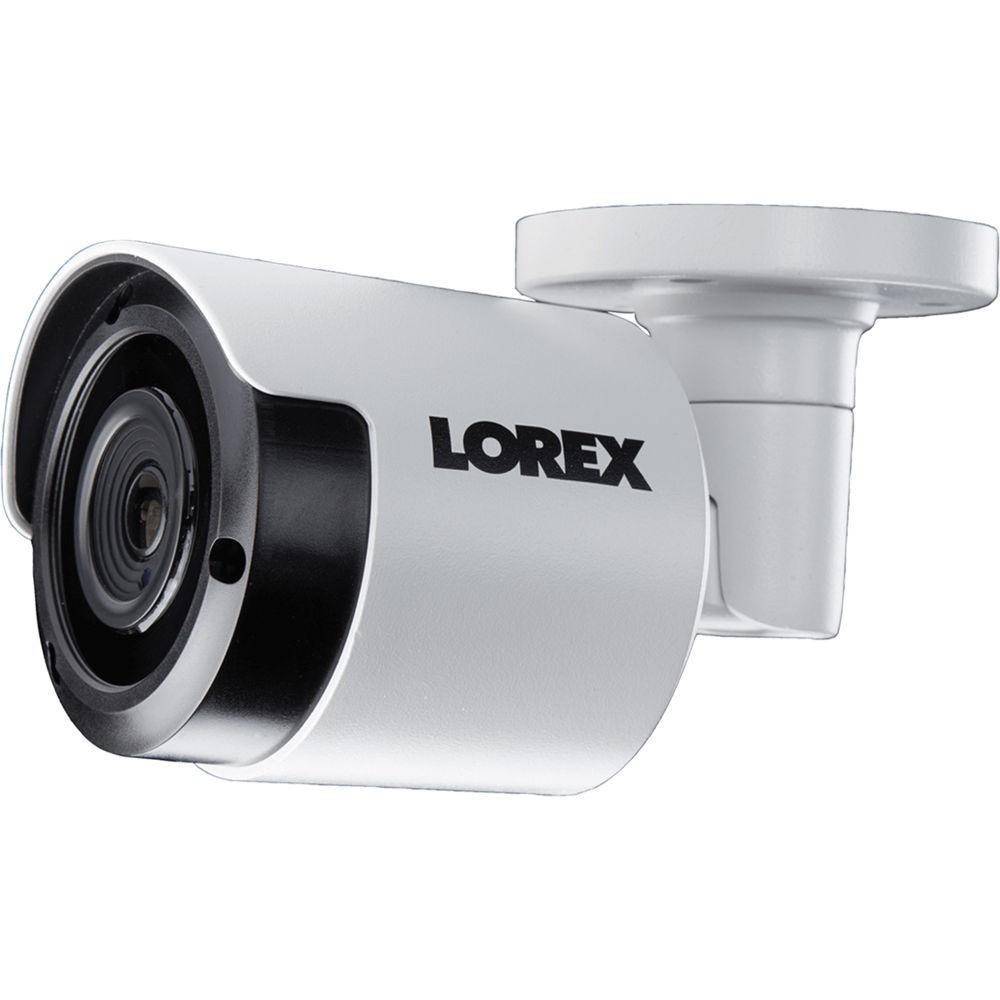

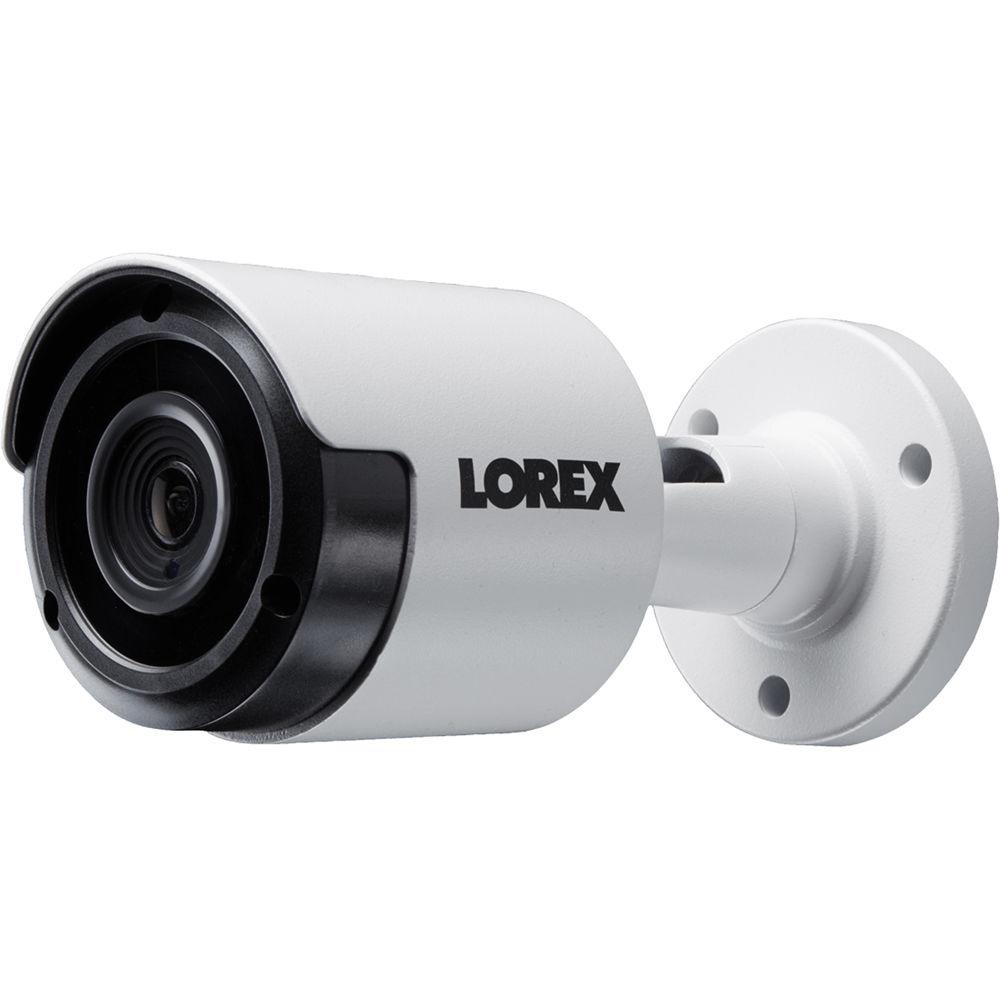

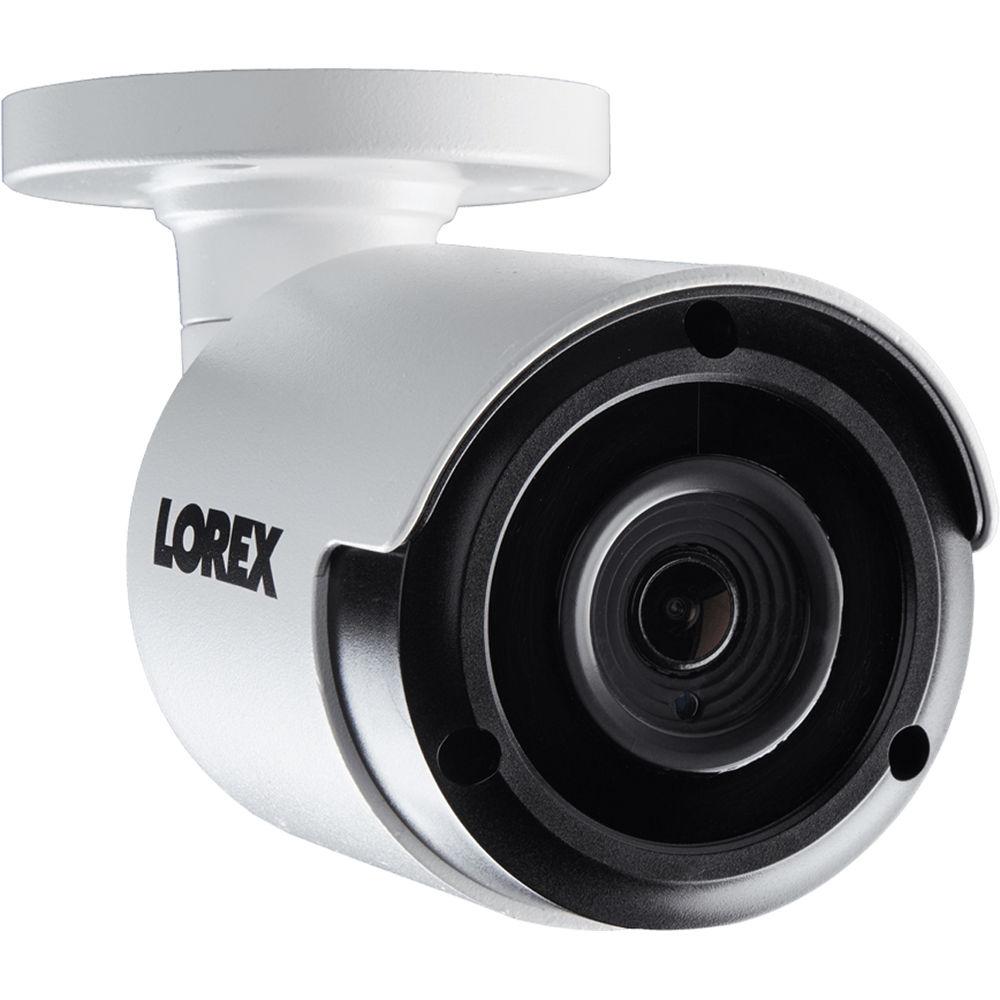

    LKB353A 5MP Bullet Cameras
    • Compatible with all Lorex LNK series NVRs
    • IR LEDs allow video to be captured from up to 90' away in total darkness, and up to 130' away in ambient lighting
    • Color Night Vision and ClearNight technology help produce clearer images in low-light conditions
    • Built-in microphone
    • H.265 video compression
    • Internal sync system
    • PoE or 12 VDC power (DC power barrel available separately)
    • PoE technology enables the camera's video and power to be extended to a distance of up to 300' from the NVR with a single Ethernet cable (100' cable included, longer cables available separately)
    • Electronic image stabilization (EIS)
    • ≥39 dB S/N ratio with automatic gain control turned off
    • IP66-rated enclosure that is suitable for outdoor use
    • Operates in temperatures as low as -22°F
    • Weatherproof Ethernet connector cover for a protective seal against the elements
    • Ceiling and wall mountable

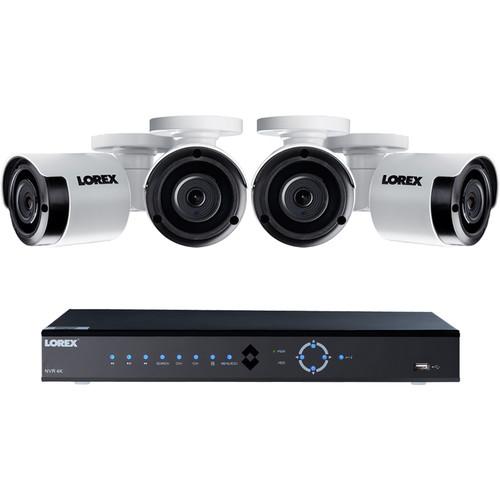

UPC: 695529016931 In the Box Lorex 8-Channel 4K UHD NVR with 2TB HDD & 4 5MP Night Vision Bullet Cameras
  • LNK71082T 8-Channel 4K UHD NVR
  • Remote Control
  • Ethernet Cable
  • USB Mouse
  • Power Cable
  • HDMI Cable
  • 4 x LKB353A 5MP Outdoor Network Bullet Camera with Color Night Vision
  • 4 x Mounting Kits
  • 4 x 100' Ethernet Extension Cables
  • 4 x Weatherproofing Caps
  • 4 x Allen Keys
  • Limited 1-Year Warranty for NVR and Camera
  • Limited 90-Day Warranty for Included Accessories
  • More info from Lorex Table of Contents




    Upload User Manual

    Have you got an user manual for the Lorex 8-Channel 4K UHD NVR with 2TB HDD & 4 5MP Night Vision Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lorex LNK71082T45B Specs

    Operating System Linux embedded
    Pentaplex Operation Simultaneous view, record, playback, backup, and remote monitoring
    Number of Channels 8
    Video In 8 PoE video inputs
    VGA Yes
    HDMI Yes
    Audio In Service jack only
    Audio Out 1 x RCA line out
    USB Ports 1 x rear, 1 x front
    Alarm I/O 1 x 4 inputs
    1 x 1 output
    Video Output Resolution 3840 x 2160, 2560 x 1440, 1920 x 1200, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768
    PTZ Control Yes
    Display Split 1/4/9
    Live Display Speed 30 fps (camera dependent) in real time
    OSD On/off
    System Navigation USB mouse, IR remote control
    Motion Area Setting Fixed grid 1320 (44 x 30)
    Sensitivity Levels 8
    Firmware Upgrade Automatic over the internet & via USB device
    User Authority By user group
    Time Synchronization Auto time sync by NTP server
    Video Compression H.265, H.264
    Audio Compression G.711
    Recording Resolutions 3840 x 2160, 2688 x 1520, 2048 x 1536, 1920 x 1080, 1280 x 720
    Recording Frame Rate 30 fps (camera dependent) in real time
    Recording Resolution Setting Per camera for different resolutions
    Recording Quality Control 6 levels
    Recording Schedule By hour, by day, by recording mode, by motion, by alarm, by channel
    Pre Recording 2 seconds
    Post Recording 30 seconds minimum, 5 minutes maximum
    Reliability Watch-Dog, auto-recovery after power failure
    Covert Video Yes
    Playback Channel 1/4/8
    Playback Speed Variable max 16x
    Playback Players Backup player
    Search By time/date, motion detection, and exact search (accurate to the second)
    Log Search Up to 4000 lines for system configuration changes, motion/alarm detected, account, recording, and storage
    Audio Play Yes
    HDD Included 1 x 2 TB
    HDD Storage Capacity 1 x 6 TB
    Backup Media USB flash drive, HDD, and network
    Backup File Format H.265, H.264, or MP4
    Cloud Connection Lorex Secure
    Supported Operating Systems Windows, Mac OS X
    Remote Software Web client software for Windows and Mac
    Email Notification Text with snapshot
    Supported Mobile Devices Android, iPad, iPhone
    DDNS Free Lorex DDNS
    System Configuration Full setup configuration over network
    Ports Programmable by user
    Network Protocols HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP
    Network Interface 10/100/1000M, RJ45
    Network Bit Rate Maximum 100 Mb/s total
    Power Consumption Without HDD: 4.5 W
    Supply Voltage 48 V, 2 A
    PoE Power Output 80 W (30 W per channel max) total
    Operating Temperature 14 to 131°F / -10 to 55°C
    Humidity 10 to 90% RH
    Rackmount 1U
    Dimensions (W x H x D) 11.8 x 8.9 x 2.1" / 300 x 227 x 53 mm
    Weight 2.4 lb / 1.1 kg
    Image Sensor 5 MP 1/2.7" progressive scan
    Video Format NTSC, PAL
    Effective Pixels (H x V) 2592 x 1944
    Resolution 2592 x 1944 (5 MP) at 15 fps
    Sync System Internal
    S/N Ratio ≥39 dB with AGC turned off
    Iris Electronic image stabilization (EIS)
    AES Shutter Speed 1/20,000 to 1/5 seconds
    Minimum Illumination Color: 0.05 lux without IR
    B&W: 0 lux with IR
    Video Output IP
    Audio Built-in microphone
    Lens 2.8mm fixed
    Aperture f/1.8
    Horizontal Field of View (degree) 105°
    Termination RJ45 Ethernet, 12 VDC power barrel (optional)
    IR LED Type 850 nm
    Night Vision Range Complete Darkness: 90' / 27 m
    Ambient Lighting (Color Night Vision): 130' / 40 m
    Power Requirement PoE / 12 VDC
    Power Consumption Maximum 425 mA / 5.1 W
    Operating Temperature -22 to 140°F / -30 to 60°C
    Operating Humidity <95% RH
    IP Rating IP66
    Dimensions (W x D x H) 2.9 x 6 x 2.9" / 73 x 152 x 73 mm
    Weight 0.9 lb / 0.4 kg
    Package Weight 19.65 lb
