User Manual for Lorex 8-Channel 4K UHD NVR with 2TB HDD and 8 4K Color Night Vision Network Bullet Cameras Click to enlarge the picture
Contents of the user manual for the Lorex 8-Channel 4K UHD NVR with
- Product category: Surveillance Systems Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Surveillance Systems
 |
User manual for the Lorex 8-Channel 4K UHD NVR with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|

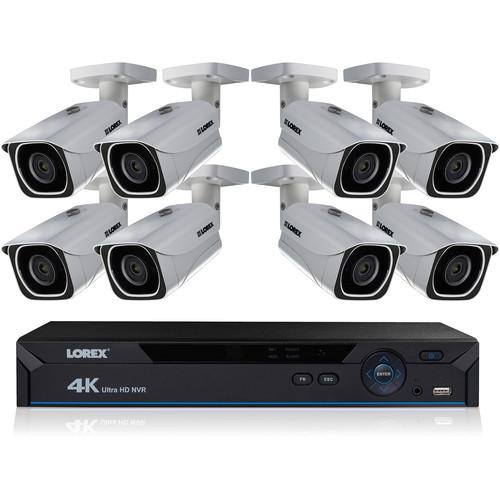

Product description Monitor your property with the 8-Channel 4K UHD NVR with 2TB HDD and 8 4K Color Night Vision Network Bullet Cameras from Lorex. This 4K UHD 8-channel NVR manages, and can record from, up to 8 cameras. It comes with a 2TB HDD that is expandable to 8TB. Space-saving H.265/H.264 video compression offers reduced file sizes and improved network performance for remote viewing. The FLIR Secure app enables live viewing, playback, video recording, and snapshots via your iOS or Android device. Windows and Mac PC compatible FLIR Cloud video management software enables you to control your security system over the internet.

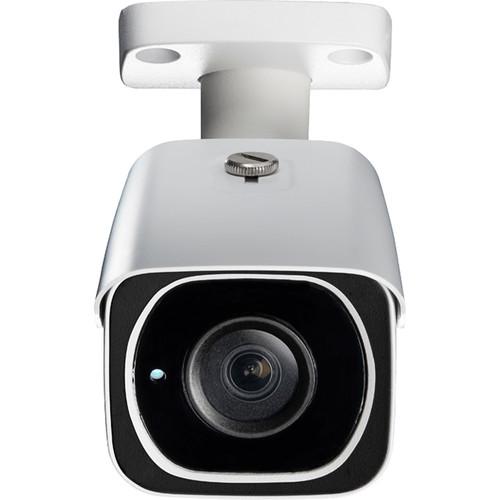

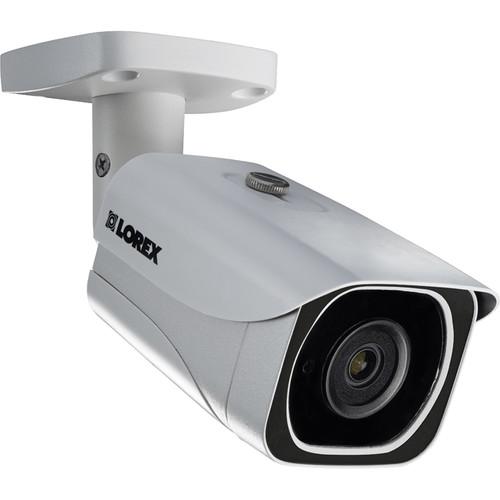

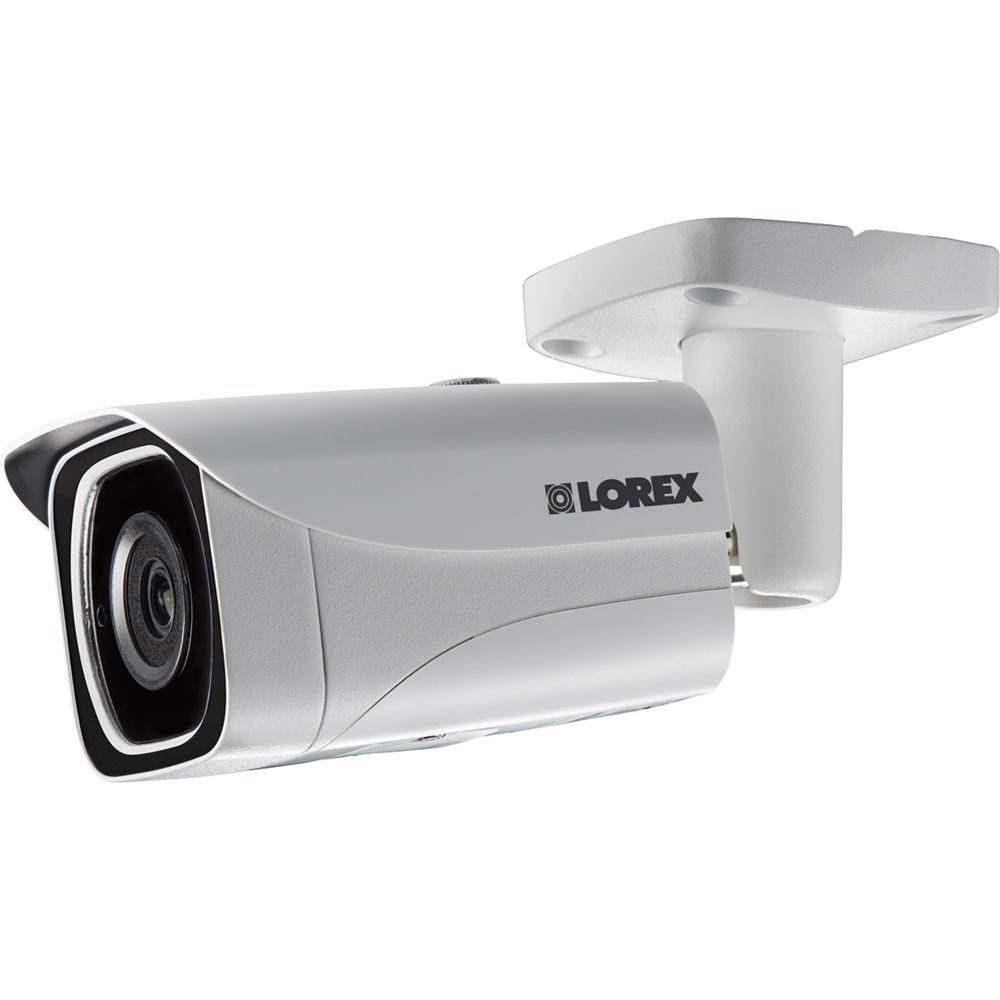

The included network bullet cameras feature 1/2.5" 8MP progressive scan image sensors for up to 3840 x 2160 resolution video at 15 fps. Their 4mm fixed lenses each have an 88° horizontal field of view. Integrated IR LEDs deliver up to 90' of night vision. Integrated PoE technology simplifies connectivity by transmitting power and data via one cable. The cameras are each housed in an IP66-rated enclosure that is suitable for outdoor use. - 4K UHD NVR
-

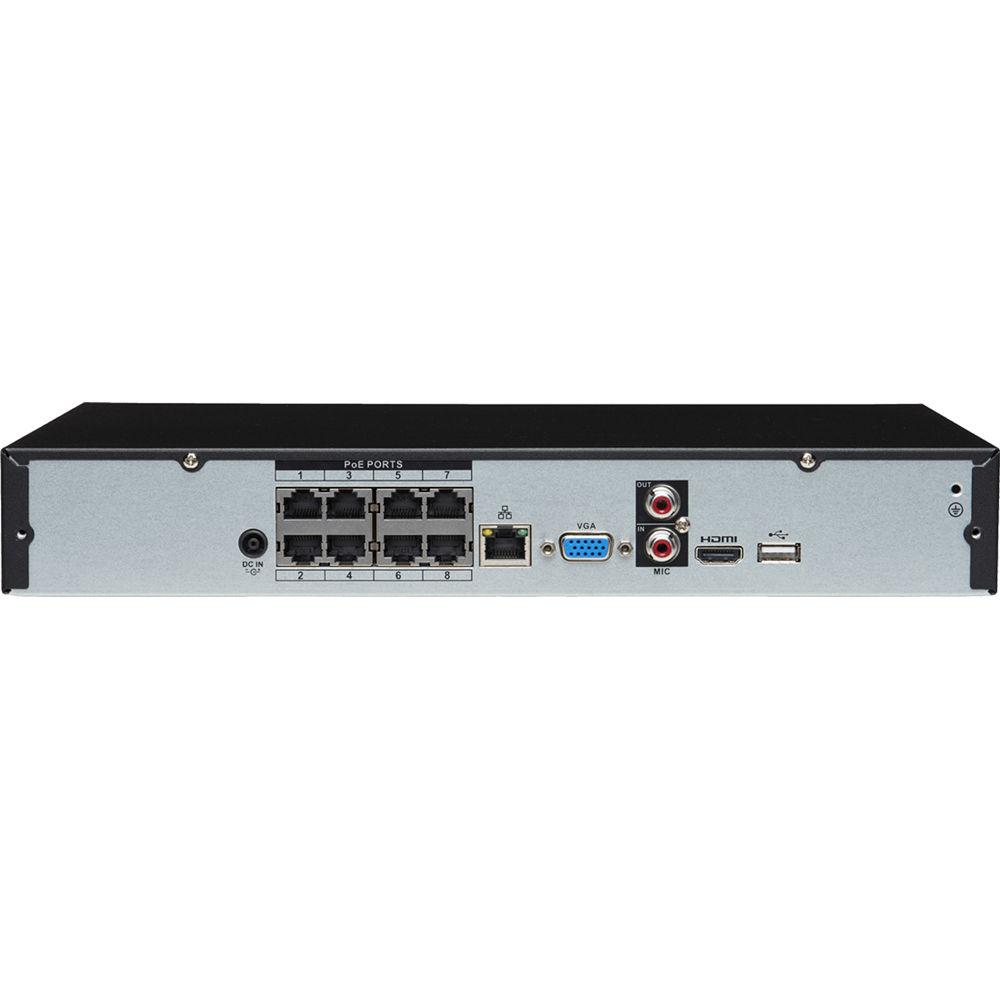

- Dual HDMI and VGA outputs to connect multiple monitors
- HDMI cable included
- 4K video output
- Automatically detects compatible IP cameras
- 24/7 security-grade preinstalled 2TB HDD
- HDD storage expandable to 8TB
- Space-saving H.264/H.265 video compression
- Pentaplex operation to view, record, play back, back up & remotely control the system simultaneously
- Includes PC and Mac compatible video management software
- Lorex secure app for iPhone, iPad, and Android
- Click-and-drag digital zoom in live view and playback
- Front panel controls
- Time stamps with NTP and daylight savings time
- Automatic firmware upgrades over the internet
- Push notifications of motion events
- Instant email alerts with snapshot attachment
- Multi-streaming to conserve bandwidth
- Continuous, scheduled, and motion recording
- 4K UHD Network Bullet Cameras
-
- 4K UHD image sensor
- ClearNight imaging for improved low-light performance and improved recording efficiency
- Up to 90' of night vision
- 88° horizontal field of view
- H.265 video compressions
- Simple camera installation using a single Cat 5e cable per camera for PoE
- Ceiling and wall mountable
- Includes Cat 5e cables for each camera
- Extend the camera's video and power with a single Ethernet cable up to 300' (cable available separately)
- Weatherproof Ethernet connector cover for a protective seal against the elements
- IP66-rated metal enclosure that is suitable for outdoor use
- Cold climate capability in temperatures as low as -22°F
UPC: 695529015903 In the Box Lorex 8-Channel 4K UHD NVR with 2TB HDD and 8 4K Color Night Vision Network Bullet Cameras LNR61082T 4K UHD NVR HDMI Cable Ethernet Cable AC Power Cable USB Mouse Remote Control 8 x LNB8005B 8MP Outdoor Network Bullet Camera with Color Night Vision 8 x 60' / Ethernet Extension Cables 8 x Mounting Kits 8 x Weatherproofing Caps Limited 1-Year Warranty for NVR and Cameras Limited 90-Day Warranty for Included Accessories More info from Lorex Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 8-Channel 4K UHD NVR with 2TB HDD and 8 4K Color Night Vision Network Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LNR610828KB Specs | | | Operating System | Linux embedded | | Pentaplex Operation | View, record, playback, backup & remote monitoring | | Number of Channels | 8 | | Video Input | 8 PoE video inputs | | VGA Out | Yes | | HDMI Out | Yes | | Audio In | 1 RCA line in for service only | | Audio Out | 1 RCA line out for service only | | USB Port | 1 x rear, 1 x front | | Video Output Resolution | 3840 x 2160, 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | Lorex IP PTZ cameras only | | Display | 1/4/8 | | Live Display Speed | NTSC: 240 fps
PAL: 200 fps | | OSD | On/off | | System Navigation | USB mouse, IR remote control, front panel buttons | | Motion Area Setting | Fixed grid, 22 x 18 | | Sensitivity Levels | 100 | | Firmware Upgrade | Automatic over the Internet & via USB device and network | | User Authority | By user group | | Time Synchronization | Automatic time sync by NTP server | | Video Compression | H.264, H.265 | | Audio Compression | G.711 | | Recording Resolution | 3840 x 2160, 2560 x 1440, 2048 x 1536, 1920 x 1080, 1280 x 720 | | Record Rate | Up to 240 fps at 8 MP, 4 MP, 3 MP, 1080p, and 720p | | Recording Resolution Setting | Per camera for different resolutions | | Recording Quality Control | 6 levels | | Recording Schedule | By hour, by day, by recording mode, by motion, by alarm, by channel | | Pre-Recording | Max: 4 seconds | | Post Recording | Max: 5 minutes | | Reliability | Watch-Dog, auto-recovery after power failure | | Covert Video | Yes | | Playback Channel | 1/4 | | Playback Speed | Variable max 16x | | Playback Players | Backup Player | | Search | By time & event | | Log Search | Up to 1000 lines for motion detected, configuration changes, connects/disconnects, and video loss | | Audio Play | Yes, audio camera required | | Storage | 1 HDD SATA, 2 TB preinstalled | | Maximum Capacity | 1 x 8 TB | | Backup Media | USB flash drive & HDD | | Backup File Format | DAV or ASF | | Cloud Connection | Lorex Secure | | Supported Operating Systems | Windows, Mac OS X | | Remote Software | Client Software: Windows & Mac | | Email Notification | Text with snapshot | | Supported Mobile Devices | Android, iPad, iPhone | | DDNS Support | Free Lorex DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, IP Filter | | Network Interface | 1 x 10/100Base-TX, RJ45 | | Network Bit Rate | 80 Mb/s total, 48-8192 kb/s per camera | | Power Consumption | 8.3 W without HDD | | Supply Voltage | 100-240 VAC, 50/60 Hz, 48 VDC/2 A | | PoE Power Output | 80 W total, max 25.5 per camera | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 10 to 90% RH | | Dimensions (W x D x H) | 12.8 x 10.1 x 2.2" / 325 x 255 x 55 mm | | Weight | 3.53 lb / 1.6 kg | | | | Image Sensor | 8 MP 1/2.5" | | Video Format | NTSC | | Compression | H.265, H.264 | | Effective Pixels (H x V) | 3840 x 2160 | | Resolution | 3840 x 2160 at 15 fps | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | ≥42 dB with AGC off | | Iris | EIS | | AES Shutter Speed | 1/10,000 to 1/3 (1/4) seconds | | Minimum Illumination | 0.5 lux without IR
0.3 lux with IR | | Video Output | IP | | Lens Type | 4mm fixed lens, f/1.6 | | Horizontal Field of View (degree) | 88° | | Termination | RJ45 Ethernet / 12 VDC power
Barrel (optional) | | IR LED Type | 850 nm | | Night Vision Range | Ambient Lighting: 130' / 40 m
Total Darkness: 90' / 27 m | | Power Requirement | PoE Class 0 / 12 VDC | | Power Consumption | Max 330 mA / 4 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% RH | | IP Rating | IP66 | | Dimensions | 7.1 x 2.8 x 2.8" / 180 x 70 x 70 mm | | Weight | 1 lb / 0.5 kg | | | | Package Weight | 32.0 lb | | Box Dimensions (LxWxH) | 18.0 x 18.0 x 16.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 22 owners. Add your rating and experience with the product.
