Product description Monitor your home or business with the 8-Channel 4K UHD NVR with 3TB HDD, 4 4K Night Vision Bullet Cameras & 4 4K Night Vision Dome Cameras from Lorex. This 4K UHD 8-channel NVR manages and can record from up to 8 cameras. It comes preinstalled with a 2TB HDD that is expandable to 6TB. Space-saving H.265 and H.264 video compression provide reduced file sizes and improved performance for remote viewing while maintaining the best quality possible. A Lorex app for iOS or Android enables live viewing, playback, video recording, and snapshots. Additionally, you can control your security system over the internet via Windows and Mac PCs.

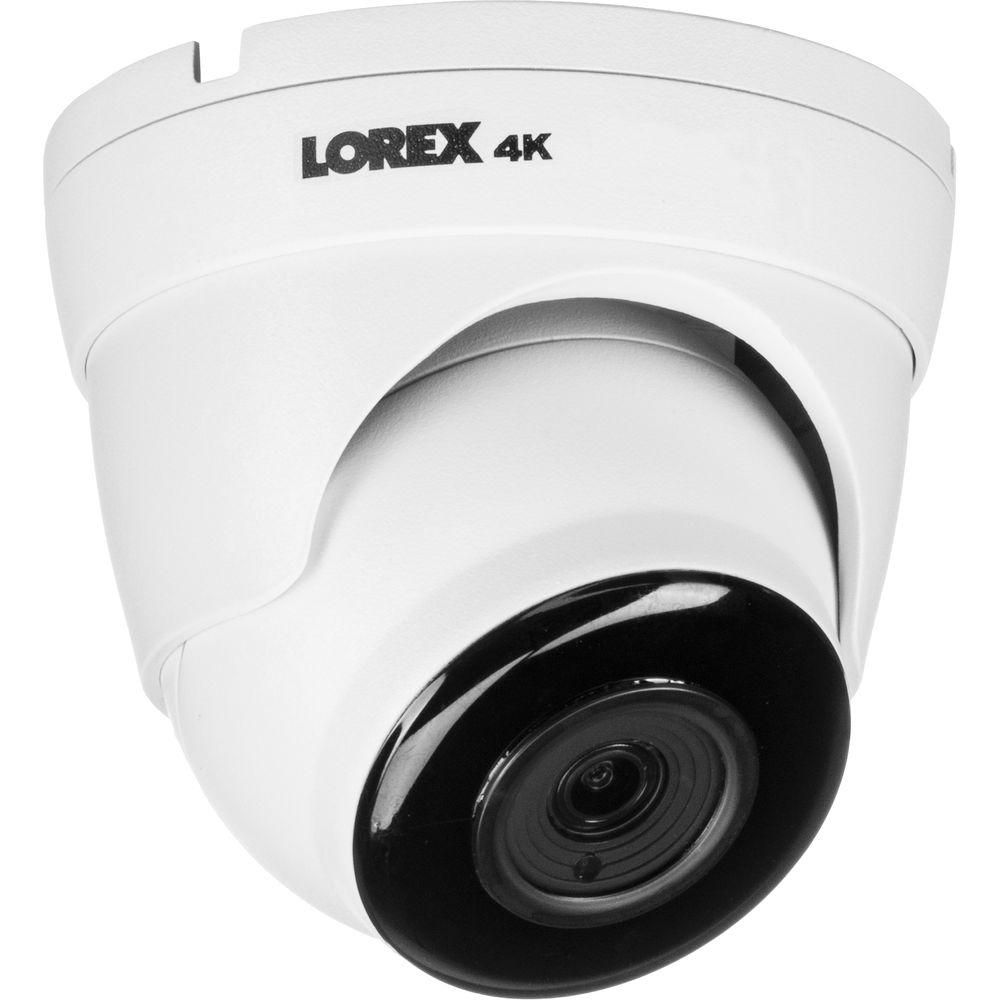

The included bullet and dome cameras use 1/2.3" progressive scan image sensors to capture 3840 x 2160 resolution video at 15 fps. Their 4mm fixed lenses each have a 93° horizontal field of view. Integrated IR LEDs deliver up to 90' of night vision in total darkness & 130' of night vision in ambient light. Audio recording is possible with these cameras thanks to a built-in microphone. Each camera is housed in an IP66-rated enclosure that is suitable for outdoor use. - NVR Features
-
- HDMI and VGA outputs to connect multiple monitors
- HDMI cable included
- Pentaplex operation enables simultaneous view, record, playback, backup, and remote monitoring
- Continuous, scheduled, and motion recording
- Automatically detects compatible IP cameras
- 24/7 security-grade 3TB HDD preinstalled
- HDD storage expandable to 6TB
- Instant backup of live video to a USB flash drive
- Click-and-drag digital zoom in live view and playback
- Time stamps with NTP and daylight savings time
- Push notifications of motion events
- Automatic firmware upgrades over the internet
- Instant email alerts with snapshot attachment
- H.265 video compression and multi-streaming to conserve bandwidth
- Front panel controls
- Bullet and Dome Camera Features
-
- Compatible with all Lorex LNK series NVRs
- IR LEDs allow video to be captured from up to 90' away in total darkness, and up to 130' away in ambient lighting
- Color Night Vision and ClearNight technology help produce clearer images in low-light conditions
- H.265 video compression
- Internal sync system
- PoE or 12 VDC power (DC power barrel available separately)
- PoE technology enables the camera's video and power to be extended as far as 300' from the NVR with a single Ethernet cable (100' cable included, longer cables available separately)
- Electronic image stabilization (EIS)
- 39 dB S/N ratio with automatic gain control turned off
- IP66-rated enclosure is suitable for outdoor use
- Operates in temperatures as low as -22°F
- Weatherproof Ethernet connector cover for a protective seal against the elements
- Ceiling and wall mountable

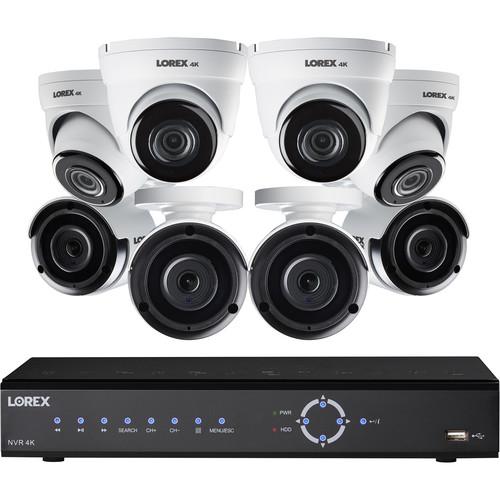

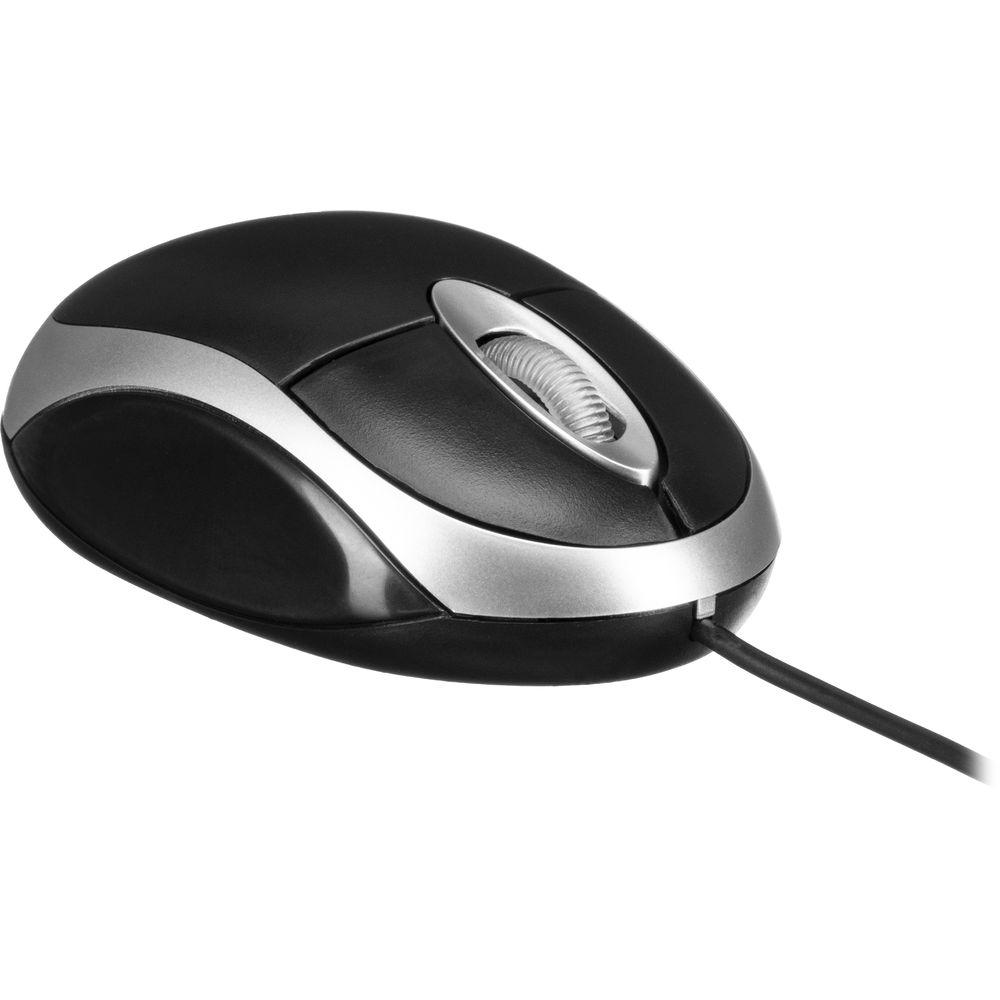

In the Box Lorex 8-Channel 4K UHD NVR with 3TB HDD, 4 4K Night Vision Bullet Cameras & 4 4K Night Vision Dome Cameras 8-Channel 4K UHD NVR Remote Control Ethernet Cable USB Mouse Power Cable HDMI Cable 4 x LKE383A 4K UHD Outdoor Network Dome Camera with Color Night Vision 4 x LKB383A 4K UHD Outdoor Network Bullet Camera with Color Night Vision 8 x Mounting Kits 8 x 100' Ethernet Extension Cables 8 x Weatherproofing Caps 8 x Allen Keys Limited 1-Year Warranty for NVR and Cameras Limited 90-Day Warranty for Included Accessories More info from Lorex Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex 8-Channel 4K UHD NVR with 3TB HDD, 4 4K Night Vision Bullet Cameras & 4 4K Night Vision Dome Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LNK71083T4K4DKB Specs | | | Operating System | Linux Embedded | | Pentaplex Operation | Simultaneous View, Record, Playback, Backup, and Remote Monitoring | | Number of Channels | 8 | | Video In | 8 PoE Video Inputs | | VGA | Yes | | HDMI | Yes | | Audio In | Service Jack Only | | Audio Out | 1 x RCA Line Out | | USB Ports | 1 x Rear
1 x Front | | Alarm In/Out | 1 x 4 Inputs
1 x 1 Output | | Video Output Resolution | 3840 x 2160, 2560 x 1440, 1920 x 1200, 1600 x 1200, 1680 x 1050, 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 | | PTZ Control | Yes | | Display Split | 1/4/9 | | Live Display Speed | 30 fps (Camera Dependent) in Real Time | | OSD | On/Off | | System Navigation | USB Mouse, IR Remote Control | | Motion Area Setting | Fixed Grid 1320 (44 x 30) | | Sensitivity Levels | 8 | | Firmware Upgrade | Automatic Over the Internet & via USB Device | | User Authority | By User Group | | Time Synchronization | Auto Time Sync by NTP Server | | Video Compression | H.265, H.264 | | Audio Compression | G.711 | | Recording Resolution | 3840 x 2160 to 1280 x 720 | | Record Rate | 30 fps (Camera Dependent) in Real Time | | Recording Resolution Setting | Per Camera for Different Resolutions | | Recording Quality Control | 6 Levels | | Recording Schedule | By Hour, Day, Recording Mode, Motion, Alarm, and Channel | | Pre Recording | 2 Seconds | | Post Recording | 30 Seconds Minimum, 5 Minutes Maximum | | Reliability | Watch-Dog, Auto-Recovery after Power Failure | | Covert Video | Yes | | Playback Channel | 1/4/8 | | Playback Speed | Variable Max 16x | | Playback Players | Backup Player | | Search | By Time/Date, Motion Detection, and Exact Search (Accurate to the Second) | | Log Search | Up to 4000 Lines for System Configuration Changes, Motion/Alarm Detected, Account, Recording, and Storage | | Audio Play | Yes (Audio Camera Required, Available Separately) | | HDD Capacity | 1 x 6 TB | | HDD Included | 1 x 3 TB | | Backup Media | USB Flash Drive, HDD, and Network | | Backup File Format | H.265, H.264, or MP4 | | Cloud Connection | Lorex Cloud Connectivity | | Supported Operating Systems | Windows, Mac OS X | | Remote Software | Web Client Software for Windows and Mac | | Email Notification | Text with Snapshot | | Supported Mobile Devices | Android, iPad, iPhone | | DDNS | Free Lorex DDNS | | System Configuration | Full Setup Configuration over Network | | Ports | Programmable by User | | Network Protocols | HTTP, IPv4/IPv6, TCP/IP, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP | | Network Interface | 1000M RJ45 | | Network Bit Rate | Maximum 100 Mb/s Total | | Power Consumption | Without HDD: 4.5 W | | Supply Voltage | 48 V, 2 A | | PoE Power Output | 80 W (Maximum 30 W per Channel) Total | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Humidity | 10 to 90% RH | | Rackmount | 1 RU | | Dimensions | 11.8 x 8.9 x 2.1" / 300 x 227 x 53 mm | | Weight | 2.4 lb / 1.1 kg | | | | Image Sensor | 1/2.3", 8 MP | | Video Format | NTSC, PAL | | Effective Pixels (H x V) | 3840 x 2160 | | Resolution | 3840 x 2160 at 15 fps | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | 39 dB with AGC Off | | Iris | EIS | | AES Shutter Speed | 1/20,000 to 1/5 Seconds | | Minimum Illumination | Color: 0.7 Lux without IR
B&W: 0 Lux with IR | | Video Output | IP | | Compression | H.265 | | Audio | Built-In Microphone | | Lens | 4mm Fixed | | Aperture | f/2.0 | | Field of View | Horizontal: 93° | | Termination | RJ45 Ethernet, 12 VDC Power Barrel (Optional, Available Separately) | | IR Wavelength | 850 nm | | Night Vision Range | Total Darkness: 90' / 27 m
Ambient Lighting (Color Night Vision): 130' / 40 m | | Power Requirement | PoE / 12 VDC | | Power Consumption | Maximum 460 mA / 5.5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% RH | | IP Rating | IP66 | | Dimensions | 2.7 x 6.1 x 2.7" / 69 x 154 x 69 mm | | Weight | 0.9 lb / 0.4 kg | | | | Image Sensor | 1/2.3", 8 MP | | Video Format | NTSC, PAL | | Effective Pixels (H x V) | 3840 x 2160 | | Resolution | 3840 x 2160 at 15 fps | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | 39 dB with AGC Off | | Iris | EIS | | AES Shutter Speed | 1/20,000 to 1/5 Seconds | | Minimum Illumination | Color: 0.7 Lux without IR
B&W: 0 Lux with IR | | Video Output | IP | | Compression | H.265 | | Audio | Built-In Microphone | | Lens | 4mm Fixed | | Aperture | f/2.0 | | Field of View | Horizontal: 93° | | Termination | RJ45 Ethernet, 12 VDC Power Barrel (Optional, Available Separately) | | IR Wavelength | 850 nm | | Night Vision Range | Total Darkness: 90' / 27 m
Ambient Lighting (Color Night Vision): 130' / 40 m | | Power Requirement | PoE / 12 VDC | | Power Consumption | Maximum 460 mA / 5.5 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% RH | | IP Rating | IP66 | | Dimensions | 3.9 x 3.9 x 3.5" / 100 x 100 x 90 mm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 36.0 lb | | Box Dimensions (LxWxH) | 18.0 x 14.0 x 13.25" |
