Lorex HD 8-Channel Real-Time Recording NVR

Search your instruction manual in PDF to download

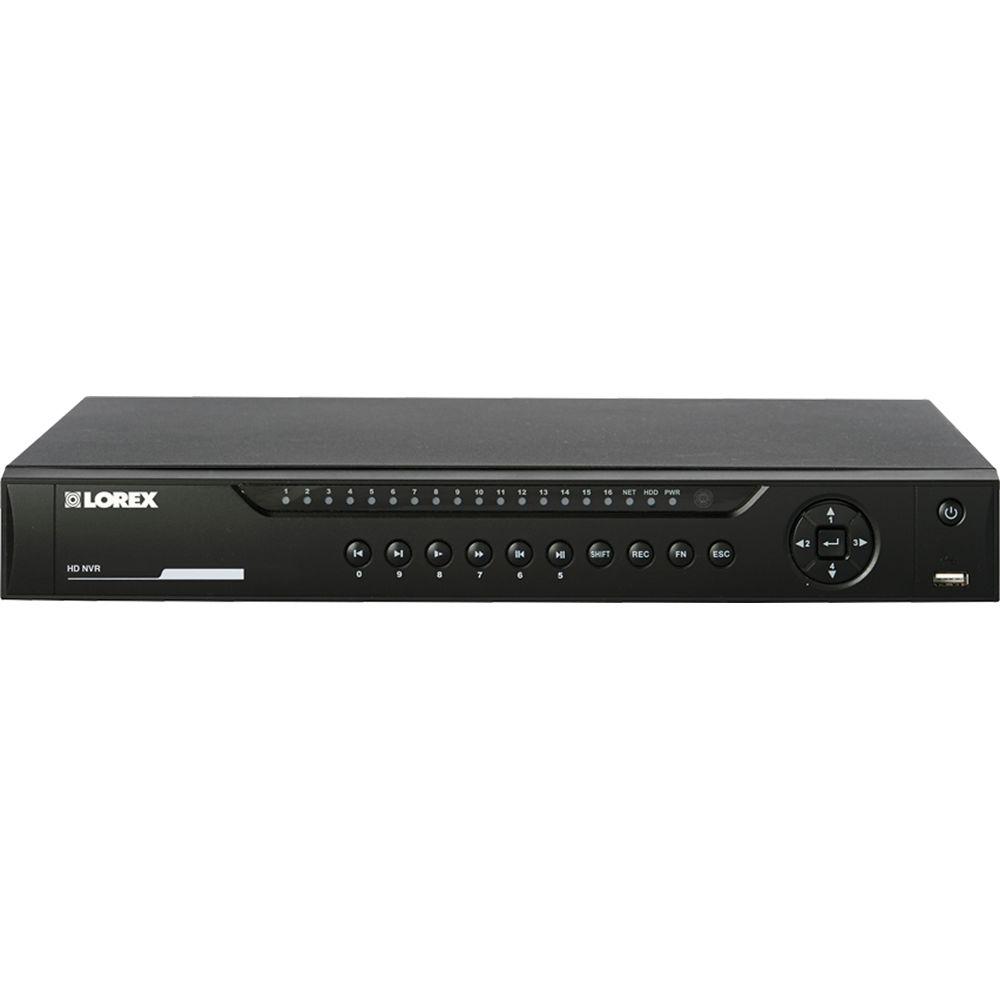

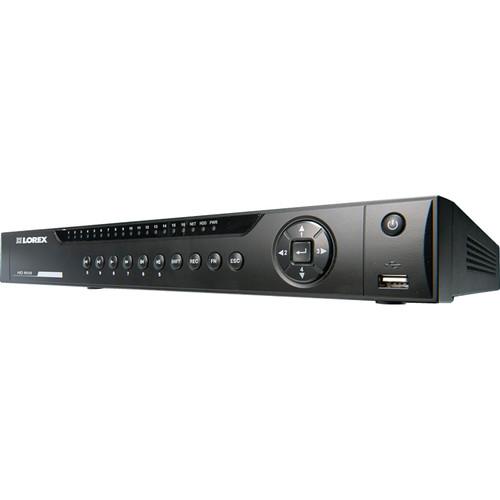

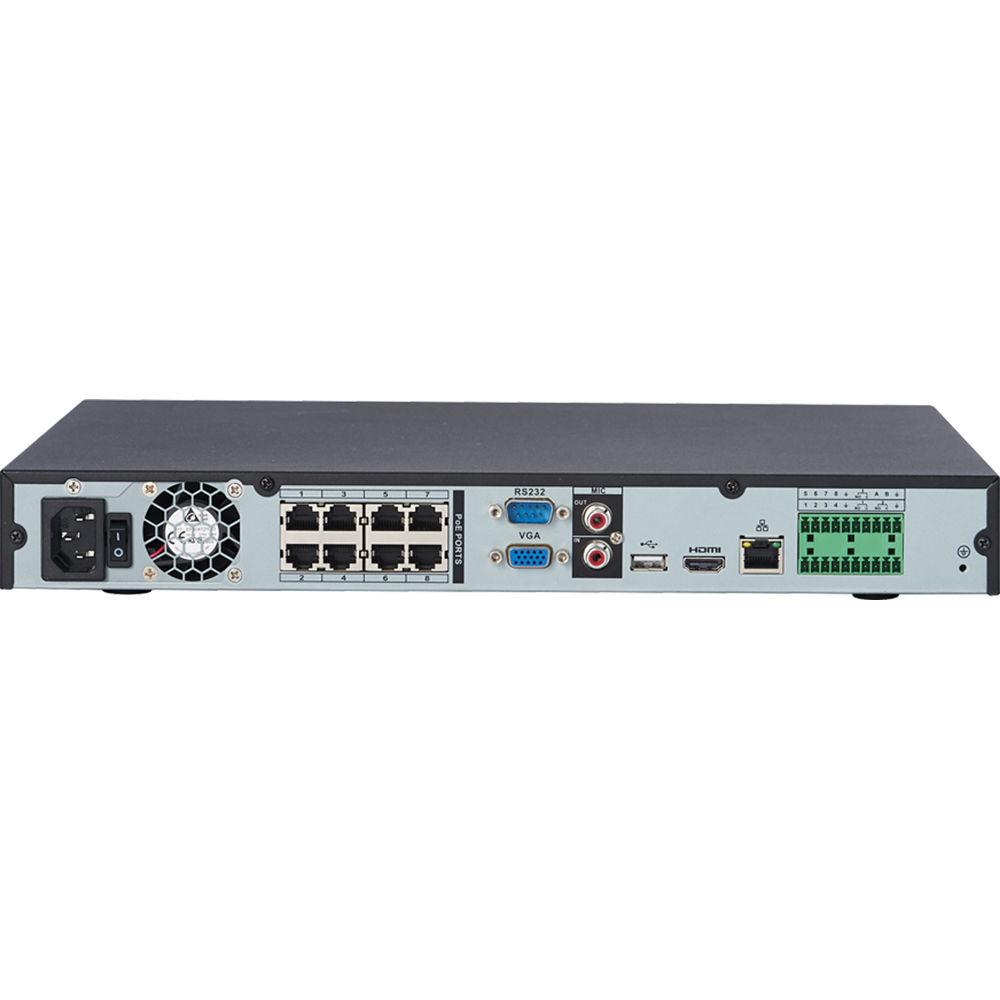

User Manual for Lorex HD 8-Channel Real-Time Recording NVR with 2TB HDD

Click to enlarge the picture
Lorex HD 8-Channel Real-Time Recording NVR with 2TB HDD Contents of the user manual for the Lorex HD 8-Channel Real-Time Recording NVR
  • Product category: Network Video Recorders (NVRs) Lorex
  • Brand: Lorex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lorex Network Video Recorders (NVRs)

Lorex HD 8-Channel Real-Time Recording NVR with 2TB HDD Lorex HD 8-Channel Real-Time Recording NVR with 2TB HDD
User manual for the Lorex HD 8-Channel Real-Time Recording NVR contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lorex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!



Product description

Record video day and night in 1080p resolution with the HD 8-Channel Real-Time Recording NVR from Lorex. This pentaplex operating NVR with preinstalled 2TB hard disk drive allows you to connect up to 8 Lorex network cameras for comprehensive surveillance coverage of your home or business. The NVR's 8 integrated PoE ports provide power and transfer data over a single cable to the connected cameras, thereby reducing cabling while giving you more placement options.

In addition, the NVR supports full HD video recording at 1080p resolution, real-time recording at a rate of 30 fps per channel, and the FLIR Cloud: a free web-based service that allows you to remotely access your NVR's recordings and camera feeds over the Internet without requiring a network configuration, DDNS registration or port forwarding. Beyond allowing remote access through a Windows or Mac computer, the FLIR Cloud also supports remote play back and viewing from Android and iOS smart devices.

What's more, is that this NVR gives you the option to expand as your security needs evolve by allowing you to upgrade its storage capacity to two 4TB hard disk drives for a maximum of 8TB. This NVR also allows you to configure recording parameters to help conserve space on its preinstalled 2TB HDD by offering Continuous, Scheduled, and Motion recording modes, and it also features H.264 video compression, which allows you to optimize storage space by reducing resolution and other variables that contribute to the creation of larger video files. The NVR's HDMI video output connects this NVR to a HDMI TV, and its VGA output connects it to a CCTV monitor or a compatible display screen. Along with the NVR and preinstalled 2TB HDD, an HDMI cable, remote control, power adapter, mouse, and Ethernet cable are also included to facilitate installation.
    NVR Compatibility
  • *Please note that is NVR is compatible with Lorex IP PoE cameras only. It is not compatible with third-party IP cameras. For a full list of compatible cameras, visit Lorex's site.
    • Full pentaplex operation: simultaneous view, record, playback, backup, and remote monitoring
    • Full HD 1080p recording resolution
    • Supports NTSC/PAL signal systems
    • Real-time recording at a frame rate of 30 fps per channel
    • 8 built-in PoE ports supply power and data over a single Ethernet cable
    • Continuous, Scheduled, Motion recording modes
    • Automatically detects compatible Lorex IP camera in the network
    • Space-saving H.264 video compression
    • Dual streaming supported to help conserve bandwidth
    • Preinstalled 2TB HDD; expandable high capacity storage up to 8TB (max. 2 x 4TB HDD)
    • Mirror hard drive recording with two installed HDDs
    • Simultaneous play back and live view on the same screen
    • Selectable digital zoom in live view and playback modes
    • 2 x video outputs; 1 x HDMI / 1 x VGA
    • Instant USB backup of live video from a selected camera
    • Simple 3-step remote viewing with free FLIR Cloud
    • Windows and Mac OS X compatible
    • Receive push notifications of motion-triggered events
    • Instant email alerts with snapshot attachments
    • Remote monitoring via app on Android/iOS smart devices
UPC: 695529001463 In the Box Lorex HD 8-Channel Real-Time Recording NVR with 2TB HDD
  • HDMI Cable
  • Remote Control
  • Power Adapter
  • Mouse
  • Ethernet Cable
  • Quick Start Guide
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lorex HD 8-Channel Real-Time Recording NVR with 2TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lorex LNR4082 Specs

    Operating System Linux embedded
    Pentaplex Operation Simultaneous view / record / playback / backup / remote monitoring
    Number of Channels 8
    Video Inputs 8 x PoE
    VGA Output 1 x VGA
    HDMI Output 1 x HDMI
    Audio Input 1 x Line-IN (RCA; for service only)
    Audio Output 1 x Line-OUT (RCA; for service only)
    USB 1 x USB (at the back)
    1 x USB (at the front)
    Alarm Input / Output 8 x Alarm-IN
    3 x Alarm-OUT
    Video Output Resolution 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768
    PTZ Control Lorex IP PTZ cameras only
    Display Split 1 / 4 / 8 / 9
    Live Display Speed NTSC: 240 fps
    PAL: 200 fps
    OSD Controls Camera title / time / camera lock / motion detection / recording status
    System Navigation USB mouse / IR remote control / front panel buttons
    Motion Area Setting Adjustable grid; 22 x 18
    Sensitivity Levels 100
    Firmware Upgrade Automatic over the Internet / via USB device and network
    User Access By user group
    Time Synchronization Auto time sync by NTP server
    Video Compression H.264
    Recording Resolution 1080p (1920 × 1080) / 720p (1280 × 720)
    Recording Rate NTSC: 240 fps at 1080p
    PAL: 200 fps at 1080p
    Recording Resolution Setting Different resolution setting per camera
    Recording Quality Control 6 levels
    Recording Schedule By hour / by day / by recording mode / by motion / by channel
    Pre Recording Max. 30 seconds
    Post Recording Max. 5 minutes
    Reliability Watchdog / auto-recovery after power failure
    Playback Channels 1 / 4 / 9
    Playback Speed Variable; max. up to 16x
    Playback Players Backup Player
    Search By time and event
    Log Search Up to 1,000 lines for motion detected / configuration changes / connects / disconnects
    video loss
    Audio Play Yes; audio-enabled camera required
    Storage Type Up to 2 x SATA HDDs
    Storage Capacity 2 x 4TB HDD
    Backup Media USB Flash Drive / HDD
    Backup Media USB Flash Drive & HDD
    Backup File Format DAV / ASF file
    Cloud Connectivity FLIR Cloud
    Supported Operating Systems Windows / Mac OS X
    Remote Software Configuration Client Software for Windows / Mac OS X
    Email Notification Text with snapshot
    Mobile App Support iPad / iPhone / Android smartphones & tablets
    DDNS Free Lorex DDNS
    System Configuration Full setup configuration over network
    Ports Programmable by user
    Network Standards HTTP / IPv4 / IPv6 / TCP / IP / UPNP / RTSP / UDP
    SMTP / NTP / DHCP / DNS / PPPOE / DDNS / FTP / IP Filter
    Network Interface 1 x RJ-45, 10/100/1000 Mbps
    Network Data Transfer Rate 256 Mbs total; 48 to 8,192 kbps per camera
    Power Consumption Approx. 20 W (without HDD)
    Power Supply Voltage 100 to 240 VAC, 50/60 Hz
    PoE Power Output 120 W; max 25 W per camera
    Operating Temperature 14 to 131°F (-10 to 55°C)
    Operating Relative Humidity Range 10 to 90%
    Dimensions (W x D x H) 14.7 x 11.2 x 2.0" (375 x 285 x 50 mm)
    Weight 5.1 lb / 2.3 kg
    Package Weight 10.6 lb
    Box Dimensions (LxWxH) 18.0 x 16.5 x 7.0"
