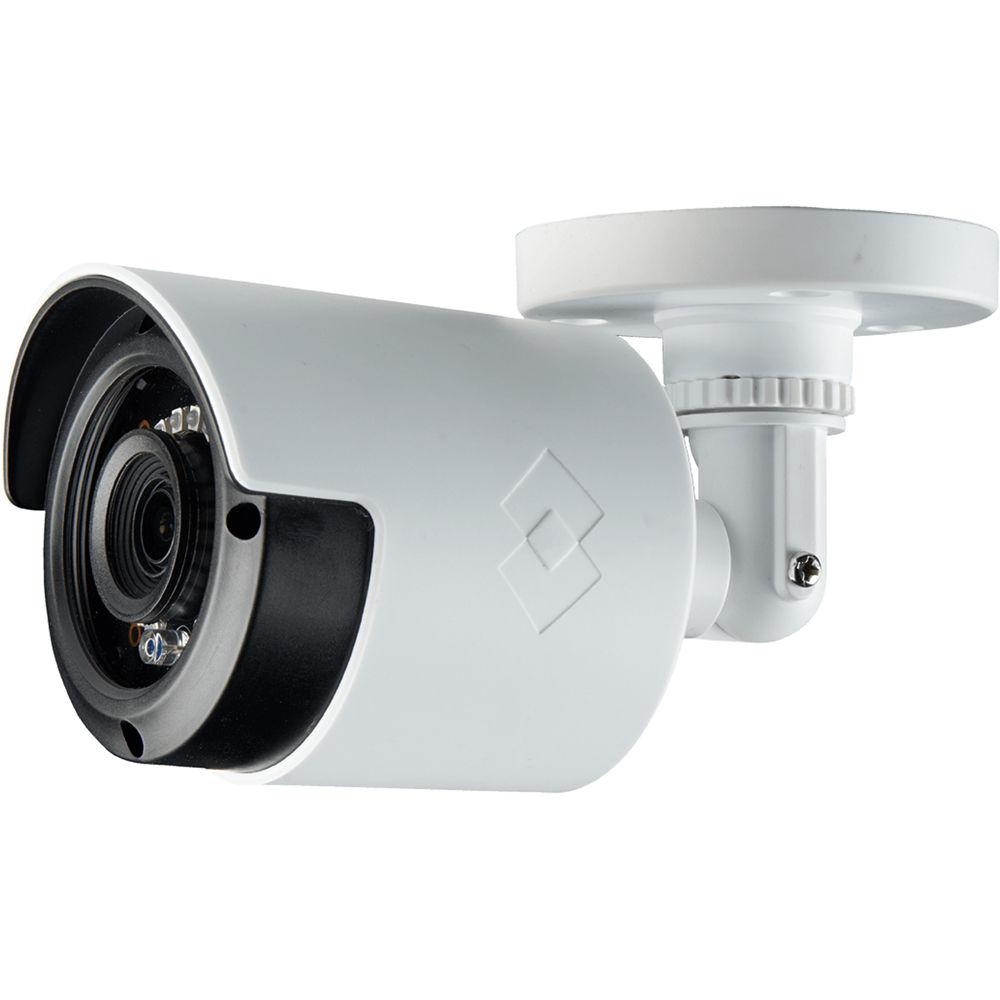

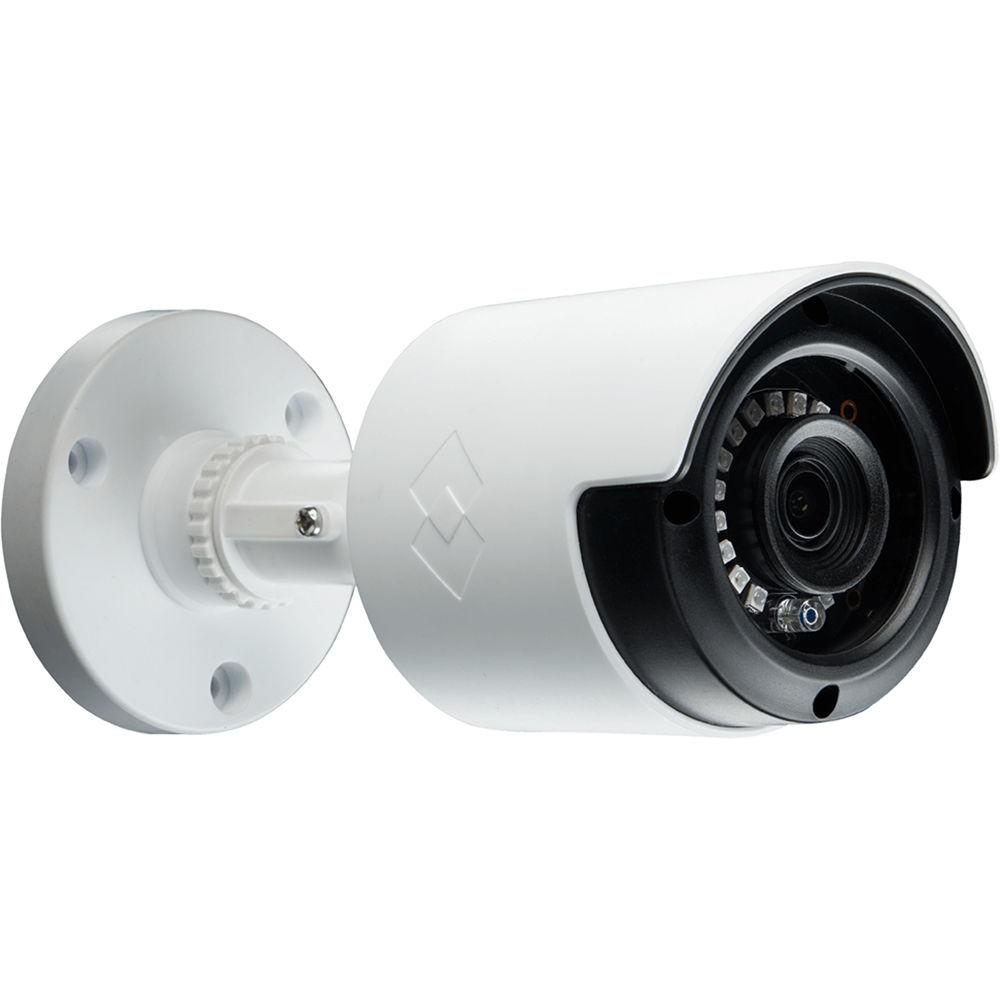

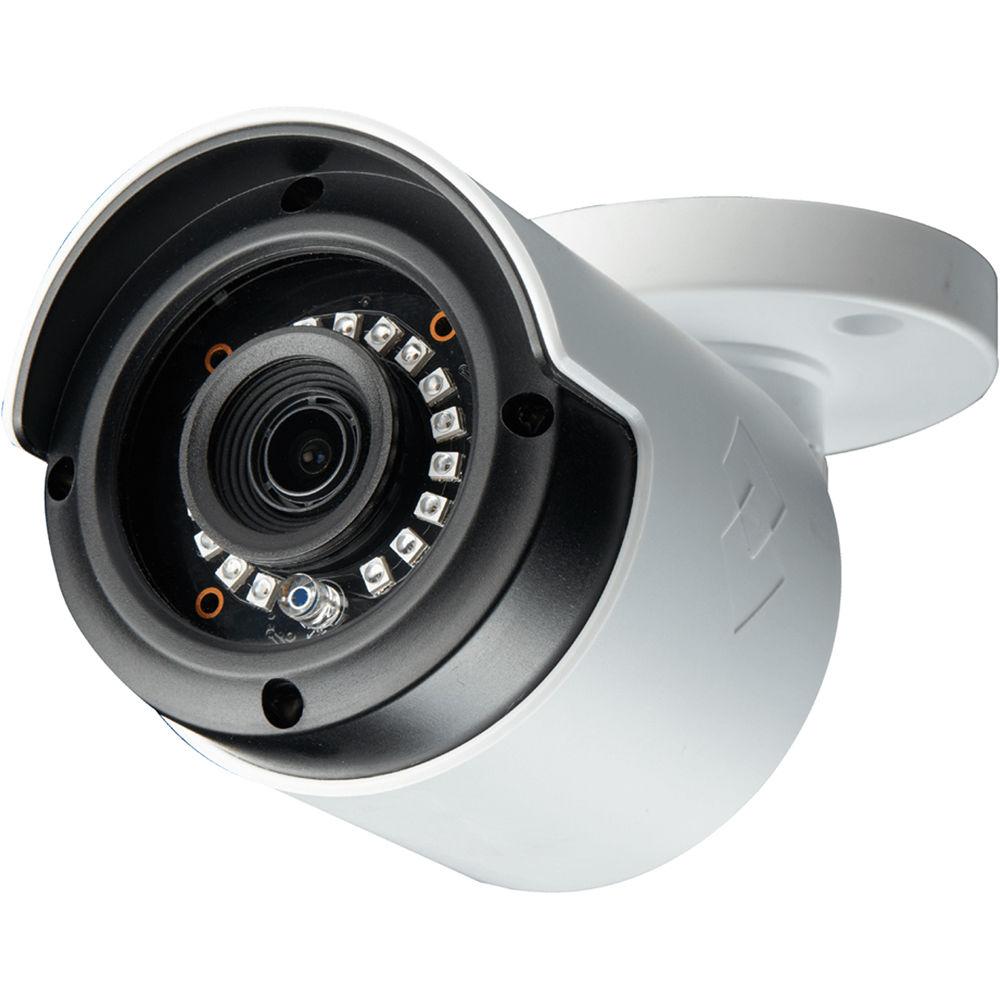

User Manual for Lorex LAB243SB 4MP Outdoor MPX Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Lorex LAB243SB 4MP Outdoor MPX Bullet
- Product category: Wired Analog & HD Cameras Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Wired Analog & HD Cameras
 |
User manual for the Lorex LAB243SB 4MP Outdoor MPX Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|

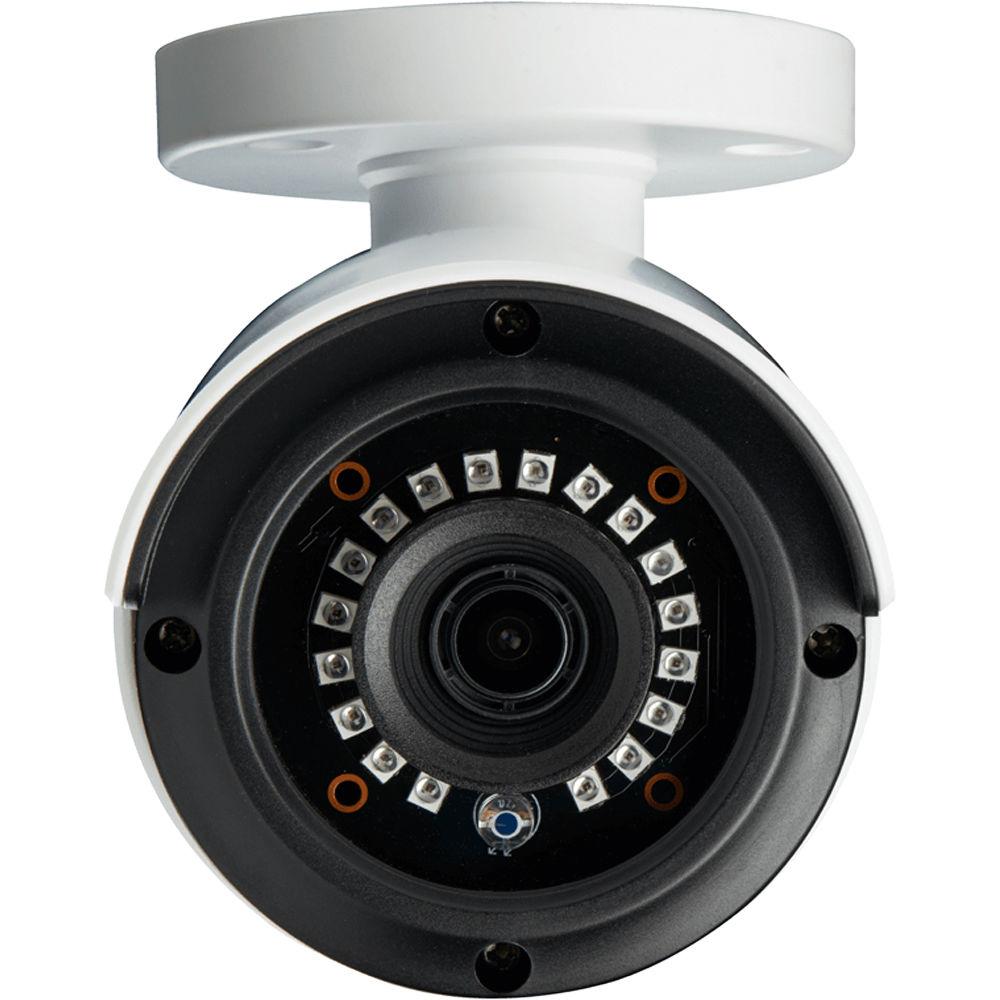

Product description The LAB243SB 4MP Outdoor MPX Bullet Camera with Night Vision from Lorex has a 4MP 1/3" progressive scan CMOS sensor to record 2592 x 1522 resolution video. 18 IR LEDs provide up to 90' of night vision in total darkness. Additionally, Color Night Vision (CNV) technology provides up to 130' of visibility in ambient lighting. The 3.6mm fixed lens delivers an 89° horizontal field of view.
This camera is housed in an IP66-rated enclosure that is suitable for outdoor use. A mounting kit, power adapter, and 60' BNC/DC extension cable for connectivity are included. - NTSC and PAL video formats
- Color Night Vision provides up to 130' of visibility in ambient lighting
- ClearNight imaging for enhanced low light performance and improved recording efficiency
- Split glass design minimizes IR reflection
- Vandal-resistant design with cable pass-through bracket
- Can be mounted on a ceiling or wall
- Compact design at only 0.45 lb
- IP66-rated for outdoor use
UPC: 695529014487 In the Box Lorex LAB243SB 4MP Outdoor MPX Bullet Camera with Night Vision 60' / 18m BNC/DC Extension Cable Mounting Kit Power Adapter Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LAB243SB 4MP Outdoor MPX Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LAB243SB Specs | Image Sensor | 4 MP 1/3" CMOS sensor | | Video Format | NTSC, PAL | | Effective Pixels (H x V) | 2592 x 1520 | | Resolution | 4 MP | | Scan System | Progressive | | Sync System | Internal | | S/N Ratio | 40 dB (AGC off) | | Iris | AES | | AES Shutter Speed | 1/50,000 to 1/30 seconds | | Minimum Illumination | Color: 0.5 lux without IR LEDS
B&W: 0 lux with IR LEDs on | | Video Output | A-MPX | | Lens | 3.6mm fixed | | Aperture | f/2.0 | | Horizontal Field of View (degree) | 89° | | Termination Type | BNC | | Smart IR | Yes | | Number of IR LEDs | 18 | | IR Wavelength | 850 nm | | Night Vision Range | Ambient Lighting: 130' / 40 m
Total Darkness: 90' / 27 m | | Power Requirement | 12 VDC ±10% | | Power Consumption | 300 mA with IR | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% RH | | IP Rating | IP66 | | Dimensions | 2.7 x 6.2 x 2.7" / 50 x 158 x 50 mm | | Weight | 0.45 lb / 0.2 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 7.75 x 6.75 x 3.5" |
