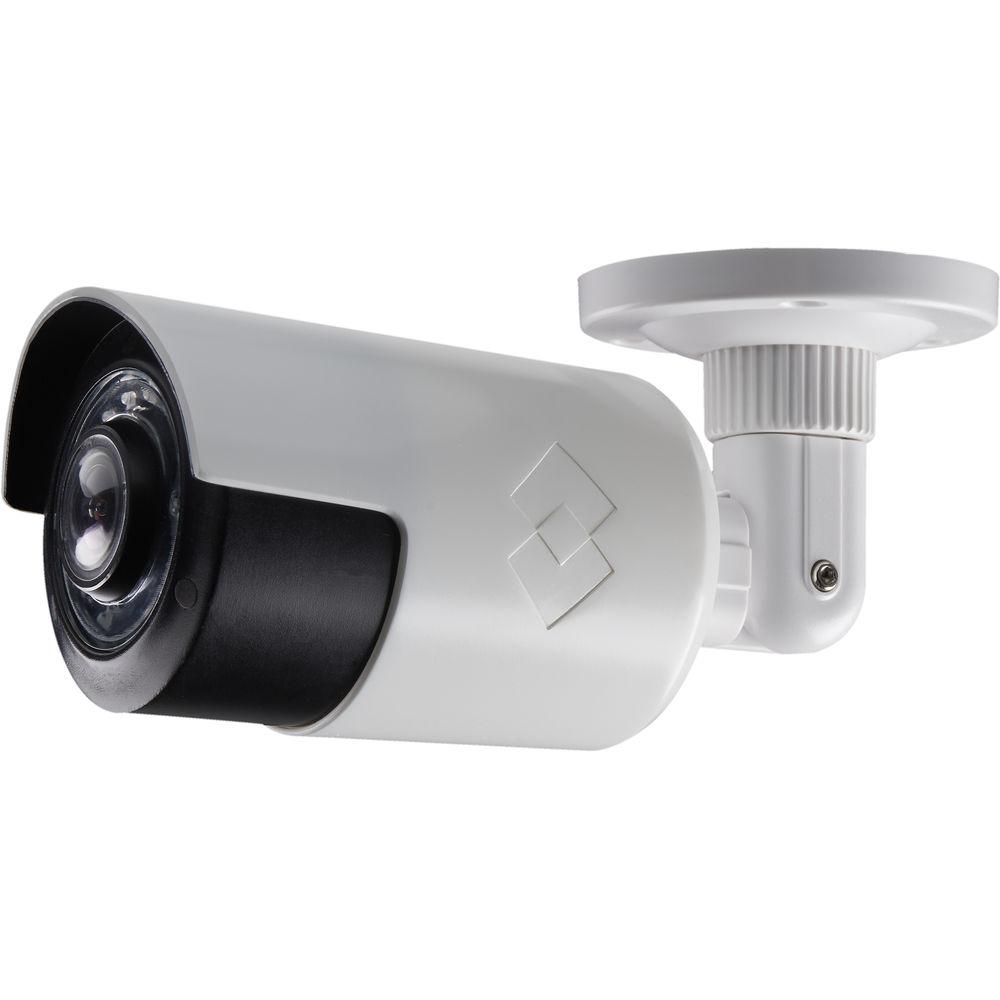

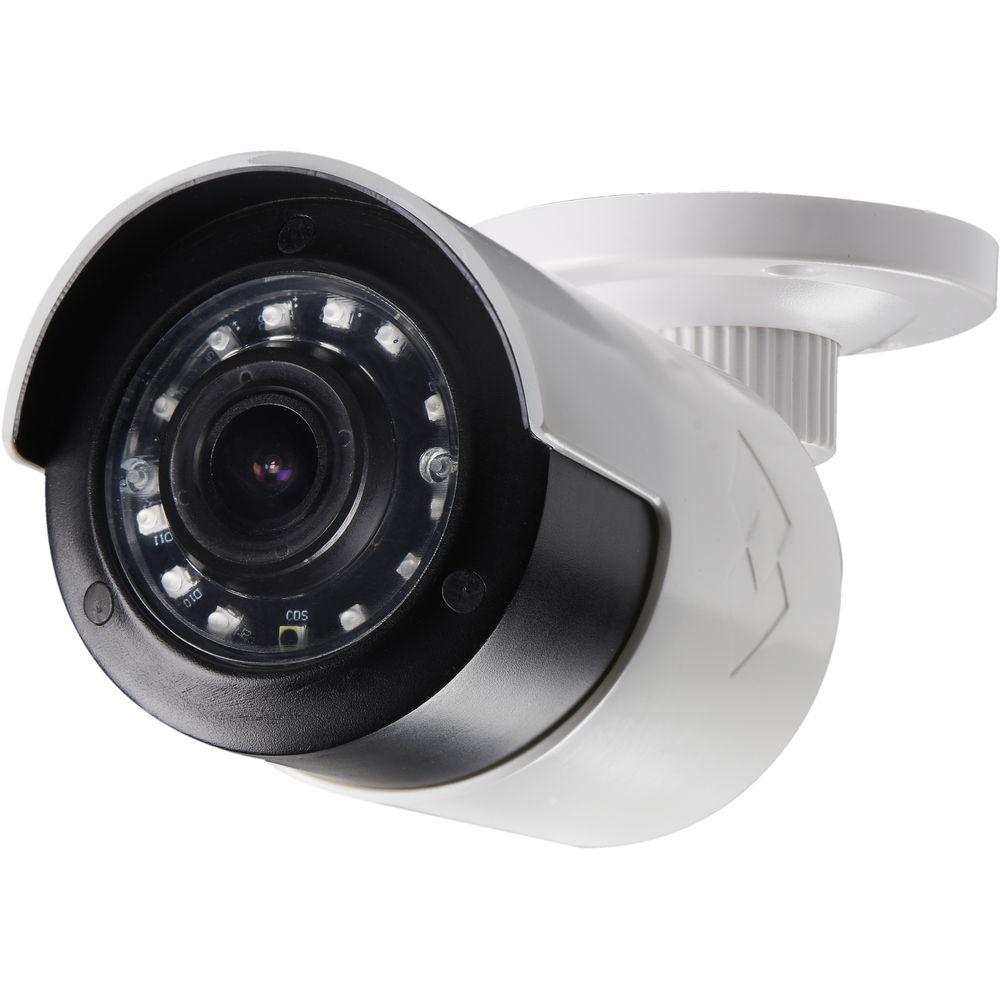

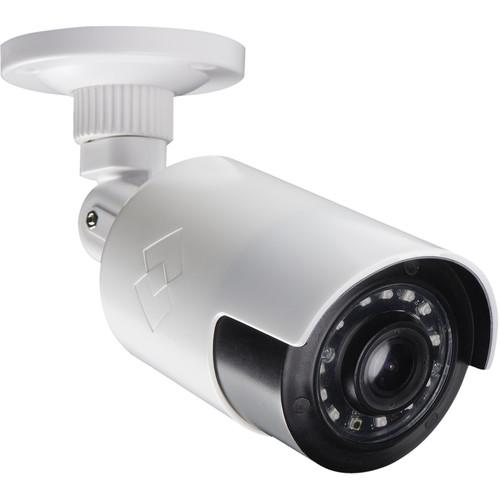

Product description This IP66-rated LBV2561UB 2.1MP Outdoor MPX Bullet Camera with Night Vision from Lorex by FLIR is dust- and water-resistant, making it suitable for outdoor use. This camera has a 1/2.7" progressive scan CMOS sensor to capture 1080p video during the day and at night. Its IR cut filter and IR LEDs allow it to capture clear images in complete darkness from up to 60' away, while the 2.9mm fixed lens has a 160° wide angle diagonal field of view to monitor large, open areas. - 2.1MP 1/2.7" progressive scan CMOS sensor captures 1920 x 1080 resolution video over coax cable
- IR cut filter and IR LEDs allow the camera to capture clear images from up to 60' away in total darkness
- 2.9mm fixed lens has a wide 160° diagonal field of view to monitor large areas
- SmartIR technology helps produce clearer images in low-light scenes
- Anti-glare feature ensures clear images in varying lighting conditions
- Split glass design minimizes IR reflection
- IP66-rated for outdoor use
UPC: 695529010854 In the Box Lorex LBV2561UB 2.1MP Outdoor MPX Bullet Camera with Night Vision Power Adapter 60' BNC/Power Extension Cable Mounting Hardware Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LBV2561UB 2.1MP Outdoor MPX Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LBV2561UB Specs | Image Sensor | 2.1 MP 1/2.7" progressive scan CMOS sensor | | Effective Pixels | 1920 x 1080 | | Resolution | 1920 x 1080 | | Sync System | Internal | | Iris | AES | | AES Shutter Speed | 1/60 (1/50) to 1/100,000 sec | | Minimum Illumination | 0.2 lux without IR LED, 0 lux with IR LED | | Video Output | MPX | | Lens | 2.9mm, fixed | | Aperture | f/1.8 | | Field of View | Horizontal: 120°
Diagonal: 160° | | Termination | BNC coax | | Number of IR LEDs and Range | 12 x IR LEDs
Ambient Light: Up to 90' (27 m)
Complete Darkness: Up to 60' (18 m) | | IR Wavelength | 850 nm | | IP Rating | IP66 | | Power Requirements | 12 VDC ±10% | | Maximum Power Consumption | 480 mA with IR LEDs on | | Operating Temperature | 4 to 122°F (-20 to 50°C) | | Operating Humidity | 30 to 90% RH | | Dimensions | 2.8 x 7.8 x 2.8" (71 x 198 x 71 mm) | | Weight | 0.45 lb (0.2 kg) | | | | Package Weight | 2.035 lb | | Box Dimensions (LxWxH) | 13.2 x 5.05 x 3.2" |
