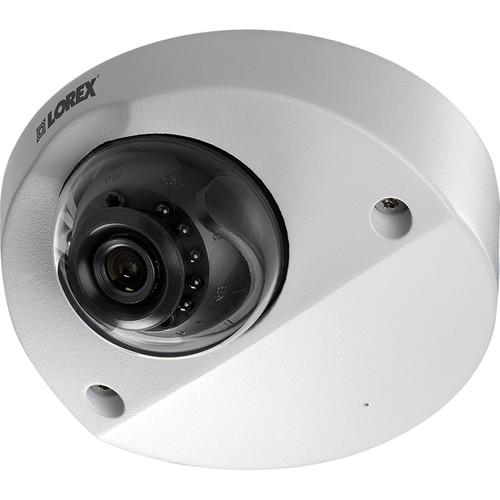

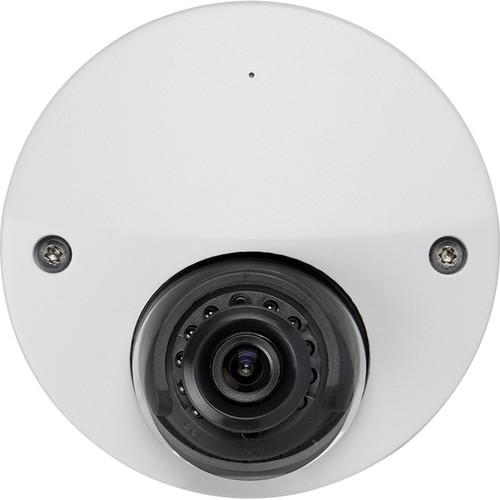

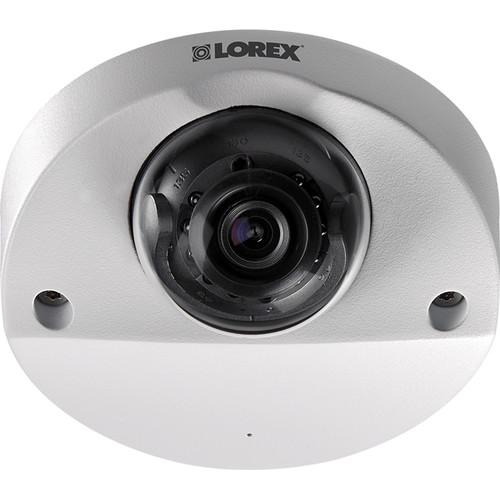

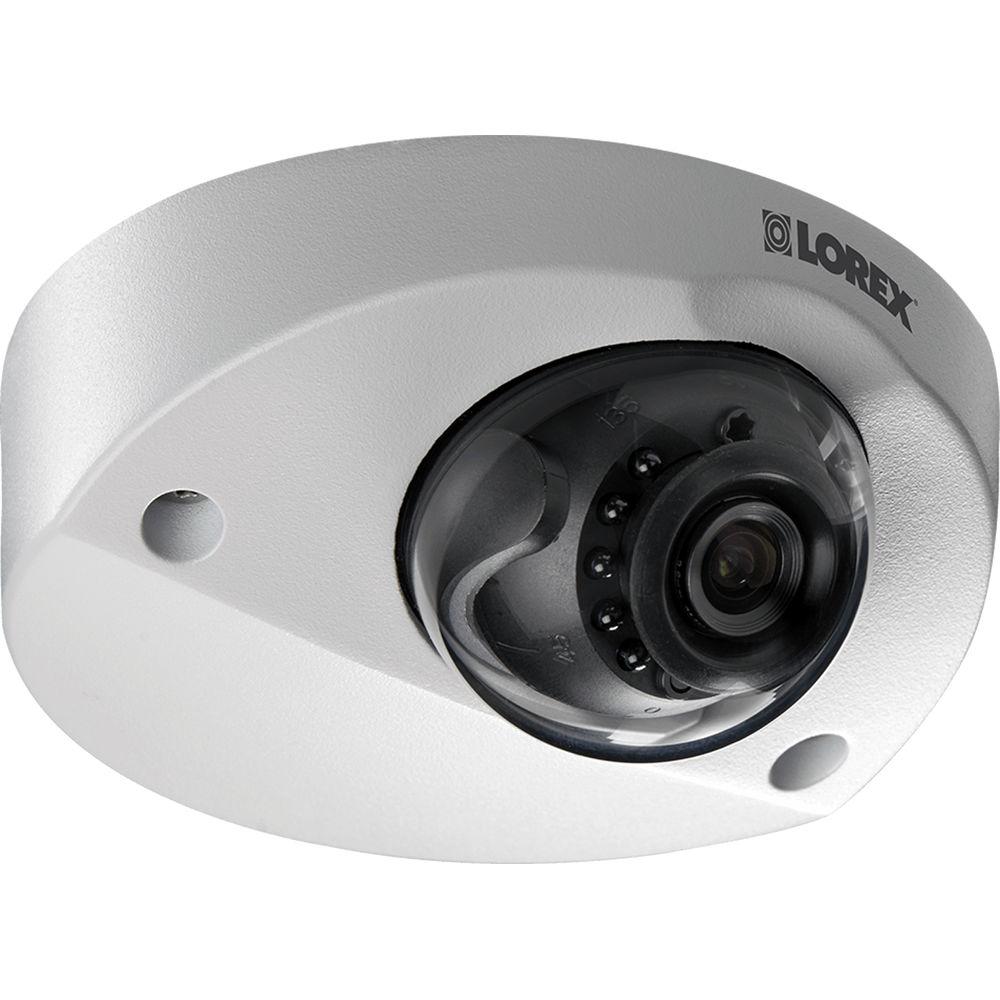

User Manual for Lorex LEV2750ASB 2.1MP Outdoor Dome Camera with Audio & Night Vision Click to enlarge the picture
Contents of the user manual for the Lorex LEV2750ASB 2.1MP Outdoor Dome Camera
- Product category: Wired Analog & HD Cameras Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Wired Analog & HD Cameras
 |
User manual for the Lorex LEV2750ASB 2.1MP Outdoor Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|
Product description This IP67- and IK10-rated LEV2750ASB Series 2.1MP Outdoor Dome Camera with Audio & Night Vision from Lorex by FLIR is dust-, water-, and vandal-resistant, making it suitable for outdoor use. This camera has a 1/2.8" progressive scan CMOS sensor to transmit 1080p video at up to 30 fps during the day and at night. Its IR cut filter and IR LEDs allow it to produce clear images in complete darkness from up to 60' away, while the 2.8mm fixed lens has a 90° horizontal field of view to monitor large areas. The built-in microphone lets you hear what's going on around the camera. - 2.1MP 1/2.8" progressive scan CMOS sensor captures 1920 x 1080 resolution video at up to 30 fps over coax cable
- IR cut filter and IR LEDs allow clear images to be captured from up to 60' away in total darkness, and up to 90' away in ambient lighting
- Built-in microphone picks up nearby sound
- SmartIR technology helps produce clearer images in low-light scenes
- Extend the video signal up to 800' with a single RG59 coaxial cable (available separately)
- IP67- and IK10-rated for protection against dust, water, and impact
UPC: 695529011585 In the Box Lorex LEV2750ASB 2.1MP Outdoor Dome Camera with Audio & Night Vision Power Adapter 60' BNC/Power Extension Cable Mounting Hardware Mounting Template Allen Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LEV2750ASB 2.1MP Outdoor Dome Camera with Audio & Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LEV2750ASB Specs | Image Sensor | 2.1 MP 1/2.8" progressive scan CMOS sensor | | Effective Pixels | 1984 x 1225 | | Resolution | 1920 x 1080 at 25/30 fps | | Sync System | Internal | | S/N Ratio | ≥48 dB | | Iris | Fixed | | AES Shutter Speed | 1/3 (1/4) to 1/100,000 sec | | Minimum Illumination | 0.1 lux at f/1.2 with IR LEDs off
0 lux with IR LEDs on | | Video Output | MPX | | Audio | Built-in microphone | | Lens | 2.8mm, fixed | | Aperture | f/2.2 | | Field of View | Horizontal: 90° | | Termination | BNC coax | | Number of IR LEDs and Range | 10 x IR LEDs
Ambient Light: Up to 90' / 27 m
Complete Darkness: Up to 60' / 18 m | | IR Wavelength | 850 nm | | IP Rating | IP67 | | IK Code | IK10 | | Power Requirements | 12 VDC ±10% | | Maximum Power Consumption | 250 mA with IR LEDs on | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <90% RH | | Dimensions | Ceiling Mounted: 4.2 x 2" / 106 x 50 mm
Wall Mounted: 6.3 x 5 x 3.1" / 160 x 126 x 79 mm | | Weight | 1.85 lb / 0.84 kg | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 14.3 x 7.2 x 7.1" |
