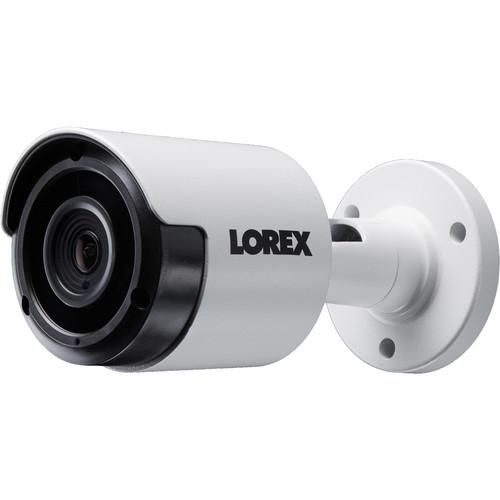

User Manual for Lorex LKB353A 5MP Outdoor Network Bullet Camera with Color Night Vision Click to enlarge the picture
Contents of the user manual for the Lorex LKB353A 5MP Outdoor Network Bullet
- Product category: Wired IP Cameras Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Wired IP Cameras
|
User manual for the Lorex LKB353A 5MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|
Product description The LKB353A 5MP Outdoor Network Bullet Camera with Color Night Vision from Lorex uses a 1/2.7" progressive scan sensor to capture 2592 x 1944 resolution video at 15 fps. IR LEDs provide a night vision range up to 90' in total darkness, and up to 130' in ambient lighting. The 2.8mm fixed lens delivers a 105° horizontal field of view. Audio recording is possible thanks to a built-in microphone. H.265 video compression maintains quality while keeping bandwidth usage minimal. Integrated PoE technology allows data and power to be transferred via one cable.
This bullet camera is housed in an IP66-rated enclosure that is suitable for outdoor use. It can be mounted on a ceiling or wall with the included mounting kit. - Compatible with all Lorex LNK series NVRs
- IR LEDs allow video to be captured from up to 90' away in total darkness, and up to 130' away in ambient lighting
- Color Night Vision and ClearNight technology help produce clearer images in low-light conditions
- PoE or 12 VDC power (DC power barrel available separately)
- PoE technology enables the camera's video and power to be extended to a distance of up to 300' from the NVR with a single Ethernet cable (100' cable included, longer cables available separately)
- Electronic image stabilization (EIS)
- ≥39 dB S/N ratio with automatic gain control turned off
- IP66-rated enclosure that is suitable for outdoor use
- Operates in temperatures as low as -22°F
- Weatherproof Ethernet connector cover for a protective seal against the elements
- Ceiling and wall mountable
UPC: 695529015019 In the Box Lorex LKB353A 5MP Outdoor Network Bullet Camera with Color Night Vision Mounting Kit 100' Ethernet Extension Cable Weatherproofing Cap Allen Key Limited 1-Year Warranty Limited 90-Day Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LKB353A 5MP Outdoor Network Bullet Camera with Color Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LKB353A Specs | | | Sensor | 5 MP 1/2.7" | | Focal Length | 2.8mm | | Maximum Aperture | f/1.8 | | Lens Field of View | Horizontal: 105° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.05 Lux
B&W: 0 Lux | | Shutter Speed | 1/20,000 to 1/5 Seconds | | | | Streaming Resolution | 2592 x 1944 at 15 fps (H.265) | | Supported Video Compression | H.265 | | Automatic Gain Control | Yes | | | | Streaming | Single | | Built-In Mic | Yes | | | | Recording Media | None | | Pan/Tilt | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 90' / 27.43 m | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 5.1 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | Dimensions | H: 2.9 x W: 2.9 x L: 6.0" / H: 73.0 x W: 73.0 x L: 152.0 mm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 3.085 lb | | Box Dimensions (LxWxH) | 14.65 x 5.45 x 3.8" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 54 owners. Add your rating and experience with the product.
