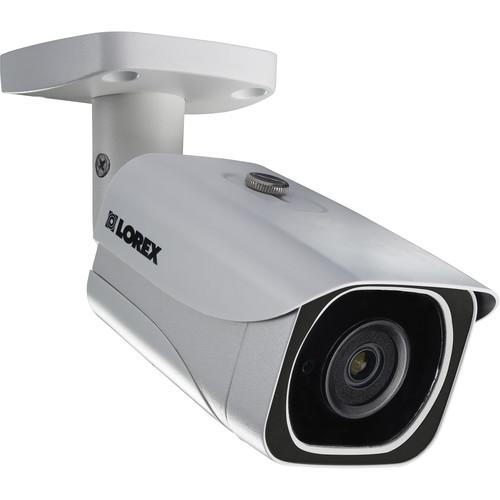

User Manual for Lorex LNB8005B 8MP Outdoor Network Bullet Camera with Color Night Vision Click to enlarge the picture
Contents of the user manual for the Lorex LNB8005B 8MP Outdoor Network Bullet
- Product category: Wired IP Cameras Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Wired IP Cameras
|
User manual for the Lorex LNB8005B 8MP Outdoor Network Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|
Product description The LNB8005B 8MP Outdoor Network Bullet Camera with Color Night Vision from Lorex has a 1/2.5" sensor to capture 3840 x 2160 resolution video at 15 fps. IR LEDs enable a night vision range up to 90' in total darkness, and up to 130' in ambient lighting. The 4mm fixed lens delivers an 88° horizontal field of view. Integrated POE technology allows data and power to be transferred via one cable. H.265 video compression maintains quality while managing file sizes.
This 4K UHD network camera is housed in an IP66-rated metal enclosure that is suitable for outdoor use. It is compatible with the Lorex HD LNR600/LNR610-series NVRs and can be mounted on a ceiling or wall with the included mounting kit. - Captures 4K UHD resolution video at 15 fps
- Compatible with Lorex HD LNR600/LNR610-series NVRs
- IR LEDs allow video to be captured from up to 90' away in total darkness, and up to 130' in ambient lighting
- Color Night Vision and ClearNight technology help produce clearer images in low-light conditions
- H.265/H.264 video compression
- PoE or 12 VDC power; DC power barrel available separately
- PoE technology enables the camera's video and power to be extended to a distance of up to 300' from the recorder with a single Ethernet cable (60' cable included; longer cables available separately)
- Electronic image stabilization
- ≥42 dB S/N ratio with AGC off
- Ceiling and wall mountable
- Operates in temperatures as low as -22°F / -30°C
- Weatherproof Ethernet connector cover for a protective seal against the elements
- IP66-rated metal enclosure that is suitable for outdoor use
UPC: 695529014050 In the Box Lorex LNB8005B 8MP Outdoor Network Bullet Camera with Color Night Vision Cat 5e Ethernet Cable (60') Mounting Kit Limited 1-Year Warranty More info from Lorex drrevsddxvfbcedasafteubvuft Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LNB8005B 8MP Outdoor Network Bullet Camera with Color Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LNB8005B Specs | | | Sensor | 8 MP 1/2.5" | | Focal Length | 4mm | | Maximum Aperture | f/1.6 | | Lens Field of View | Horizontal: 88° | | IR Cut Filter | Mechanical | | Day/Night | Yes | | Minimum Illumination | Color: 0.5 Lux
B&W: 0.3 Lux | | Shutter Speed | 1/10000 to 1/3 Seconds | | | | Streaming Resolution | 3840 x 2160 at 15 fps (H.265) | | Supported Video Compression | H.264, H.265 | | Automatic Gain Control | Yes | | | | Recording Media | None | | Pan/Tilt | None | | Alarm I/O | None | | I/O Connections | 1 x RJ45
1 x Power | | IR Illuminators | 850 nm | | IR Range | 90' / 27.43 m Total Darkness: 90' / 27 m
Ambient Lighting: 130' / 40 m | | Internal Storage | None | | Power Source | DC, PoE 802.3af (15 W) | | Power Consumption | 4 W | | Material of Construction | Metal (Unspecified Type) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | 0 to 95% | | IP Rating | IP66 | | Dimensions | H: 2.8 x W: 2.8 x L: 7.1" / H: 71.1 x W: 71.1 x L: 180.3 mm | | Weight | 1 lb / 0.5 kg | | | | Package Weight | 2.8 lb | | Box Dimensions (LxWxH) | 16.0 x 6.0 x 4.5" |
