Product description - LNB8111B - Day / Night Video Footage

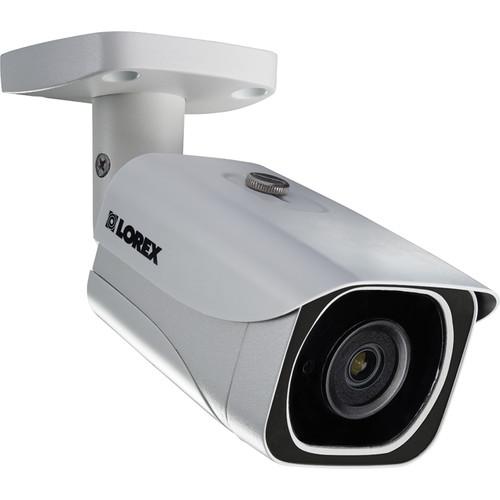

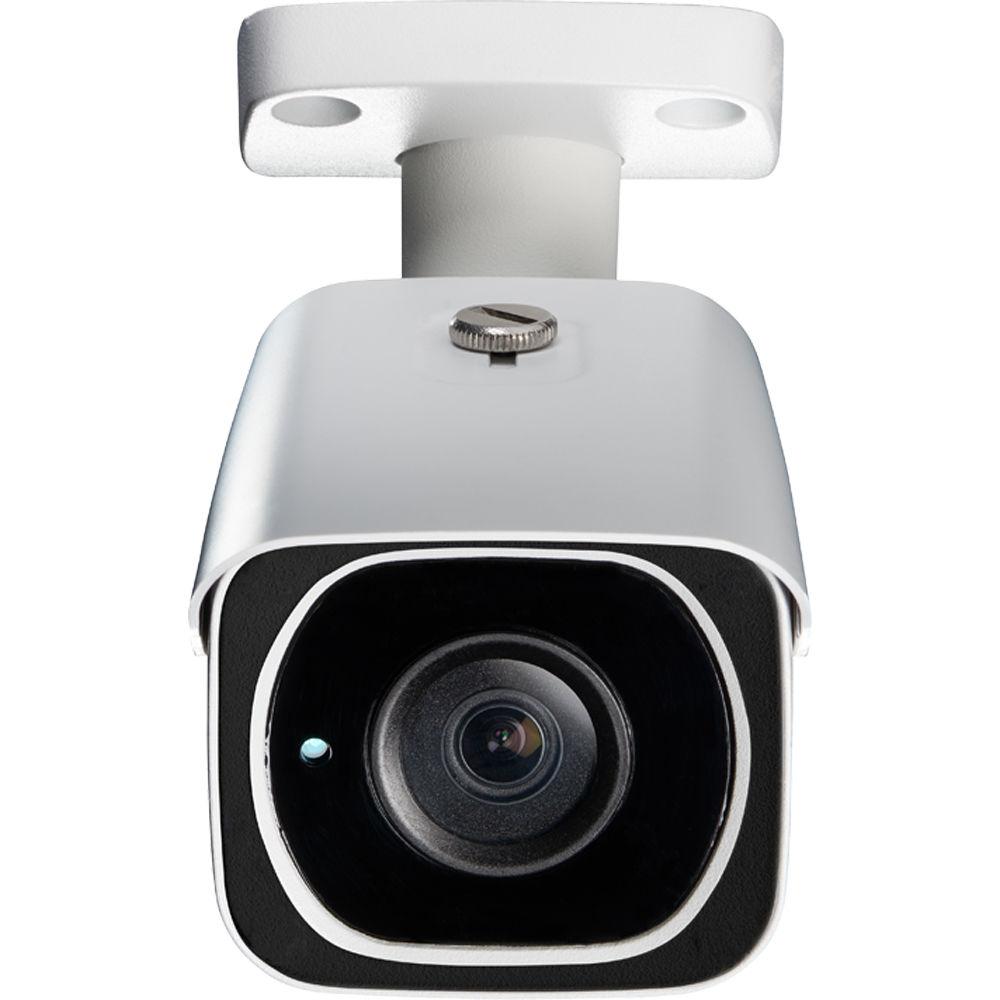

Monitor an outdoor area with the LNB8111B 8MP Outdoor Network Bullet Camera with Color Night Vision from Lorex by FLIR. This camera has a 1/2.5" progressive scan CMOS sensor to capture 3840 x 2160 resolution video at up to 15 fps. Its IR cut filter and IR LEDs allow it to produce clear images in complete darkness from up to 90' away. The 4mm lens has an 88° horizontal field of view to monitor medium-sized areas.
Adjustments after installation are simplified with the included single-screw bracket. The camera is housed in an IP66-rated enclosure for protection against dust and water and can operate in extreme weather conditions ranging from -22 to 140°F. - 8MP 1/2.5" progressive scan CMOS sensor captures 3840 x 2160 resolution video at up to 15 fps
- ClearNight imaging and IR LEDs allow video to be captured from up to 90' away in total darkness
- Color Night Vision and ClearNight technology help produce clearer images in low-light scenes
- Operates in extreme temperature conditions (-22 to 140°F)
- H.265 compression technology for high-quality recording and playback, while optimizing network bandwidth
- IP66-rated for outdoor use
UPC: 695529010441 In the Box Lorex LNB8111B 8MP Outdoor Network Bullet Camera with Color Night Vision 100' Cat 5e Ethernet Cable Mounting Kit Limited 1-Year Warranty More info from Lorex Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LNB8111B 8MP Outdoor Network Bullet Camera with Color Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LNB8111B Specs | Compatibility | Lorex by FLIR LNR600 series recorders only | | Image Sensor | 8 MP 1/2.5" progressive scan CMOS sensor | | Effective Pixels | 3840 x 2160 | | Resolution | 3840 x 2160 at 15 fps | | Sync System | Internal | | S/N Ratio | ≥42 dB | | Iris | EIS | | AES Shutter Speed | 1/3 (1/4) to 1/10,000 sec | | Minimum Illumination | 0.5 lux without IR, 0.3 lux with IR | | Video Output | IP | | Lens | 4mm fixed | | Aperture | f/1.6 | | Field of View | Horizontal: 88° | | Termination | RJ45 with PoE
12 VDC barrel (available separately) | | IR LED Range | Ambient Light: Up to 130' / 40 m
Complete Darkness: Up to 90' / 27 m | | IR Wavelength | 850 nm | | IP Rating | IP66 | | Power Requirements | PoE (Power over Ethernet) Class 0, 12 VDC | | Maximum Power Consumption | 330 mA, 4 W | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | <95% RH | | Dimensions | Camera: 2.8 x 4.2 x 2.8" / 71 x 106 x 71 mm
Camera with Mount: 2.8 x 7.1 x 2.8" / 71 x 180 x 71 mm | | Weight | 1 lb / 0.5 kg | | | | Package Weight | 2.865 lb | | Box Dimensions (LxWxH) | 16.05 x 5.85 x 4.7" |
