Lorex LNR110 Series 8-Channel 3MP NVR

Search your instruction manual in PDF to download

User Manual for Lorex LNR110 Series 8-Channel 3MP NVR with 2TB HDD and 8 1080p Bullet Cameras

Click to enlarge the picture
Lorex LNR110 Series 8-Channel 3MP NVR with 2TB HDD and 8 1080p Bullet Cameras Contents of the user manual for the Lorex LNR110 Series 8-Channel 3MP NVR
  • Product category: Surveillance Systems Lorex
  • Brand: Lorex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lorex Surveillance Systems

Lorex LNR110 Series 8-Channel 3MP NVR with 2TB HDD and 8 1080p Bullet Cameras Lorex LNR110 Series 8-Channel 3MP NVR with 2TB HDD and 8 1080p Bullet Cameras Lorex LNR110 Series 8-Channel 3MP NVR with 2TB HDD and 8 1080p Bullet Cameras Lorex LNR110 Series 8-Channel 3MP NVR with 2TB HDD and 8 1080p Bullet Cameras
User manual for the Lorex LNR110 Series 8-Channel 3MP NVR contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lorex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!



Product description

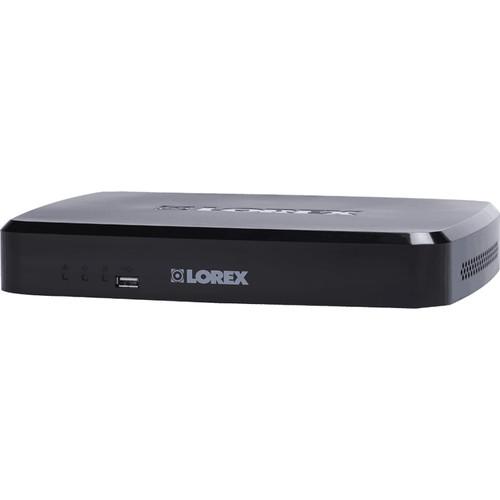

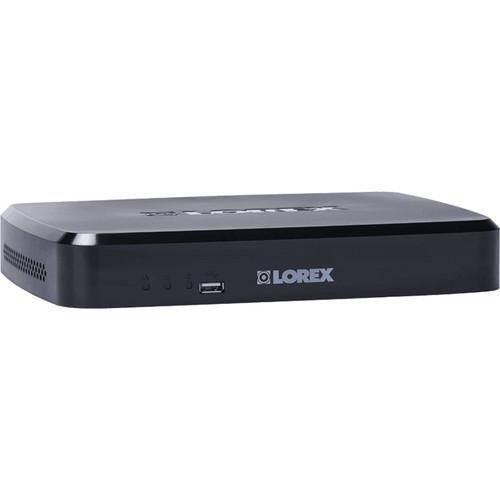

Record HD surveillance footage using the LNR110 Series 8-Channel 3MP NVR With 2TB HDD from Lorex. Recording in 1080p at 30fps on all 8-channels, the NVR provides simultaneous live streaming and playback options on the same screen, ensuring you never miss a minute. With 2TB of included storage space, and the option to expand up to 4TB, the NVR is capable of storing your footage 24/7. For backup storage options, two USB ports are located on the NVR for easy storage removal and transferring to other HDDs. HDMI and VGA ports allow you to connect two viewing monitors for live viewing or playback options. View your footage on a PC, Mac, or mobile device using the FLIR Cloud Storage application. With push notifications, motion detection triggered recording, instant email notifications, and time stamps, you can stay informed of every monitored move.

The NVR includes 8 1080p bullet cameras which each feature HD resolution recording and a 3.6mm fixed lens. With night vision up to 80' away in total darkness and 72° horizontal fields of view, the cameras provide detailed footage which is viewable using the NVR. Connected to the NVR using PoE connections and featuring IP66-rated housings, the cameras are designed for easy installation and can be utilized for indoor or outdoor use.
    NVR Footage Settings
    • Supports continuous, scheduled, and/or motion detection recording
    • Recordings have time stamps with NTP and Daylight Savings Time for searching via time or event
    • Digital zoom capable in live view and playback modes
    • Live view, playback, video recording, and snap shot capabilities during live view on mobile apps or standard viewing monitor
    • Instant email alerts with snap shots
    • Push notifications of detected motion
    • Simultaneous playback and live view on the same screen

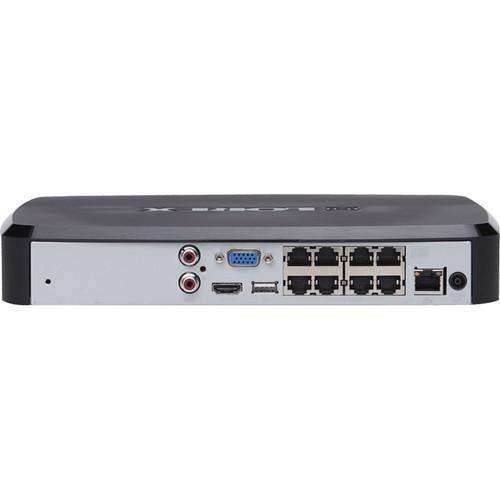

    NVR Connections
    • Automatically detects IP cameras in the network for quick connection
    • Compatible with up to 8 1080p bullet, dome, or PTZ cameras
    • Supports 3MP (2048 x 1536) resolution cameras
    • HDMI and VGA ports for connecting multiple viewing monitors
    • USB ports located on front and back for connecting control devices and saving backups of footage
    • Automatic firmware updates
    NVR Storage Capabilities
    • Includes 2TB of storage with room for expansion up to 4TB
    • Backup footage can be stored to a flash drive via external USB slot
    Camera Functions
    • 1080p at 30 fps recording with 1/3" image sensor
    • 72° wide angle-of-view
    • Night vision capabilities up to 80' in complete darkness
    • IR cut filter provides accurate color
    • WDR and DNR create clear pictures in a variety of light settings without graininess
    • Split-glass and anti-glare lens enclosures
    In the Box Lorex LNR110 Series 8-Channel 3MP NVR with 2TB HDD and 8 1080p Bullet Cameras
  • 8 x LNB3143B 1080p Outdoor Bullet PoE Network Camera
  • HDMI Cable
  • Ethernet Cable
  • Remote Control
  • Mouse
  • Power Adapter
  • Limited 1-Year Warranty
Table of Contents




Upload User Manual

Have you got an user manual for the Lorex LNR110 Series 8-Channel 3MP NVR with 2TB HDD and 8 1080p Bullet Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Lorex LNR1182TC8B Specs

Operating System Linux embedded
Pentaplex Operation Simultaneous view / record / playback / backup / remote monitoring
Number of Channels 8
Video Inputs 8 x PoE
Video Outputs 1 x VGA
1 x HDMI
Audio Input 1 x RCA
Audio Output 1 x RCA
USB 1 x USB (at the back)
1 x USB (at the front)
Video Output Resolution 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768, 800 x 600
PTZ Control Lorex IP PTZ cameras only
Display Split 1, 4 , 8, 9
Live Display Speed 240 NTSC
200 PAL
OSD Controls Configurable
System Navigation USB mouse
Motion Area Setting Adjustable grid (22 x 18)
Sensitivity Levels 100
Firmware Upgrades Automatic over the internet, via USB, and network
User Access By user group
Time Synchronization Auto time sync by NTP server
Video Compression H.264
Recording Resolution 3 MP (2048 x 1536), 1080p (1920 x 1080), 720p (1280 x 720)
Recording Rate 120/100 fps @ 1080p, 240/200 fps @ 720p
Recording Quality Control 6 levels
Recording Schedule By hour / by day / by recording mode / by motion / by channel
Pre Recording Max. 30 seconds
Post Recording Max. 5 minutes
Reliability Watchdog / auto-recovery after power failure
Covert Video Yes
Playback Channels 1 / 4 / 8
Playback Speed Variable; max. up to 16x
Playback Players Backup Player
Search By time and event
Log Search Up to 1,000 lines for motion detected / configuration changes / connects / disconnects / video loss
Audio Play Yes (with audio cameras)
Storage Type Up to 1 x SATA HDD
Storage Capacity Up to 1 x 4TB HDD (2TB installed)
Backup Media USB Flash Drive & HDD
Backup File Format DAV, ASF
Cloud Connectivity Lorex FLIR Cloud
Supported Operating Systems Windows / Mac OS X
Remote Software Configuration Client Software (PC), Safari (Mac)
Email Notification Text with snapshot
Mobile App Support iPad, iPhone, Android
DDNS Free Lorex DDNS
System Configuration Full setup configuration over network
Ports Programmable by user
Network Protocols HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP
Network Interface 1 x RJ-45, 10/100 Base-TX
Network Speed Control 80 Mbs total, 48 to 8192 kb/sec per camera
Power Consumption About 12 W (no HDD included)
Power Supply Voltage 100 to 240 VAC
48 VDC, 2 A, 50 to 60 Hz
Operating Temperature 14 to 131°F / -10 to 55°C
Operating Relative Humidity Range 10 to 90% RH
Dimensions (W x D x H) 10.6 x 8.1 x 1.8" / 26.9 x 20.6 x 4.6 cm
Weight 1.5 lb / 0.7 kg
Package Weight 31.8 lb
Box Dimensions (LxWxH) 20.0 x 16.4 x 14.4"
