User Manual for Lorex LNR400S Series 16-Channel 4MP NVR with 3TB HDD Click to enlarge the picture
Contents of the user manual for the Lorex LNR400S Series 16-Channel 4MP NVR
- Product category: Network Video Recorders (NVRs) Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Network Video Recorders (NVRs)
 |
User manual for the Lorex LNR400S Series 16-Channel 4MP NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|

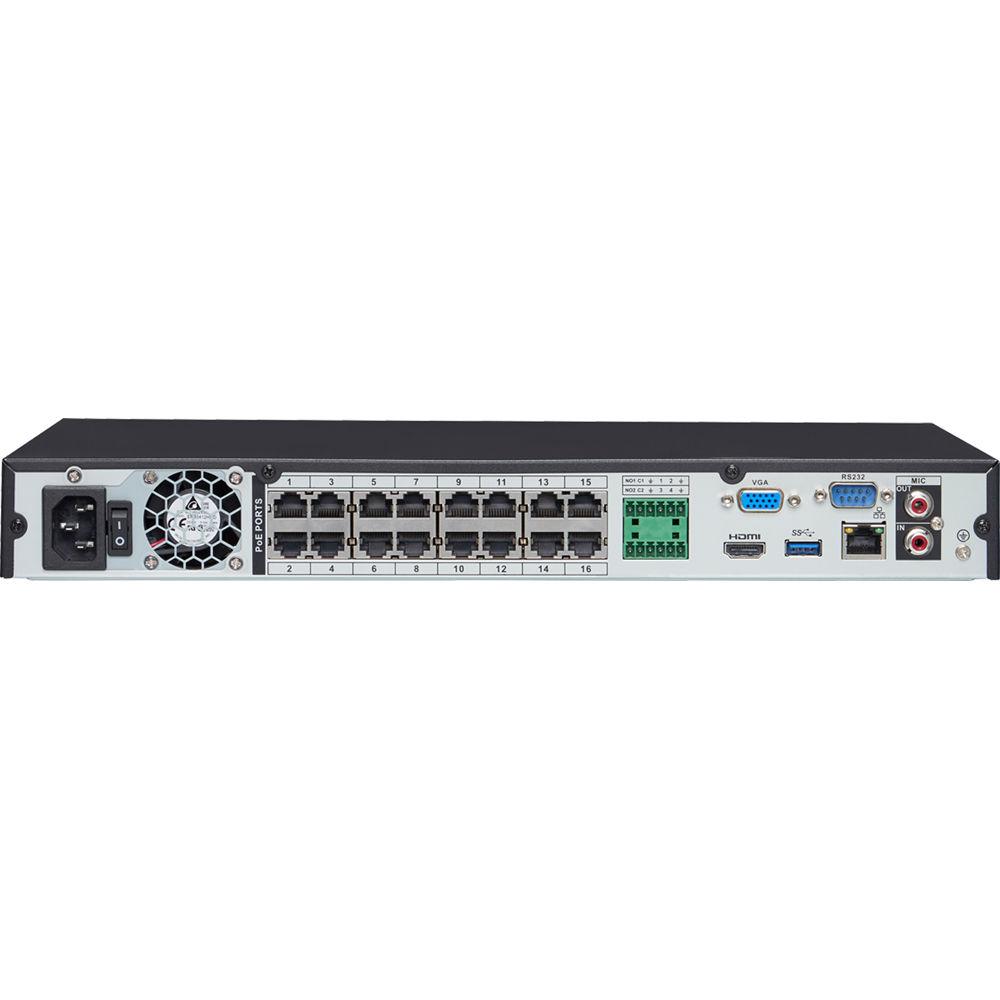

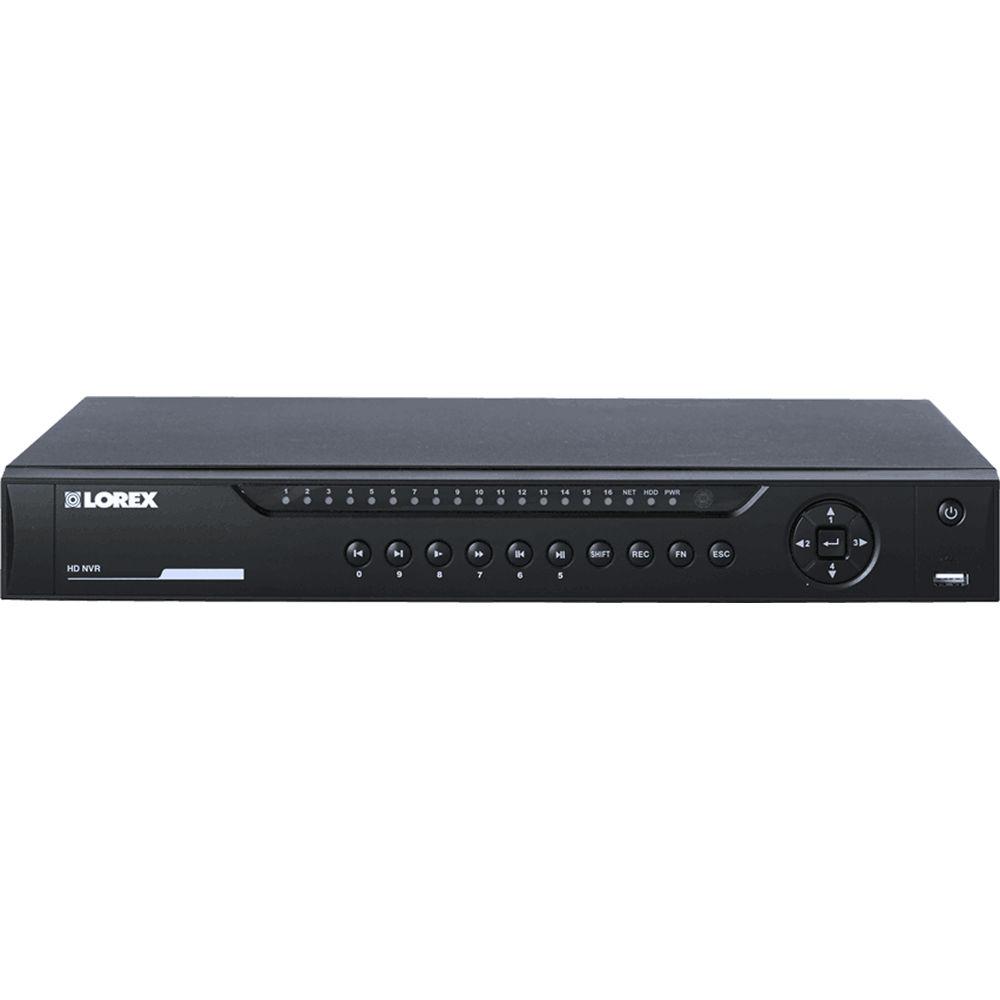

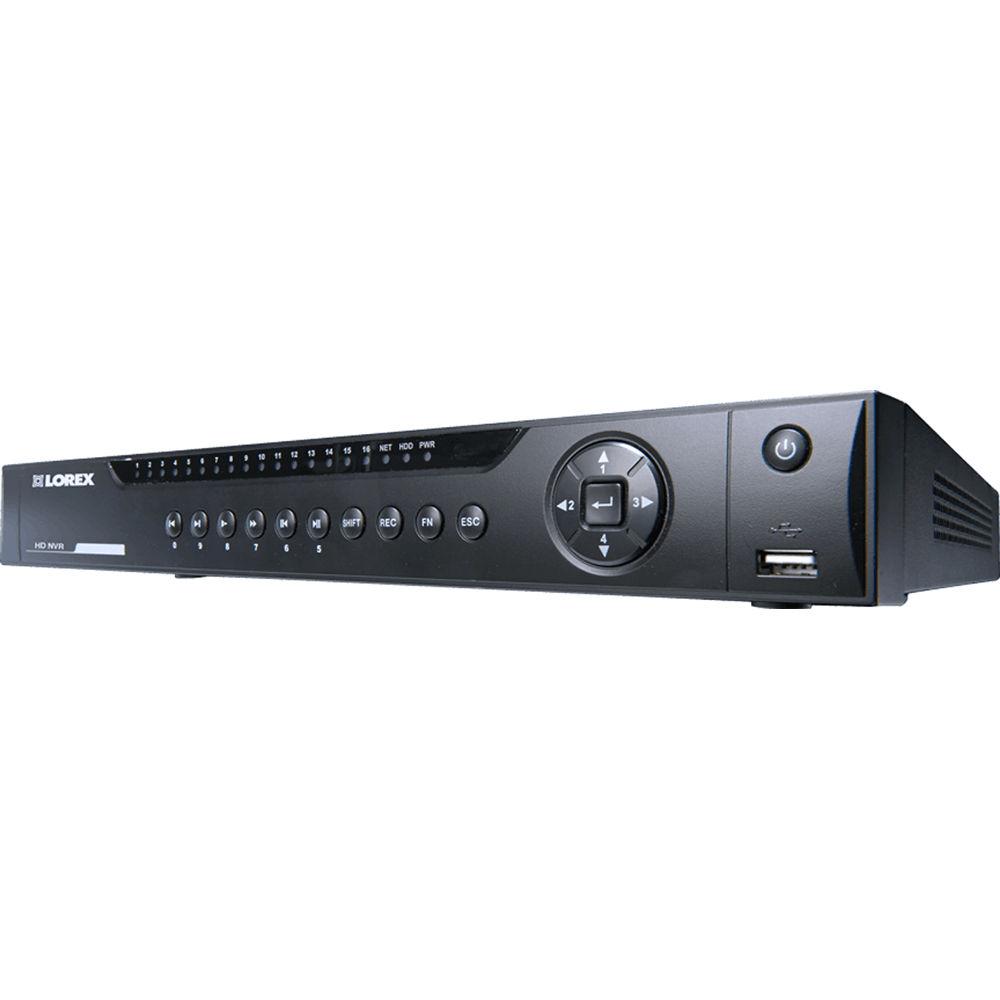

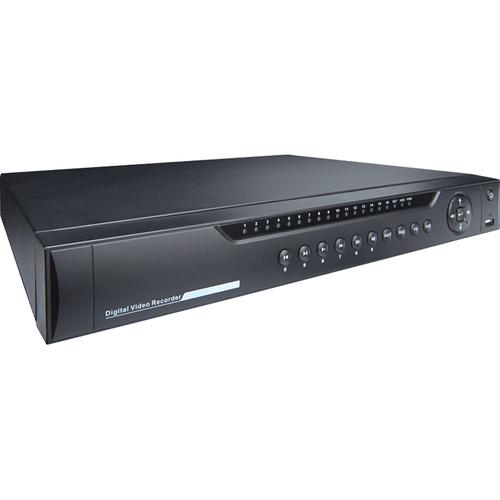

Product description Lorex by FLIR Updates NVRs and Introduces 4MP and PTZ Cameras Read More Manage and record from up to 16 network cameras with the LNR400S Series 16-Channel 4MP NVR with 3TB HDD from Lorex. This network video recorder features 16 channels with PoE and up to 4MP recording resolution. It has HDMI and VGA video outputs to connect to a monitor and display a live view in up to 1080p resolution. Additionally, the NVR offers full audio capabilities with RCA input and output interfaces.
The NVR can record by hour, by day, by recording mode, by motion, or by channel. Furthermore, Pentaplex operation allows for simultaneous viewing, recording, playback, backing up, and remote monitoring. All recordings are compressed using H.264 and MJPEG codecs to maximize your storage and conserve bandwidth and saved onto the preinstalled 3TB HDD. With FLIR Cloud connection you can view live video and access the NVR from a web browser or via the iOS and Android apps.
Note: This NVR is compatible with Lorex by FLIR wired PoE network cameras only and is not compatible with third-party cameras. - Full pentaplex operation to simultaneously view, record, playback, backup, and remotely control the system
- Real-time recording at 25/30 fps per channel
- 16 built-in PoE ports for video and power over a single cable
- Automatically detects compatible IP cameras in the network
- 24/7 security-grade hard drive
- H.264 and MJPEG video compression
- High-capacity storage expandable up to 12TB
- Simultaneous playback and live view on the same screen
- Selectable area digital zoom in live view and playback modes
- Continuous, scheduled, and motion recording modes
- Two video outputs to connect multiple monitor
- HDMI connection supports high-definition video output
- USB backup of live video from a selected camera
- Email alerts with snapshot attachments
- Dual streaming to conserve bandwidth
- Push notifications of motion events
- iOS and Android mobile apps with live viewing, playback, video recording, and snapshot functionality
- Compatible with Windows and Mac OS X
- 3-step remote monitoring with FLIR Cloud
- Automatic firmware updates
- Accurate time stamps with NTP and daylight saving time
- Convenient front panel button controls
- Flip and mirror camera view settings
- Dynamic click-and-drag camera channel assignment
UPC: 695529006352 In the Box Lorex LNR400S Series 16-Channel 4MP NVR with 3TB HDD HDMI Cable Remote Control Power Adapter Mouse Ethernet Cable Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LNR400S Series 16-Channel 4MP NVR with 3TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LNR400S Specs | | | Operating System | Linux embedded | | Pentaplex Operation | Simultaneous view / record / playback / back up / remote monitoring | | Number of Channels | 16 | | | | Video Inputs | 16 (16 x PoE) | | Video Outputs | 1 x VGA
1 x HDMI | | Audio Input | 1 x RCA line in (for service only) | | Audio Output | 1 x RCA line out (for service only) | | USB Ports | 1 x rear
1 x front | | Alarm Inputs | 4 | | Alarm Outputs | 2 | | Video Output Resolution | 1920 x 1080 / 1280 x 1024 / 1280 x 720 / 1024 x 768 | | PTZ Control | Lorex IP PTZ cameras only | | | | Display Split | 1 / 4 / 9 / 16 | | Live Display Speed | NTSC: 480 fps
PAL: 400 fps | | OSD Menu | Camera Title / Time / Camera Lock / Motion Detection / Recording Status | | System Navigation | USB mouse / IR remote control / front panel buttons | | Motion Area Setting | Adjustable grid (22 x 18) | | Motion Sensitivity | 100 levels | | Firmware Upgrade | Automatic over the internet & via USB device and network | | User Authority | By user group | | Time Synchronization | Auto time sync by NTP server | | | | Video Compression | H.264 and MJPEG | | Recording Resolution | 4 MP (2688 x 1520), 3 MP (2048 x 1536), 1080p (1920 x 1080), 720p (1280 x 720) | | Recording Rate | NTSC: 480 fps at up to 4 MP
PAL: 400 fps at up to 4 MP | | Recording Resolution Setting | Different resolutions per camera | | Recording Quality Control | 6 levels | | Recording Schedule | By hour / by day / by recording mode / by motion / by channel | | Pre Recording | 4 seconds maximum | | Post Recording | 5 minutes maximum | | Reliability | Watch-Dog, auto-recovery after power failure | | Covert Video | Yes | | | | Playback Channels | 1 / 4 / 9 / 16 | | Playback Speed | Variable, maximum 16x | | Playback Players | Backup Player | | Search | By time and event | | Log Search | Up to 1000 lines for motion detection, configuration changes, connects/disconnects, video loss | | Audio Play | Yes (audio camera required) | | | | Storage Type | Up to 2 x SATA HDDs | | Maximum Capacity | Preinstalled: 3 TB
Capacity: 12 TB (2 x 6 TB) | | Backup Media | USB Flash Drive, HDD | | Backup File Format | H.264 | | | | Cloud Connectivity | FLIR Cloud | | Supported Operating Systems | Windows, Mac OS X | | Remote Software | Client Software for Windows and Mac OS X | | Email Notification | Text with snapshot | | Mobile OS Support | iOS and Android devices | | DDNS | Lorex DDNS | | System Configuration | Full setup configuration over network | | Ports | Programmable by user | | Network Protocol and Standards | HTTP, IPv4/IPv6, TCP/IP, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter | | Network Interface | RJ45 10/100/1000 Mbps Ethernet | | Bit Rate | Total: 320 Mbps
Per Camera: 48 to 8192 kbps | | | | Power Consumption | Approximately 30 W (without HDD) | | Power Supply Voltage | 100-240 VAC, 50/60 Hz | | PoE Power Output | 130 W
25 W per camera maximum | | Operating Temperature | 14 to 131°F (-10 to 55°C) | | Operating Humidity | 10 to 90% RH | | Dimensions | 14.7 x 12.9 x 2.1" (375 x 327 x 53 mm) | | Weight | 5.5 lb (2.3 kg) | | | | Package Weight | 10.65 lb | | Box Dimensions (LxWxH) | 17.6 x 16.7 x 6.6" |
