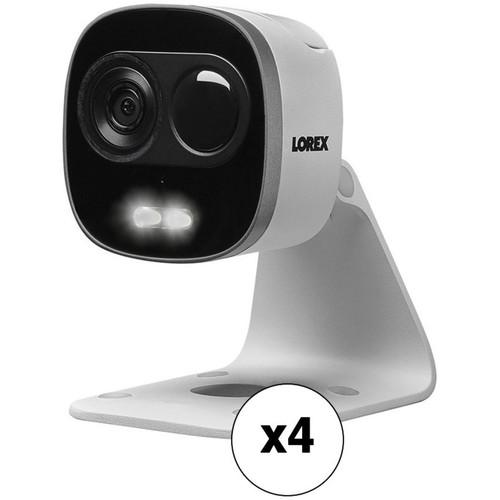

Product description This Kit includes four Lorex LNWCM23X 1080p Active Deterrence Wi-Fi Cameras. They feature programmable and motion-activated dual LED spotlights, motion detection, two-way audio communication, and a built-in siren. - 4 x Lorex LNWCM23X 1080p Active Deterrence Wi-Fi Camera with Night Vision & 16GB microSD Card The LNWCM23X from Lorex uses a 1/2.7" CMOS sensor to capture 1920 x 1080 resolution video at up to 30 fps. This Wi-Fi camera is equipped with IR LEDs that provide up to 65' of night vision. The camera's 2.8mm fixed lens delivers a 135° diagonal field of view. A PIR motion sensor detects motion from heat-generating moving objects like people and animals, which helps to reduce false alarms from other moving objects. Two-way talk is possible thanks to a built-in speaker and microphone. In addition, this camera has a built-in siren to help deter intruders. The Lorex Home app for iOS and Android enables remote viewing and lets users receive notifications.
This device has a built-in memory card slot that accepts microSD cards up to 128GB. A 16GB microSD card is included. The camera is housed in an IP65-rated enclosure that is suitable for outdoor use. - Programmable and motion-activated dual LED spotlights
- Dual motion detection technology (passive infrared and video motion detection)
- Built-in speaker and microphone
- User-activated siren to deter intruders
- 802.11b/g/n wireless standards
- H.265 and H.264 video compression
- No monthly fees or subscription
- Two mounts included for flexible installation options
UPC: 695529017853 In the Box - 4 x LNWCM23X 1080p Active Deterrence Wi-Fi Camera with Night Vision & 16GB microSD Card fzudrbffusxvfsucfdqyayfru
- 16GB microSD Card
- Wall Mount
- Tabletop Stand/Ceiling Mount
- Power Adapter
- Camera Mounting Kit
- Limited 1-Year Warranty for Camera
- Limited 90-Day Warranty for Included Accessories
Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LNWCM23X 1080p Active Deterrence Wi-Fi Camera with Night Vision & 16GB microSD Card in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 4 x Lorex LNWCM23X 1080p Active Deterrence Wi-Fi Camera with Night Vision & 16GB microSD Card
| | | Image Sensor | 2 MP 1/2.7" CMOS sensor | | Resolution | 1920 x 1080 | | Lens | 2.8mm fixed lens | | Aperture | f/2.0 | | Diagonal Field of View (FOV) | 135° | | Night Vision Range | 65' / 20 m | | IR Wavelength | 850 nm | | | | Frame Rate | Up to 25/30 fps | | Video Compression | H.265, H.264 | | Digital Zoom | 16x | | Audio | Built-in microphone and speaker | | Siren | Built-in | | | | Wireless | Wi-Fi: 802.11b/g/n | | Frequency | 2.4 GHz | | Mobile App | Lorex Home for iOS and Android | | | | Technology | Passive infrared (PIR), video motion detection (VMD) | | Configurable Region | Yes | | | | Memory Capacity | Supports microSD cards up to 128GB (16 GB card included) | | | | Power Supply | 5 VDC, 2 A | | Operating Temperature | -4 to 122°F / -20 to 50°C | | Humidity Range | <95% RH | | IP Rating | IP65 | | Certifications | CE, FCC | | Dimensions | 2.4 x 4.1 x 6.9" / 60 x 105 x 175.5 mm | | Weight | 1.05 lb / 0.48 kg | | | | Box Dimensions (LxWxH) | 9.2 x 4.7 x 3.0" |
