Product description - LNZ32P4BW HD IP PTZ security camera

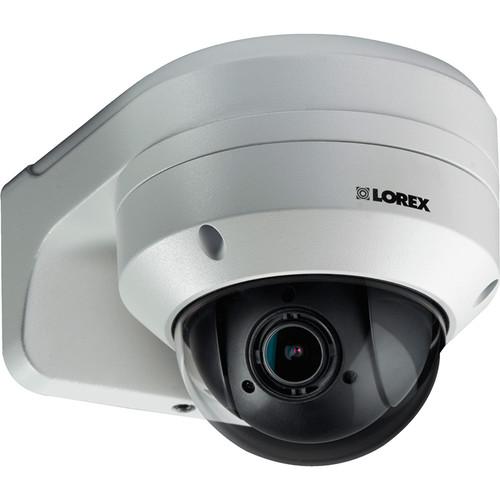

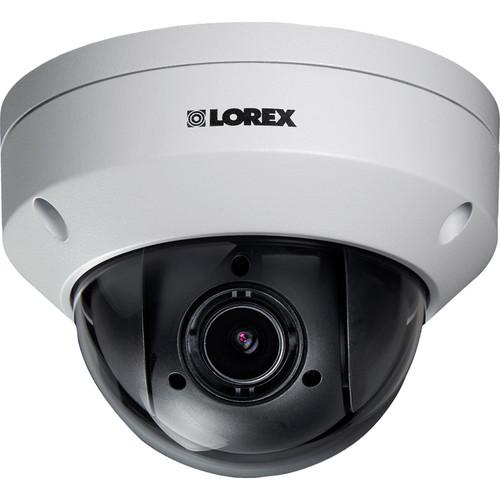

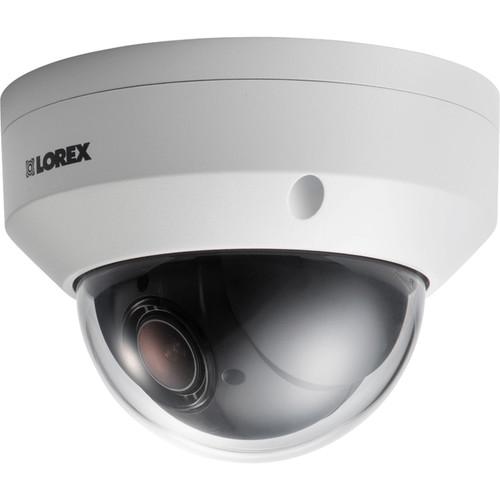

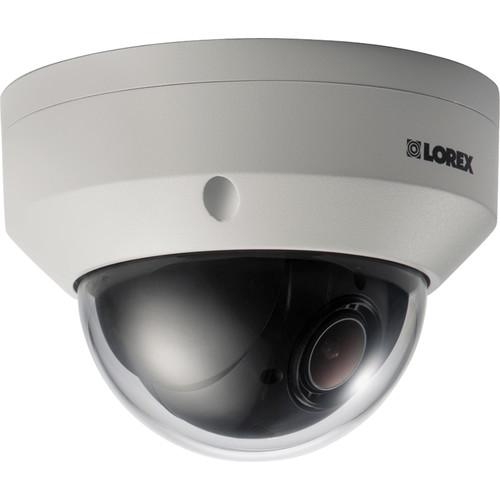

Featuring an IP66-rated housing, the LNZ32P4B 2.1MP Outdoor PTZ Network Dome Camera from Lorex by FLIR can function outdoors, in inclement weather, and in extreme temperatures for use in a wide range of environments. It is equipped with a 1/2.7" progressive scan CMOS sensor for up to 1920 x 1080 video resolution, and it uses a 2.7-11mm varifocal lens for a 95 to 30° horizontal field of view. In addition, you can pan the camera 355°, tilt it 90°, and optically zoom the camera up to 4x to choose the exact area you would like to monitor. You can also digitally zoom up to 16x for focusing within your field of view. The camera uses a mechanical IR cut filter for switching between color and B&W images in varying light conditions, and it features a ClearNight imaging function for clear video in low lighting and maximum recording efficiency. The RJ45 Ethernet connection includes PoE technology, enabling you to use one interface for both data and power transfer, minimizing the number of wires required for setup. This camera comes with a wall mount bracket, 100' Cat5e Ethernet cable, and a mounting kit for installation. - 1/2.7" CMOS progressive scan sensor produces 2.1MP resolution
- 4x optical zoom for focusing on details and 16x digital zoom for focusing within your FOV
- Color Night Vision provides full color nighttime video for recognizing objects in low light
- ClearNight imaging for capturing clear video in low lighting and for maximum recording efficiency
- 355° panning range at 100°/second for viewing a large coverage area
- Control PTZ camera movements and transmit video over a single network cable
- Program preset viewing points and tours when connected to an NVR
- Remotely control the PTZ function using a smartphone or tablet when connected to an NVR
- Picture automatically switches to B&W in low-light settings for clear images
- Infrared cut filter ensures accurate color representation
- Weatherproof camera with extreme temperature performance for use in -22 to 140°F
- Includes wall mount bracket and 100' extension cable for installation flexibility
UPC: 695529004341 In the Box Lorex LNZ32P4B 2.1MP Outdoor PTZ Network Dome Camera Wall Mount Bracket Ethernet Cable (100') Mounting Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LNZ32P4B 2.1MP Outdoor PTZ Network Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LNZ32P4B Specs | Image Sensor | 2.1 MP, 1/2.7" progressive scan CMOS | | Video Format | NTSC / PAL | | Effective Pixels | 1920 x 1080 | | Resolution | Up to 1080p | | Range | Panning: 0 to 355°
Tilting: 0 to 90° | | Pan / Tilt Speed | Manual Speeds:
Pan: 80°/second (max)
Tilt: 40°/second (max)
Preset Speeds:
Pan: 100°/second (max)
Tilt: 60°/second (max)
Tour Speeds:
Pan: 80°/second
Tilt: 40°/second | | Zoom | Optical Zoom: 4x
Digital Zoom: 16x | | Sync System | Internal | | Signal to Noise Ratio | ≥ 50 dB | | Iris | Auto iris | | AES Shutter Speed | 1/1 to 1/30,000 seconds | | Minimum Illumination | Color: 0.1 lux
B&W: 0.05 lux | | Lens | 2.7-11mm @ f/1.6 to 2.7 | | Focus | Auto and manual | | Field of View | Horizontal: 95 to 30° | | Termination | RJ45 10/100M Ethernet | | Day/Night | IR cut filter | | Night Vision | Color | | Power Requirements | PoE Class 2, 12 VDC | | Power Consumption | 500 mA (max) | | Operating Temperature | -22 to 140°F / -30 to 60°C | | Operating Humidity | < 95% RH | | Ratings | IP66 | | Dimensions | Ø4.8 x 3.5" / Ø122 x 88 mm | | Weight | Camera: 1.2 lb / 0.5 kg
Camera with Wall Mount: 2.4 lb / 1.1 kg | | | | Package Weight | 5.5 lb | | Box Dimensions (LxWxH) | 14.4 x 7.1 x 7.0" |
