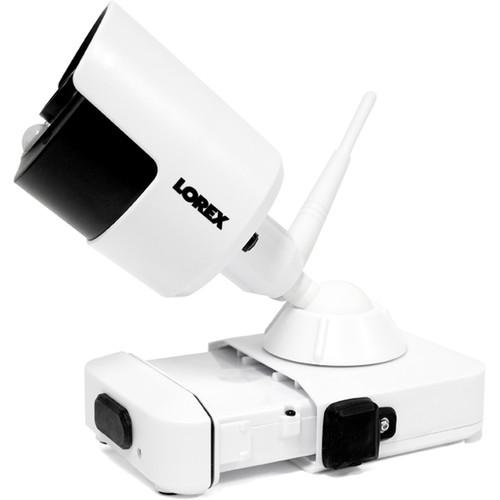

User Manual for Lorex LWB3801AC1B 1080p Outdoor Wire-Free Bullet Camera with Night Vision Click to enlarge the picture
Contents of the user manual for the Lorex LWB3801AC1B 1080p Outdoor Wire-Free Bullet
- Product category: Wireless Cameras Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Wireless Cameras
 |
User manual for the Lorex LWB3801AC1B 1080p Outdoor Wire-Free Bullet contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|
Product description Add an LWB3801AC1B 1080p Outdoor Wire-Free Bullet Camera with Night Vision from Lorex to your LHB900 and LHB800 series HD DVR. This camera has a 2.1 MP CMOS sensor to capture video at a resolution up to 1920 x 1080. A dozen integrated IR LEDs deliver up to 26' of night vision. The camera's 88° field of view allows you to cover a wide area. A built-in PIR motion sensor is capable of detecting heat from moving objects like people, animals, or vehicles from up to 26' away. This device transmits in the 2.4 GHz operating frequency, and has an unobstructed wireless signal range up to 450' that provides many placement options for the wire-free camera. The included rechargeable power pack delivers up to four months of battery life. This camera is housed in an IP65-rated enclosure that is suitable for outdoor use. - Compatible with Lorex LHB900 and LHB800 series HD DVRs
- DIY wire-free installation
- Automatic wake up when motion is detected
- Built-in PIR camera motion sensor
- Frequency-hopping spread spectrum (FHSS) technology reduces crosstalk with competing signals
- Tamper resistance thanks to quick-mount functionality that locks the camera securely in place

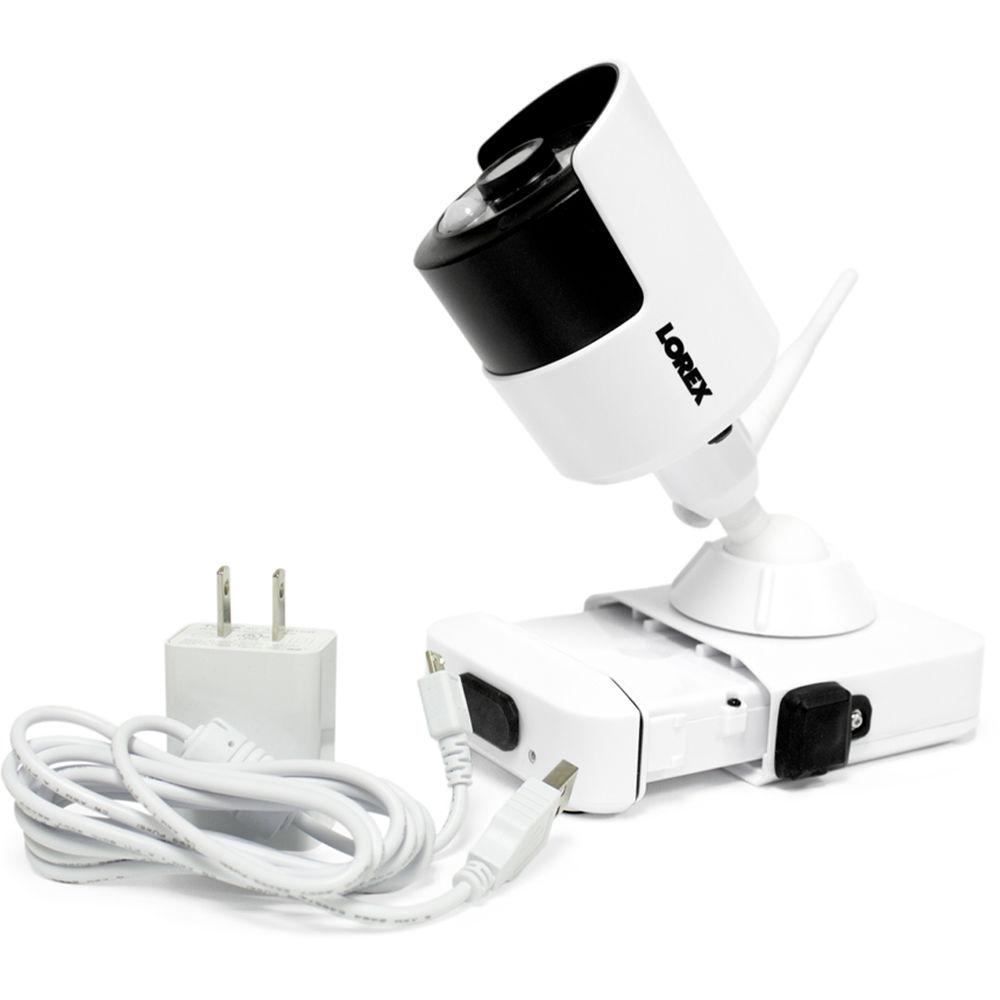

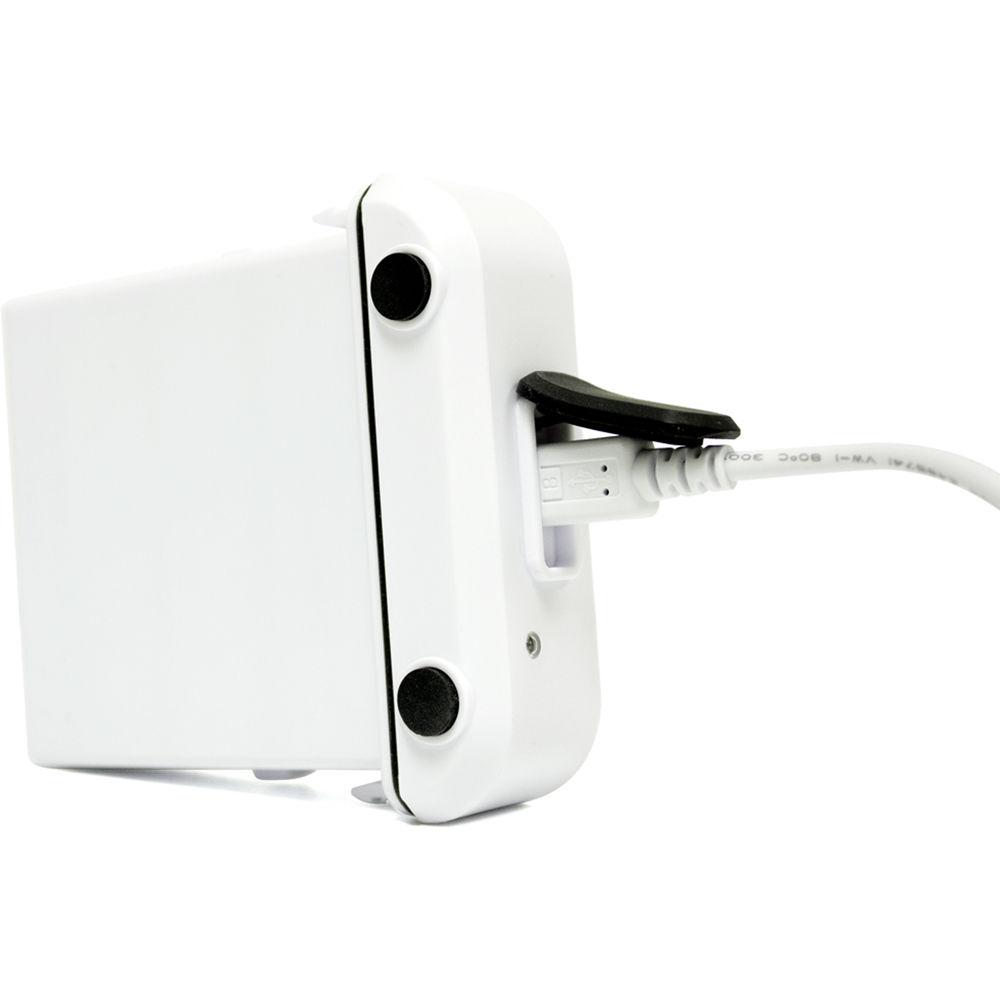

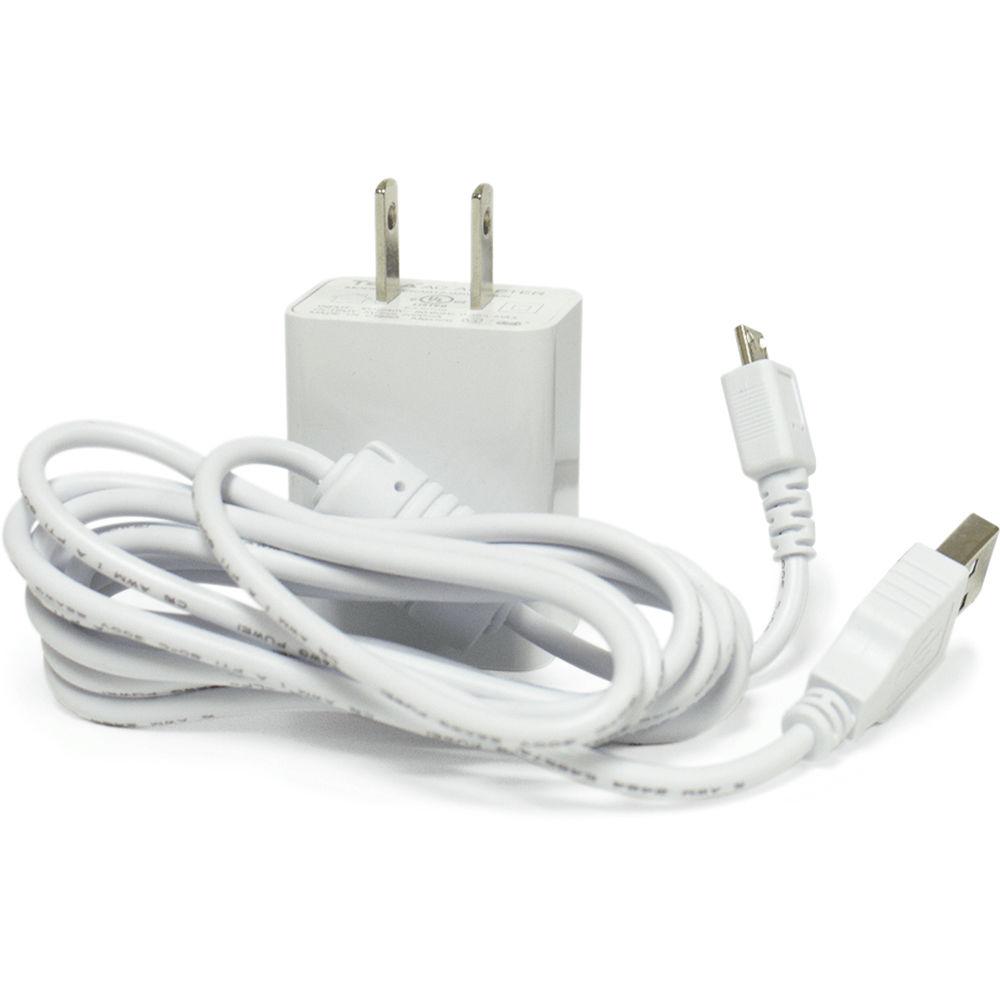

UPC: 695529012292 In the Box Lorex LWB3801AC1B 1080p Outdoor Wire-Free Bullet Camera with Night Vision Camera Antenna Rechargeable Power Pack Power Pack Adapter Mounting Kit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LWB3801AC1B 1080p Outdoor Wire-Free Bullet Camera with Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LWB3801AC1B Specs | Compatibility | Lorex LHB900 and LHB800 series HD DVRs | | Image Sensor | 2.1 MP CMOS | | Resolution | Up to 1080p (1920 x 1080) | | Field of View | 88° | | Night Vision | Ambient Lighting: 40' / 12 m
Total Darkness: 26' / 8 m
| | Number of IR LEDs | 12 x 850 nm | | IR Cut Filter | Yes | | Video Compression | H.264 | | PIR Sensor Range | Up to 20' / 6 m | | Wireless Range | 450' (137 m) maximum | | Operating Frequency | 2.4 GHz | | Battery | 5200 mAh (2-cell power pack) | | Battery Type | Lithium-ion (rechargeable) | | Battery Level Indicator | Yes | | IP Rating | IP65 | | Operating Temperature | -4 to 113°F / -20 to 45°C | | Operating Humidity Range | 30 to 90% RH | | Dimensions (W x D x H) | 3.8 x 7.2 x 6.1" / 96 x 182 x 154 mm | | Weight | 0.9 lb / 0.4 kg (including power pack) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 11.3 x 4.4 x 4.3" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
