Lorex LWB3822B 1080p Outdoor Wire-Free Bullet

Search your instruction manual in PDF to download

User Manual for Lorex LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision for Lorex Wire-Free HD DVR Systems

Click to enlarge the picture
Lorex LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision for Lorex Wire-Free HD DVR Systems Contents of the user manual for the Lorex LWB3822B 1080p Outdoor Wire-Free Bullet
  • Product category: Wireless Cameras Lorex
  • Brand: Lorex
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Lorex Wireless Cameras

Lorex LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision for Lorex Wire-Free HD DVR Systems Lorex LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision for Lorex Wire-Free HD DVR Systems Lorex LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision for Lorex Wire-Free HD DVR Systems Lorex LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision for Lorex Wire-Free HD DVR Systems Lorex LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision for Lorex Wire-Free HD DVR Systems
User manual for the Lorex LWB3822B 1080p Outdoor Wire-Free Bullet contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Lorex product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!



Product description

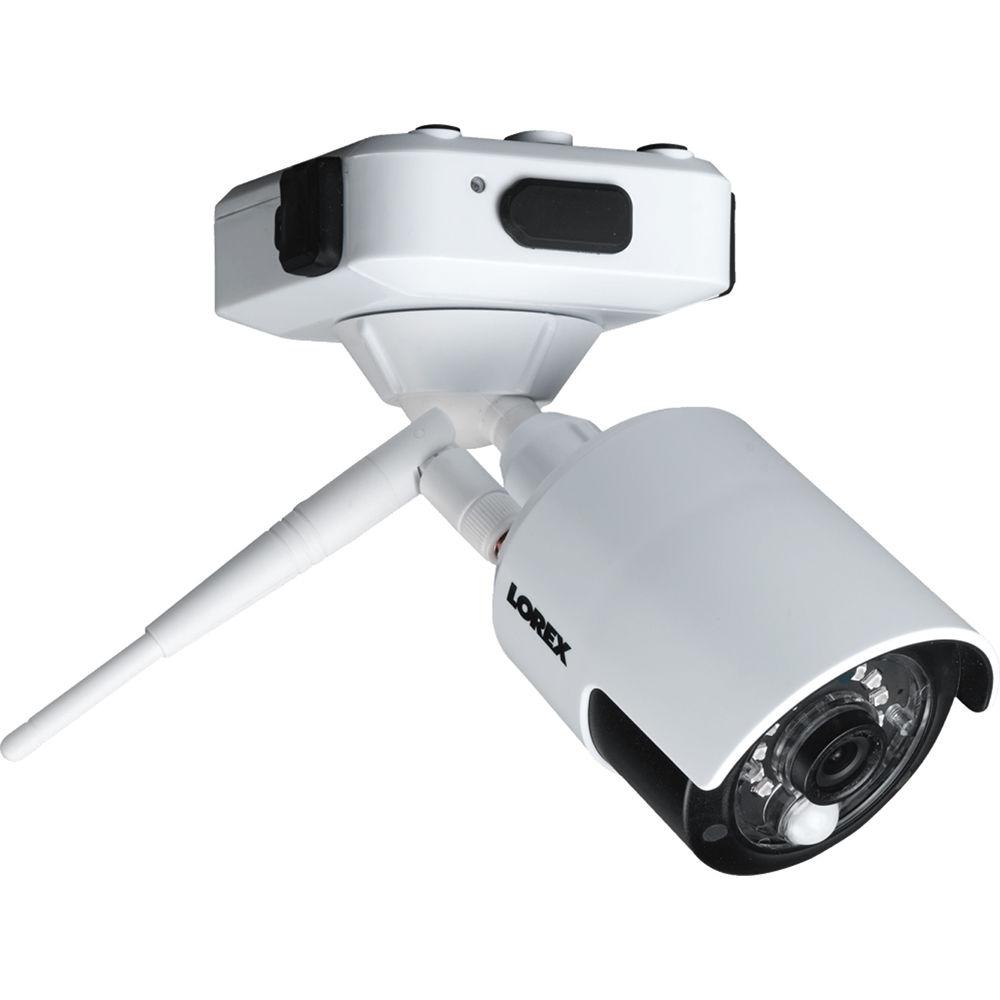

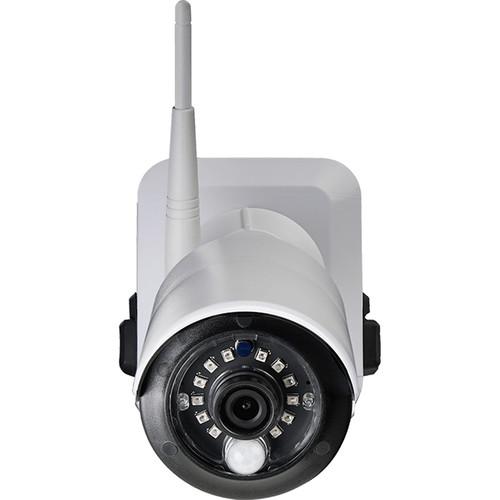

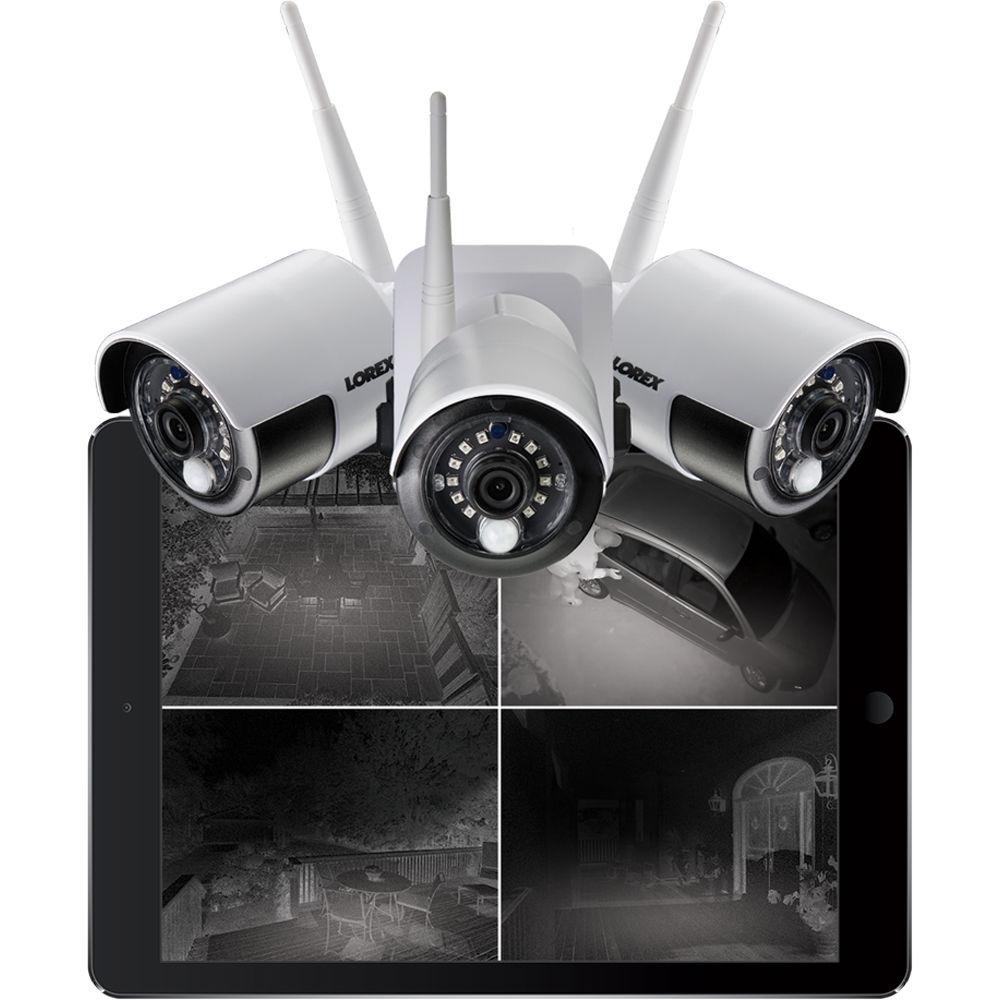

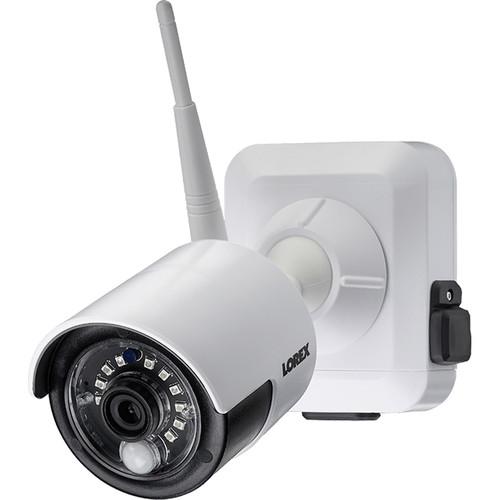

Add two LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision from Lorex to your LHB900 and LHB800 series HD DVR. These cameras have a 2.1 MP CMOS sensor to capture video at a resolution up to 1920 x 1080. A dozen integrated IR LEDs deliver up to 26' of night vision. The 88° field of view enables the cameras to cover a wide area. A built-in PIR motion sensor is capable of detecting heat from moving objects like people, animals, or vehicles from up to 26' away. These cameras transmit in the 2.4 GHz operating frequency, and have an unobstructed wireless signal range up to 450' that provides many placement options for the wire-free cameras. The included rechargeable power packs deliver up to four months of battery life. The cameras are housed in IP65-rated enclosures that are suitable for outdoor use.
  • Compatible with Lorex LHB900 and LHB800 series HD DVRs
  • DIY wire-free installation
  • IR cut filter
  • Built-in PIR camera motion sensor
  • Frequency-hopping spread spectrum (FHSS) technology reduces crosstalk with competing signals
  • Tamper resistance thanks to quick-mount functionality that locks the camera securely in place
In the Box Lorex LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision (2-Pack) for Lorex Wire-Free HD DVR Systems
  • 2 x Mounting Brackets

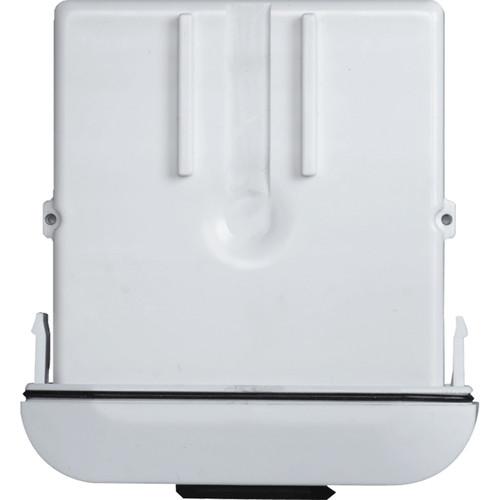

  • 2 x Rechargeable Power Packs
  • 2 x Mounting Screws
  • 2 x Drywall Anchors
  • 2 x Allen Keys
  • Wireless Receiver
  • Limited 1-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Lorex LWB3822B 1080p Outdoor Wire-Free Bullet Cameras with Night Vision for Lorex Wire-Free HD DVR Systems in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Lorex LWB3822B Specs

    Compatibility Lorex LHB900 and LHB800 series HD DVRs
    Image Sensor 2.1 MP CMOS
    Resolution Up to 1080p (1920 x 1080)
    Field of View 88°
    Night Vision Ambient Lighting: 40' (12 m)
    Total Darkness: 26' (8 m)
    Number of IR LEDs 12 x 850 nm
    IR Cut Filter Yes
    Video Compression H.264
    PIR Sensor Range Up to 20' (6 m)
    Wireless Range 450' (137 m) maximum
    Operating Frequency 2.4 GHz
    Battery 5200 mAh (2-cell power pack)
    Battery Type Lithium-ion (rechargeable)
    Battery Level Indicator Yes
    IP Rating IP65
    Operating Temperature -4 to 113°F (-20 to 45°C)
    Operating Humidity Range 30 to 90% RH
    Dimensions (W x D x H) 3.8 x 7.2 x 6.1" (96 x 182 x 154 mm)
    Weight 0.9 lb (0.4 kg) (including power pack)
    Package Weight 4.05 lb
    Box Dimensions (LxWxH) 10.9 x 9.3 x 4.7"
