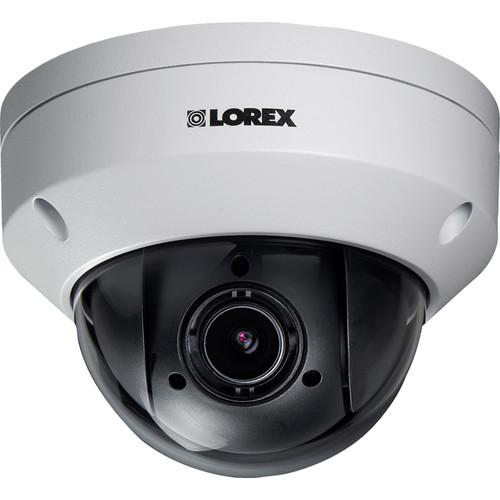

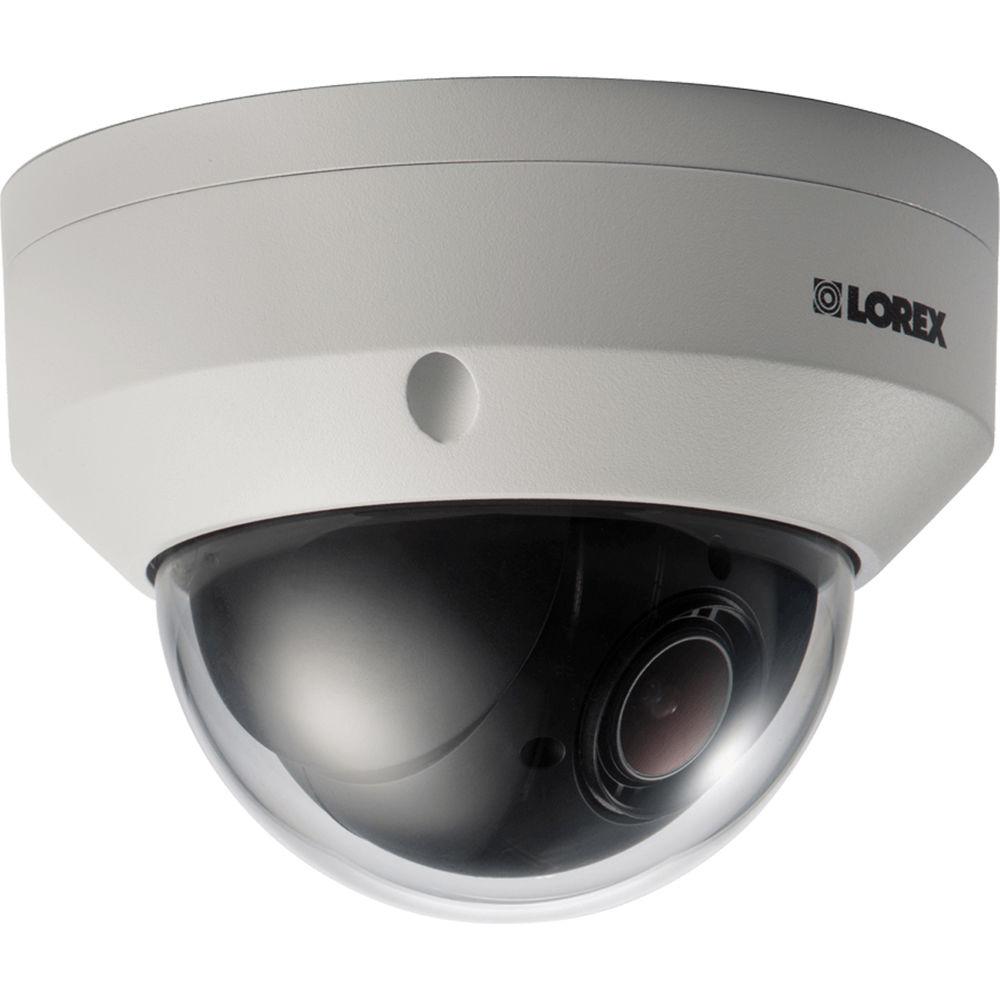

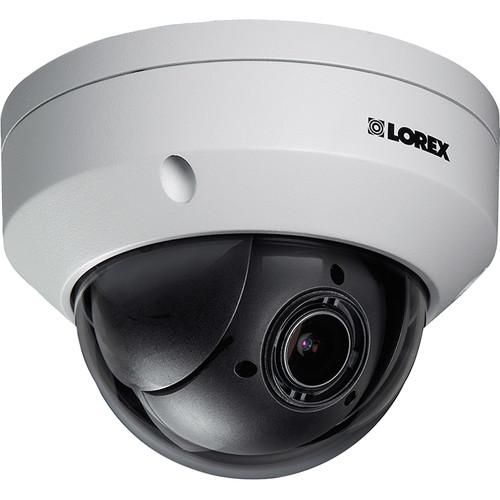

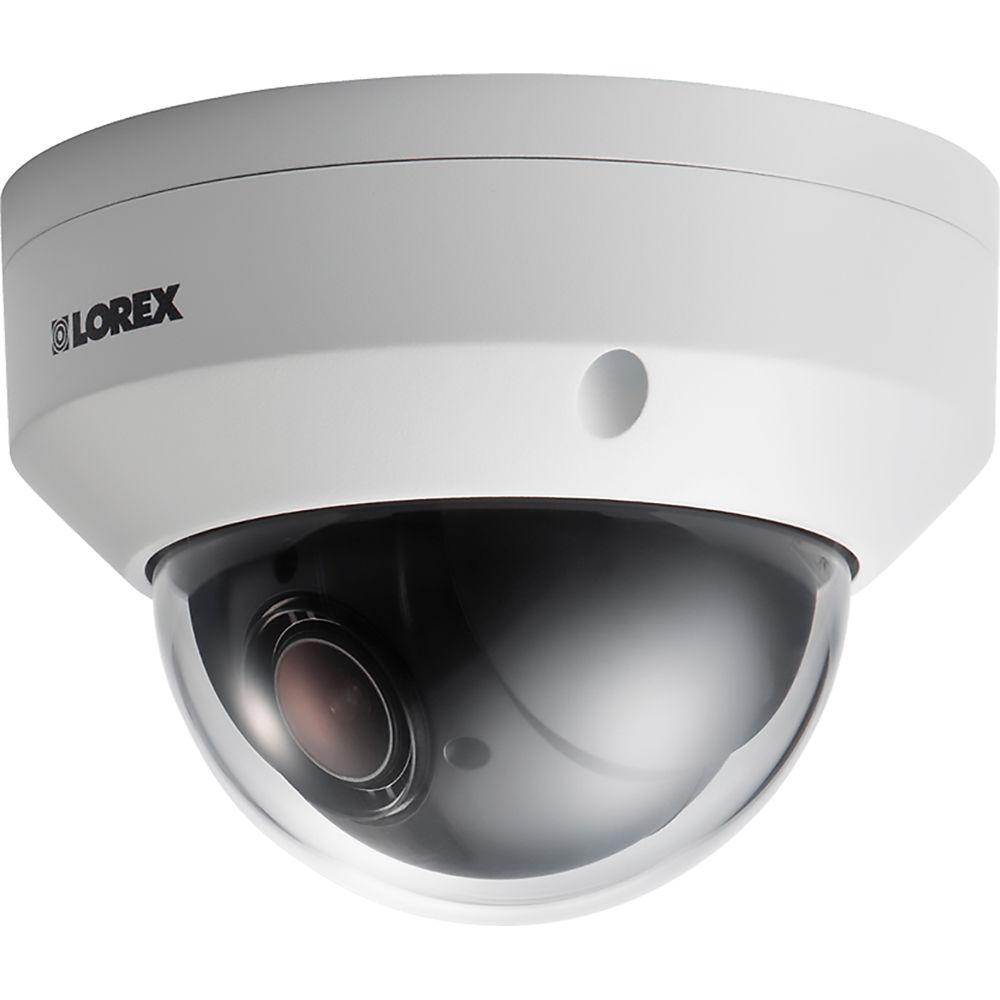

Product description - LZV2622B - Day / Night Video Footage
With a 4x optical zoom, the LZV2622B Series 2.1MP Outdoor PTZ Dome Camera from Lorex by FLIR is well-suited for use in large, open areas. It has a 1/2.7" progressive scan CMOS sensor to capture 1080p video during the day, while its IR cut filter helps produce clearer images in low-light scenes. The camera's 2.7-11mm varifocal lens has a wide 95-30° horizontal field of view to monitor large areas. You can remotely control the cameras pan, tilt, and zoom functions to monitor specific regions or areas and get a closer look. The IP66-rated enclosure makes this camera suitable for outdoor use. - 2.1MP 1/2.7" progressive scan CMOS sensor captures 1920 x 1080 resolution video over coax cable
- 2.7-11m varifocal lens has a wide 95-30° horizontal field of view
- An IR cut filter, and ClearNight and Color Night Vision technology deliver full color nighttime video for improved recognition of objects in low-light conditions
- Control 0-355° pan, 0-90° tilt, and 4x optical zoom over a coax cable to provide the ideal viewing position to fit your needs
- Program preset viewing points and tours, and control the camera from a smartphone or tablet when connected to a DVR
- Extend the video signal up to 800' with a single RG59 coaxial cable (available separately)
- IP66-rated for protection against dust and water
UPC: 695529006475 In the Box Lorex LZV2622B Series 2.1MP Outdoor PTZ Dome Camera Mounting Hardware Mounting Template 60' BNC/Power Extension Cable Power Adapter Allen Key Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LZV2622B Series 2.1MP Outdoor PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LZV2622B Specs | Image Sensor | 2.1 MP 1/2.7" progressive scan CMOS sensor | | Effective Pixels | 1928 x 1088 | | Resolution | Up to 1920 x 1080 | | Pan | 0-355°
Manual Speed: Up to 80°/s
Preset Speed: Up to 100°/s
Tour Speed: Up to 80°/s | | Tilt | 0-90°
Manual Speed: Up to 40°/s
Preset Speed: Up to 60°/s
Tour Speed: Up to 40°/s | | Zoom | 4x optical, 16x digital | | Protocol | HD-CVI | | Sync System | Internal | | S/N Ratio | ≥ 55 dB | | Iris | Auto | | AES Shutter Speed | 1/1 to 1/30,000 s | | Minimum Illumination | 0.1 lux (color), 0.05 lux (B&W) | | Video Output | MPX | | Lens | 2.7-11mm with auto and manual focus | | Aperture | f/1.6-2.7 | | Field of View | Horizontal: 95-30° | | Termination | BNC coax / DC Power / RS-485 | | IP Rating | IP66 | | Power Requirements | 12 VDC | | Power Consumption | 600 mA (maximum) | | Operating Temperature | -22 to 140°F (-30 to 60°C) | | Operating Humidity | < 95% RH | | Dimensions | Ceiling Mounted: 3.5 x 4.8" (88 x 122 mm)

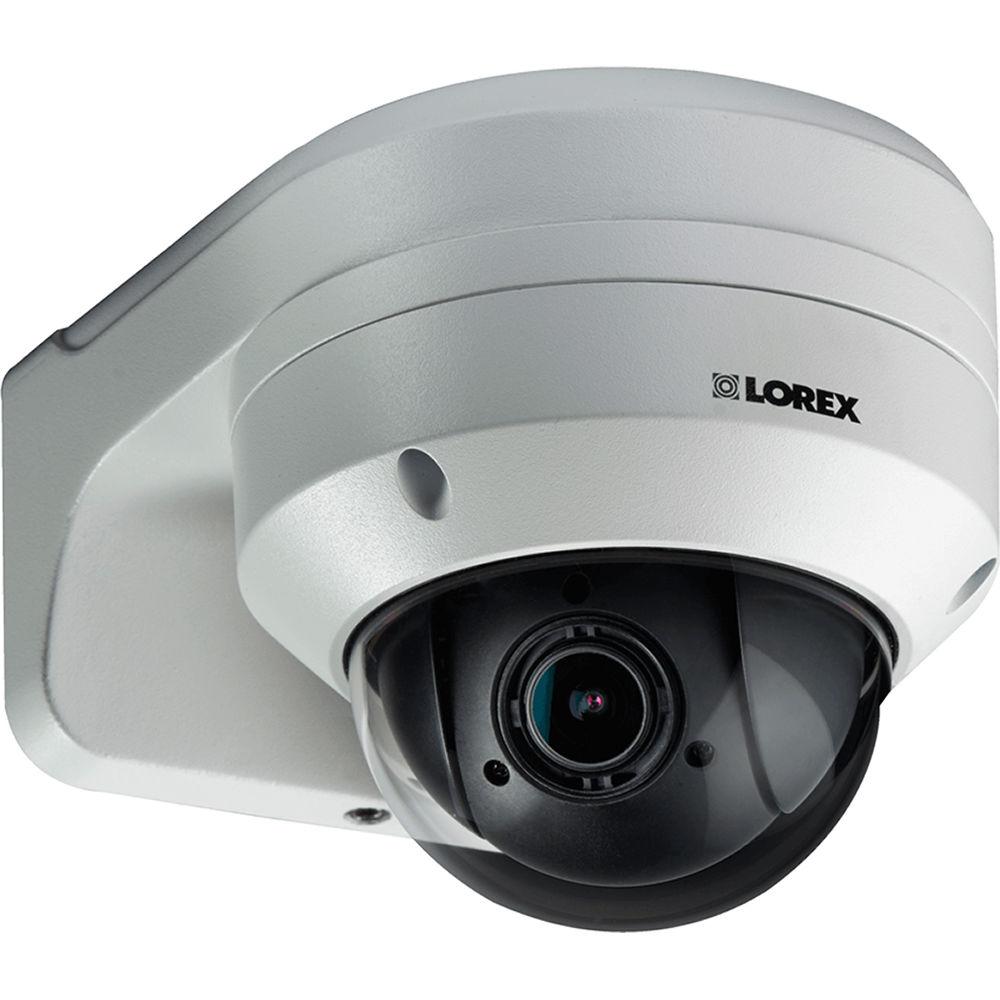

Wall Mounted: 6.2 x 4.8 x 4.8" (160 x 122 x 122 mm) | | Weight | Camera Only: 1.2 lb (0.5 kg)
Camera and Wall Mount: 2.4 lb (1.1 kg) | | | | Package Weight | 4.45 lb | | Box Dimensions (LxWxH) | 14.5 x 7.3 x 6.8" |
