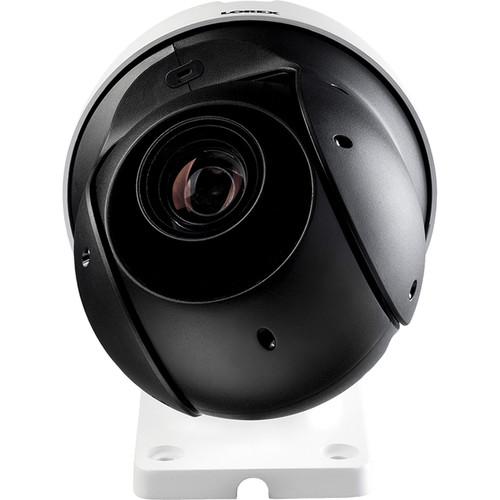

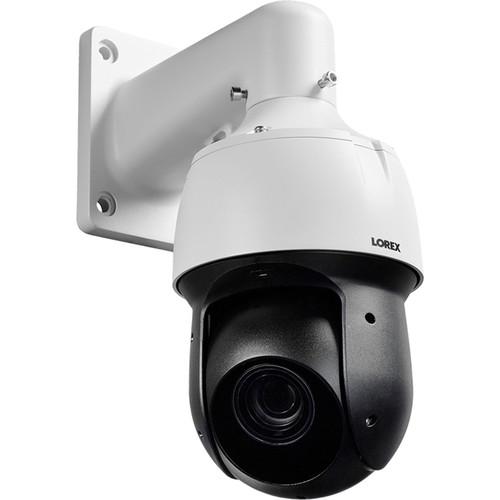

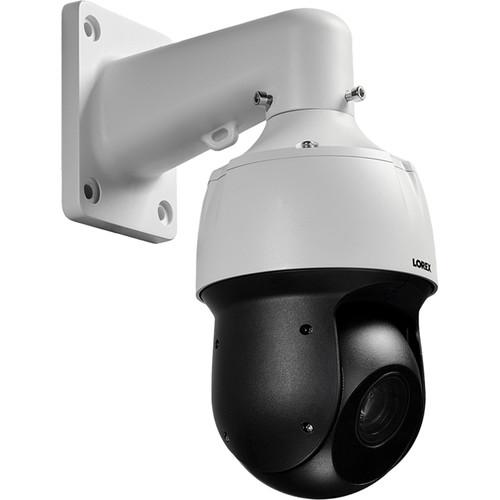

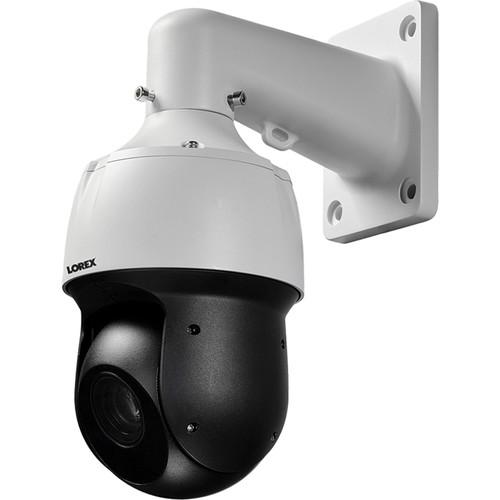

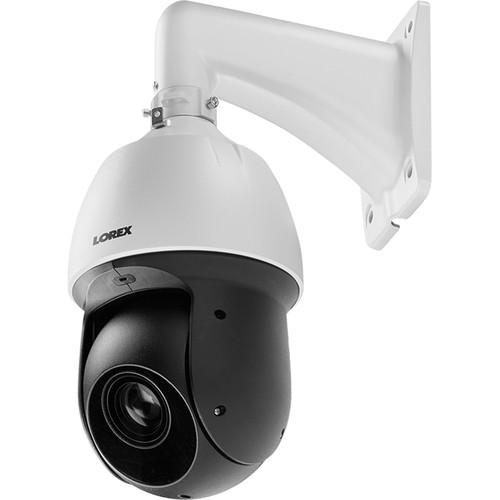

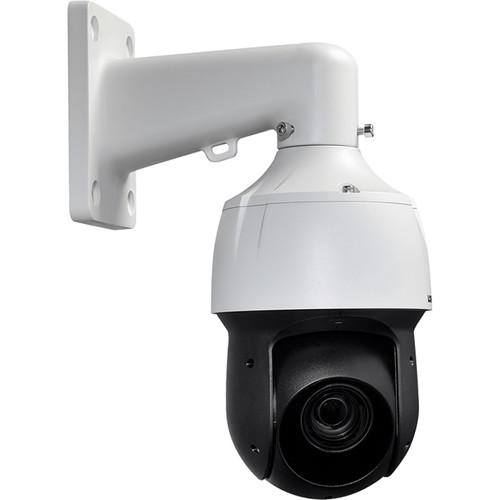

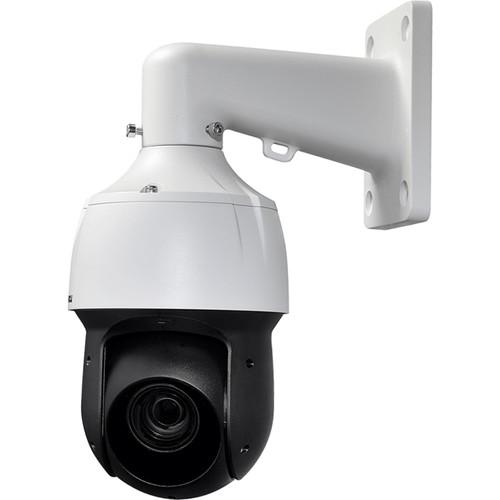

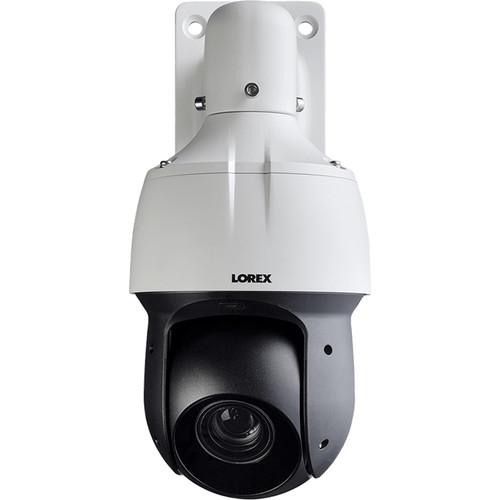

User Manual for Lorex LZV2925B 1080p Outdoor MPX PTZ Dome Camera with Color Night Vision Click to enlarge the picture
Contents of the user manual for the Lorex LZV2925B 1080p Outdoor MPX PTZ
- Product category: Wired Analog & HD Cameras Lorex
- Brand: Lorex
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Lorex Wired Analog & HD Cameras
 |
User manual for the Lorex LZV2925B 1080p Outdoor MPX PTZ contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Lorex product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Lorex user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Lorex product will considerably shorten its lifespan!
|
Product description The LZV2925B from Lorex uses a 1/2.8" progressive scan sensor to transmit 1920 x 1080 resolution video. IR LEDs provide up to 300' of color night vision in ambient lighting. The camera's 4.8-120mm varifocal lens delivers a 59.2-2.4° horizontal field of view. The camera features endless panning, a -15 to 90° tilt range, and 25x optical zoom.
This PTZ camera transmits HD-CVI, HD-TVI, AHD, and standard analog (CVBS) signals thanks to MPX multi-format technology. It is housed in an IP66-rated enclosure that is suitable for outdoor use. - NTSC and PAL video systems
- MPX technology utilizes a BNC type connection for a simple installation that does not require additional cables
- Supports HD-CVI, HD-TVI, AHD, and CVBS signal outputs
- 25x optical and 16x digital zoom
- High dynamic range technology
- Operates in temperatures as low as -40°F
- Mobile app for remote viewing and adjustments
- Can be mounted on a wall or ceiling
- Wall mount and mounting hardware included
- PTZ Functions
-
- Endless panning
- Maximum 240°/s preset pan speed
- -15 to 90° tilt range (auto flip)
- Maximum 200°/s preset tilt speed
- Program preset viewing points, patterns, scan cycles, and tours when connected to DVR (available separately)
- Unlimited PTZ tours
- Pelco P and Pelco D protocols
UPC: 695529015118 In the Box Lorex LZV2925B 1080p Outdoor MPX PTZ Dome Camera with Color Night Vision 3 x Allen Bolts 60' Extension Cable 4 x Flat Washers Power Adapter 4 x Allen Keys 4 x Screws and Anchors Wall Mount Bracket Safety Chain Limited 1-Year Warranty for Camera Limited 90-Day Warranty for Included Accessories Table of Contents
|
Upload User Manual
Have you got an user manual for the Lorex LZV2925B 1080p Outdoor MPX PTZ Dome Camera with Color Night Vision in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLorex LZV2925B Specs | Image Sensor | 2.1 MP 1/2.8" | | Scan System | Progressive | | Video System | NTSC, PAL | | Effective Pixels (H x V) | 1920 x 1080 | | Resolution | 1920 x 1080 | | Panning Range | 0 to 360° (endless) | | Tilting Range | -15 to 90° (auto flip) | | Preset Speeds | Pan: Maximum 240°/s
Tilt: Maximum 200°s | | Zoom | 25x optical
16x digital | | Protocols | Pelco P
Pelco D | | Lens | 4.8-120mm varifocal auto focus lens | | Aperture | f/1.6-4.4 | | Iris | DC auto iris with hall effect | | Minimum Illumination | Color: 0.1 lux
B&W: 0.01 | | Field of View | Horizontal: 59.2-2.4°
Diagonal: 67.5-3.2° | | IR Range | 300' / 91 m in ambient lighting | | High Dynamic Range | Yes | | Digital Noise Reduction | Yes | | S/N Ratio | ≥55 dB with AGC off | | Termination | BNC video, 12 VDC power, RS-485 | | Video Output | HD-CVI, HD-TVI, AHD, CVBS | | Power Requirement | 12 VDC ±10% | | Power Consumption | Maximum 3 A | | Operating Temperature | -40 to 158°F / -40 to 70° | | Operating Humidity | Within 90% RH | | IP Rating | IP66 | | Dimensions | 6.3 x 11.6" / 160 x 295 mm | | Weight | 6.6 lb / 3 kg
8.6 lb / 3.9 kg (with wall mount) | | | | Package Weight | 16.69 lb | | Box Dimensions (LxWxH) | 20.6 x 12.2 x 12.0" |
