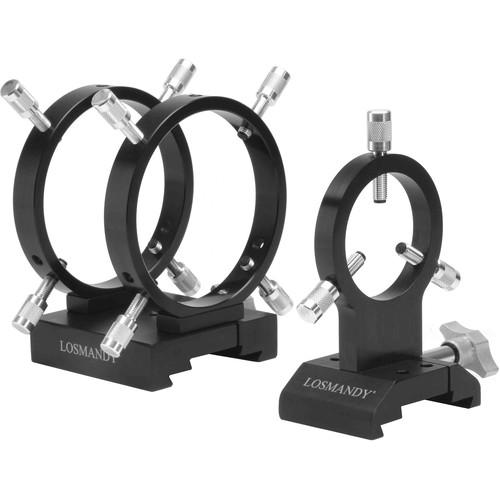

Product description The DVR108/66 from Losmandy is a set of three mounting rings designed for use with an AutoGuider. The set includes two 4.25" (108mm) guide scope rings and a single DVR66 mounting ring.
The rings attach to Losmandy "D" style and Vixen "V" style plates via a tool-less dovetail clamp on the bottom of each ring. Once attached, the guide scope may be inserted into the rings and adjusted via three 7075 aluminum positioning screws which feature 1/4" Delrin tips. UPC: 851868007294 In the Box Losmandy DVR108/66 Three Ring AutoGuider Scope Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Losmandy DVR108 66 Three Ring AutoGuider Scope Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLosmandy DVR 108/66 Specs | Maximum Diameter | DVR108 Rings: 4.25" (108 mm)
DVR66 Ring: Not specified by manufacturer | | Size Range | DVR108 Rings: 2.96" to 4.32" (75 to 109.7 mm)
DVR66 Rings: Not specified by manufacturer | | Screw Type | 7075 aluminum with 1/4" Delrin tips | | Mounting Method | Dovetail clamp | | Weight | 2.8 lb (1.3 kg) | | | | Package Weight | 3.405 lb | | Box Dimensions (LxWxH) | 8.4 x 8.25 x 4.55" |
