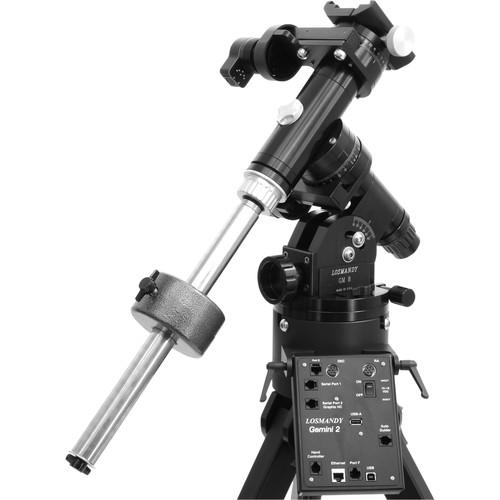

User Manual for Losmandy GM-8G Equatorial GoTo Mount with Tripod Click to enlarge the picture
Contents of the user manual for the Losmandy GM-8G Equatorial GoTo Mount with
- Product category: Mounts Losmandy
- Brand: Losmandy
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Losmandy Mounts
|
User manual for the Losmandy GM-8G Equatorial GoTo Mount with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Losmandy product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Losmandy user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Losmandy product will considerably shorten its lifespan!
|
Product description Losmandy's GM-8G Equatorial GoTo Mount is an upgrade from the basic version of this mount with the addition of dual-axis high-torque DC servo motors and the Gemini 2 computer-controlled GoTo system. All hardware is made of stainless steel to resist wear over years of use, while a dual dovetail saddle will accept the common Vixen-style plates and the larger Losmandy D-style plates. DC servo motors are reversible for use in the Northern and Southern Hemispheres and are powered by the included 12 VDC car/vehicle power adapter. Supporting the head and optical tube assembly (OTA) is an aluminum tripod with an adjustable height to accommodate a wide variety of users.The brain of the GM8 mount is Losmandy's Gemini 2 computer hand controller. Equipped with a 40,000+ object database and updatable via the Internet, it sports a full-color display, an intuitive user interface, and an Ethernet 10/100 port for remote PC control. It features Periodic Error Correction (PEC) and declination-axis backlash correction to provide accurate, precise, and smooth tracking over long periods of time. Multiple guide, slew, and tracking rates allow it to be easily aligned and manually controlled and to accurately track near- and deep-sky objects. A non-volatile memory and real-time clock preserve settings, including backlash correction and PEC, when the system is turned off and power is disconnected. - Mount
-
- Motorized German equatorial
- Payload capacity: 30 lb for instrument, 60 lb total including counterweight(s)
- Includes 7 lb counterweight with removable 1.25" shaft
- Locking tangent arm altitude adjustment, 6-68° range
- Laser-engraved latitude scale in 2° increments
- Tiltable control panel optimizes position for comfort and ease of use
- Losmandy- and Vixen-style dual dovetail saddle
- Weight: 21 lb including motor assembly
- Gears and Motors
-
- Dual-axis high-torque DC servo motors
- One 2.1" diameter needle thrust bearing
- One 2" diameter needle thrust bearing
- Two 1.5" diameter needle bearings
- 2.812" diameter, 7075 aluminum worm gear, 180 tooth
- Dual supported, ball bearing; brass worm
- Variable slip clutch, both axes
- 1.25" diameter aluminum shafts
- Gemini 2 Computer System
-
- Intuitive touch-screen controls
- 40,000+ object database
- Full-color touch screen clearly displays all functions
- Easy-to-use four-button pattern for guiding, centering, moving, and slewing
- Three guiding rates: 30%, 50%, and 2x sidereal rate
- Four setting rates: 4x, 8x, 16x, and 32x sidereal rate
- Six guide rates: 0.3x, 0.5x, 2x, 4x, 8x, and 16x sidereal rate
- Tracking rates: Sidereal, Solar, Lunar, King
- Periodic Error Correction (PEC) improves tracking precision over time
- Declination backlash compensation allows users to program out intrinsic play between gears for smoother and more precise tracking
- Northern and Southern Hemisphere modes
- Auto-guider port
- Control panel dimmer
- Non-volatile memory and real-time clock preserve settings when turned off and power disconnected
- Ethernet 10/100 with full IP function permits operation from anywhere using a browser, ASCOM, or app over the web or Serial Port
- Supported languages: English, German, French, and Spanish
- Firmware upgrade via Internet
- Dual 12-18V DC input/output (3.0A) for accessories
- Tripod
-
- Aluminum alloy
- Scratch-resistant black anodized finish
- Adjustable height of 27-43"
UPC: 851868007478 In the Box Losmandy GM-8G Equatorial GoTo Mount with Tripod 7-lb Counterweight for GM-8, G-9, G-11 and Titan Mounts Counterweight Shaft Motor Drive Assembly Kit Gemini 2 Hand Controller Adjustable-Height Tripod 12 VDC Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Losmandy GM-8G Equatorial GoTo Mount with Tripod in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLosmandy GM8G Specs | Mount Type | Motorized equatorial | | Load Capacity | 60.0 lb / 27.2 kg, total
30.0 lb / 13.6 kg, instrument capacity | | Motor | High-torque DC servo | | GO-TO Capability | Gemini 2 computer hand controller | | Altitude Adjustment | 0 - 64° | | Polar Axis Scope | None | | Includes Tripod/Pier | Adjustable-height aluminum
27 - 43" / 68.6 - 109.2 cm | | Counterweight | 7.0 lb / 3.2 kg | | Power Source | 12 VDC | | Weight | Head: 21.0 lb / 9.5 kg
Tripod: 15.0 lb / 6.8 kg | | | | Package Weight | 58.5 lb | | Box Dimensions (LxWxH) | 34.2 x 18.8 x 13.8" |
