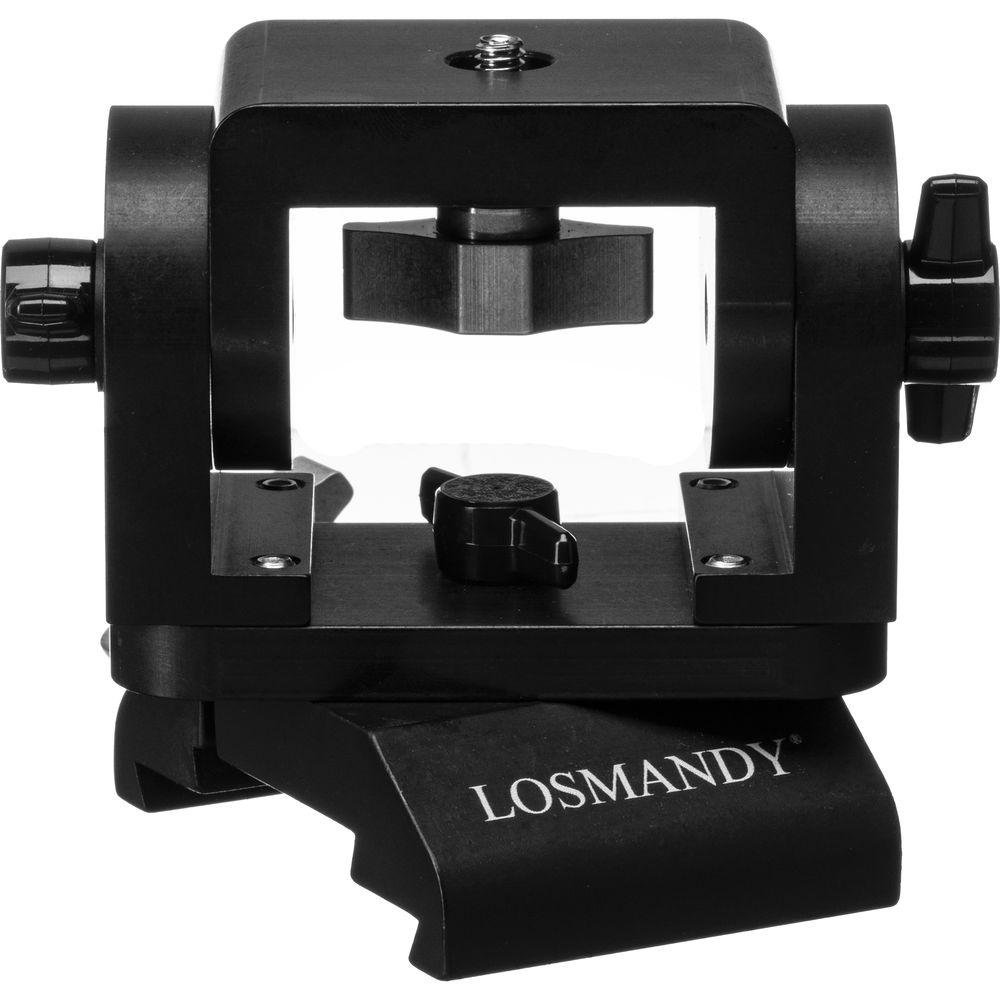

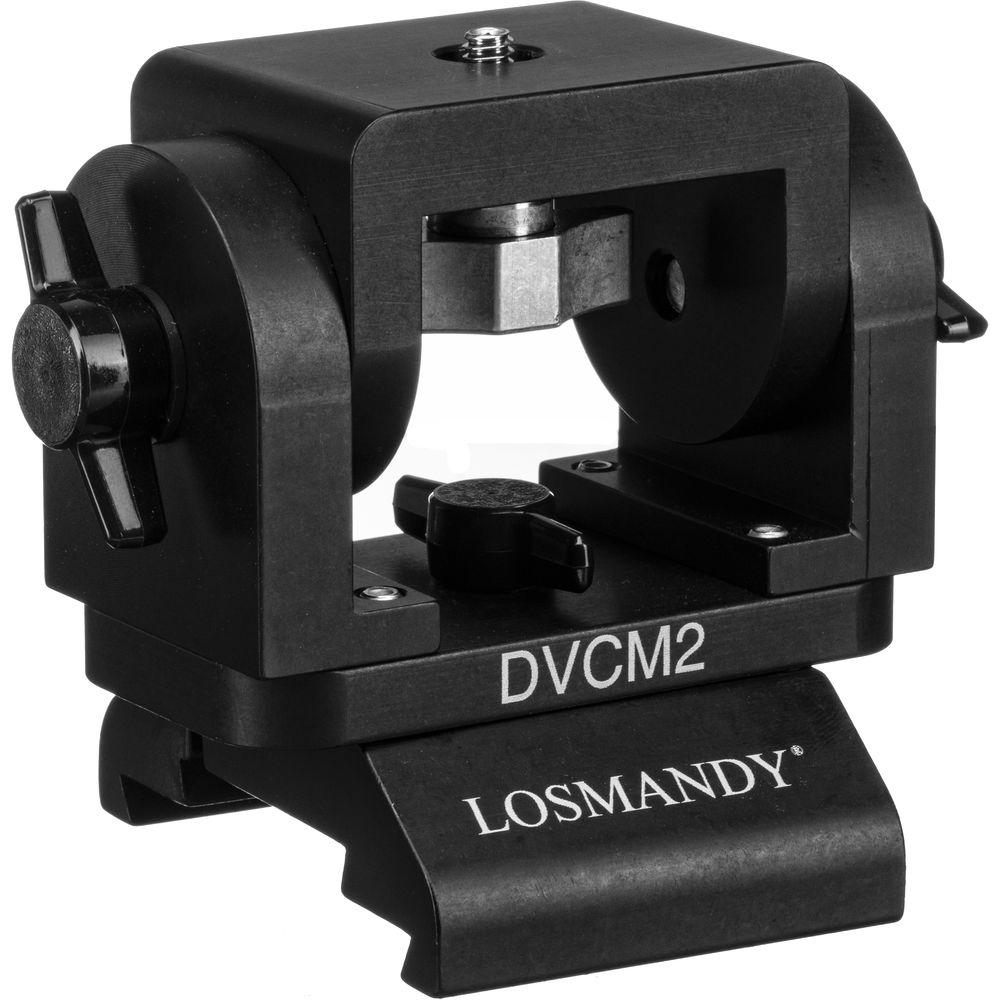

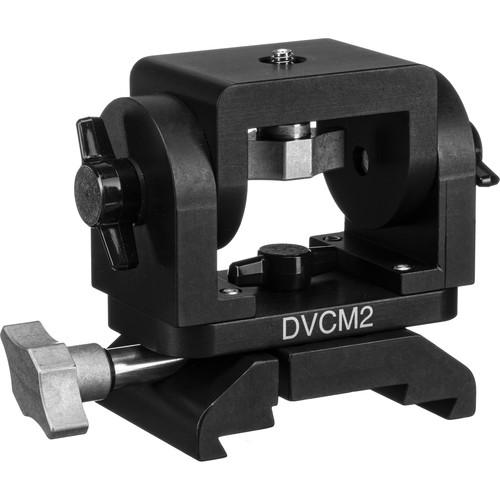

Product description With the Losmandy Triple-Axis Camera Rotation Mount you can now quickly and easily mount a DSLR camera onto EQ, alt-az, or motorized mount heads for wide-field, Solar (with proper filters), and Lunar astrophotography. The base is compatible with Losmandy's large D or smaller V-plates for use with the two most popular plate sizes, while a standard 1/4"-20 threaded post on top enables fast attachment of a camera without the need for tools thanks to a tightening large knob.The mount is designed to provide a wide range of motion, enabling the camera to be rotated a full 360°, with a ±45° up or down tilt for precise placement. The base portion can also rotate 360° for an even greater range of motion. Made of a lightweight and durable aluminum allow, it sports a scratch and corrosion-resistant anodized finish to protect it. When using a D-plate, the height from the top of the plate to the top of the camera mount is 3.95"; and when using a V-plate, the height is 3.65". UPC: 851868007249 In the Box Losmandy Triple-Axis Camera Rotation Mount Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Losmandy Triple-Axis Camera Rotation Mount in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLosmandy DVCM 2 Specs | Mount | Camera: 1/4"-20 post
Mount head: Dovetail saddle | | Mounting Height | D (Losmandy) plate: 3.95" / 10.03 cm
V (Vixen) plate: 3.65" / 9.27 cm
Height from top of dovetail plate to top of camera mount | | Construction | Aluminum alloy | | Weight | Not specified by manufacturer | | | | Package Weight | 2.33 lb | | Box Dimensions (LxWxH) | 12.85 x 9.35 x 2.15" |
