User Manual for Louroe 4-Channel Audio Interface Adapter Click to enlarge the picture
Contents of the user manual for the Louroe 4-Channel Audio Interface Adapter
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe 4-Channel Audio Interface Adapter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

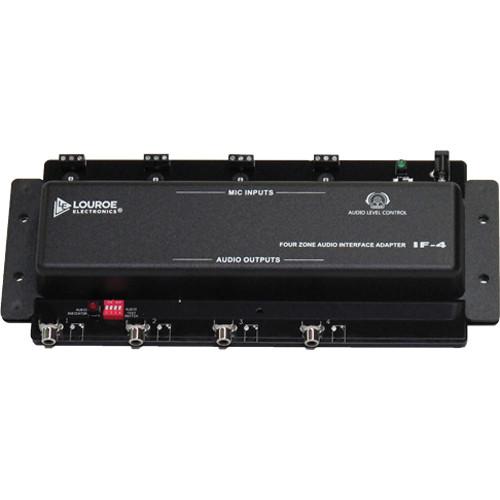

Product description The 4-Channel Audio Interface Adapter from Louroe Electronics is a 4-zone interface unit that can connect up to 4 Louroe microphones to a DVR or any other recording device with line level inputs. This interface adapter features an RCA and a 3.5mm (mini jack) stereo output. This dual output functionality facilitates flexibility of connectivity, and enables you to send the audio signals from the microphones to devices with RCA or 3.5mm inputs.
The interface adapter's audio level control potentiometer allows you to vary the audio gain, as per your requirements, to prevent overdriving or underdriving of the audio signals. The included audio test switch notifies the end user that audio signals are being delivered to the audio recording device. With an LED bulb, the test switch indicates whenever an audio signal is detected. Note: Wiring Requirements: For Microphone Connection: 2-conductor 22-gauge shielded cable with a 24-gauge drain wire. - Designed for connecting up to 4 microphones to a DVR, VCR, or any other recording device that has line level audio inputs
- Contains terminal blocks from microphone connections
- Supplies 12VDC power to the microphones
- Dual output (per microphone) to accommodate either an RCA input or 3.5mm input connection to a DVR, IP Network Camera, etc
- Gain adjust (each output) to prevent overdriving or underdriving the audio signal
- Audio test switch with indicator LED notifies you about the delivery of audio signals
- Suitable for use with IP network cameras, DVR's, Video Servers, PC soundcard modules, or other audio receiving devices that accept line level input
UPC: 785583002886 In the Box Louroe 4-Channel Audio Interface Adapter 12 VDC Power Supply 4 x RCA to RCA Cable 4 x RCA to 3.5mm Mono Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe 4-Channel Audio Interface Adapter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-288 Specs | Input | 3-Pin Terminal Block: Line level (0 dB @ 1 kOhms) | | Audio Input Impedance | 5 kOhms | | Audio Output Impedance | 600 ohms | | Output Gain | Audio: 10 dB | | Power Requirements | 12 VDC, 500 mA | | Dimensions (L x W x H) | 6.13 x 4.50 x 1.25" (15.57 x 11.43 x 3.18 cm) | | Weight | 2.0 lb (0.9 kg) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 14.8 x 5.2 x 2.2" |
