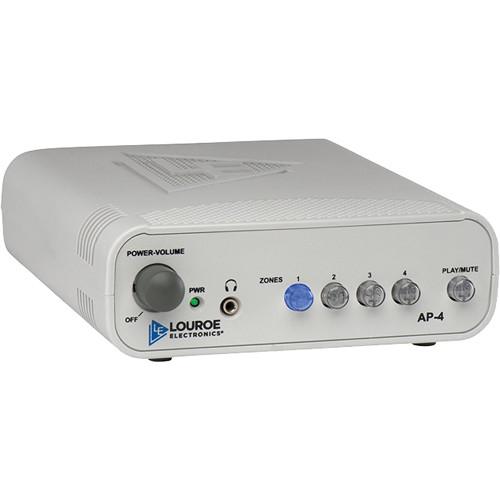

User Manual for Louroe 4-Zone Manual Audio Monitoring Base Station Click to enlarge the picture
Contents of the user manual for the Louroe 4-Zone Manual Audio Monitoring Base
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe 4-Zone Manual Audio Monitoring Base contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The 4-Zone Manual Audio Monitoring Base Station from Louroe Electronics contains 4 audio inputs (terminal blocks) for connecting up to 4 Louroe microphones for live monitoring and has 4 audio outputs (RCA type) for connection to a DVR with multiple audio inputs. The station also contains a selectable audio output (RCA) for connecting to a VCR or to a DVR with only one audio input. One audio input is available for audio playback from the DVR or VCR. A 3" built-in speaker provides live and playback audio. The base station and microphones can be located up to 1000' away from each other without losing the signal. The base station features a mute/playback switch that mutes the audio from remote microphones. - Built-in amplifier and 3" speaker for monitoring live audio and playback
- Audio output (each zone) for connection to a DVR with multiple audio inputs
- Mutes switch to mute live audio from microphones
- Headphone jack for private monitoring
- When part of a Louroe audio system, the base station can be used in situations such as convenience stores, fast food restaurants, day care centers, sleep disorder centers, therapy labs, interrogation rooms, or anywhere CCTV cameras are installed
UPC: 785583004347 In the Box Louroe 4-Zone Manual Audio Monitoring Base Station 110VAC/12VDC Power Supply Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe 4-Zone Manual Audio Monitoring Base Station in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-434 Specs | Input Impedance | 100 kW from remote mic | | Power Output | 1 W @ 8 ohms | | Audio Output Impedance | 1 kOhm | | Audio Input Impedance | 10 kOhm | | Frequency Response | 100 Hz to 10 kHz flat | | Current Drain | 200 mA | | Headphone Impedance | 8 to 600 ohms | | Wiring | 2-conductor shielded cable, 22-gauge with a 24-gauge drain wire required Unshielded cable is not satisfactory for audio systems | | Power Input | 12 VDC, 500 mA | | Dimensions (W x L x H) | 6.62 x 8.62 x 2.12" (16.82 x 21.89 x 5.38 cm) | | Weight | 1.75 lb (0.79 kg) | | | | Package Weight | 2.55 lb | | Box Dimensions (LxWxH) | 11.75 x 8.4 x 5.55" |
