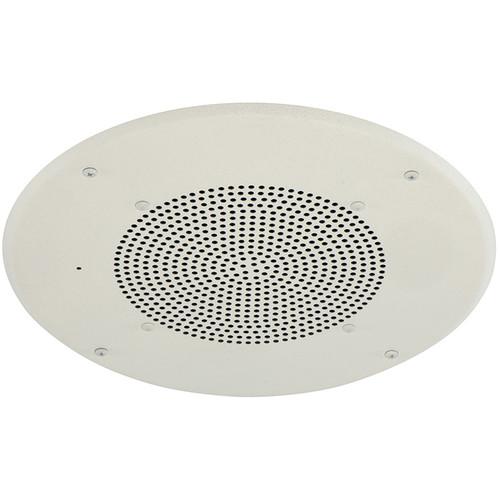

User Manual for Louroe AOP-SP-CF Ceiling Speakerphone Click to enlarge the picture
Contents of the user manual for the Louroe AOP-SP-CF Ceiling Speakerphone
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe AOP-SP-CF Ceiling Speakerphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics AOP-SP-CF Ceiling Speakerphone (Flush Mount) is designed to interface with various modes of audio/video transmission systems. It provides bi-directional audio with the receiving source (DVR, PC soundcard, IP network cameras with audio, and video servers with audio). This speakerphone contains a built-in electret condenser microphone and a 4" (102 mm) speaker. It also has potentiometer controls for adjusting the sensitivity of both transmitted and received audio.
This system can be used as stand alone unit or with Louroe model AOP-XD audio transceiver interface. - Omni-directional microphone and 4"(102 mm) speaker
- Controls for adjusting volume of both listen and talkback
- Is meant for flush mounting to a ceiling
- Hands-free operation for talk/listen
UPC: 785583001155 In the Box Louroe AOP-SP-CF Ceiling Speakerphone (Flush Mount) Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe AOP-SP-CF Ceiling Speakerphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-115 Specs | | | Type | Electret condenser | | Audio Output | Line level (0 dB @ 600 Ω), unbalanced | | Sensitivity | Element: -45 dB | | Frequency Response | 40 Hz to 10 kHz | | Audio Input Impedance | 600 Ω | | | | Power Output | 1.5 W | | Impendance | 8 Ω | | Magnet | 3 oz ceramic | | Size | 4" (102 mm) | | Current Drain | 200 mA | | Supply Voltage | 12 VDC | | Weight | Net: 2.5 lb ( 1.1 kg) | | | | Grille | 12.87" (326.89 mm) | | Dimensions | Inside: 9.75" (247.00 mm)
Flange:12.31" (313.00 mm)
Depth: 4.50" (114.00 mm) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 15.0 x 15.0 x 6.0" |
