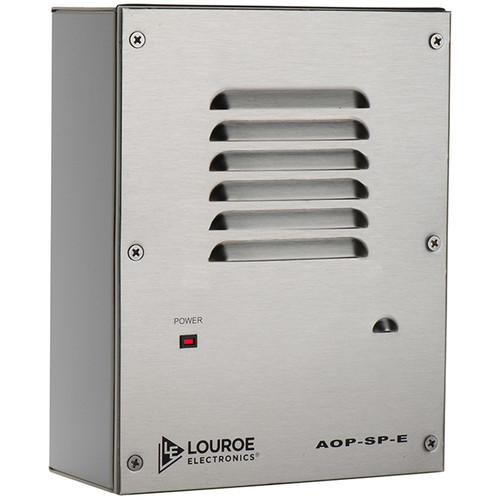

User Manual for Louroe AOP-SP-E Bi-Directional Speakerphone Click to enlarge the picture
Contents of the user manual for the Louroe AOP-SP-E Bi-Directional Speakerphone
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe AOP-SP-E Bi-Directional Speakerphone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics AOP-SP-E Bi-Directional Speakerphone is a wall mount speakerphone designed to interface with various modes of audio/video transmission systems. It provides bi-directional audio with the receiving source (DVR, PC soundcard, IP Network cameras with audio, and video servers with audio). This speakerphone contains a built-in electret condenser microphone and a 4"(102mm) speaker. Also, it has potentiometer controls for adjusting the sensitivity of both transmitted and received audio. The unit is weather-resistant and may be used for outdoor applications.
Provided with this speakerphone are two back boxes for either flush or surface mounting to a wall. This bi-directional speakerphone can be used as a stand-alone unit or with the companion AOP-XD Audio Transceiver (sold separately). If used as a stand-alone unit, this speakerphone must be powered by a 12VDC, 500mA power supply. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of audio monitoring on the premises. A decal notice is included with each microphone shipped. - Omni-directional microphone and 4" (102mm) speaker
- External controls for adjusting volume of both listen and talkback
In the Box Louroe AOP-SP-E Bi-Directional Speakerphone Metal Surface Mount Backbox Plastic Flush Mount Backbox Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe AOP-SP-E Bi-Directional Speakerphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-165 Specs | | | Type | Electret condenser | | Output | Line level (0 dB @ 600 Ω) | | Sensitivity | Element: -45 dB | | Frequency Response | 40 Hz to 15 kHz ± 1dB | | | | Power Output | 2 W | | Impedance | 8 Ω | | Magnet | 3 oz (85 g) ceramic | | Size | 4" (102 mm) | | Power Supply | 12 VDC, 500 mA | | Requirements | Wiring: 3 conductor wires consisting of 2 conductor-shielded wires, 20 gauge with 22 gauge drain and 1 conductor unshielded wire, 20 gauge, all in the same jacket | | Dimensions | Aluminum Face Plate (W x L): 6.25 x 8.00" (159.00 x 203.00 mm)
Aluminum Surface Mount Backbox (W x L x D): 6.25 x 8.00 x 2.75" (159.00 x 203.00 x 70.00 mm)
Flush Mount BackBox (W x L x D): 5.00 x 6.87 x 2.62" (127.00 x 175.00 x 67.00 mm )
Overall Dimensions Flange (W x L x D): 6.25 x 8.00 x 2.62" (159.00 x 203.00 x 67.00 mm ) | | | | Package Weight | 6.0 lb | | Box Dimensions (LxWxH) | 12.0 x 9.0 x 6.0" |
