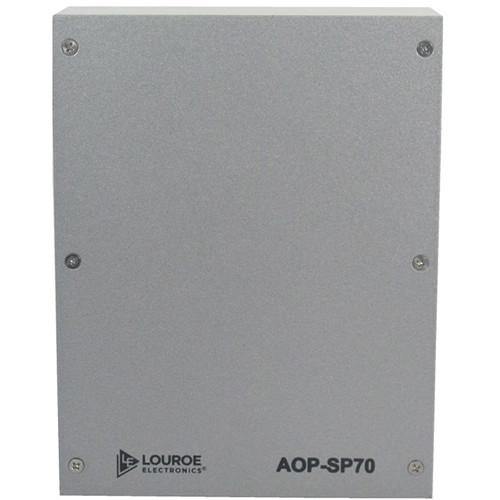

User Manual for Louroe AOP-SP70 Speakerphone Conversion Unit Click to enlarge the picture
Contents of the user manual for the Louroe AOP-SP70 Speakerphone Conversion Unit
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe AOP-SP70 Speakerphone Conversion Unit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|
Product description The Louroe Electronics AOP-SP70 Speakerphone Conversion Unit is used in conjunction with Louroe TLO Outdoor Speaker/Microphone. It converts the audio signal of the TLO for providing two-way audio with a DVR, IP network camera, a video server, or any other receiving site. The person at the receiving site hears the audio through the computer speaker or through a headphone. For talkback to the remote site (TLO location), the computer’s microphone is used to transmit audio back through the network to the speakerphone conversion unit. It is then amplified and sent out to the speaker portion of the remote TLO.
In addition, this speakerphone conversion unit provides 12VDC power to the TLO. It is used with the TLO Speaker/Microphone primarily for outdoor or harsh environment applications requiring two-way communication with the above listed audio/video receiving devices. This audio conversion unit is mounted in ABS housing with teardrop cut-outs for wall mounting. Note: Only the TLOSpeaker/Microphone is weather-resistant. The LE-129 Speakerphone Conversion Unit requires protection from weather.
When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of audio monitoring on the premises. A decal notice is included with each microphone shipped. - Contains audio inputs (terminal blocks) for microphone and speaker connection from Louroe TLO
- Sends power to speaker/microphone (TLO)
- Drives audio signals into DVR, IP network cameras, etc
- Amplifies talkback from receiving device for broadcast through TLO speaker
- Contains level controls for listen and talkback
- Contains built-in 12VDC power jack
UPC: 785583001292 In the Box Louroe AOP-SP70 Speakerphone Conversion Unit Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe AOP-SP70 Speakerphone Conversion Unit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-129 Specs | Impedance | 600 Ω (monitor output), 600 Ω (talkback input) | | Power Output | Talkback: 1 @ 70 (W x V) | | Power Input | 12 VDC, 500 mA | | Requirements | Wiring: 4-conductor cable consisting of 2 conductors shielded, 20 gauge with 22 gauge drain (for microphone connection) and 2 conductors unshielded, 18 gauge (for speaker connection),all in the same jacket | | Dimensions (L x W x H) | 8.37 x 7.37 x 2.75" (212.59 x 187.19 x 69.85 mm) | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 11.7 x 8.3 x 5.7" |
