User Manual for Louroe AP-4TB Audio Monitoring Base Station with Listen & Talkback Click to enlarge the picture
Contents of the user manual for the Louroe AP-4TB Audio Monitoring Base Station
- Product category: Audio Surveillance Louroe
- Brand: Louroe
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Louroe Audio Surveillance
|
User manual for the Louroe AP-4TB Audio Monitoring Base Station contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Louroe product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Louroe user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Louroe product will considerably shorten its lifespan!
|

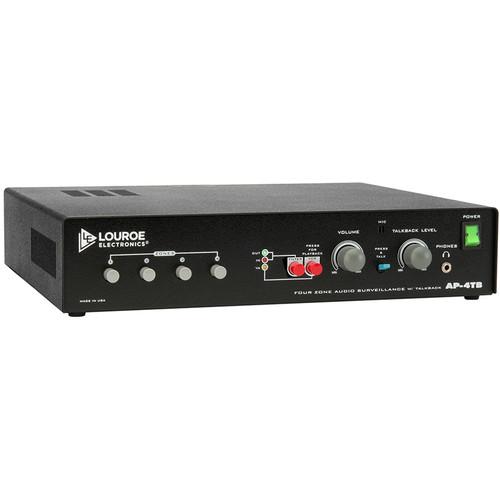

Product description The AP-4TB Audio Monitoring Base Station with Listen & Talkback from Louroe Electronics is designed for live audio monitoring from 4 zones, one at a time. This audio monitoring base station features a built-in 3" (76.2mm) speaker and a microphone for talkback to the remote area. Zone selection can be accomplished with a push button.The AP-4TB Audio Monitoring Base Station is designed to interface with a 24-hour time-lapse recorder (sold separately). Special filtering enhances the sound quality of audio during playback. The permissible distance between the AP-4TB Base Station and the speaker or microphones can be up to 1,000' (304.8m). It is a desktop model or can be rack mounted (19" / 482.6mm rack mountable using the RM-1935 SER Rack Mounting Kit, sold separately).The AP-4TB Base Station can be used in situations such as monitoring of jail cells, building peripherals, therapy labs, warehouses, classrooms, storage facilities, day care centers, or anywhere where CCTV cameras are installed. Note: When this equipment is used as part of an audio monitoring system, the law requires that the public be given notice of AUDIO MONITORING ON THE PREMISES. A decal notice is included with each microphone shipped. - Built-in 3" (76.2mm) speaker for monitoring both live audio and playback audio
- Built-in filter for improving playback from 12 / 24-hour time-lapse recorders (sold separately)
- Microphone output jack for each zone for connecting to a DVR (sold separately) with multiple audio inputs
- Built-in microphone for talkback to the remote speaker
- A 3.5mm headphone jack on the front panel
- Contains internal power supply for direct connection to a 120VDC source
In the Box Louroe AP-4TB Audio Monitoring Base Station with Listen & Talkback Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Louroe AP-4TB Audio Monitoring Base Station with Listen & Talkback in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersLouroe LE-322 Specs | Input Sensitivity | From Remote Mic: 0.78 Vrms
Talk-Back Microphone: -45 dB | | Power Output | Monitoring: 1.5 W @ 8 Ω
Talkback: Maximum 1.5 W @ 70 V line | | Impedance | Audio Line Output: 600 W or higher
Audio Input: 10 kΩ
Headphone: 8 to 600 Ω | | Frequency Response (Audio) | Flat: 100 Hz to 10 kHz
Enhanced: -20 dB @ 200 Hz to +8 dB @ 3 kHz | | Power Input | 120 VDC, 60 Hz | | Wiring | 4 conductors consisting of a 2-conductor shielded cable
20 gauge with a 22 gauge drain (microphone connection)
2 conductor unshielded
18 gauge (speaker connection) | | Dimensions | 2.5 x 12.5 x 10.0" (63.5 x 317.5 x 254.0 mm) | | Weight | 8.5 lb (3.9 kg) | | | | Package Weight | 10.0 lb | | Box Dimensions (LxWxH) | 15.0 x 15.0 x 6.0" |
